Isotherm F140 Slim RV Electric Refrigerator/Freezer - 12V DC - 4.9 C/F

Isotherm F140 Slim RV Electric Refrigerator/Freezer - 12V DC - 4.9 C/F

The Indel Webasto Freeline Slim 140 fridge was specifically designed for the Class B RV market. With its tall but slim dimensions it is particularly suitable for compact vehicles which still need a comfortable fridge volume. Its excellent insulation and residential style condenser ensures low energy consumption and efficient cooling in high temperatures.

• Slim Dimensions: Only 16 ½" Wide

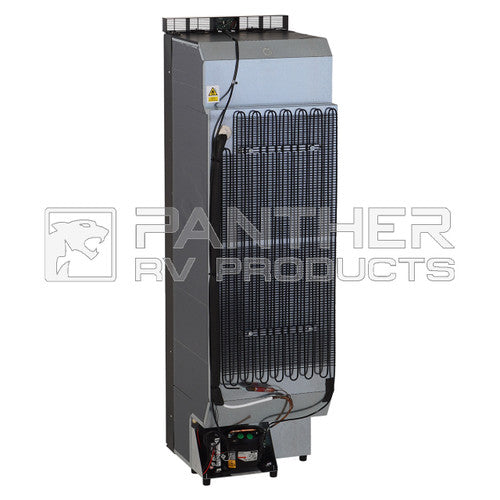

• Residential Style Condenser: The larger condenser offers more efficient cooling
• Power Saving Mode: Save energy at night with the power saving mode

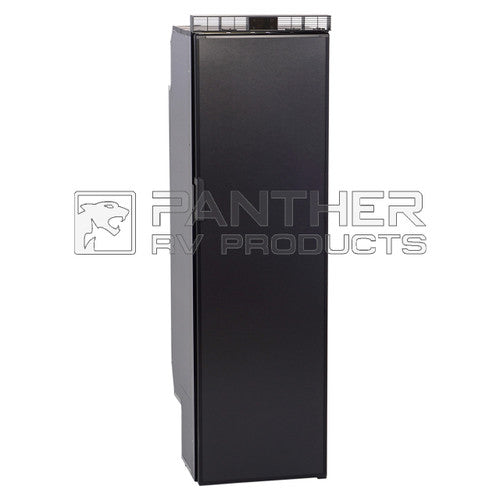

• Includes Door Panel: Comes with a matte black door panel pre-installed

UNIQUE DIMENSIONS

The Indel Webasto Slim 140 refrigerator was designed with the camper van outfitter in mind. The narrow dimensions are perfect for a compact design space. The extra narrow but tall design makes this refrigerator SLIM, while still providing an impressive volume of 140 liters.

POWER SAVING MODE

The power saving mode is the "Silent Night" function. This function is designed to be used during periods when the refrigerator is used less. When active, the refrigerator reduces the noise level to increase the comfort level on board, modulating cooling based on energy availability.

Electric refrigerators are sensitive to power changes or insufficient power. It is important that the system can handle 15 amps of 12V DC power. A minimum of 8 gauge wire for installations up to 20 ft. is required. If the refrigerator is supplied with insufficient power, it will not operate, or show signs of difficulty operating. In order to prevent excessive battery depletion, a protection device shuts off the compressor in case of insufficient voltage (10.4v) and turns it back on when the voltage in the system increases after the batteries have been charged (11.7v).

Additional Info

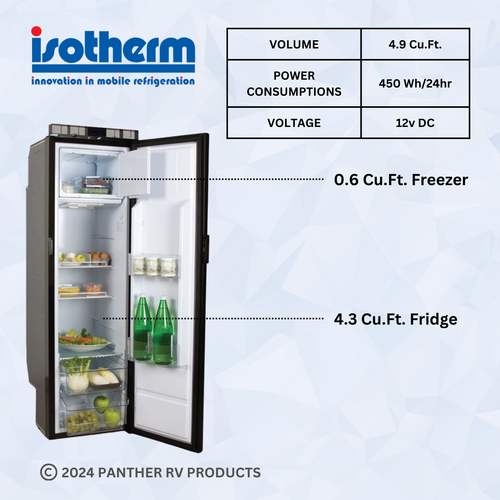

• Total Capacity: 4.98 cu. ft.
• Refrigerator Capacity: 4.38 cu. ft.
• Freezer Capacity: 0.60 cu. ft.

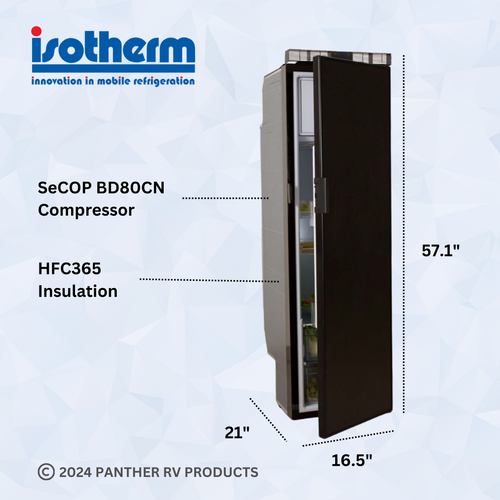

• Overall Dimensions: 57 ⅛"H x 16 ½"W x 21"D
• Cut-Out Dimensions: 53 ½"H x 16 ½"W x 17 ¾"D

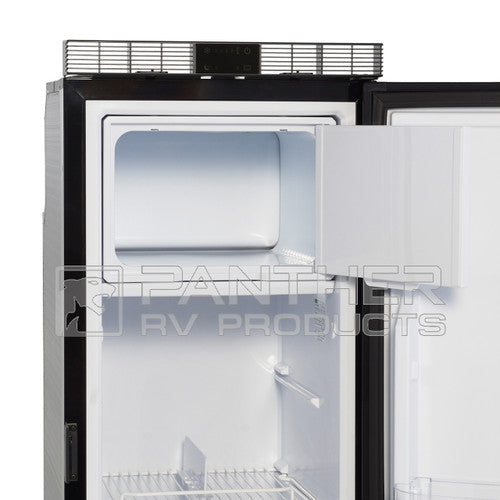

• Freezer Dimensions: 7 ¼"H x 11 ¼"W x 12 ¼"D
• Upper Drawer Dimensions: 5"H x 10 ½"W x 13 ½"D
• Lower Drawer Dimensions: 5 ¾"H x 10 ½"W x 6"D
• Power Source: 12V DC
• Average Daily Power Consumption: 450 Watts
• Compressor: Secop BD80CN
• Insulation: HFC365
• Series: Freeline Slim
• Weight: 84 lbs.
• Color: Black
• Door Reversible: Yes
• Removable Door Panel: Yes

Note: The dimensions listed here are for reference and are not intended to be used for cabinet design. We highly recommend taking measurements from the actual product before finalizing the design of your cabinetry and/or cutouts.
