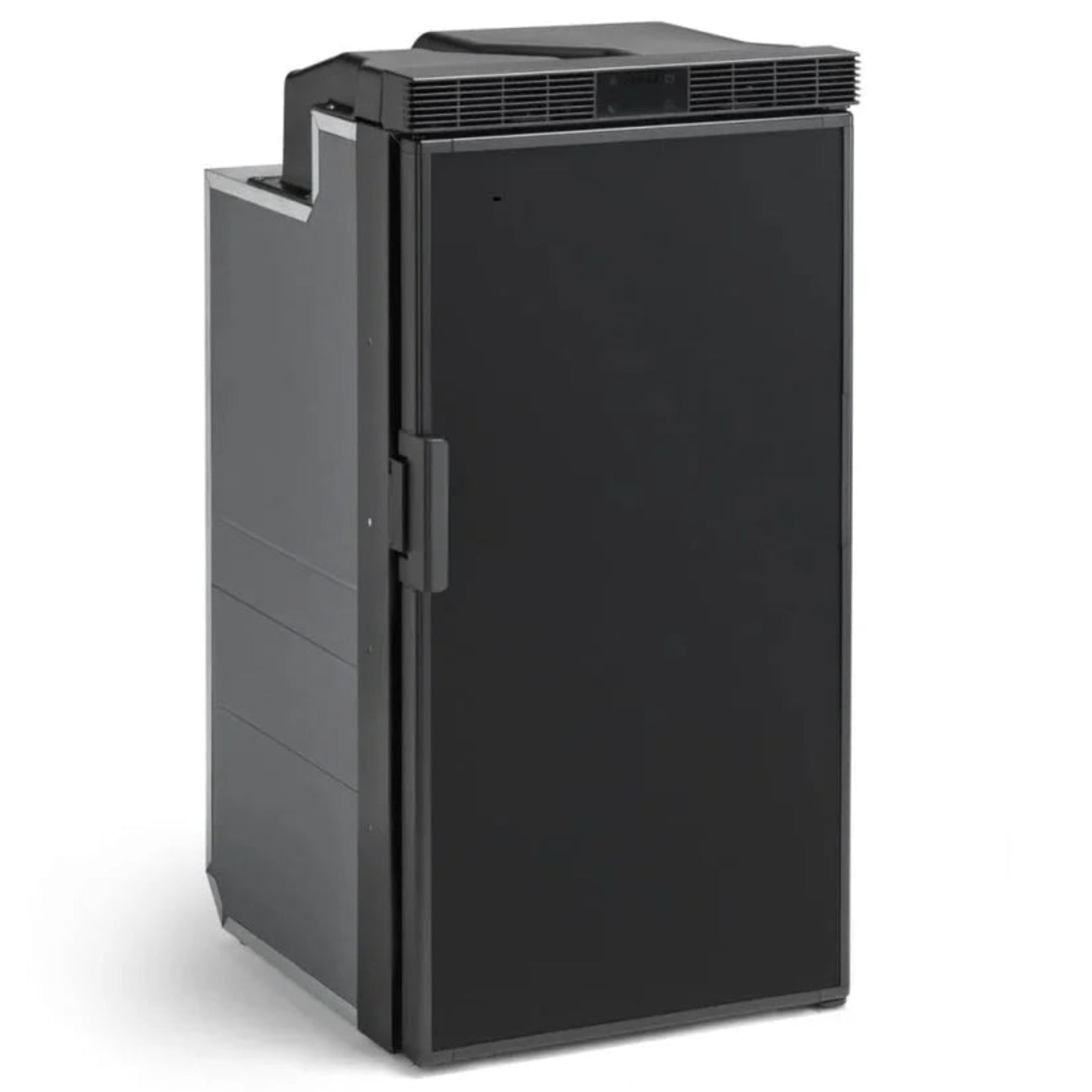

Isotherm Freeline Slim FL70 12V DC RV Refrigerator/Freezer – 2.5 cu. ft.

The Isotherm Freeline Slim FL70 is a tall, narrow 12V DC refrigerator/freezer designed specifically for compact Class B RVs and campervans. With a total capacity of 2.5 cubic feet, it provides separate refrigerator and freezer space while maintaining a slim footprint that fits tight cabinetry layouts. Its residential-style condenser and high-efficiency insulation support reliable cooling performance in warm conditions, making it suitable for off-grid van builds, small RVs, boats, and other mobile living setups where space and power management are critical.

Important: The system must support 15 amps at 12V DC. A minimum of 8 gauge wire is required for installations up to 20 ft. The refrigerator will shut off at 10.4V to protect the battery and restart at 11.7V once voltage increases. Dimensions listed are for reference only and should not be used for final cabinet design without verifying measurements from the actual unit.

Key Features

• Slim 16 ½" Wide Design: Narrow width allows installation in compact campervan and RV layouts while still providing usable storage volume.
• 2.5 cu. ft. Total Capacity: Includes 2.04 cu. ft. of refrigerator space and 0.42 cu. ft. of freezer space for organized cold storage in small mobile systems.
• Residential-Style Condenser: Larger condenser improves cooling efficiency and performance, especially in higher ambient temperatures.
• Silent Night Power Saving Mode: Reduces noise and modulates cooling during low-demand periods to improve onboard comfort and manage energy use.
• 12V DC Operation: Designed for direct integration into RV, van, or marine battery systems without requiring an inverter.
• Low Voltage Protection: Built-in battery protection automatically shuts off the compressor at 10.4V and restarts at 11.7V to help prevent excessive battery depletion.
• Reversible Door: Right-hand door swing can be reversed to accommodate different cabinet layouts and interior designs.

Specs & Details

• Total Capacity: 2.50 cu. ft.
• Refrigerator Capacity: 2.04 cu. ft.
• Freezer Capacity: 0.42 cu. ft.
• Overall Dimensions: 33 17/20"H x 18 3/10"W x 17 18/25"D
• Cut-Out Dimensions: 35 5/16"H x 16 1/2"W x 16 1/8"D
• Power Source: 12V DC
• Average Daily Power Consumption: 290 Watts
• Compressor: BDN50K
• Insulation: HFC365
• Series: Freeline Slim
• Weight: 44 lbs.
• Color: Black
• Door Swing: Right (Reversible)
