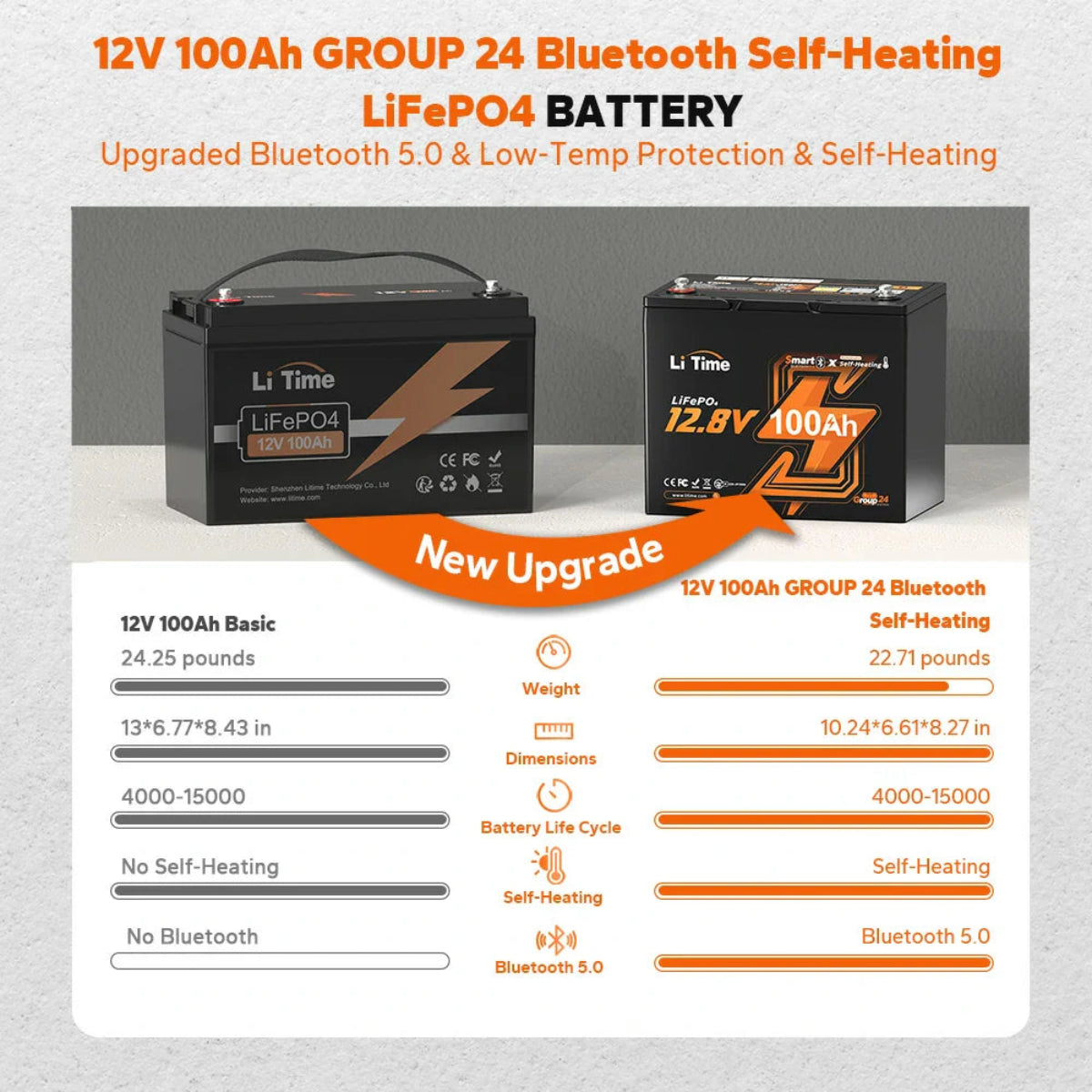

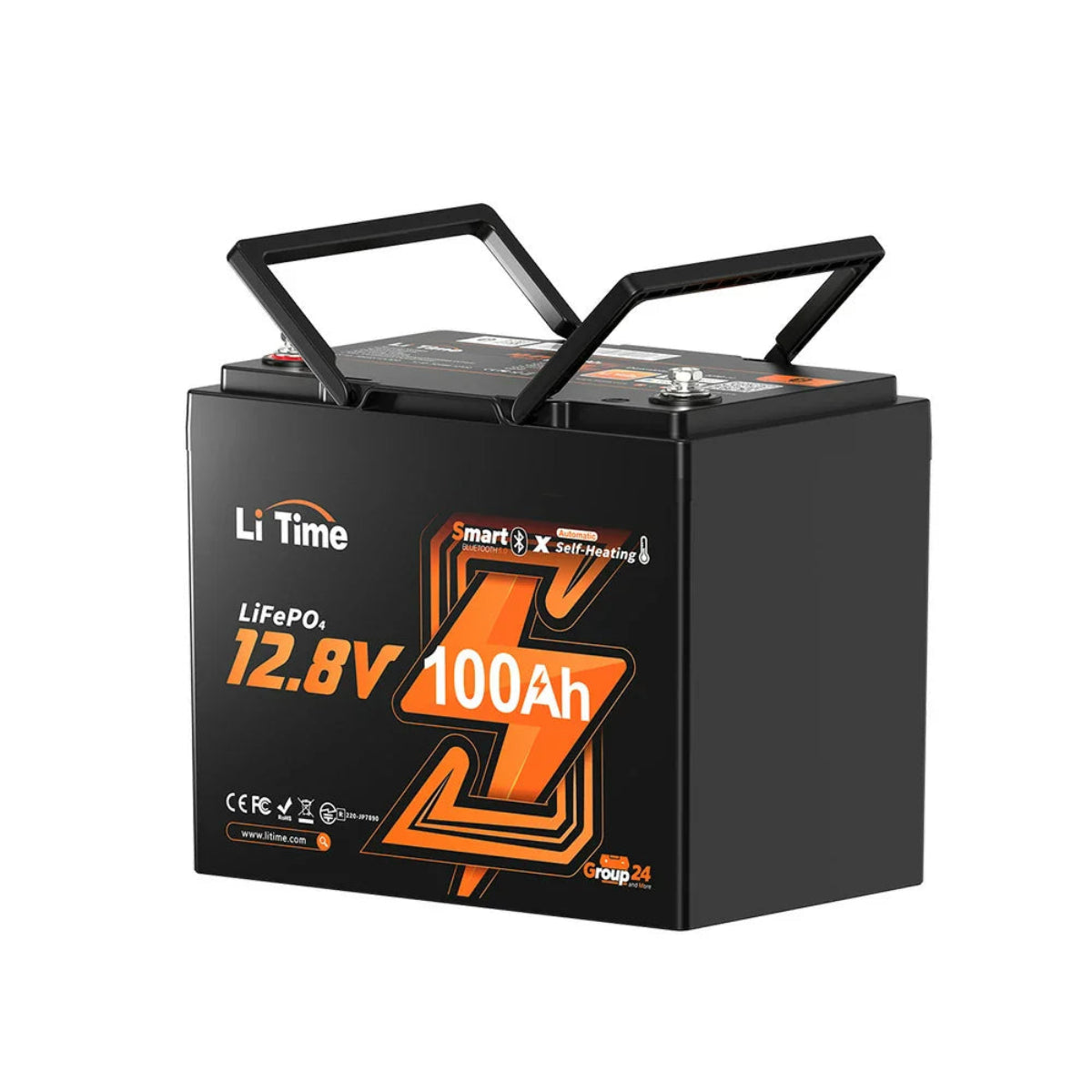

Group 24 Self-Heating LiFePO4 Battery with Bluetooth Monitoring
This is a Group 24 lithium iron phosphate (LiFePO4) battery designed for 12-volt energy storage in RVs, camping setups, trolling motor systems, solar installations, and off-grid power systems. It provides stable power for DC loads and moderate inverter use, with built-in monitoring and cold-weather charging support. The battery is suited for users who need a compact form factor, reliable safety protections, and remote visibility into battery status.
Important: Upon initial use or after manually powering off the battery, connect a charger to turn the battery on. A 14.6V 20A charger is recommended. Do not use this battery as an engine starter battery.
Key Features

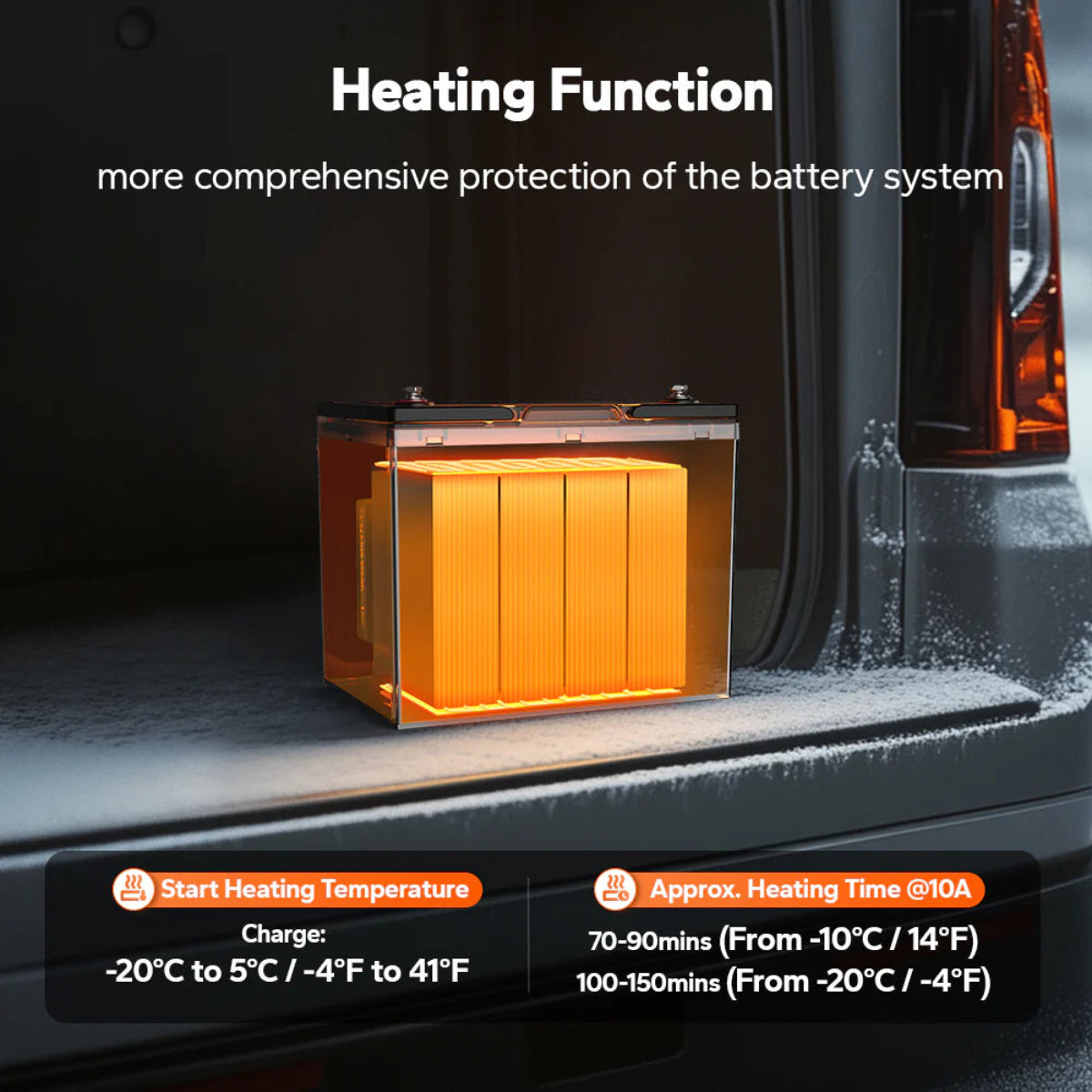

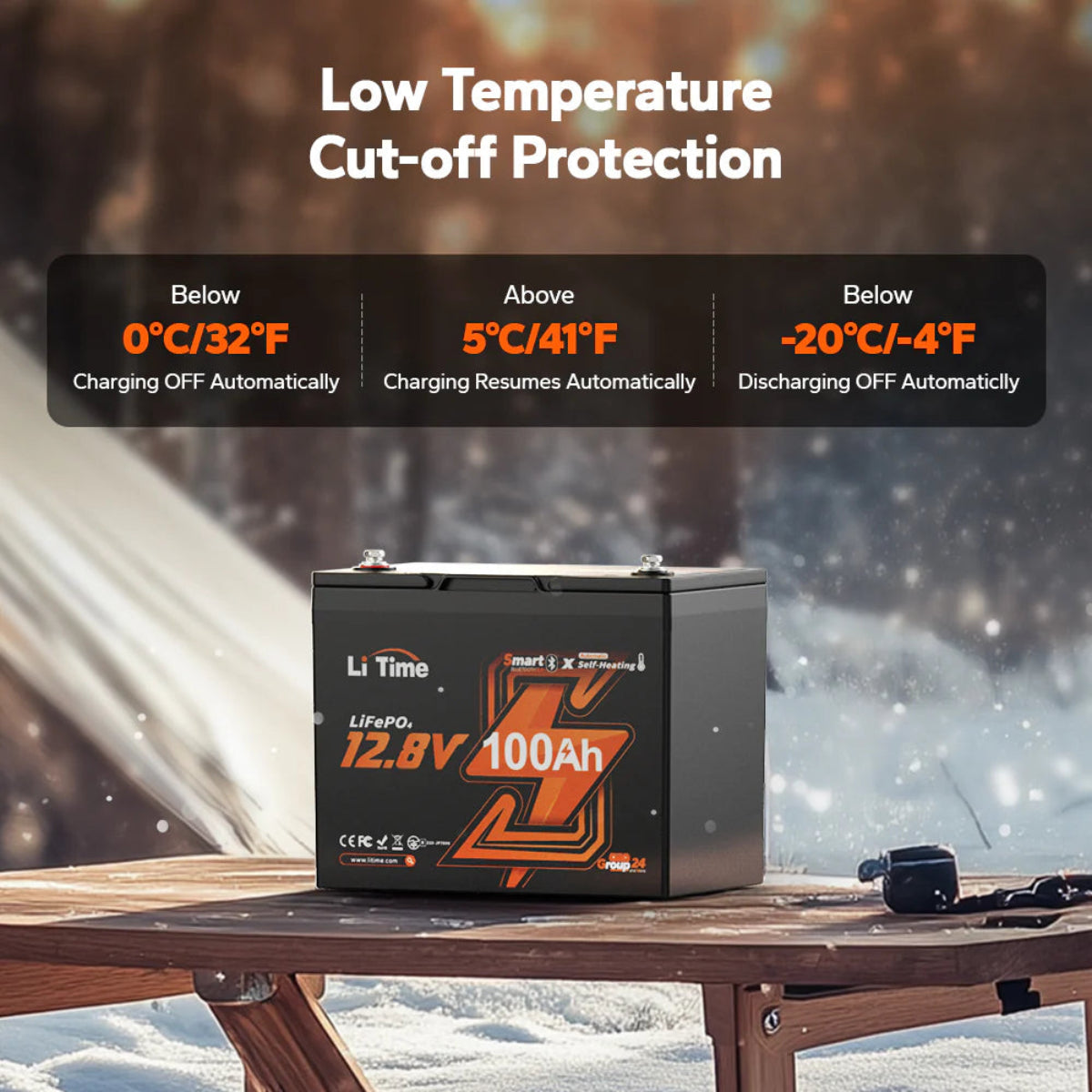

- Self-heating capability: Allows the battery to safely accept a charge in freezing conditions by warming the cells internally.
- Bluetooth 5.0 monitoring: Provides real-time battery status, data monitoring, and basic control through a mobile app.

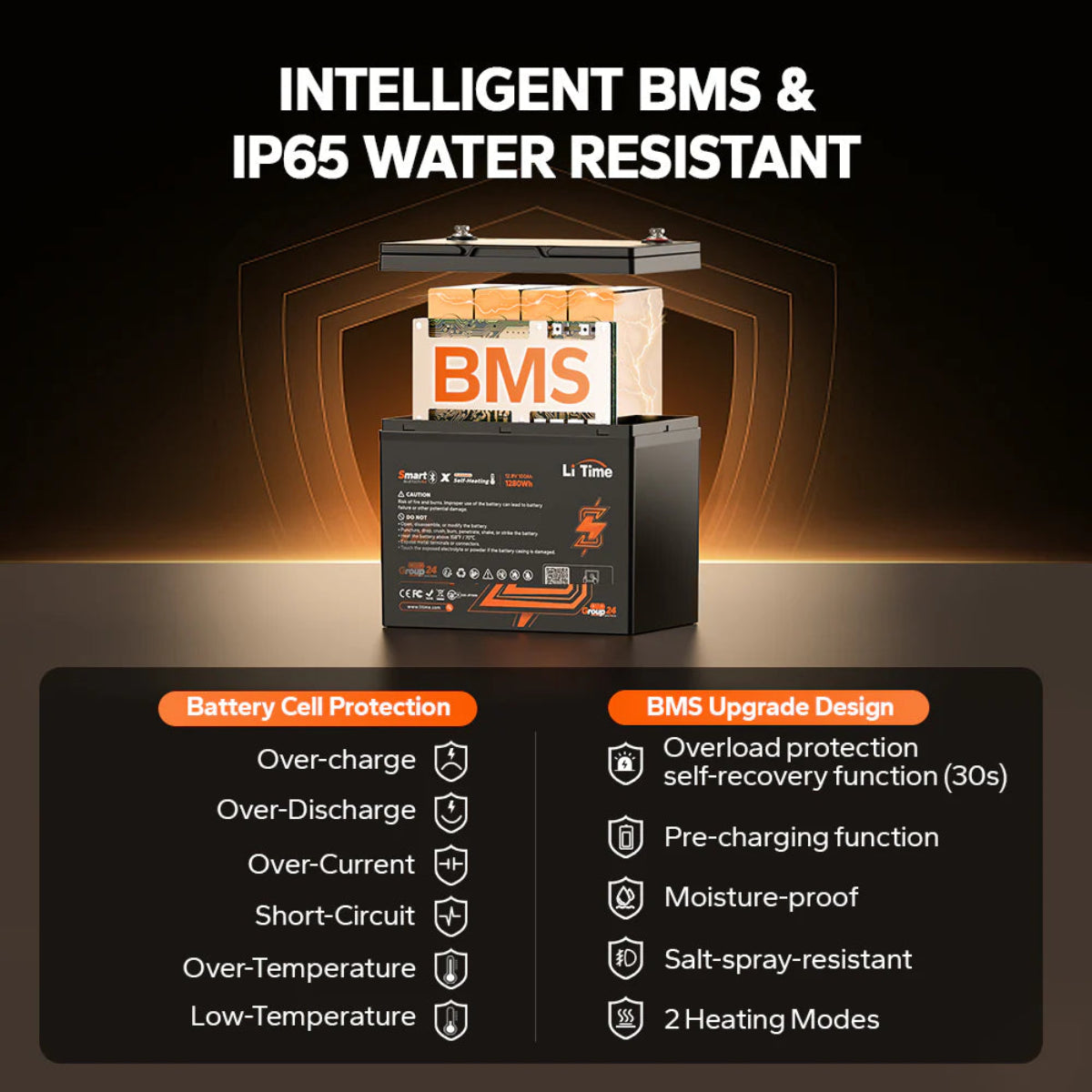

- Advanced battery management system: Includes over 20 protections and system warnings to manage charging, discharging, and fault conditions.
- Automatic overload recovery: Shuts down during overload events and restores operation automatically without user intervention.

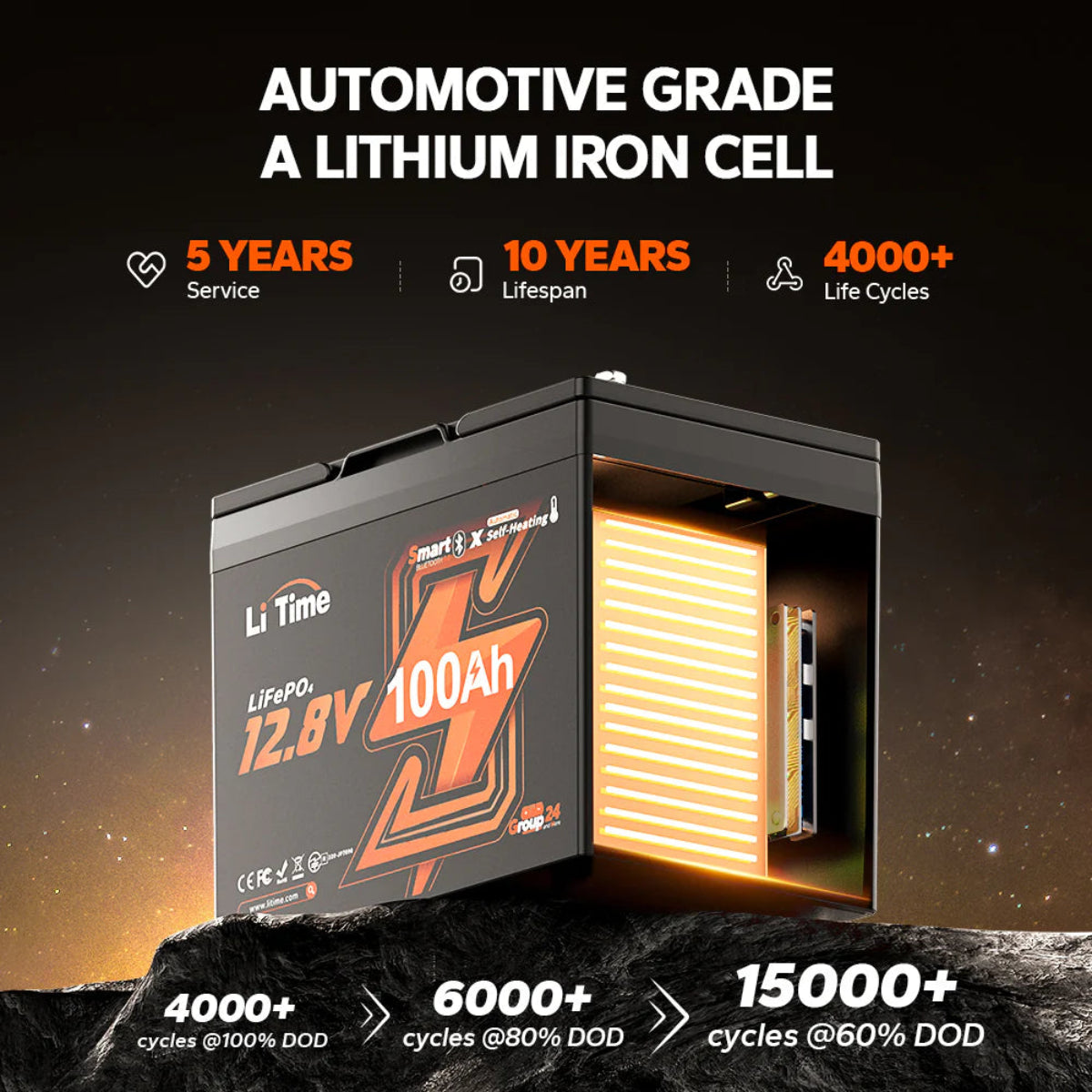

- EV Grade-A LiFePO4 cells: Built with lithium iron phosphate cells rated for more than 4000 cycles at 100% depth of discharge.
- High surge capability: Supports short-duration surge loads with a peak discharge current of 500A for 1 second.
- Expandable system design: Can be configured in series and parallel combinations to increase total system voltage and capacity.
Specs & Details
- Battery size: Group 24

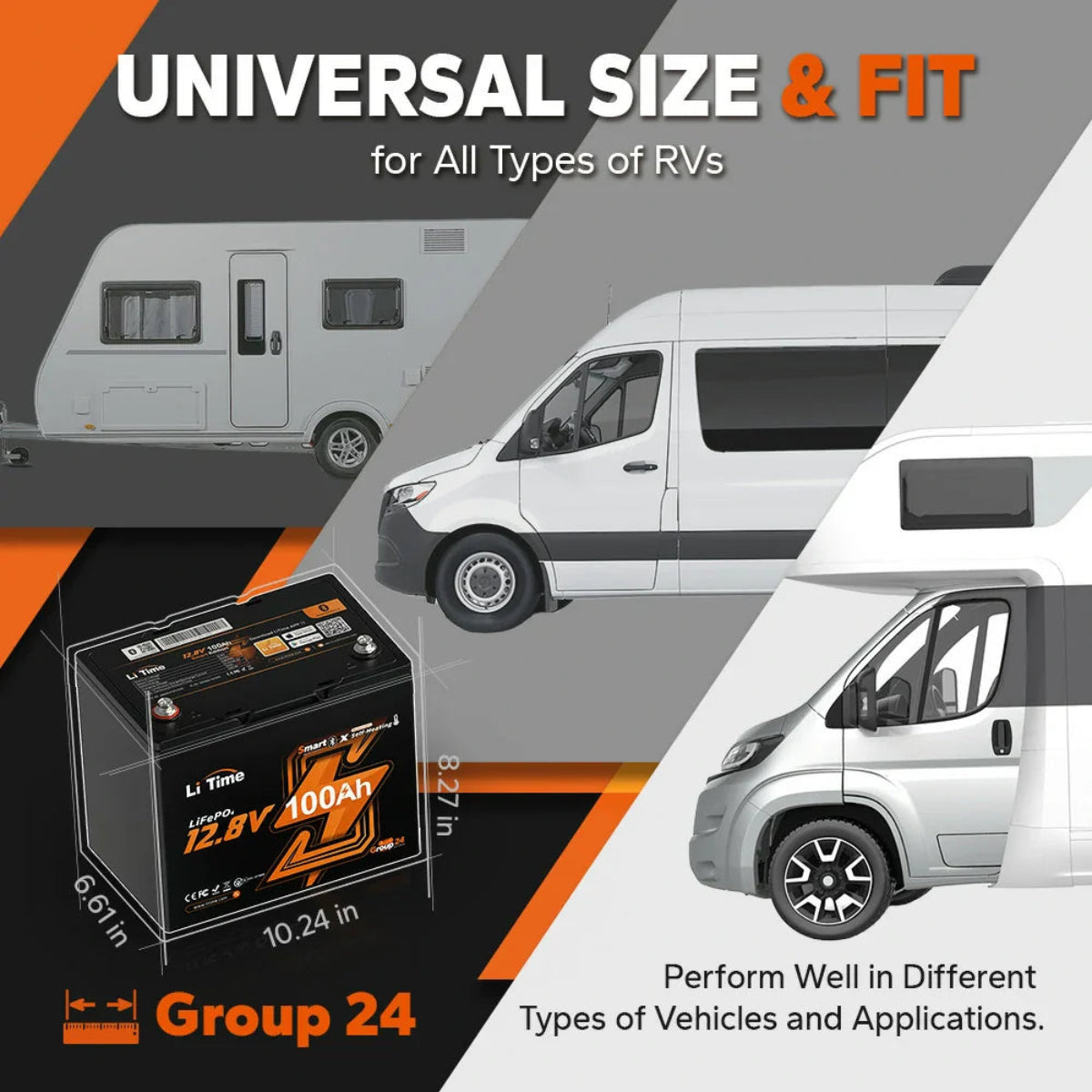

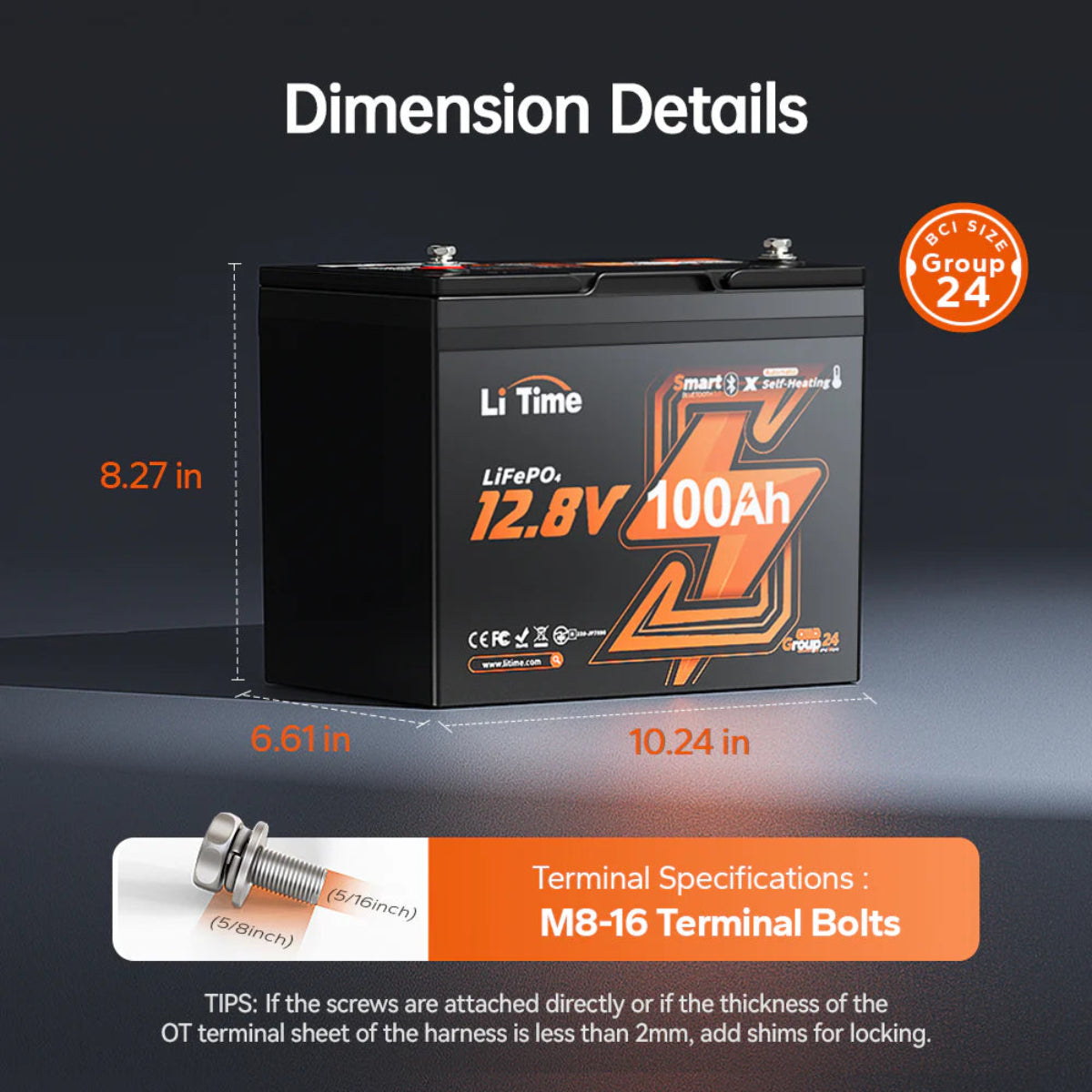

- Dimensions: 10.24 × 6.61 × 8.30 inches
- Energy capacity: 1280Wh
- Continuous output power: 1280W
- Peak discharge current: 500A for 1 second
- Cycle life: 4000+ cycles at 100% depth of discharge
- Expansion capability: Up to 4P4S configuration, maximum 20.48kWh total energy
