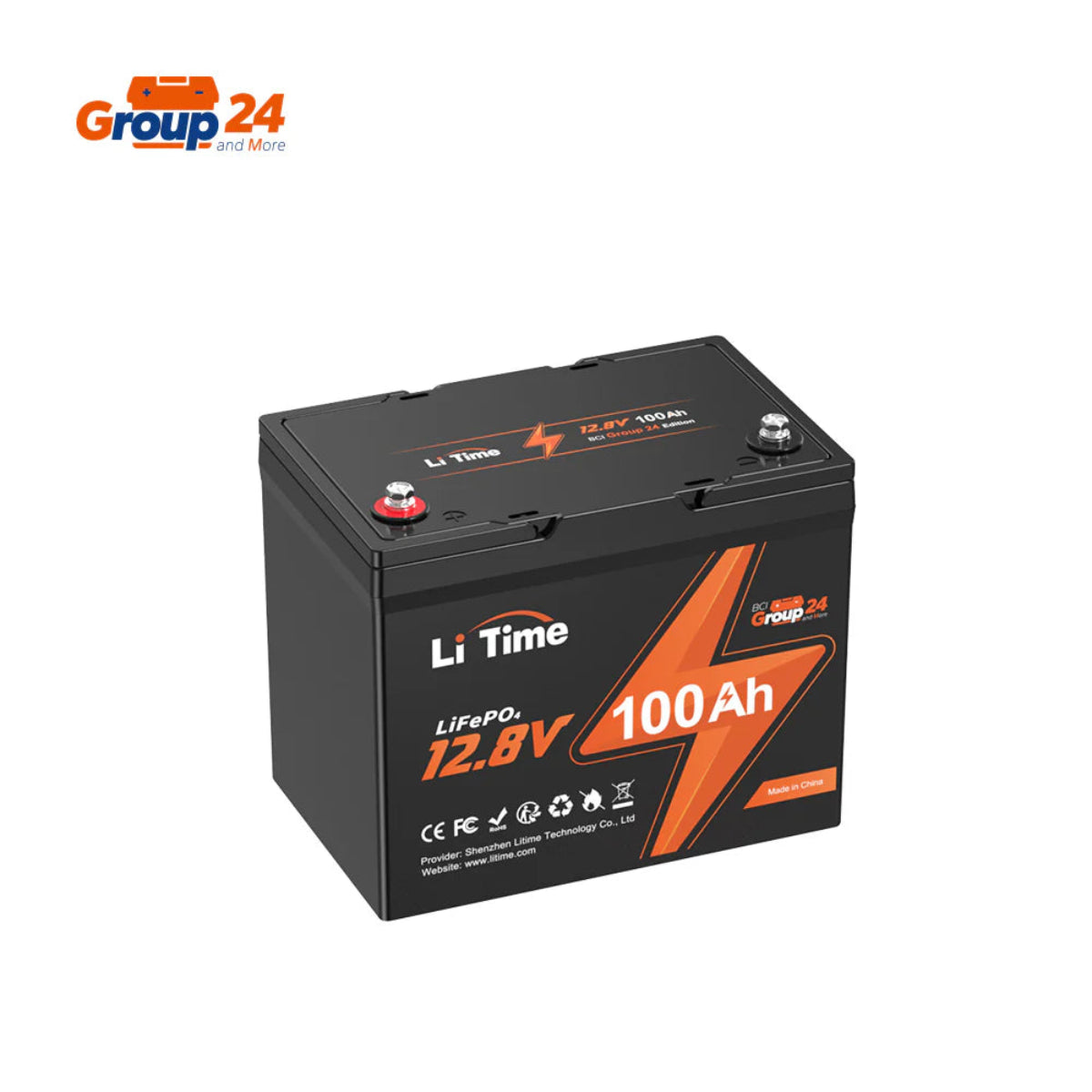

LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery

Group 24 LiFePO4 Deep Cycle Battery for RV and Off-Grid Power

This is a BCI Group 24 lithium iron phosphate (LiFePO4) deep cycle battery designed for 12-volt energy storage in RVs, camping setups, trolling motor systems, solar installations, and off-grid or home backup power systems. It is intended as a direct replacement for Group 24 lead-acid batteries where reduced weight, higher usable energy, and long cycle life are required. The battery supports steady DC loads and inverter use within its rated limits.

Important: This battery is not suitable for use as a starting or engine-cranking battery.

Key Features

• Group 24 deep cycle design: Fits standard BCI Group 24 battery trays used across many RV and fixed battery compartments.
• 1280Wh usable energy: Provides higher usable capacity compared to typical 12V 100Ah lead-acid batteries in a smaller and lighter package.
• EV Grade-A LiFePO4 cells: Built with lithium iron phosphate cells rated for more than 4000 cycles at 100% depth of discharge.
• 100A battery management system: Supports up to 100A continuous charge and discharge while managing over-voltage, over-current, temperature, and short-circuit conditions.
• High surge capability: Rated for up to 400A discharge for 1 second to handle short-duration load spikes.
• Expandable system support: Allows series and parallel configurations up to a 4P4S setup for larger energy storage systems.
• IP65-rated enclosure: Provides resistance to dust and water exposure for vehicle-based and enclosed off-grid installations.

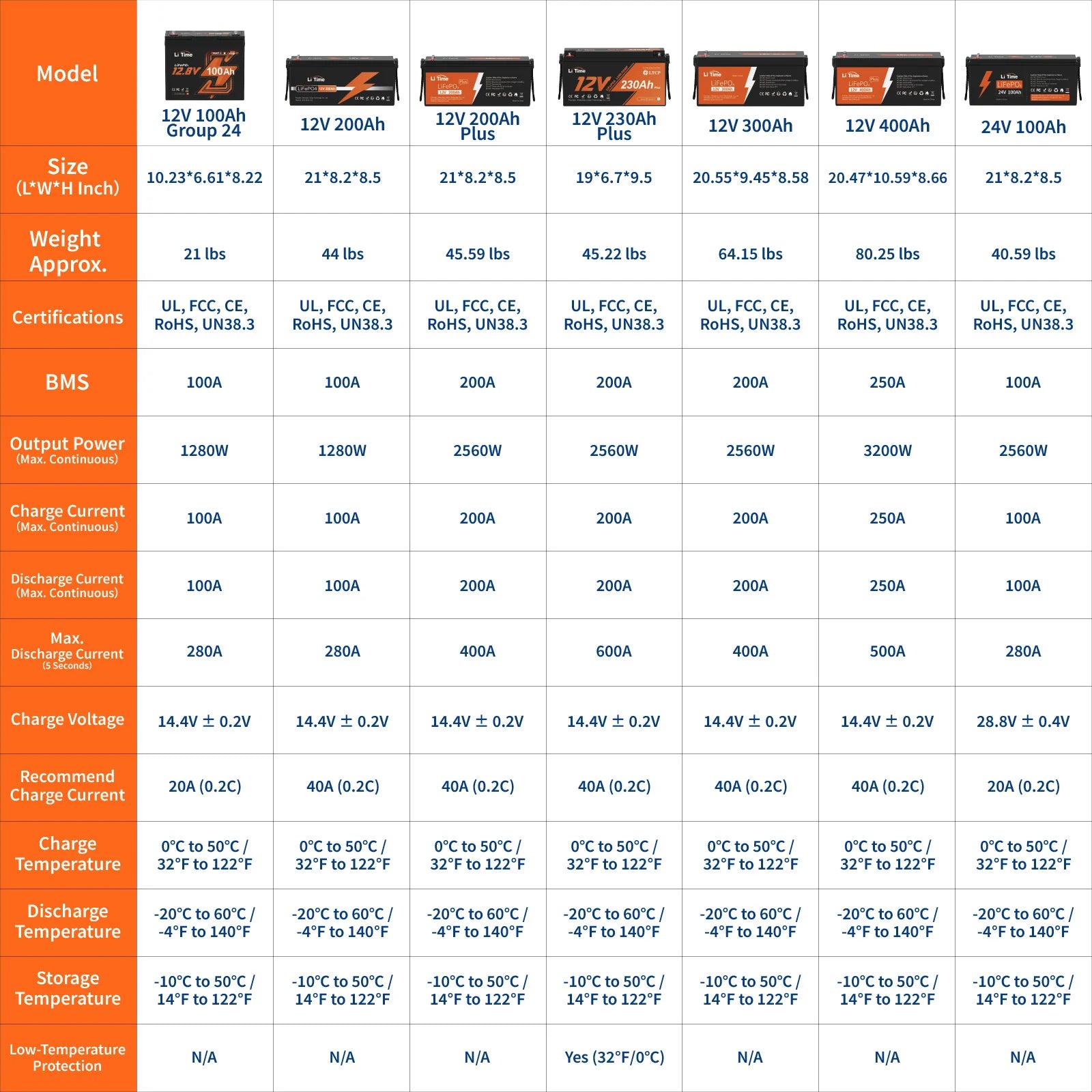

Specs & Details

• Battery size: Group 24
• Energy capacity: 1280Wh
• Output power: 1280W
• Continuous charge/discharge current: 100A
• Discharge current: 400A for 1 second
• Cycle life: 4000+ cycles at 100% depth of discharge
• Environmental rating: IP65 waterproof
• Expansion capability: Up to 4P4S configuration, maximum 20.48kWh total energy
• Warranty: 5 years
