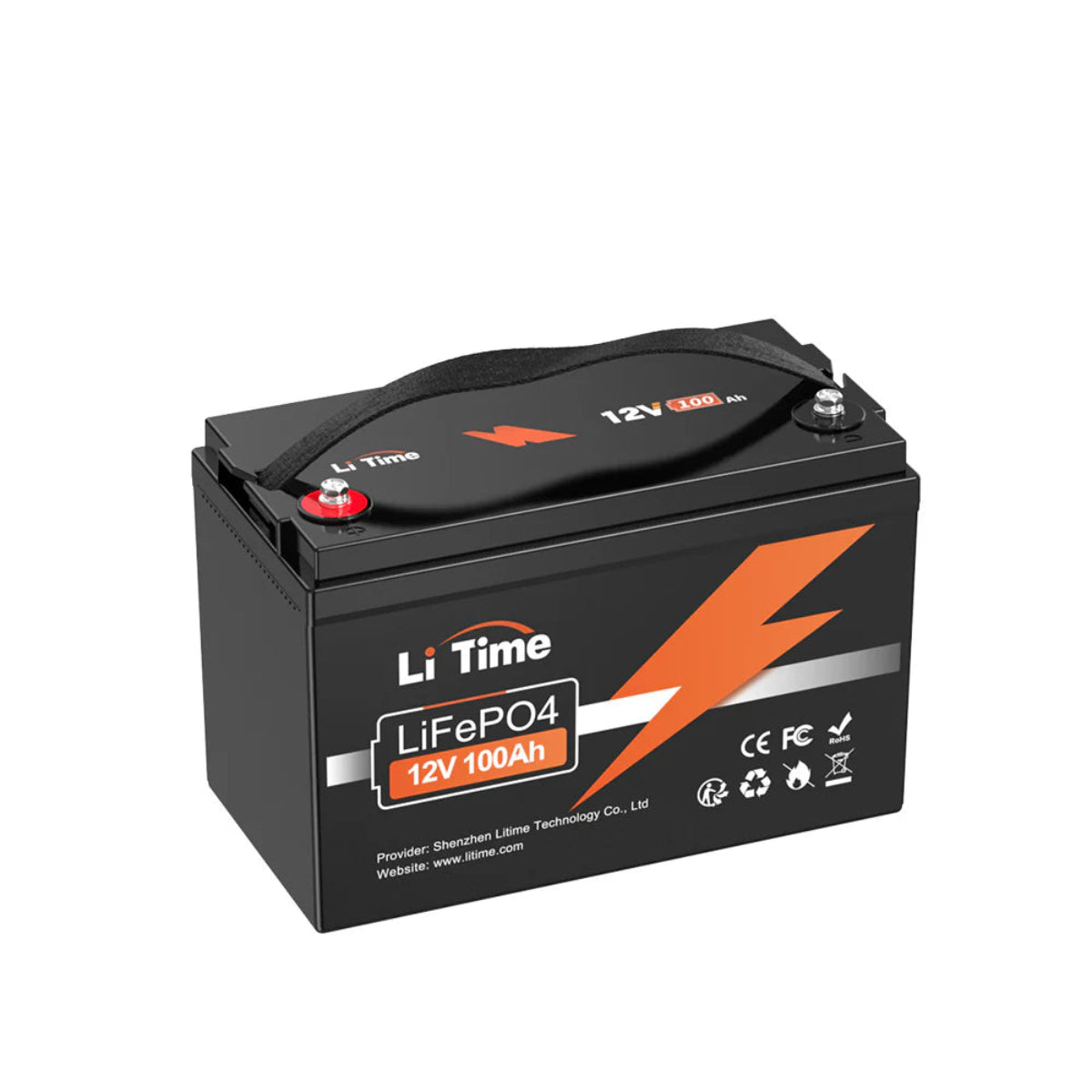

Group 31 LiFePO4 Battery for 12V Energy Storage Systems
This is a Group 31 lithium iron phosphate (LiFePO4) battery designed for 12-volt energy storage applications such as RV house systems, trolling motors, solar setups, home energy storage, and off-grid power systems. It is built for deep-cycle use where consistent output, low self-discharge, and long service life are required. The battery supports both standalone use and expandable system configurations for larger power needs.
Important: This battery is intended for energy storage applications only and is not suitable for engine starting or cranking use.
Key Features
- EV Grade A LiFePO4 cells: Uses lithium iron phosphate cells rated for long-term stability and consistent performance in deep-cycle applications.
- Long cycle life: Rated for over 4000 cycles at 100% depth of discharge, supporting extended daily use over many years.
- Integrated BMS protection: Battery management system provides full protection against common electrical faults and maintains a low self-discharge rate.
- 1280Wh energy capacity: Supplies usable energy for RV systems, trolling motors, and off-grid loads within a compact Group 31 footprint.
- Lightweight design: Weighs significantly less than comparable lead-acid batteries while delivering similar usable energy.
- Flexible system expansion: Supports series and parallel configurations up to 4S4P for increased voltage and total system capacity.
- IP65-rated enclosure: Sealed against dust and water exposure for use in mobile, marine, and enclosed off-grid environments.

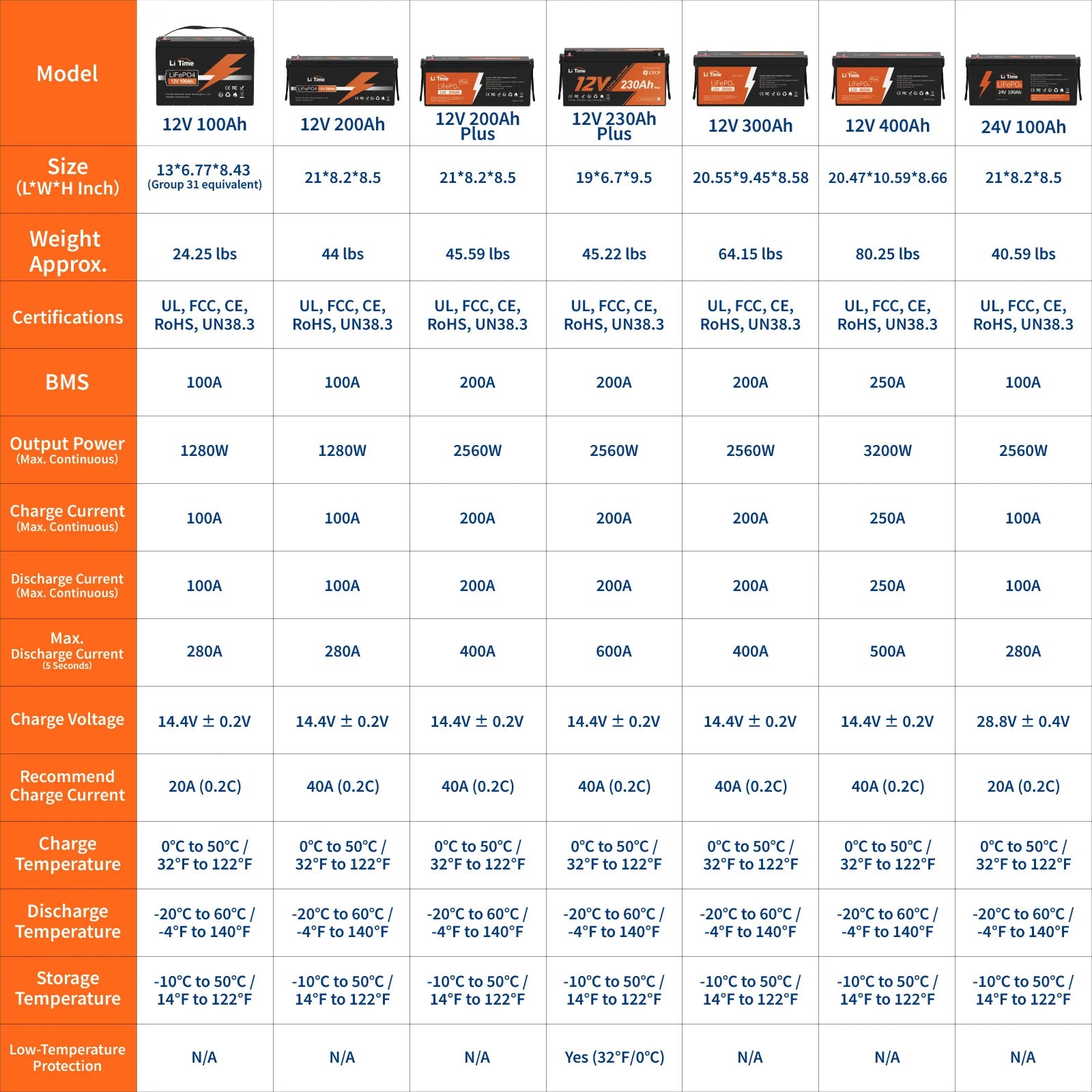

Specs & Details
- Battery size: Group 31

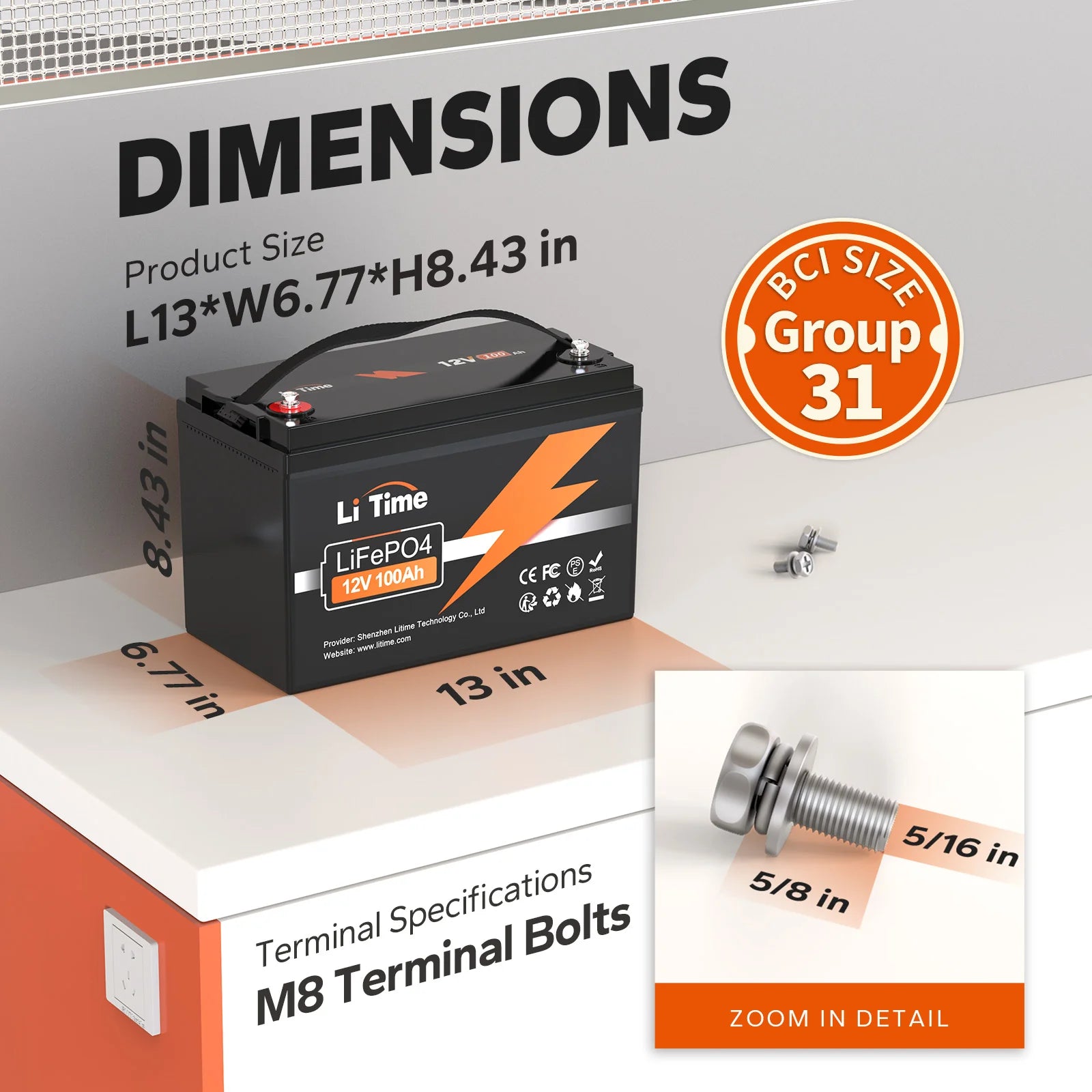

- Dimensions: 13 × 6.77 × 8.43 inches
- Weight: 24.25 lbs
- Energy capacity: 1280Wh
- Output power: 1280W
- Cycle life: 4000+ cycles at 100% depth of discharge
- Expansion capability: Up to 4S4P, maximum 20.48kWh total energy
- Environmental rating: IP65 waterproof
- Certifications: UL, FCC, CE, RoHS, UN38.3
Need it installed?
Contact us to get a quote
