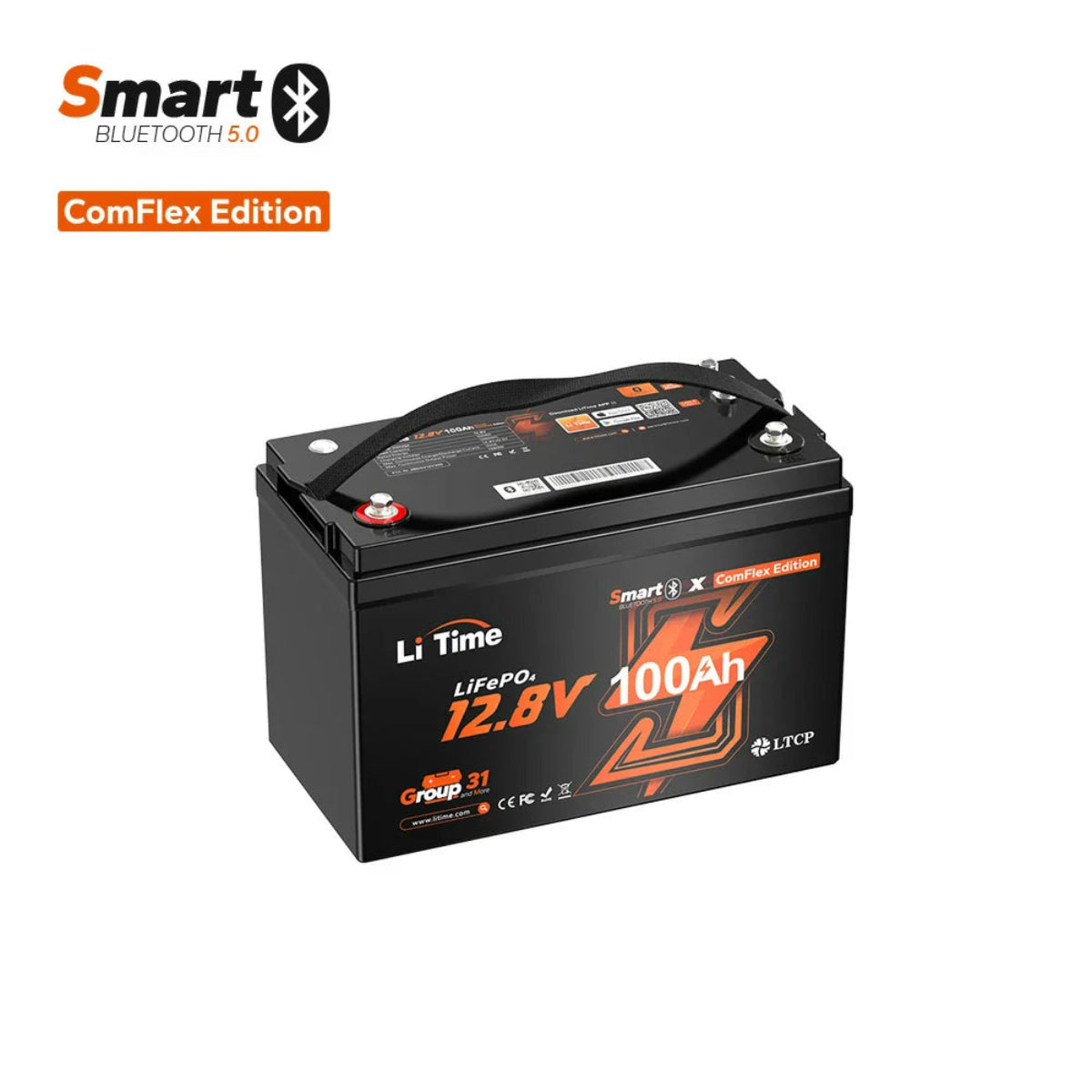

LiFePO4 Battery with Victron CAN Communication and Smart System Control
This is a lithium iron phosphate (LiFePO4) battery designed for integrated power systems where direct communication with system components is required. It is intended for RV, marine, off-grid, and fixed installations using Victron equipment, with optional customization for other inverter and charging platforms. The battery communicates system status and operating data directly, allowing coordinated control, simplified monitoring, and centralized management of multi-battery banks.
Key Features

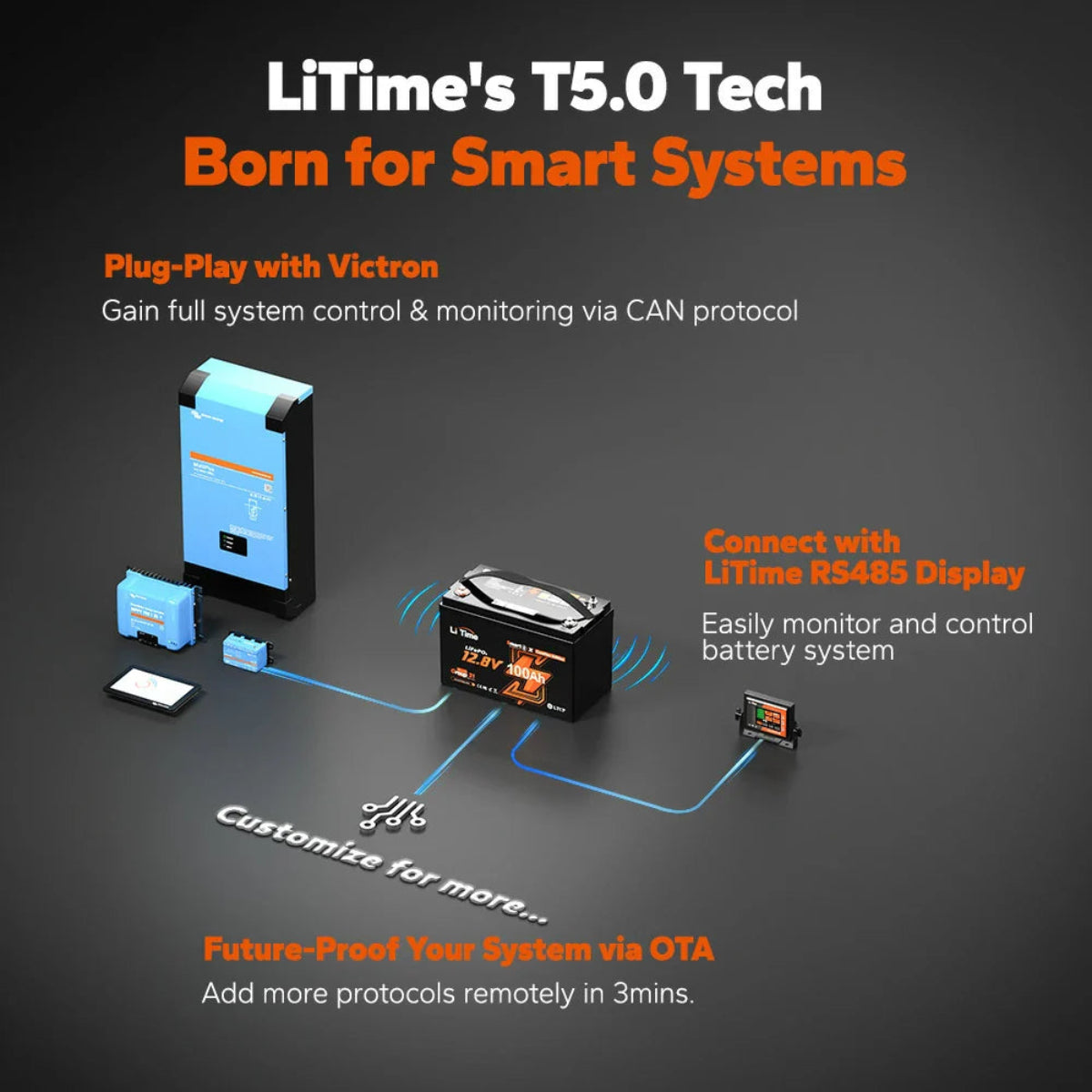

- Direct Victron CAN communication: Connects directly to Victron systems through CAN communication, eliminating the need for a separate shunt and enabling coordinated system monitoring and control.
- Automatic system optimization: Shares battery state-of-charge and temperature data to support automatic adjustment of charging parameters for performance and safety.
- High-precision Bluetooth monitoring: Provides real-time battery data and allows discharge or shutdown control through a mobile device.
- Centralized multi-battery control: Allows up to 16 batteries in parallel to be managed as a single system when communication is enabled, with shared power on/off control.
- RS485 display compatibility: Supports connection to an external display for system-level monitoring and battery shutdown control.
- Advanced battery management system: Uses a BMS with over 20 protections, including low-temperature cutoff, overload protection with automatic recovery, and environmental safeguards.

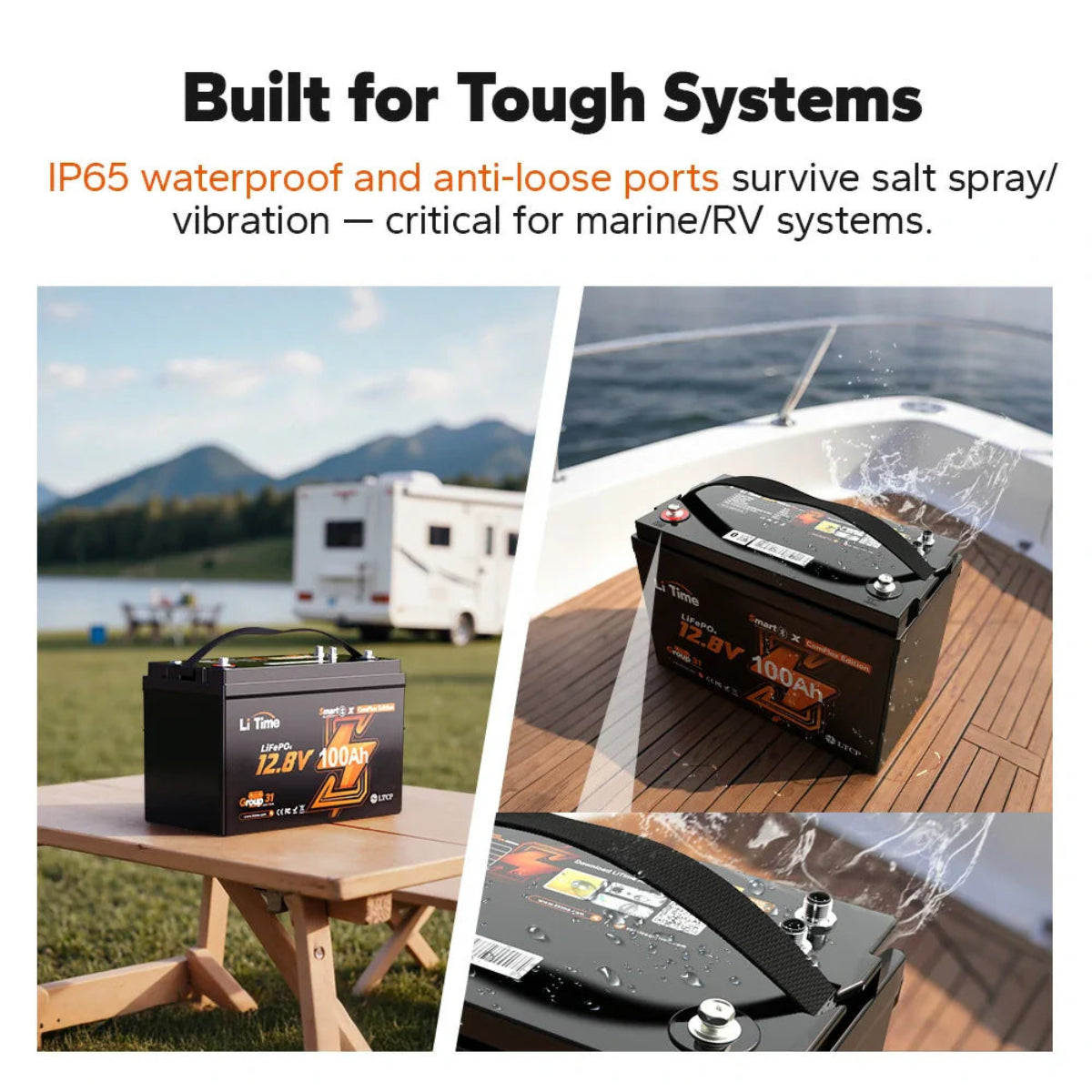

- Rugged communication ports: Features an IP65-rated enclosure and secure-locking communication ports designed for vibration and moisture-prone environments.
Specs & Details

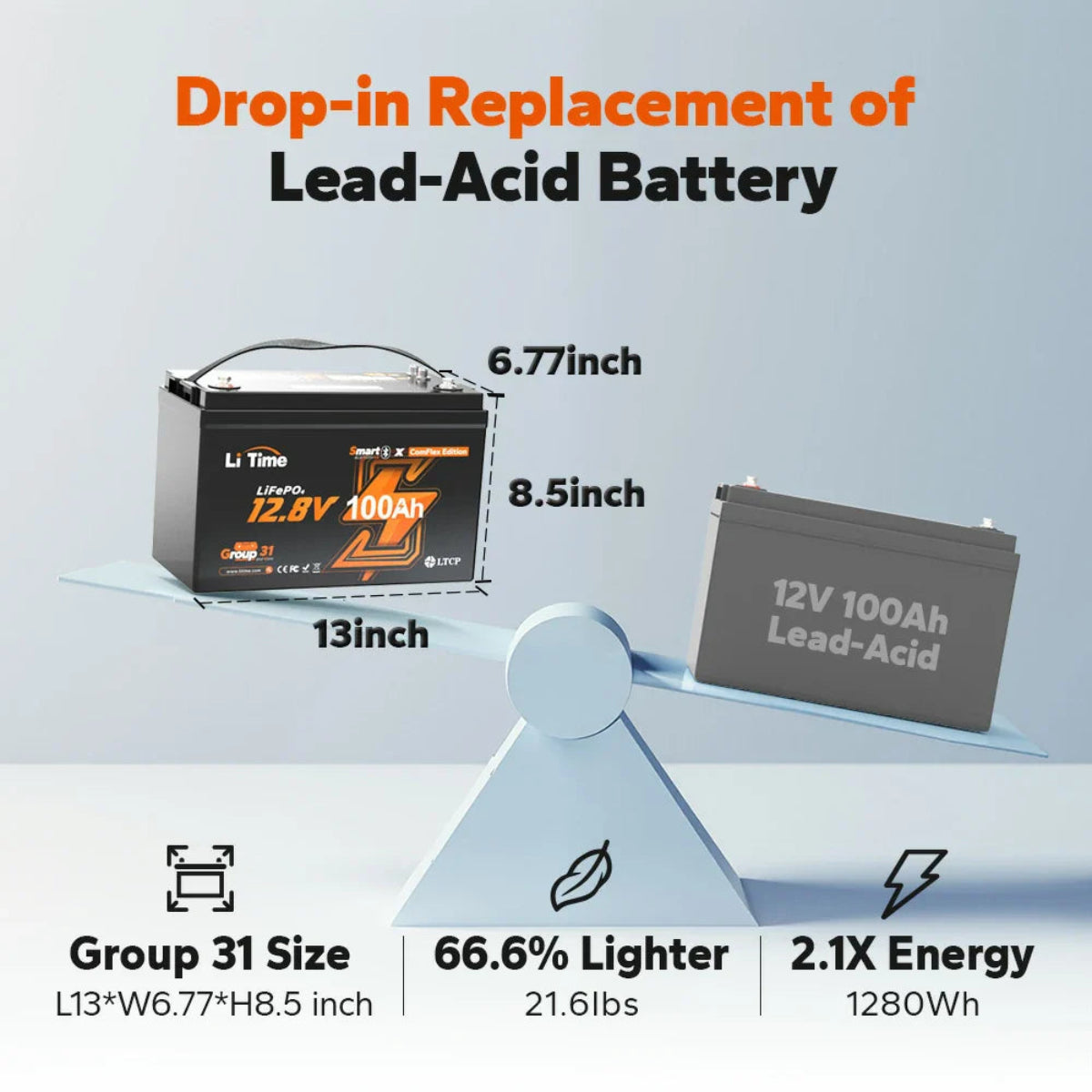

- Battery size: Group 31
- Energy capacity: 1280Wh usable energy
- Maximum output power: 1280W
- Cycle life: 4000+ cycles at 100% depth of discharge
- Expansion capability: Up to 4P4S configuration, maximum 51.2V 400Ah
- Environmental rating: IP65 waterproof and dustproof
- Certifications: UL-1973 tested, FCC, CE, RoHS, UN38.3
- Cell chemistry: EV-grade LiFePO4
- Cycle life: 4000+ cycles at 100% depth of discharge
- Cycle life (partial discharge): 6000+ cycles at 80% depth of discharge; up to 15000 cycles at 60% depth of discharge
- Communication interfaces: CAN and RS485
- Parallel capability: Up to 16 batteries in parallel with communication enabled
- Series/parallel support: Up to 4P4S without communication
- Environmental rating: IP65 waterproof
