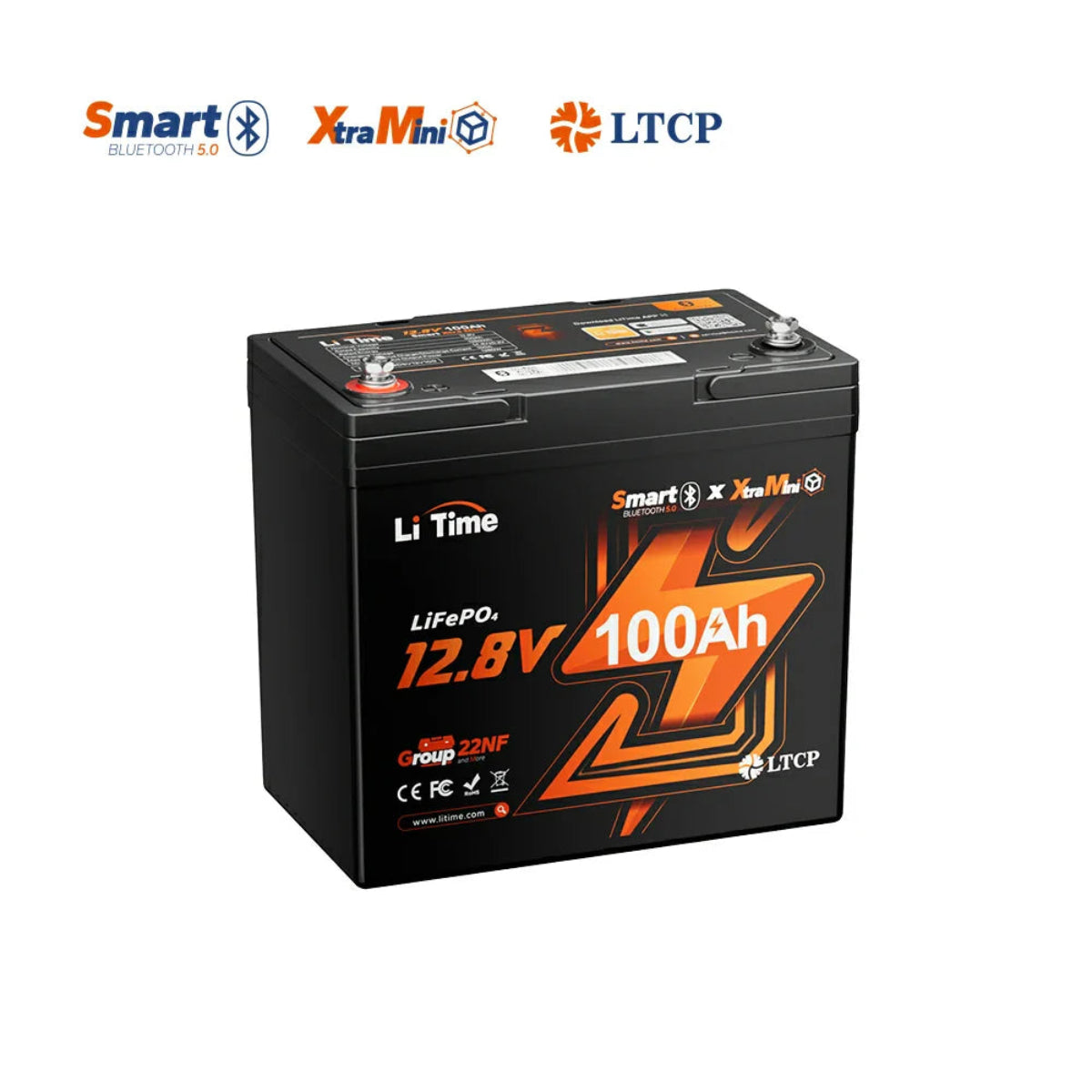

Group 22NF Ultra-Compact LiFePO4 Battery for Space-Limited Installations
This is a compact 12V 100Ah lithium iron phosphate (LiFePO4) battery designed for applications where space and weight are critical constraints. With a Group 22NF form factor and low overall weight, it is suited for RVs, trolling motors, mobility equipment, off-grid storage, and home backup systems that require deep-cycle energy storage in tight compartments. Integrated monitoring and protection features support safe operation across varied environments.
Key Features

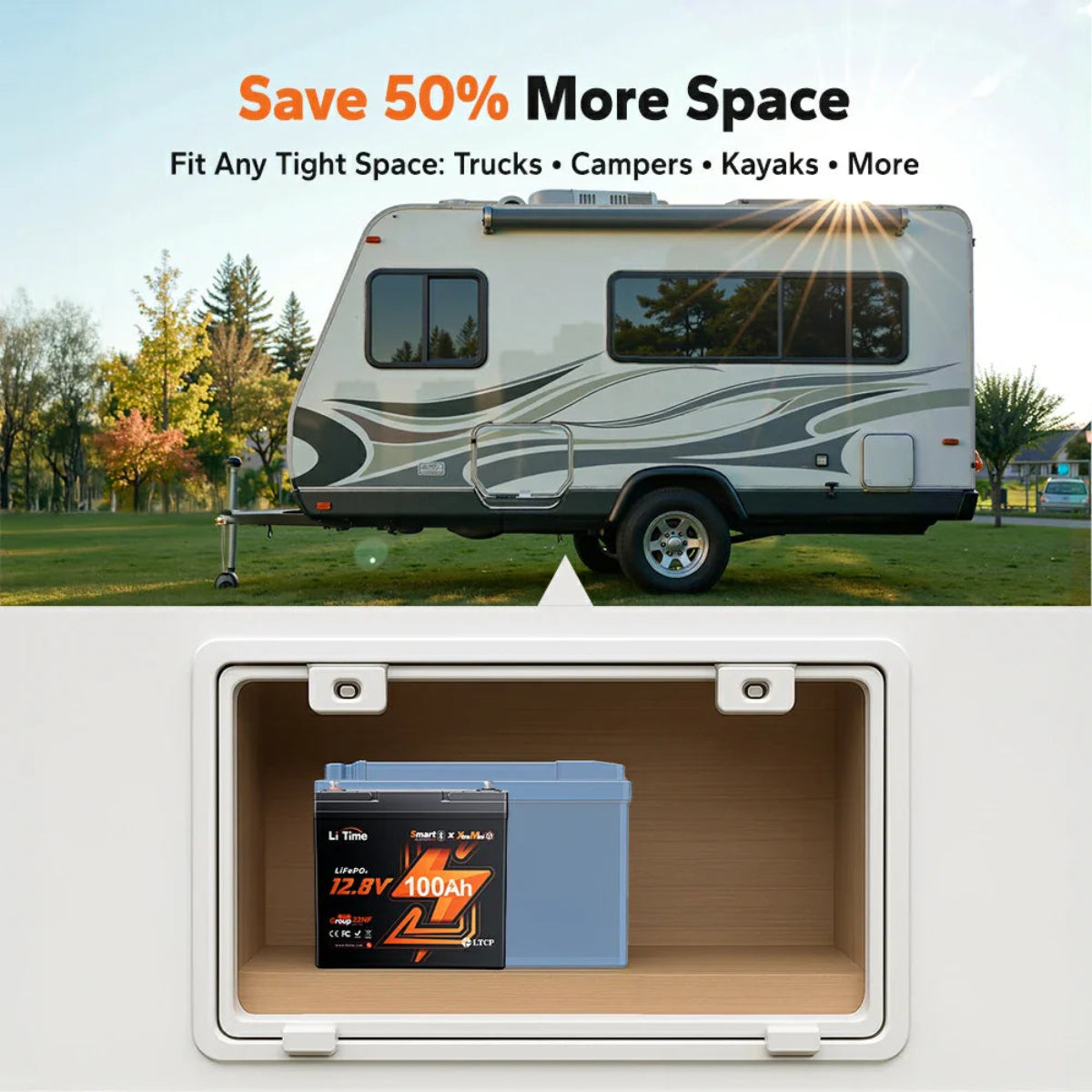

- Compact Group 22NF size: Small footprint designed to fit into limited battery compartments where larger Group sizes are not practical.

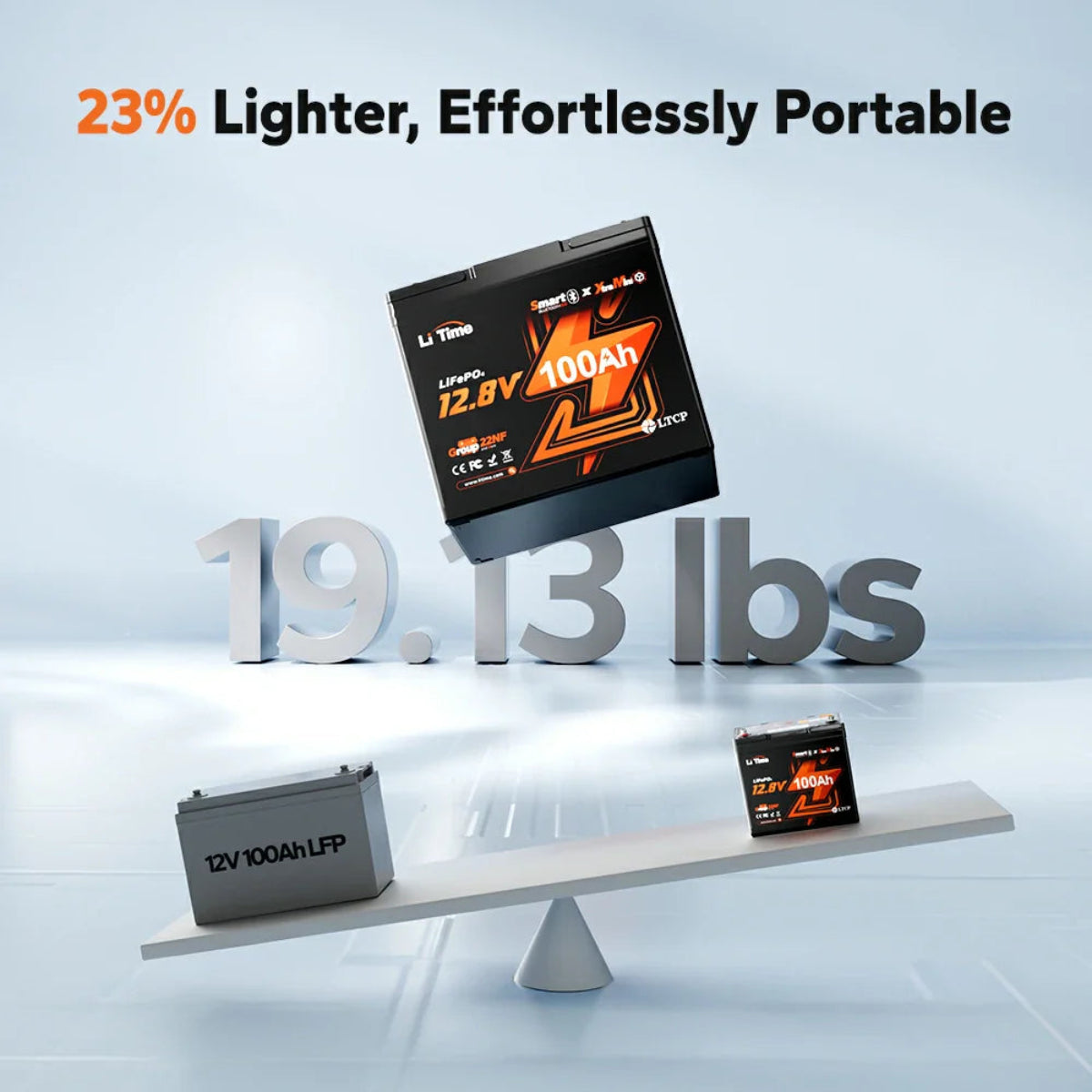

- Lightweight construction: Weighs 19.13 lbs, reducing overall system weight for mobile and portable applications.
- High energy density: Delivers 1280Wh in a reduced volume, allowing more usable energy in constrained spaces.
- Bluetooth 5.0 monitoring: Provides real-time visibility of state of charge, voltage, and power through a mobile app.

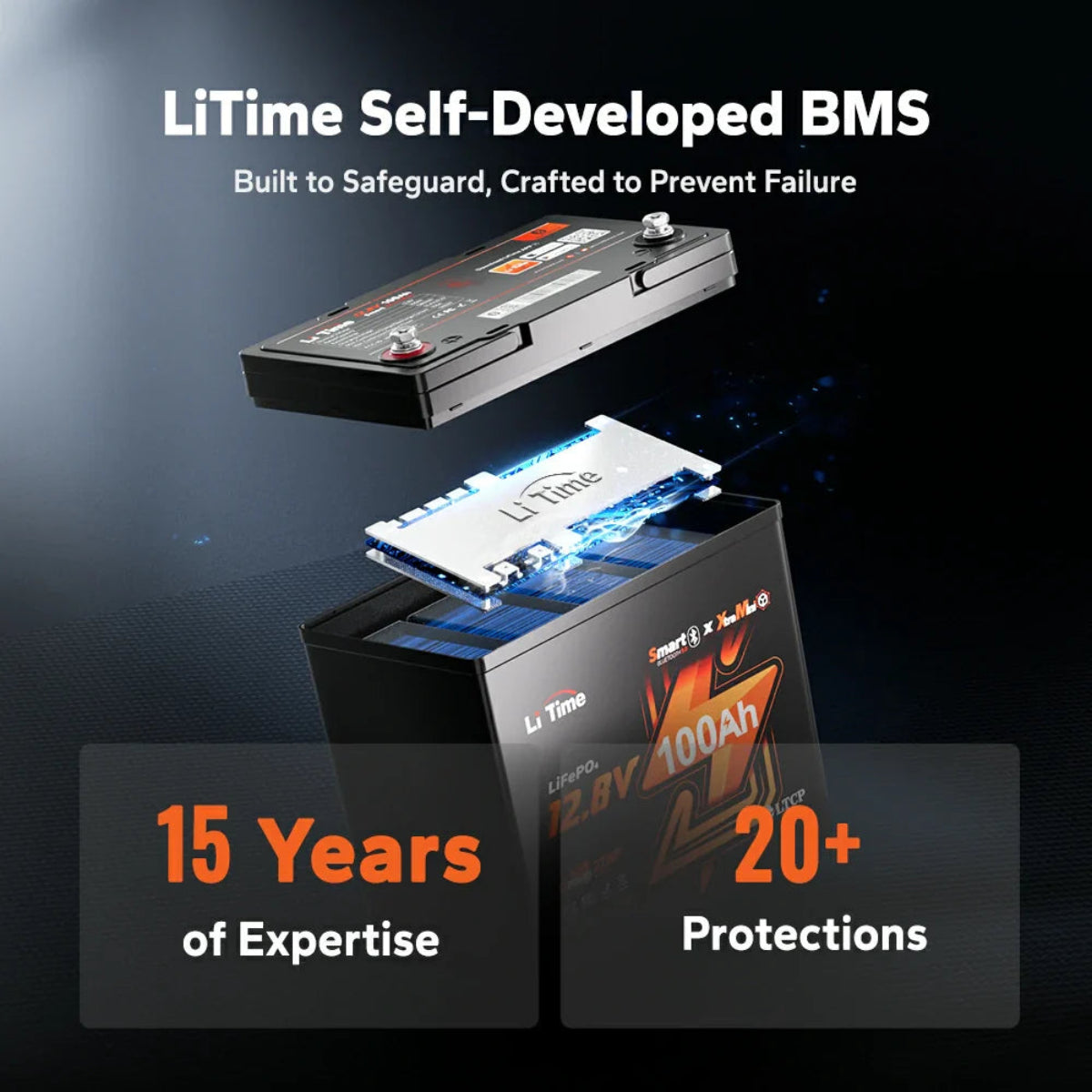

- Advanced battery management system: Includes over 20 protections, automatic activation, and overload recovery after 30 seconds.

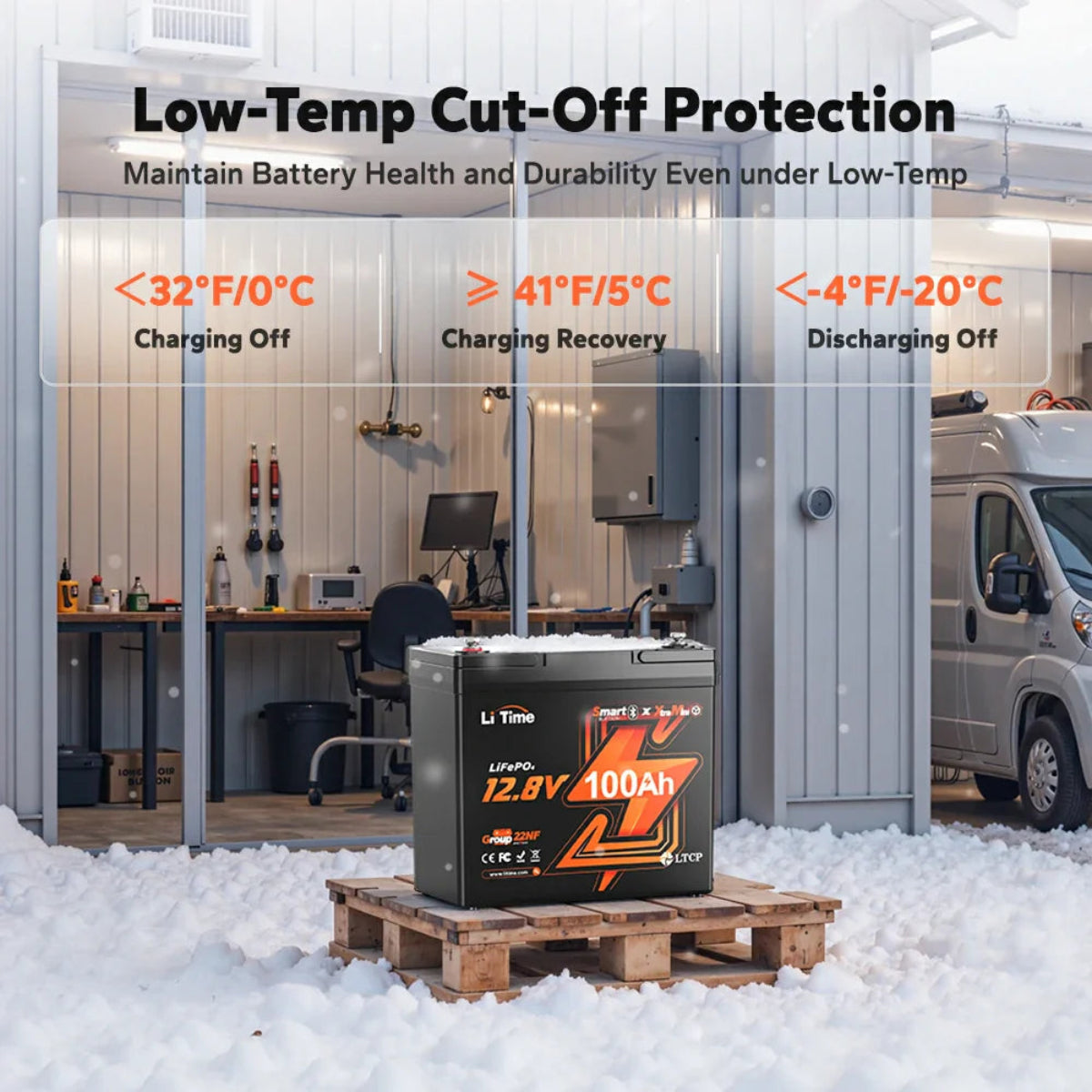

- Cold-weather protection: Low-temperature cutoff helps prevent damage during charging or operation in cold conditions.

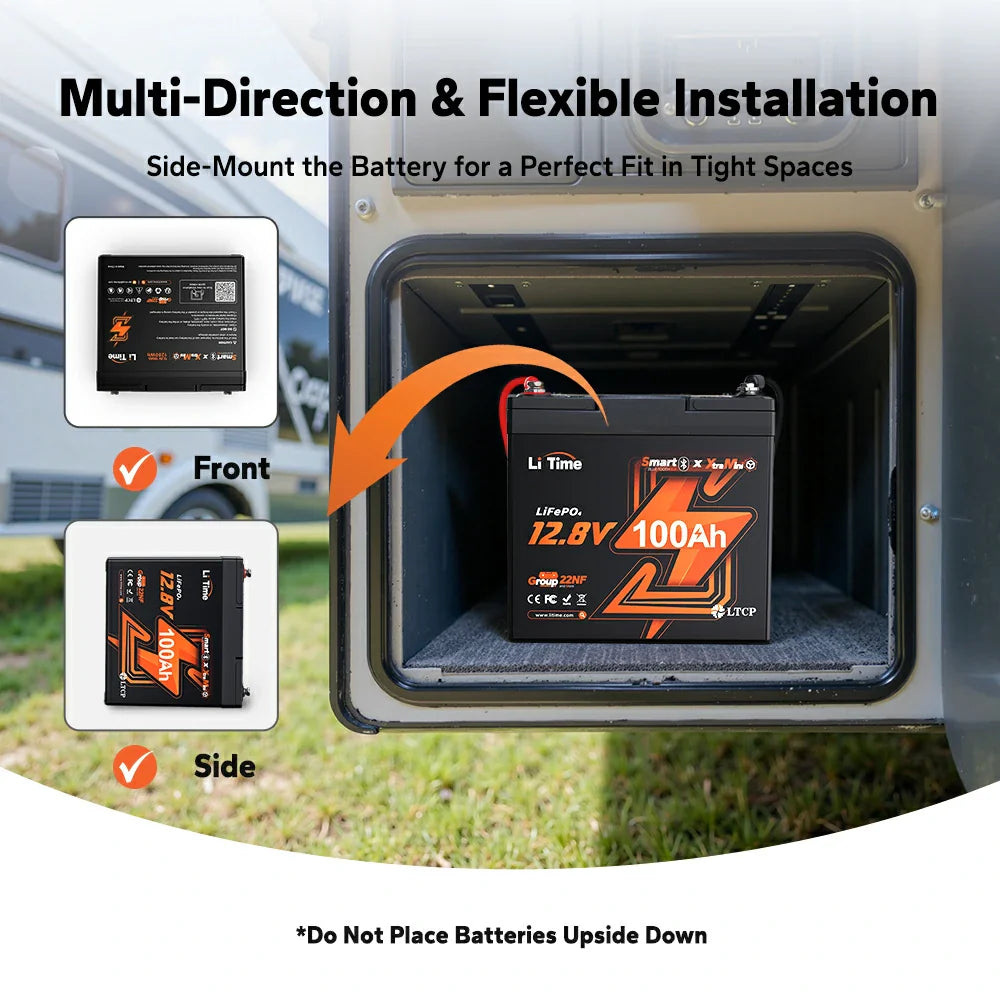

- Flexible mounting options: Supports front, side, or bottom mounting to accommodate different installation layouts.
Specs & Details
- Battery size: Group 22NF
- Dimensions: 9.02 × 5.43 × 8.19 inches
- Weight: 19.13 lbs

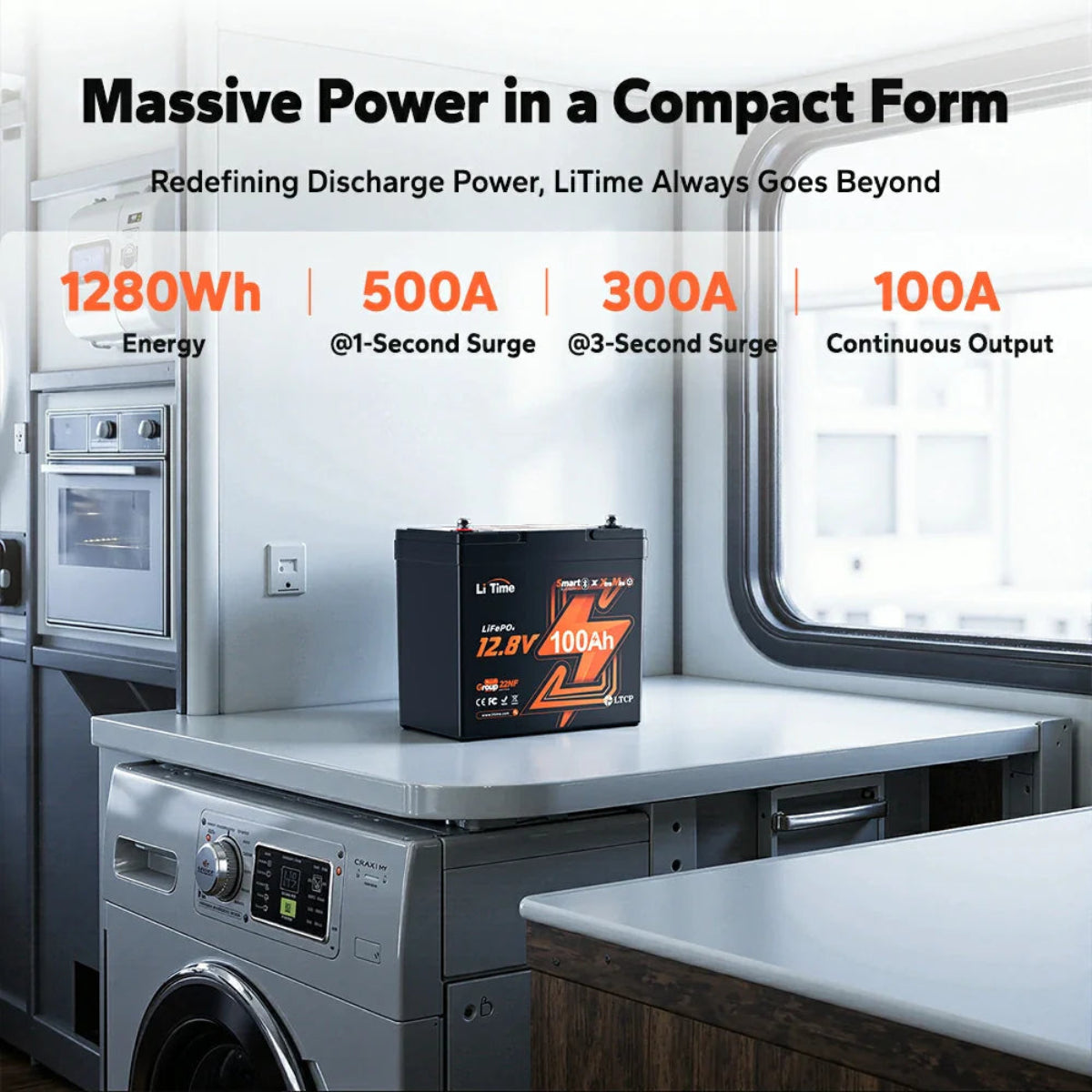

- Energy capacity: 1280Wh
- Continuous discharge current: 100A
- Peak discharge current: 300A for 5 seconds; 500A for 1 second
- Cycle life: 4000 cycles at 100% depth of discharge; 6000 cycles at 80%; up to 15000 cycles at 60%
