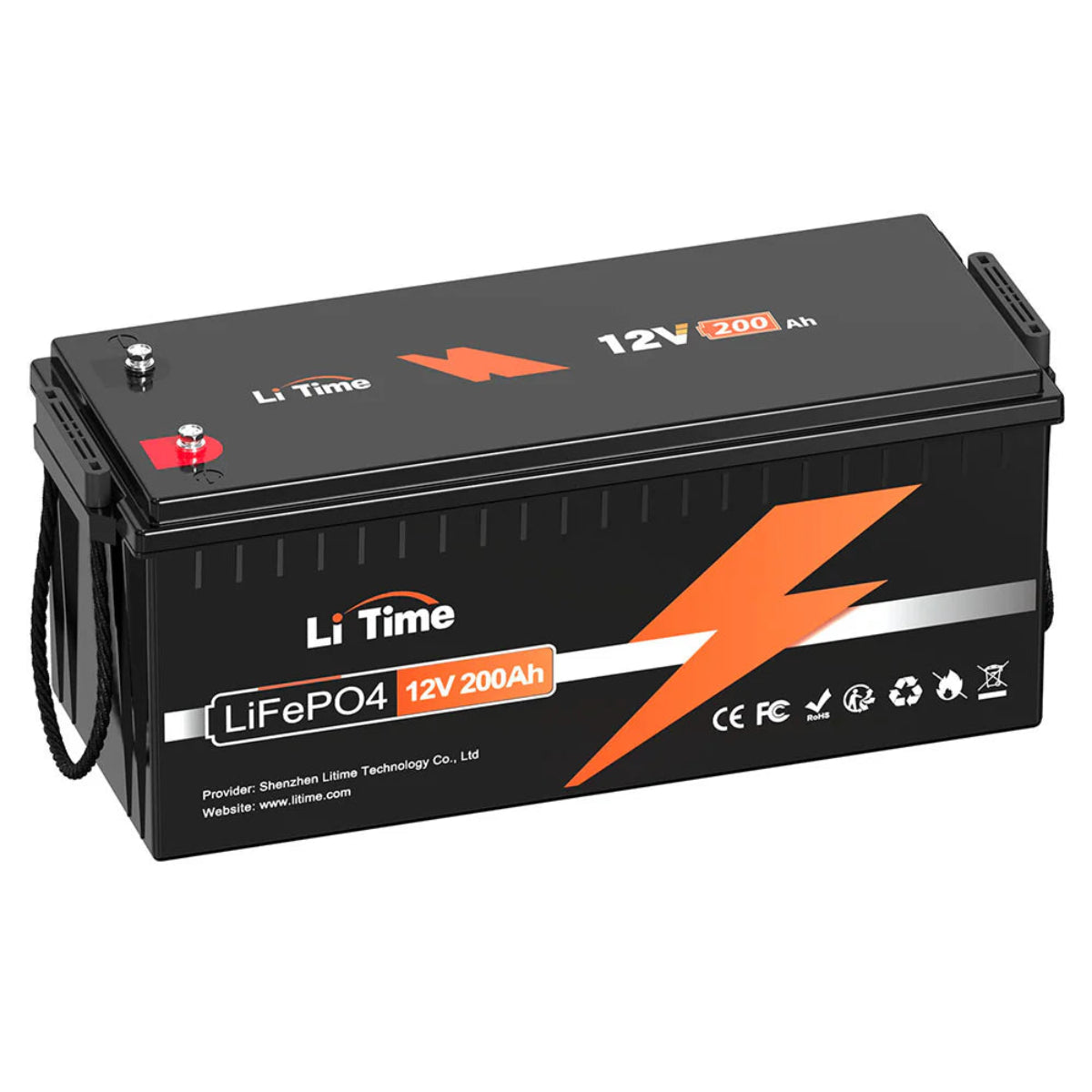

LiTime 12V 200Ah LiFePO4 Deep Cycle Lithium Battery

12V 200Ah LiFePO4 Deep Cycle Lithium Battery

This is a 12-volt lithium iron phosphate (LiFePO4) battery designed as a direct energy-storage replacement for 12V 200Ah lead-acid batteries. It is intended for deep-cycle use in RVs, campers, marine systems, trolling motors, home energy storage, and off-grid power setups. The battery provides high usable energy with reduced weight and supports steady DC loads and inverter use within its rated limits.

Important: Do not use this battery as a starter or engine-cranking battery.

Key Features

• High-capacity energy storage: Provides 2560Wh of usable energy for extended runtime in deep-cycle applications.
• 100A battery management system: Manages charging and discharging while protecting against overcharge, over-discharge, over-current, overheating, and short circuits.
• EV Grade-A LiFePO4 cells: Built with lithium iron phosphate cells rated for more than 4000 cycles at 100% depth of discharge.
• High surge discharge capability: Supports short-duration loads with up to 400A discharge for 1 second.
• Reduced system weight: Weighs approximately one-third as much as a comparable 12V 200Ah lead-acid battery.
• Expandable system design: Supports series and parallel configurations up to 4P4S for higher voltage and large-capacity energy systems.
• IP65-rated enclosure: Sealed against dust and water exposure for mobile, marine, and enclosed off-grid installations.

Specs & Details

• Nominal voltage: 12V
• Energy capacity: 2560Wh
• Continuous output power: 1280W
• Peak discharge current: 400A for 1 second
• Cycle life: 4000+ cycles at 100% depth of discharge
• Energy density: 53Wh per lb
• Expansion capability: Up to 4P4S, maximum 40.96kWh total energy

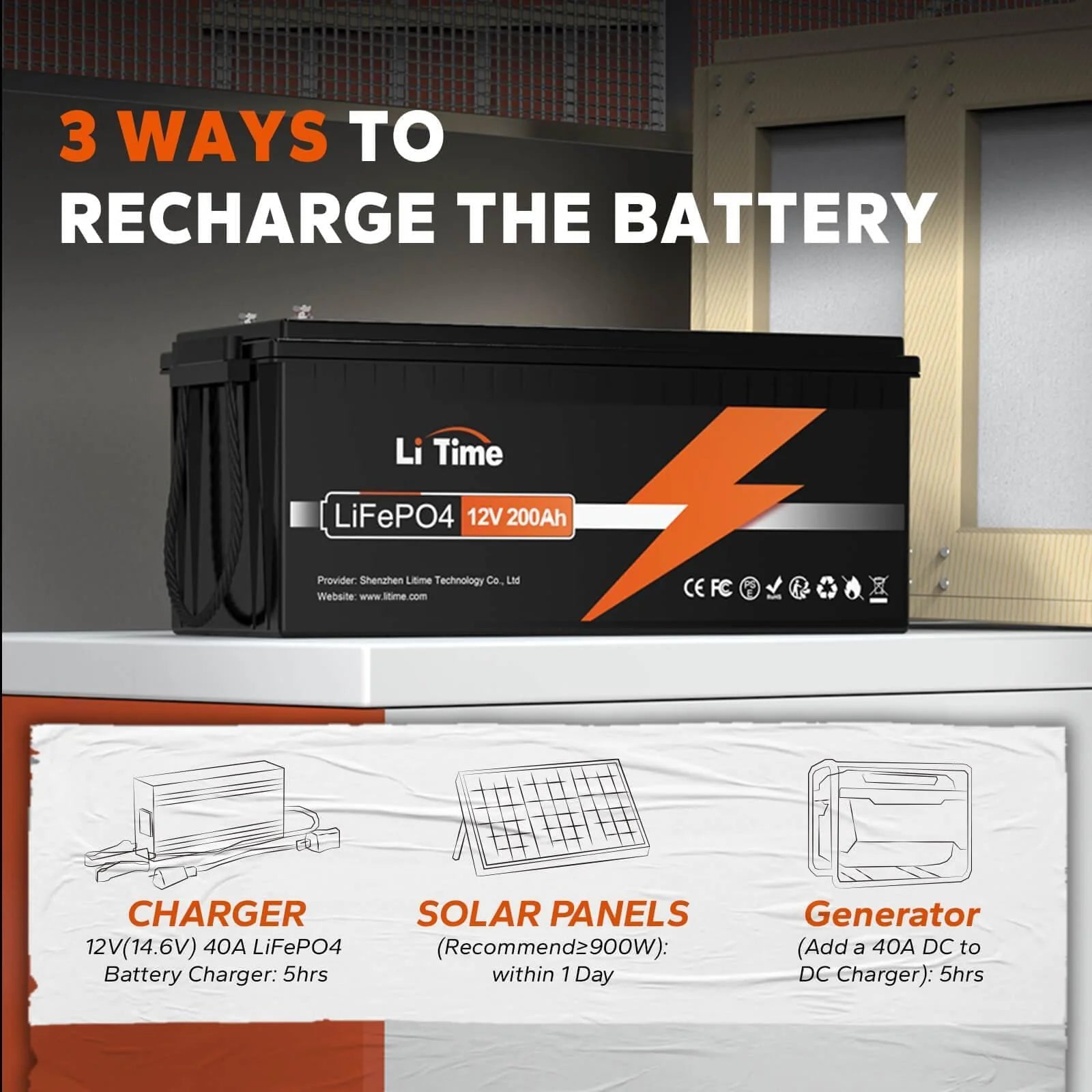

• Charging methods: LiFePO4 charger, solar, or generator
• Environmental rating: IP65 waterproof
