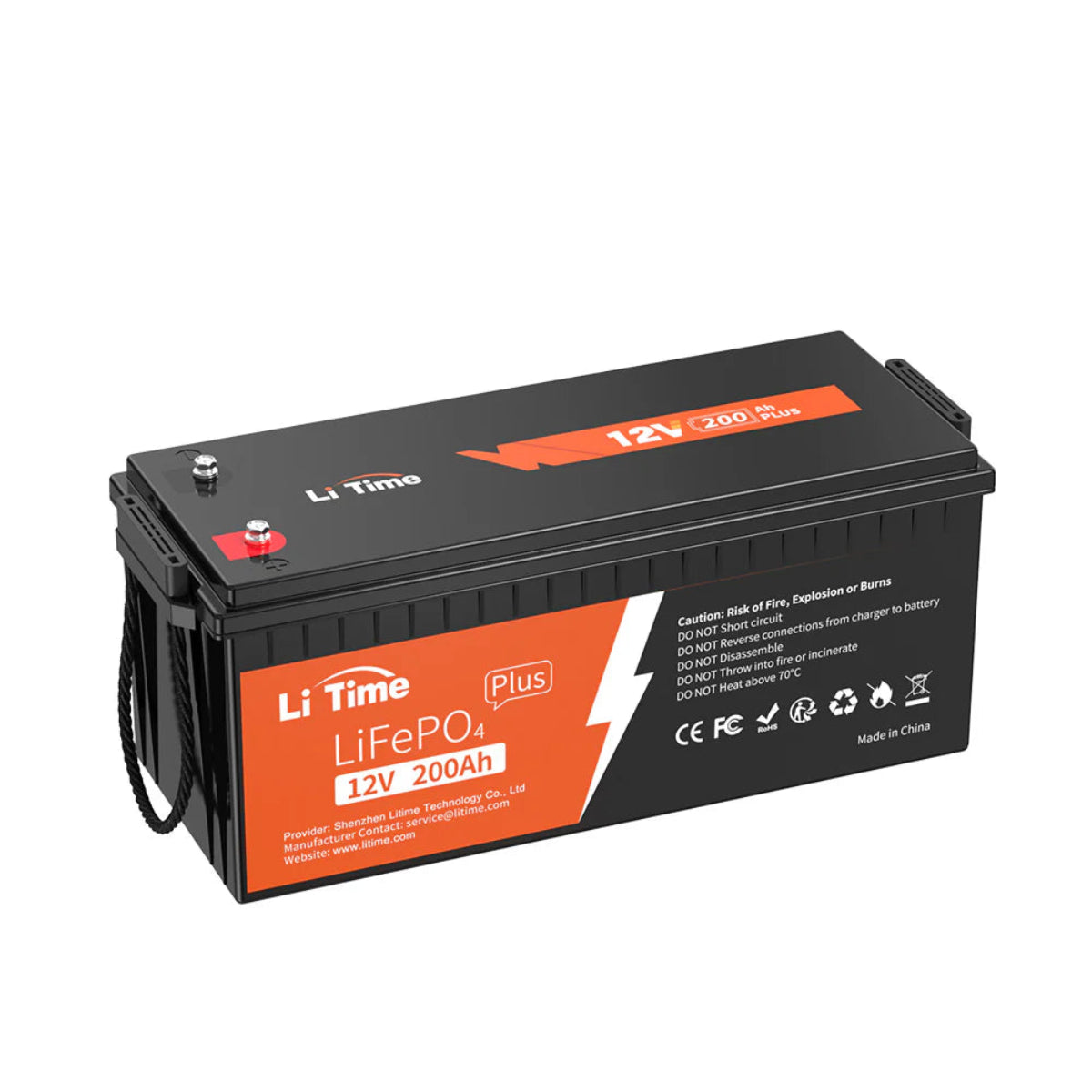

12V 200Ah LiFePO4 Battery with 200A BMS for High-Load Systems
This is an upgraded 12-volt lithium iron phosphate (LiFePO4) battery designed for deep-cycle energy storage where higher continuous current and output power are required. It is intended for RVs, campers, marine systems, solar installations, off-grid power setups, and trolling motors where sustained high loads or larger inverters are used. The higher-current BMS supports both charging and discharging at elevated levels compared to standard 200Ah lithium batteries.
Important: Do not use this battery as a starter or engine-cranking battery.
Key Features

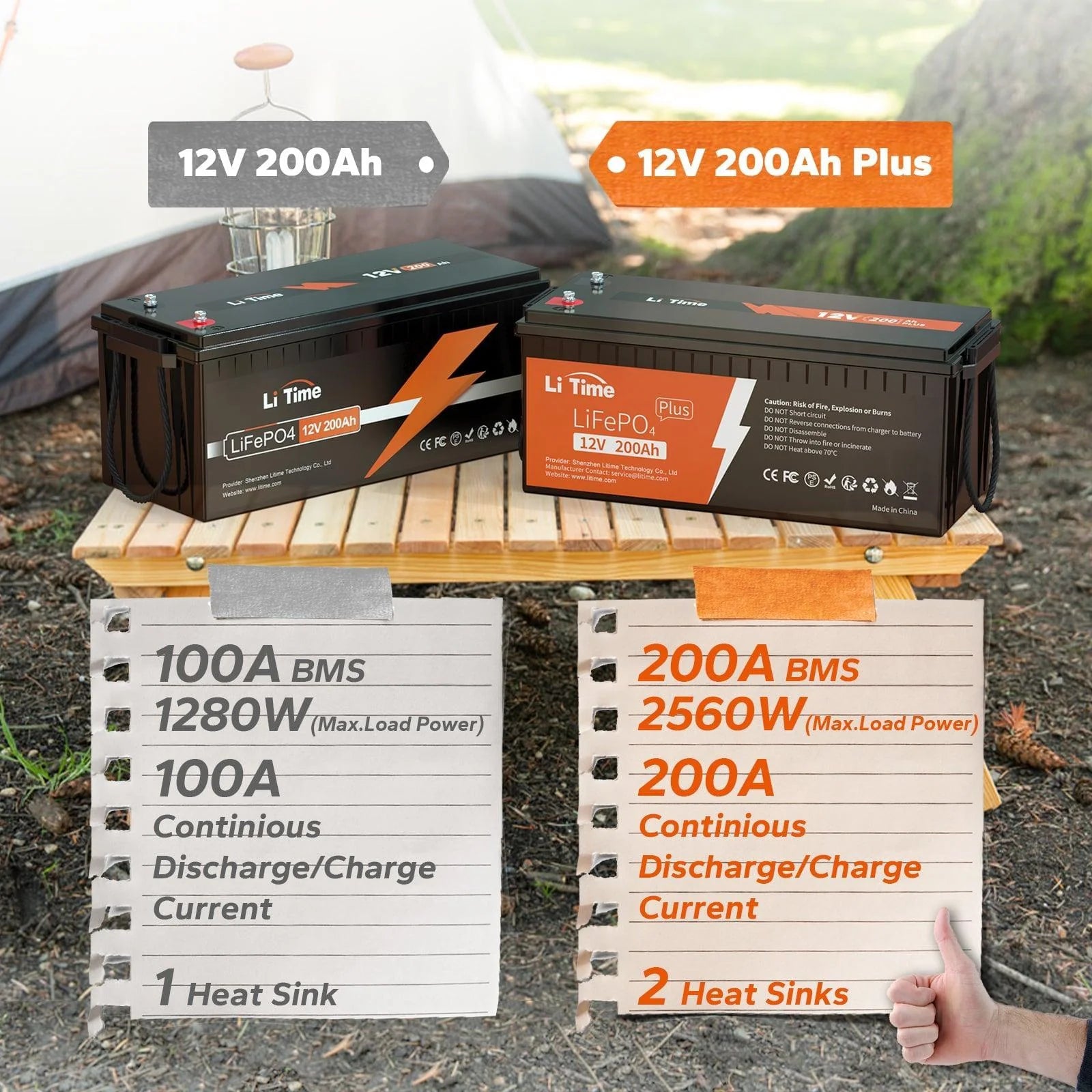

- 200A battery management system: Supports up to 200A continuous charge and discharge for higher-power inverters and DC loads.
- High continuous output power: Delivers 2560W of continuous output to support demanding electrical systems.
- EV Grade-A LiFePO4 cells: Built with lithium iron phosphate cells rated for more than 4000 cycles at 100% depth of discharge.
- High surge discharge capability: Supports up to 400A discharge for 5 seconds to handle short-duration load spikes.
- High-temperature cutoff protection: Automatically limits operation when internal temperatures exceed safe limits.

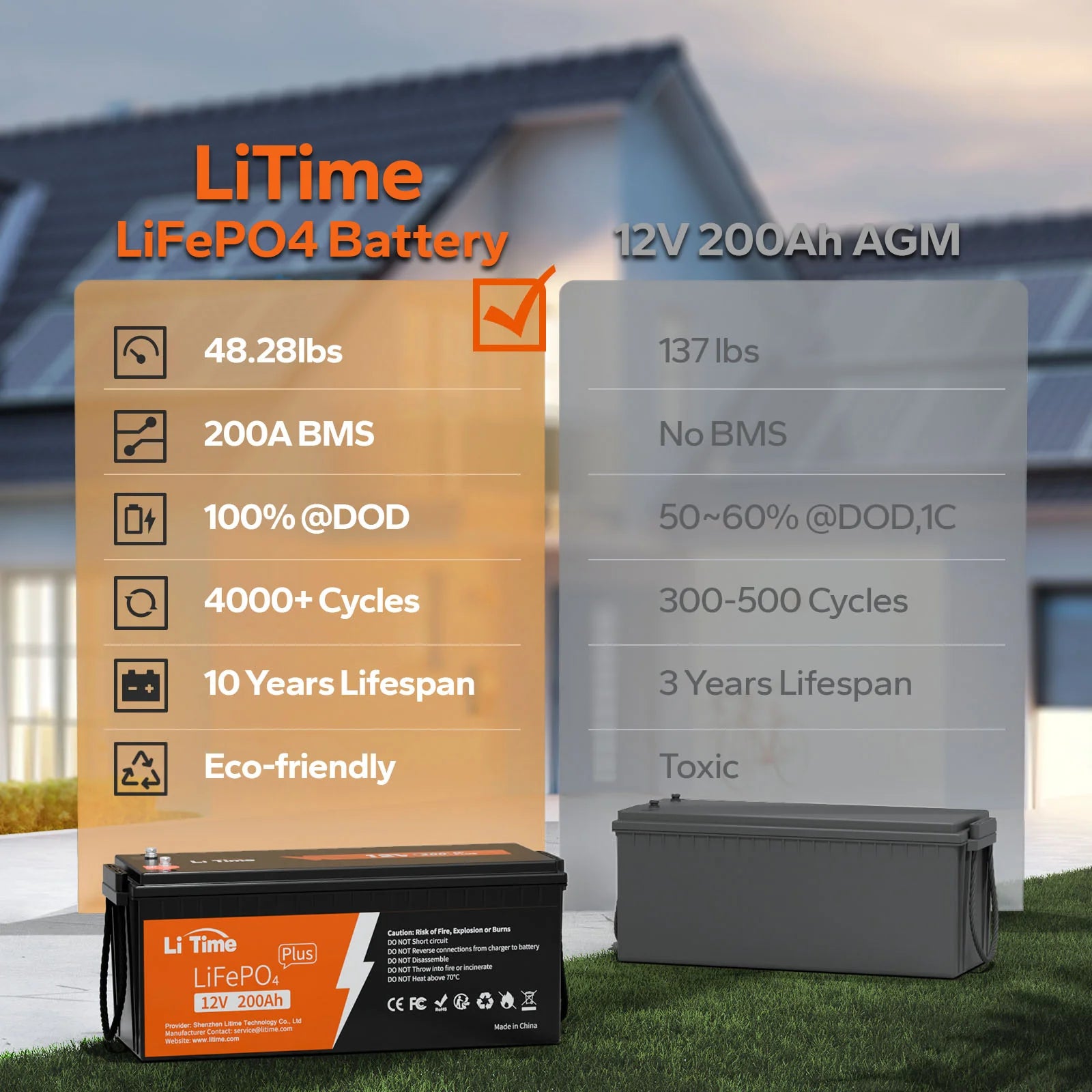

- Reduced weight design: Weighs approximately one-third as much as a comparable 12V 200Ah lead-acid battery.

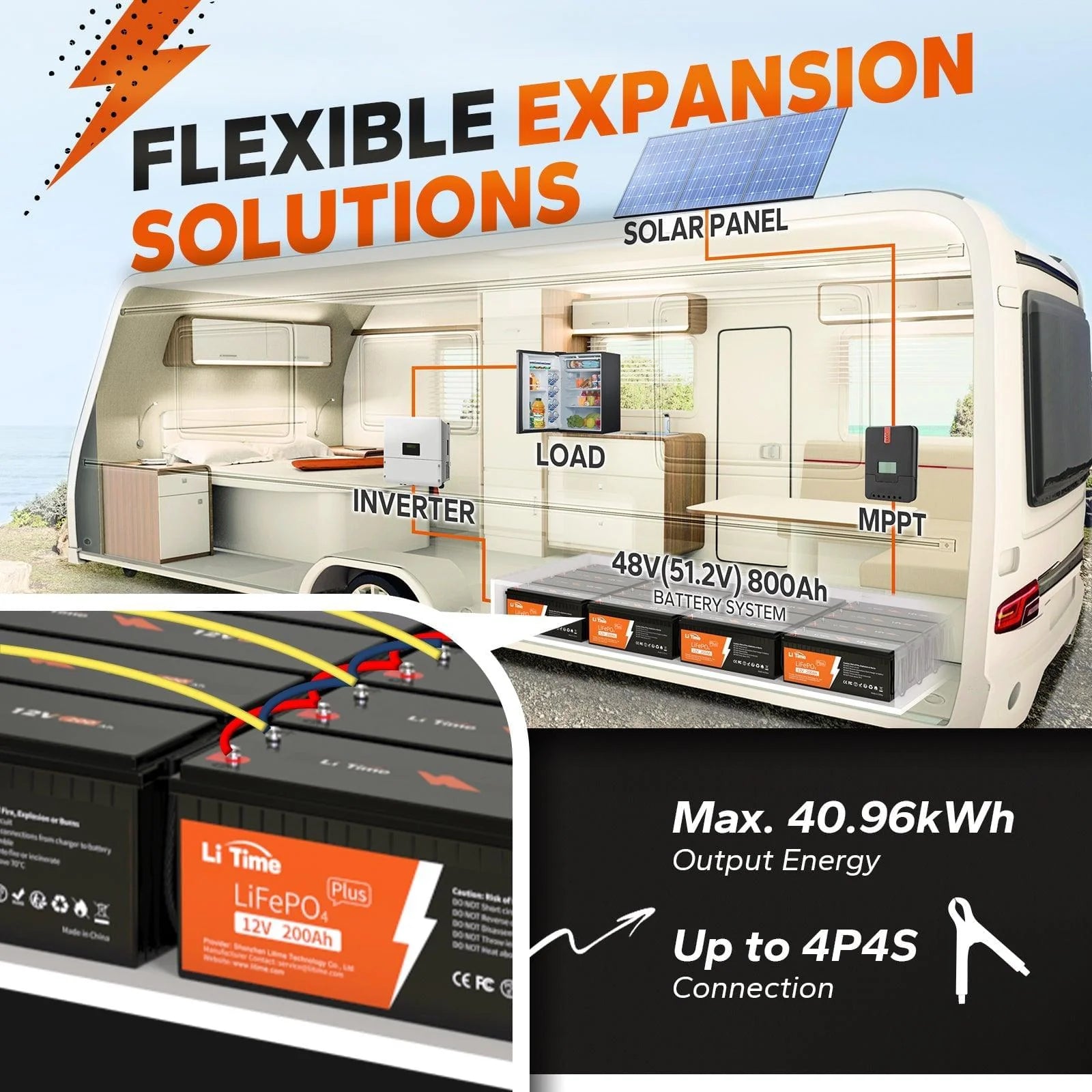

- Expandable system support: Allows series and parallel configurations up to 4P4S for larger energy storage systems.
Specs & Details
- Nominal voltage: 12V
- Capacity: 200Ah
- Energy capacity: 2560Wh
- Continuous output power: 2560W
- Continuous charge/discharge current: 200A
- Peak discharge current: 400A for 5 seconds
- Cycle life: 4000+ cycles at 100% depth of discharge

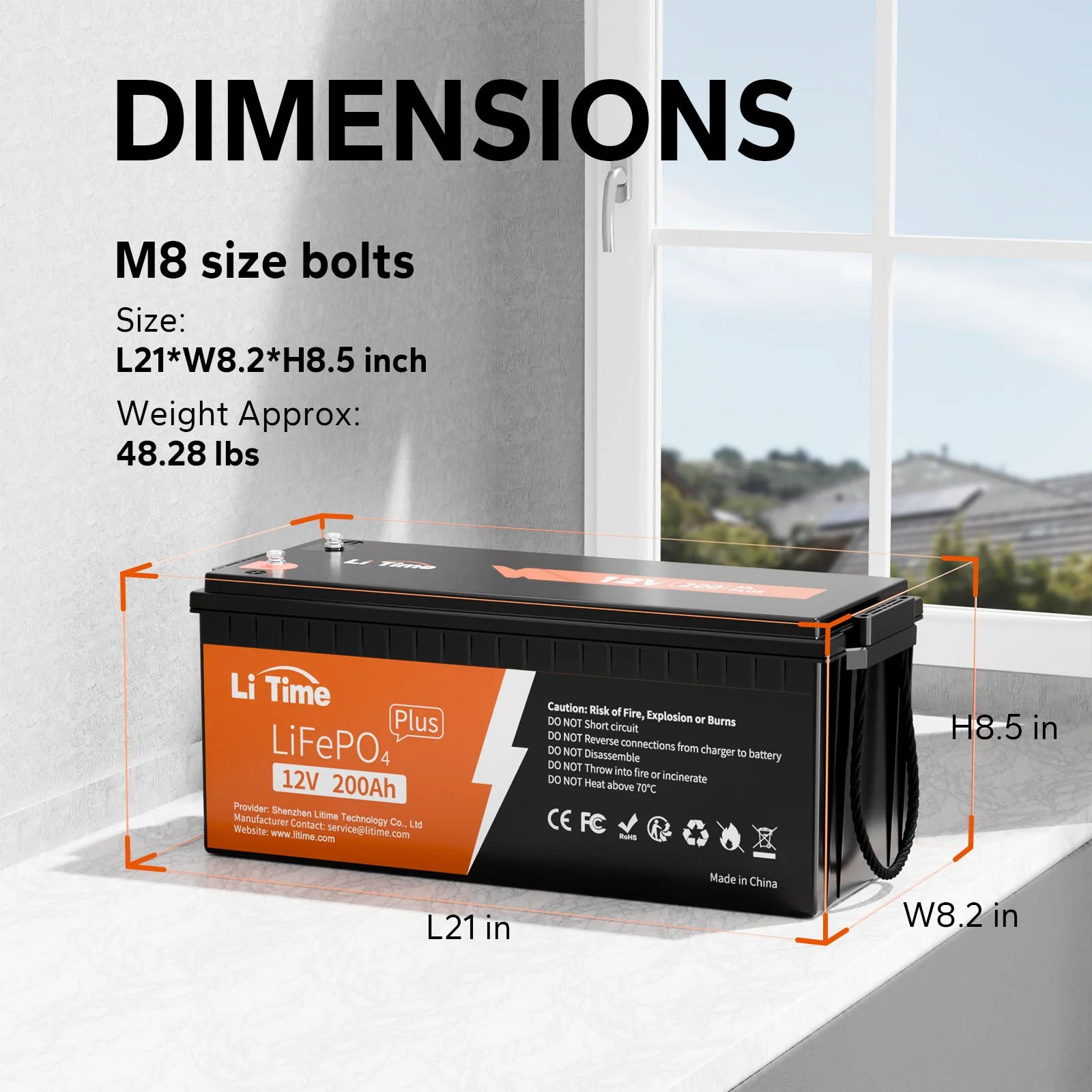

- Weight: 48 lbs
- Expansion capability: Up to 4P4S, maximum 40.96kWh total energy

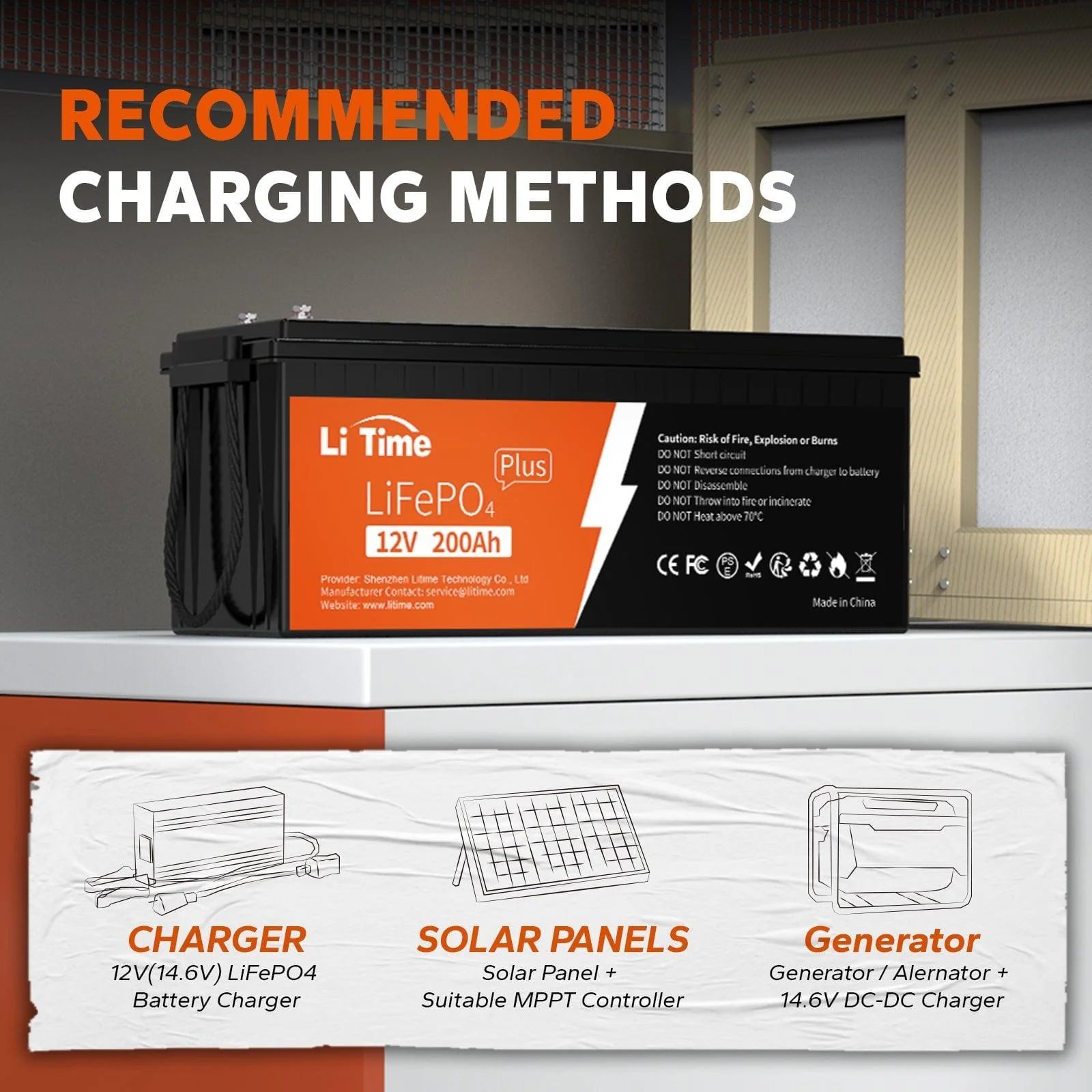

- Charging methods: LiFePO4 charger, solar, or generator
