12V 230Ah LiFePO4 Battery with Bluetooth Monitoring and 200A Output
This is a high-capacity 12-volt lithium iron phosphate (LiFePO4) battery designed for energy storage in RVs, off-grid systems, home backup setups, and mobile power applications. It supports high continuous current for running multiple devices or inverters while providing real-time monitoring through Bluetooth. The battery is intended for users who need a single large-capacity battery or expandable bank with integrated protection and visibility into system status.
Important: Do not use this battery as a starter or engine-cranking battery. A 14.6V 60A charger or compatible 60A MPPT is recommended for charging and Bluetooth activation. Do not orient the battery with the top or front side facing downward; other orientations are acceptable.
Key Features

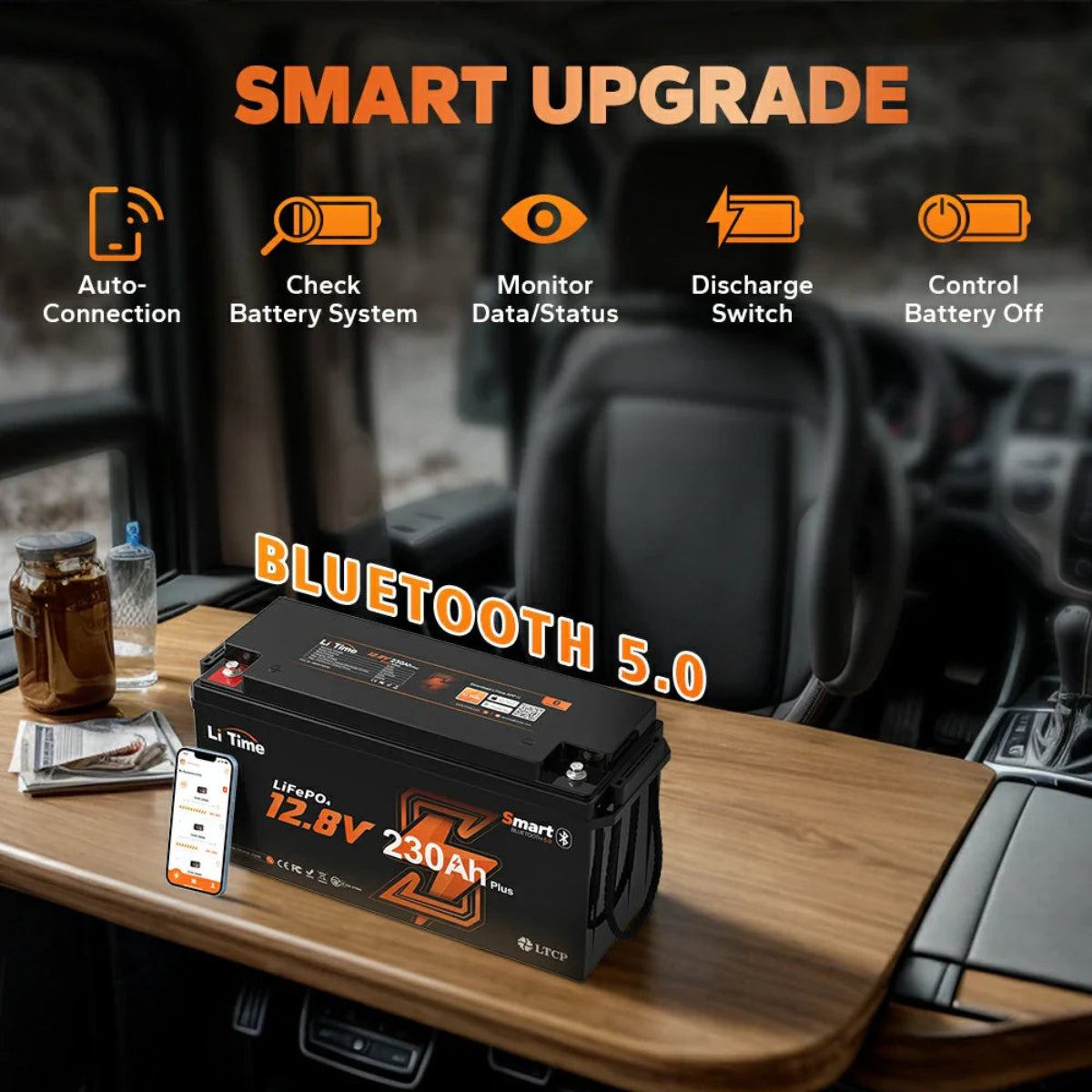

- Bluetooth 5.0 monitoring: Allows users to check battery status and control functions directly from a phone for real-time system visibility.

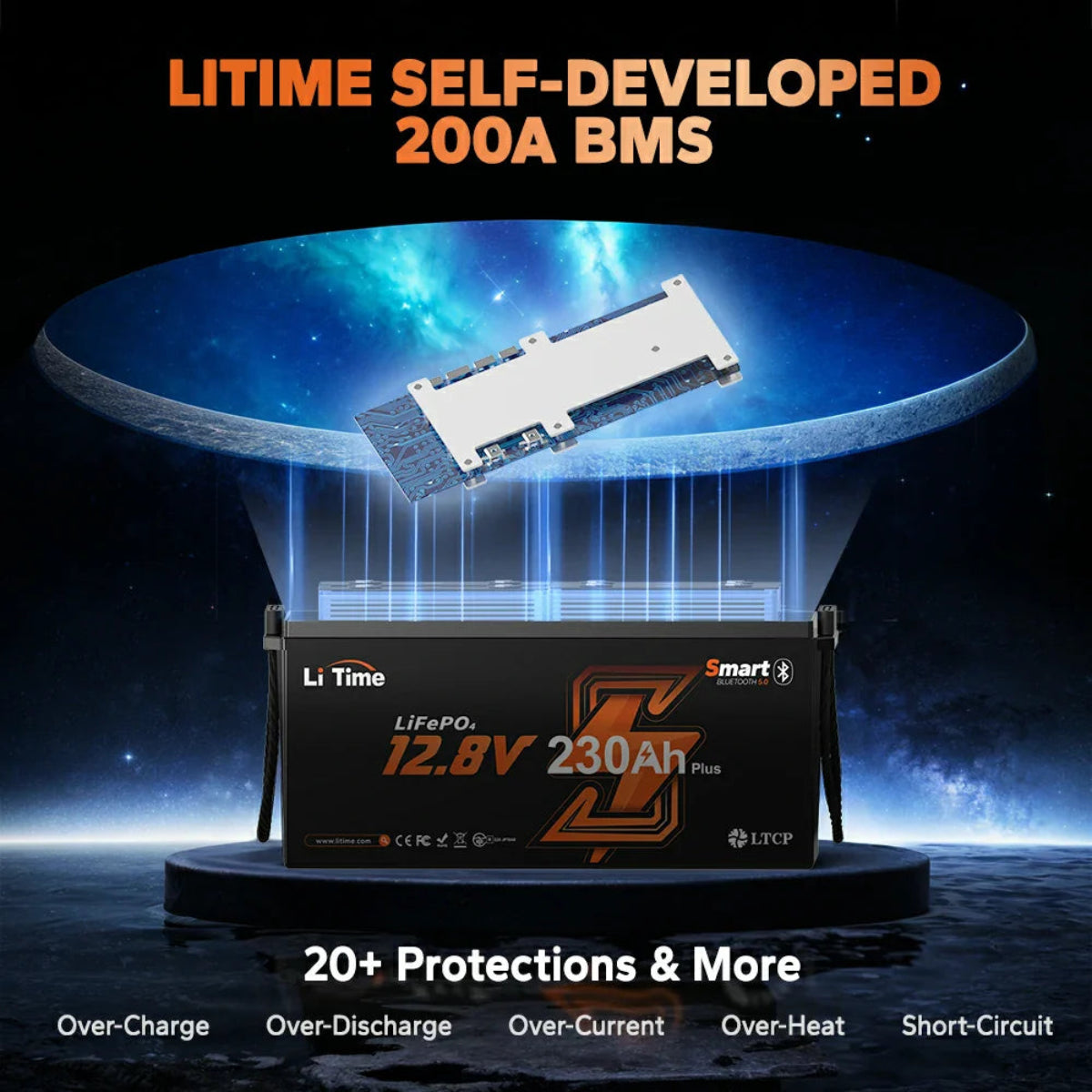

- 200A battery management system: Supports up to 200A continuous charge and discharge for high-power inverters and demanding DC loads.
- High surge capability: Rated for up to 1000A surge discharge for 1 second to handle short-duration load spikes.

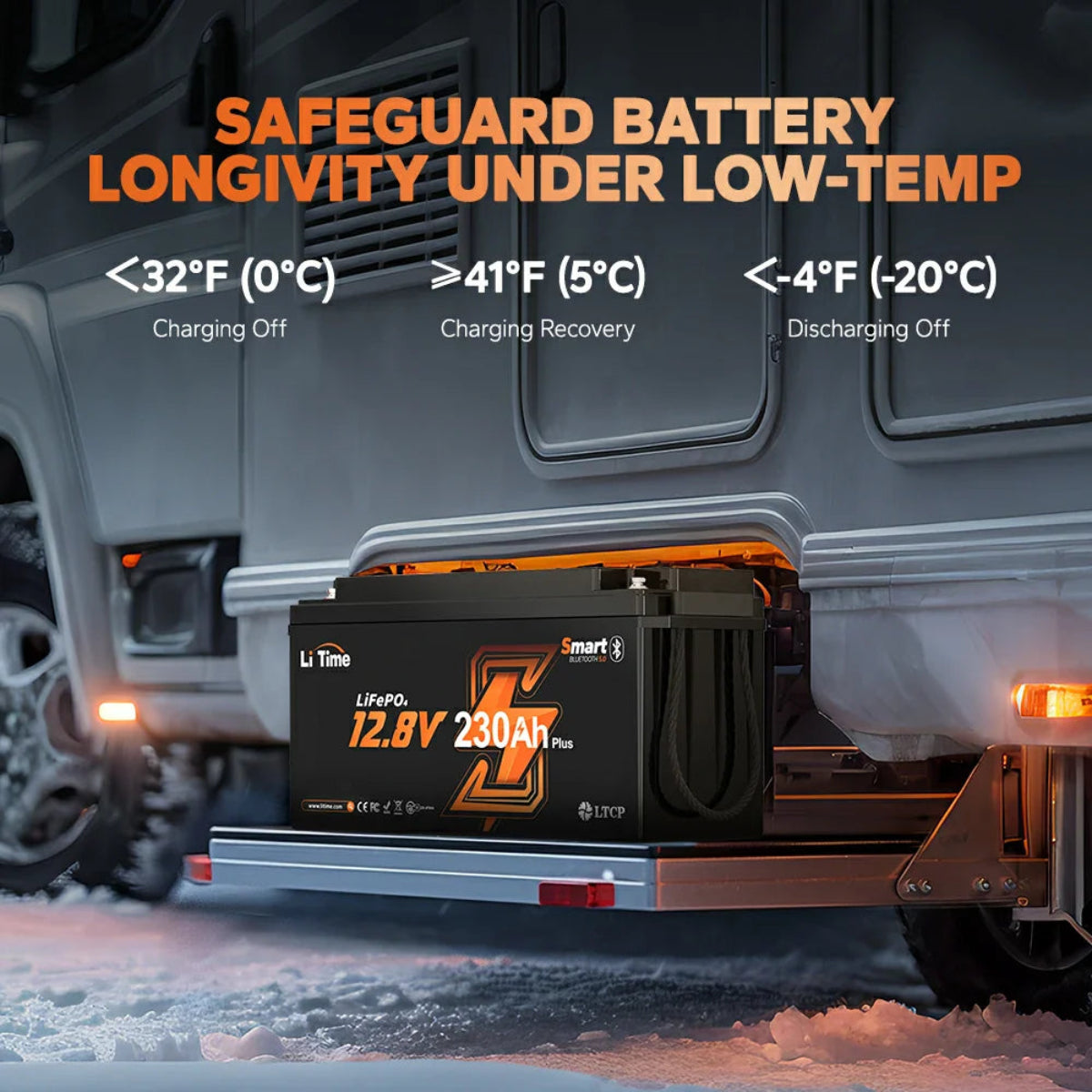

- Low-temperature protection: Charging stops at 32°F, discharging stops at −4°F, and charging automatically resumes at 41°F to protect the cells.

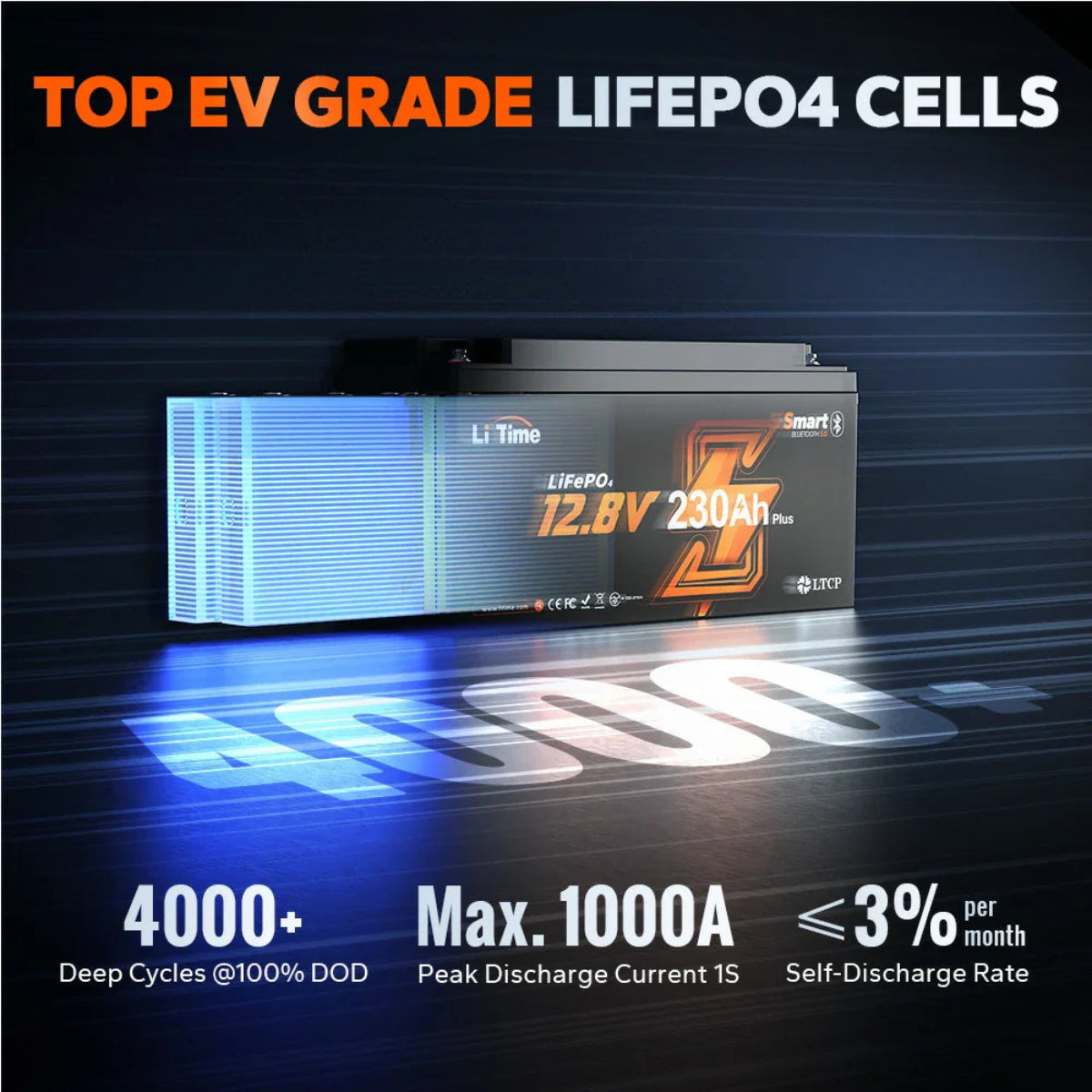

- EV-grade LiFePO4 cells: Uses lithium iron phosphate cells designed for safety, consistency, and long cycle life.
- Expandable system design: Supports series and parallel configurations up to 4P4S for building larger 48V-class battery systems.
- IP65-rated enclosure: Sealed against dust and water exposure for use in mobile, marine, and enclosed off-grid environments.
Specs & Details
- Nominal voltage: 12V
- Energy capacity: 2944Wh usable energy
- Maximum output power: 2560W
- Continuous charge/discharge current: 200A
- Peak discharge current: 1000A for 1 second

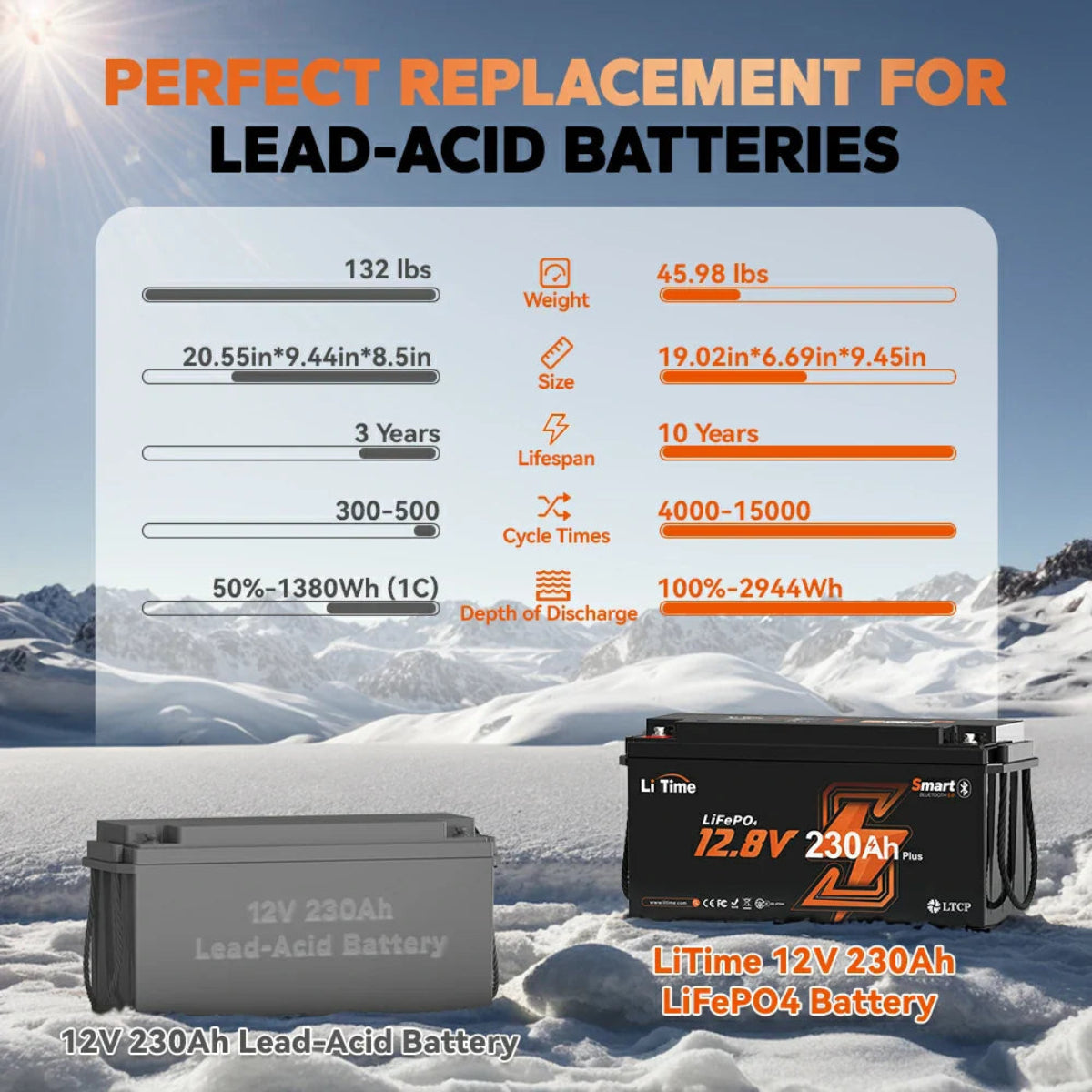

- Cycle life: 4000+ cycles at 100% depth of discharge; 6000+ at 80%; up to 15,000 at 60%

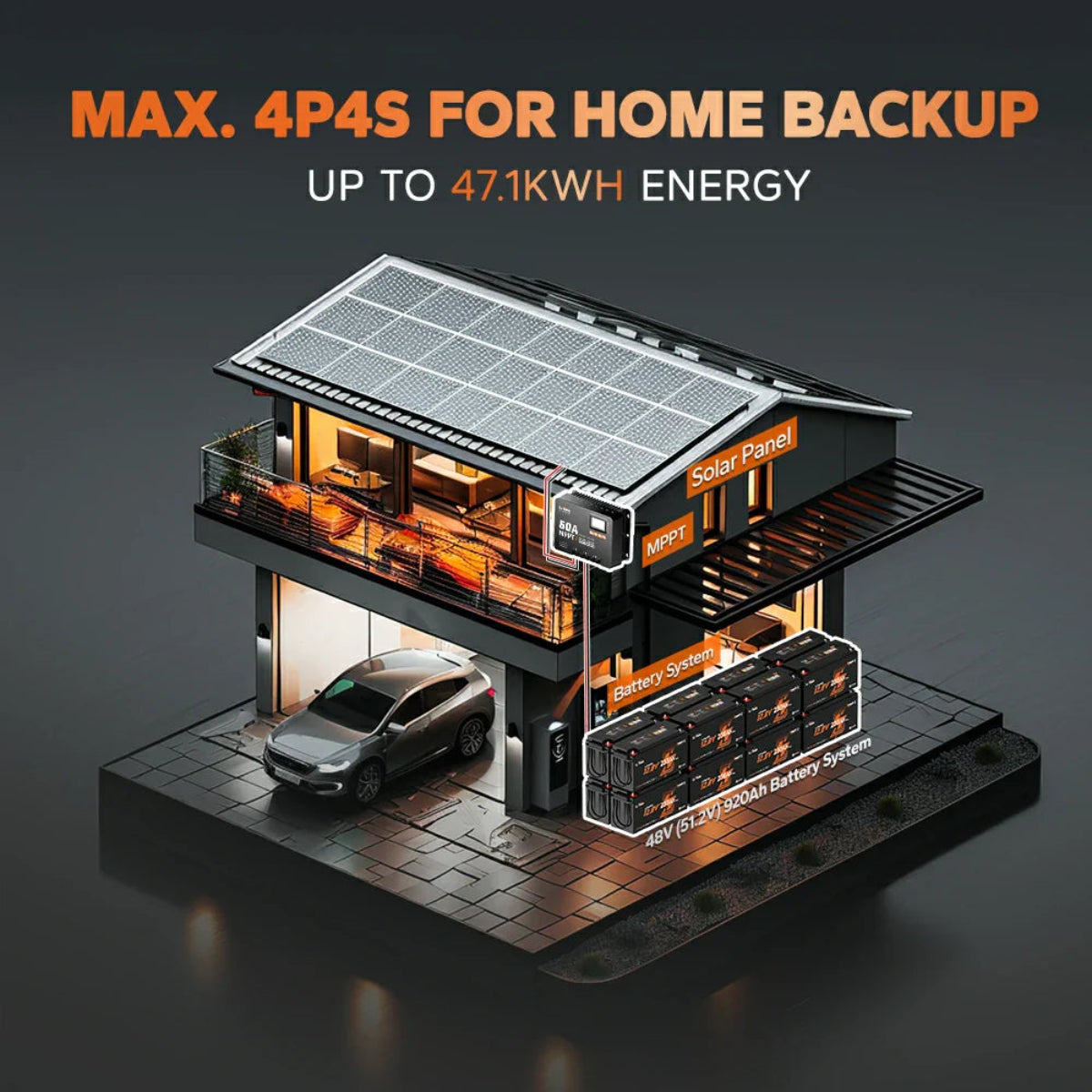

- Expansion capability: Up to 4P4S, maximum 51.2V 920Ah (47.10kWh)
- Charging methods: LiFePO4 charger, solar, generator, or alternator

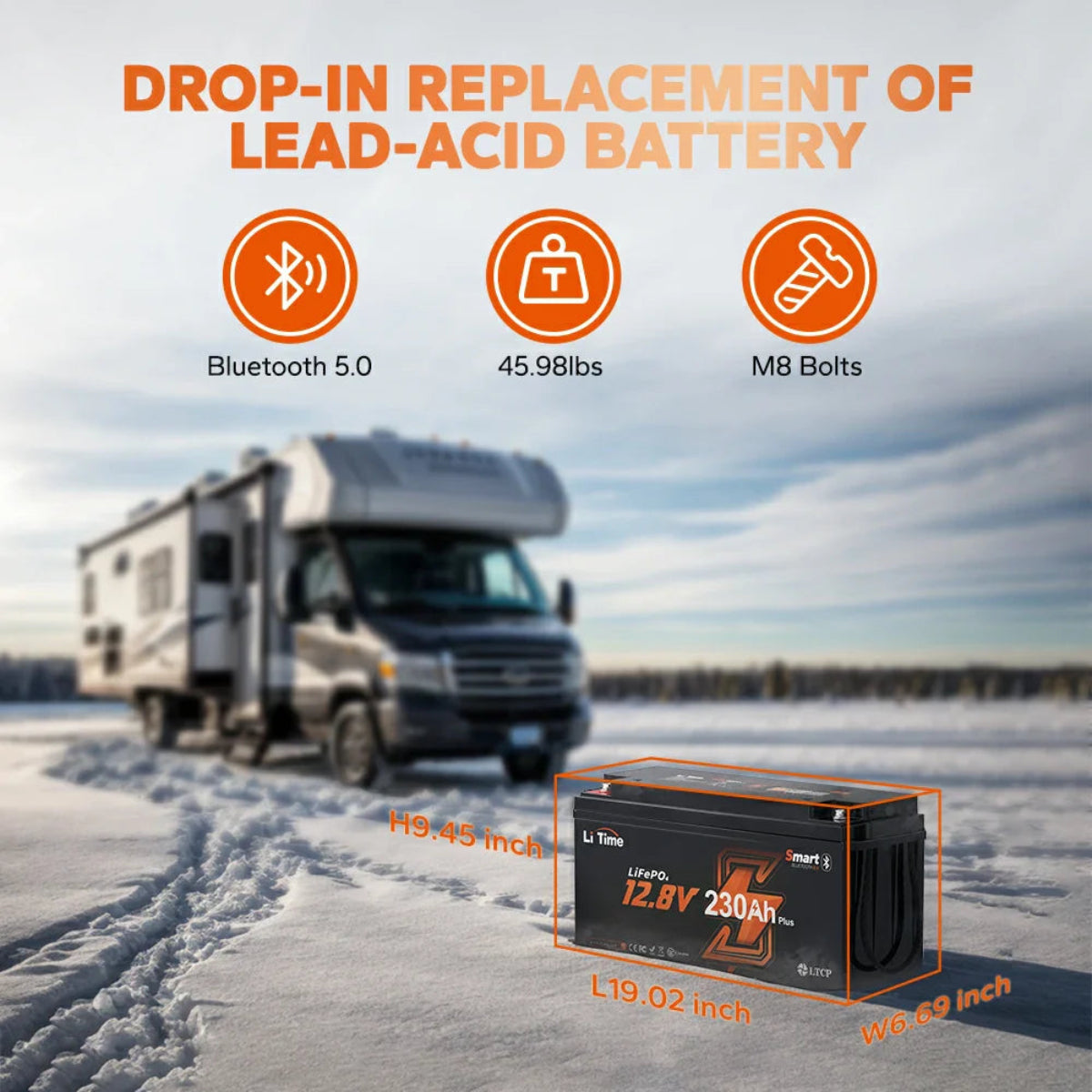

- Dimensions: 19.02 × 6.69 × 9.45 inches
- Environmental rating: IP65 waterproof and dustproof
