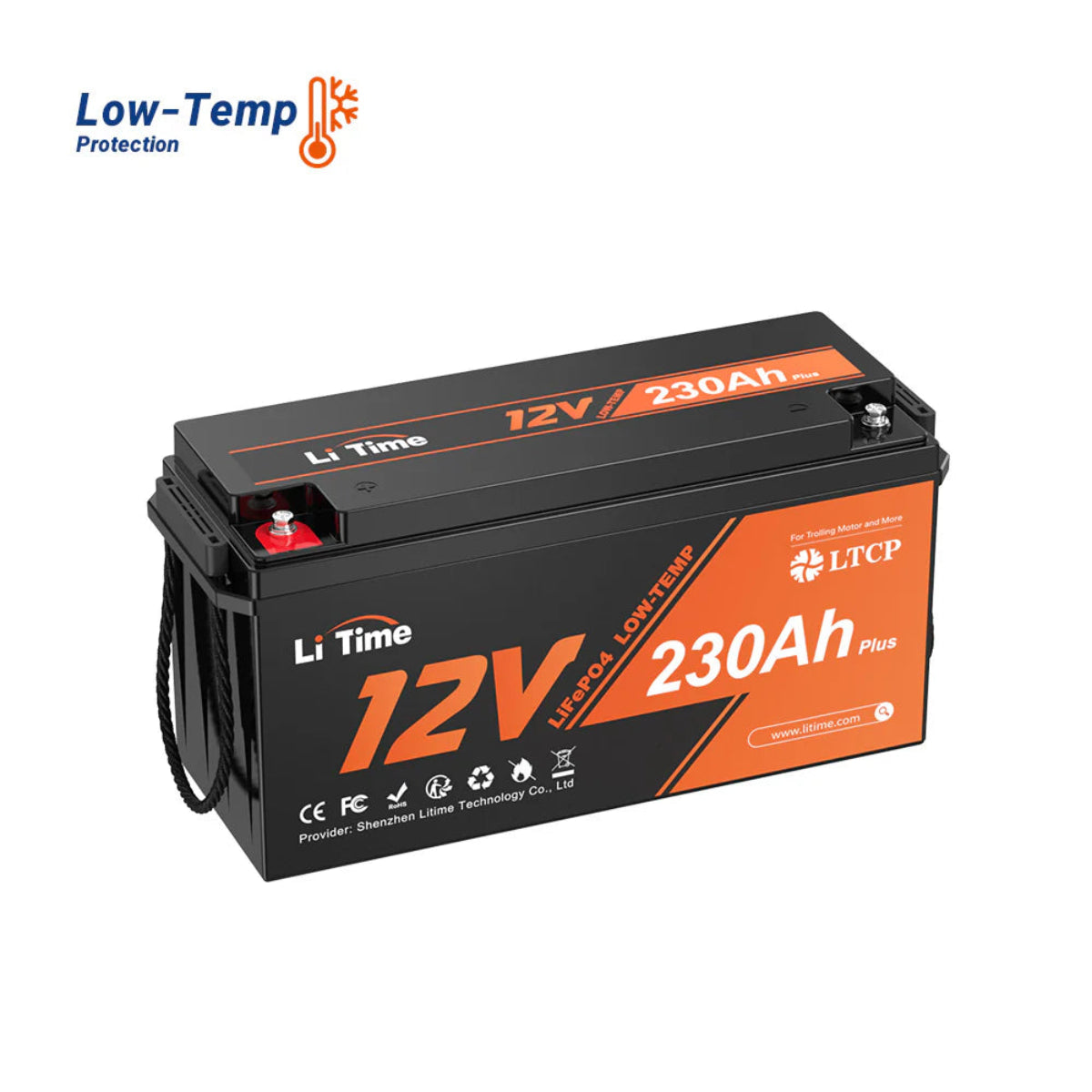

12V 230Ah LiFePO4 Battery for RV, Marine, and Off-Grid Power

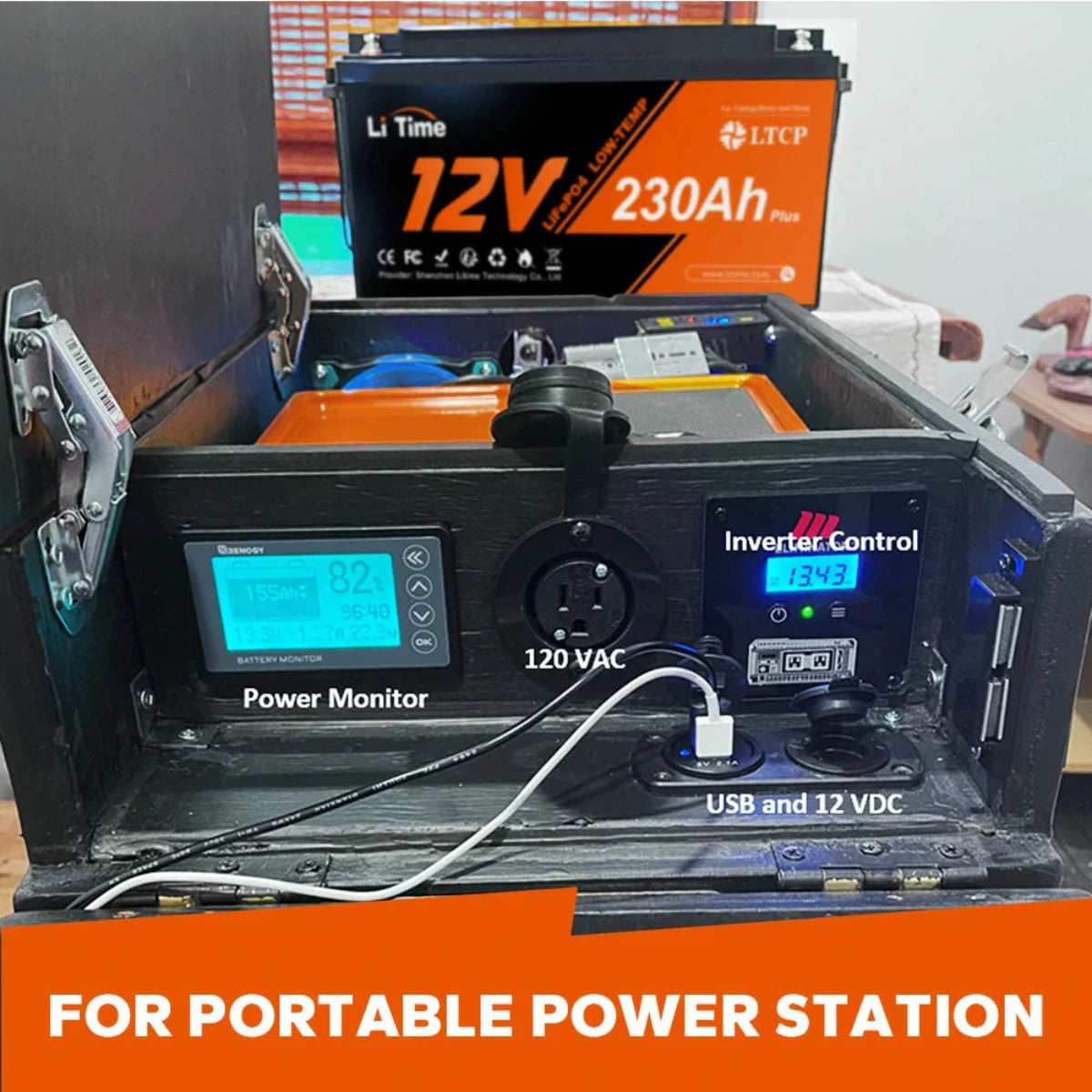

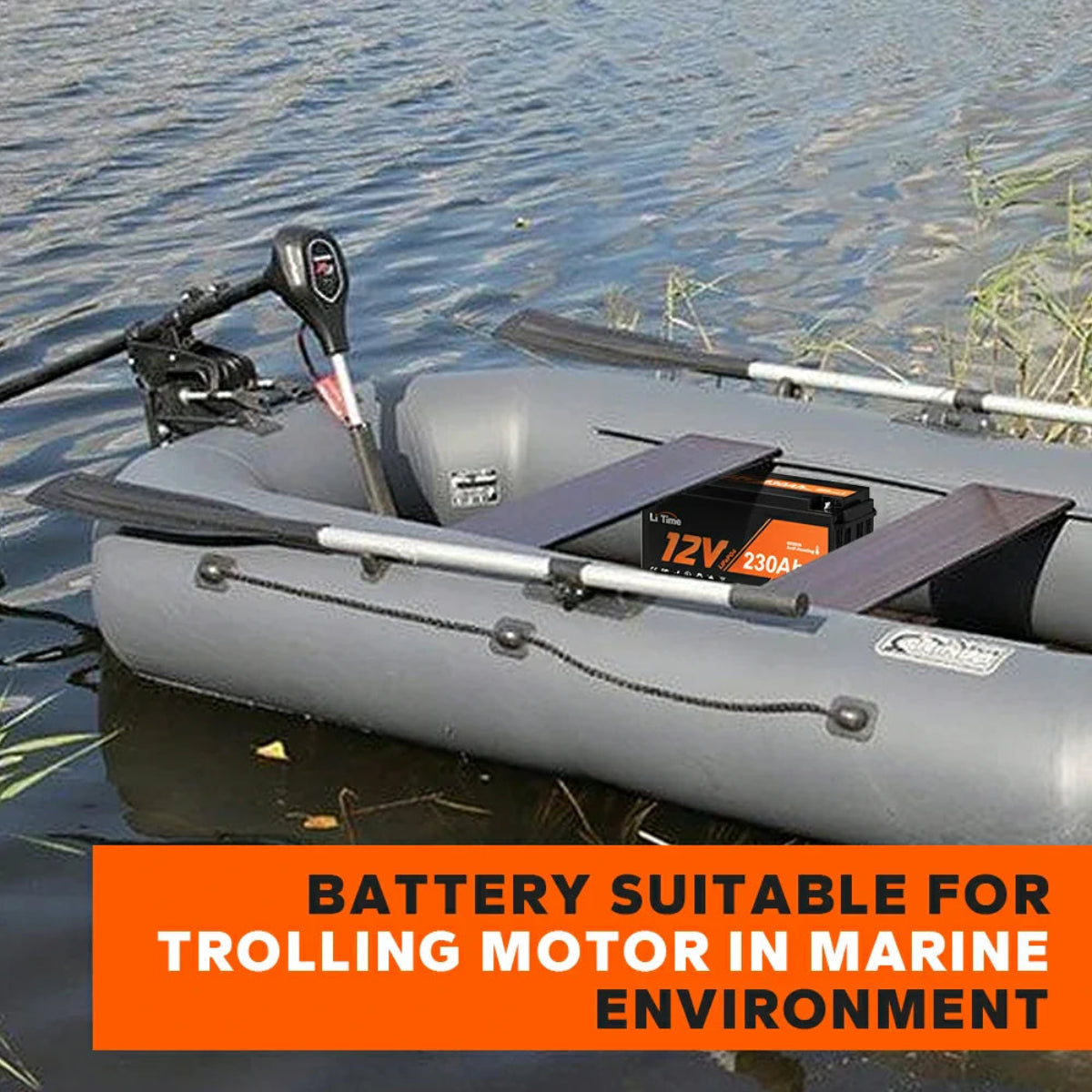

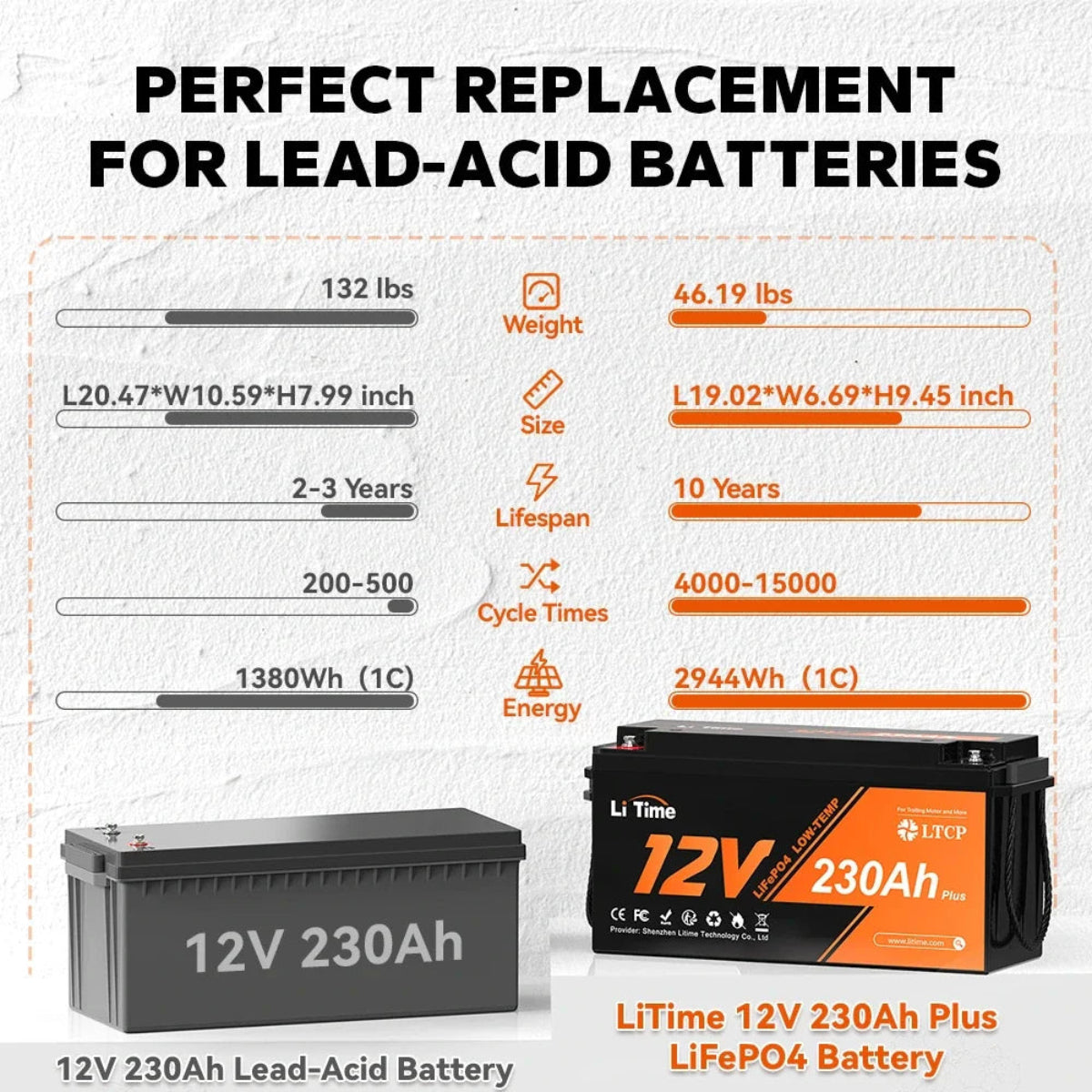

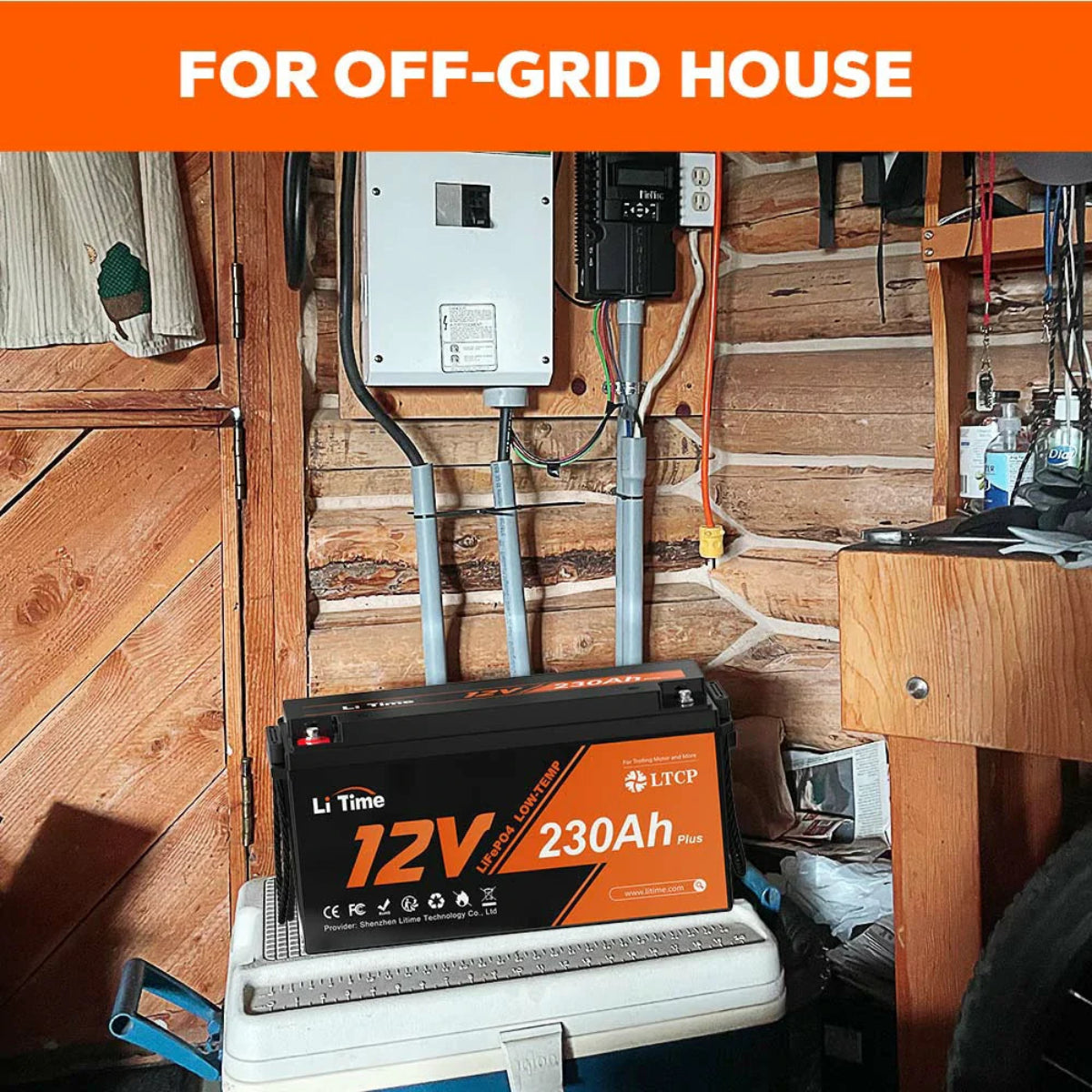

This is a high-capacity 12-volt lithium iron phosphate (LiFePO4) battery designed for deep-cycle energy storage in RVs, marine systems, home backup setups, UPS applications, and off-grid power systems. With a large usable energy capacity and a high-current battery management system, it supports sustained inverter loads and daily power use while reducing weight compared to lead-acid batteries. Built-in low-temperature protections and marine-compliant design make it suitable for both mobile and fixed installations.

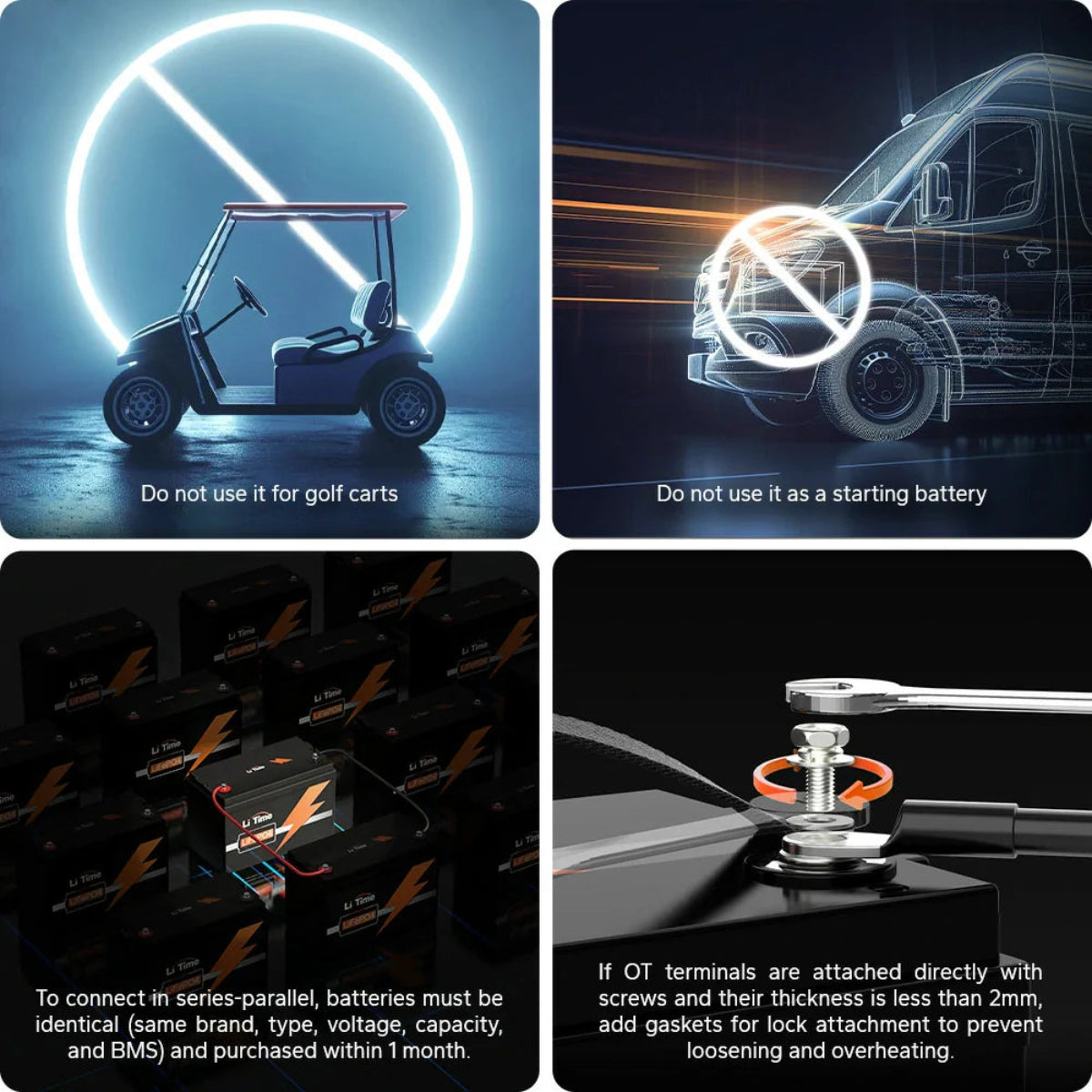

Important: Do not use this battery as a starter or engine-cranking battery. Do not orient the battery with the top or front side facing downward; other orientations are acceptable.
Key Features
- Large energy capacity: Provides 2944Wh of usable energy to support extended daily power needs in RV, marine, and off-grid systems.
- 200A battery management system: Supports up to 200A continuous discharge for higher-power inverters and demanding DC loads.
- Low-temperature protection: Charging is disabled at 32°F, discharging stops at −4°F, and charging automatically resumes at 41°F to protect the cells.

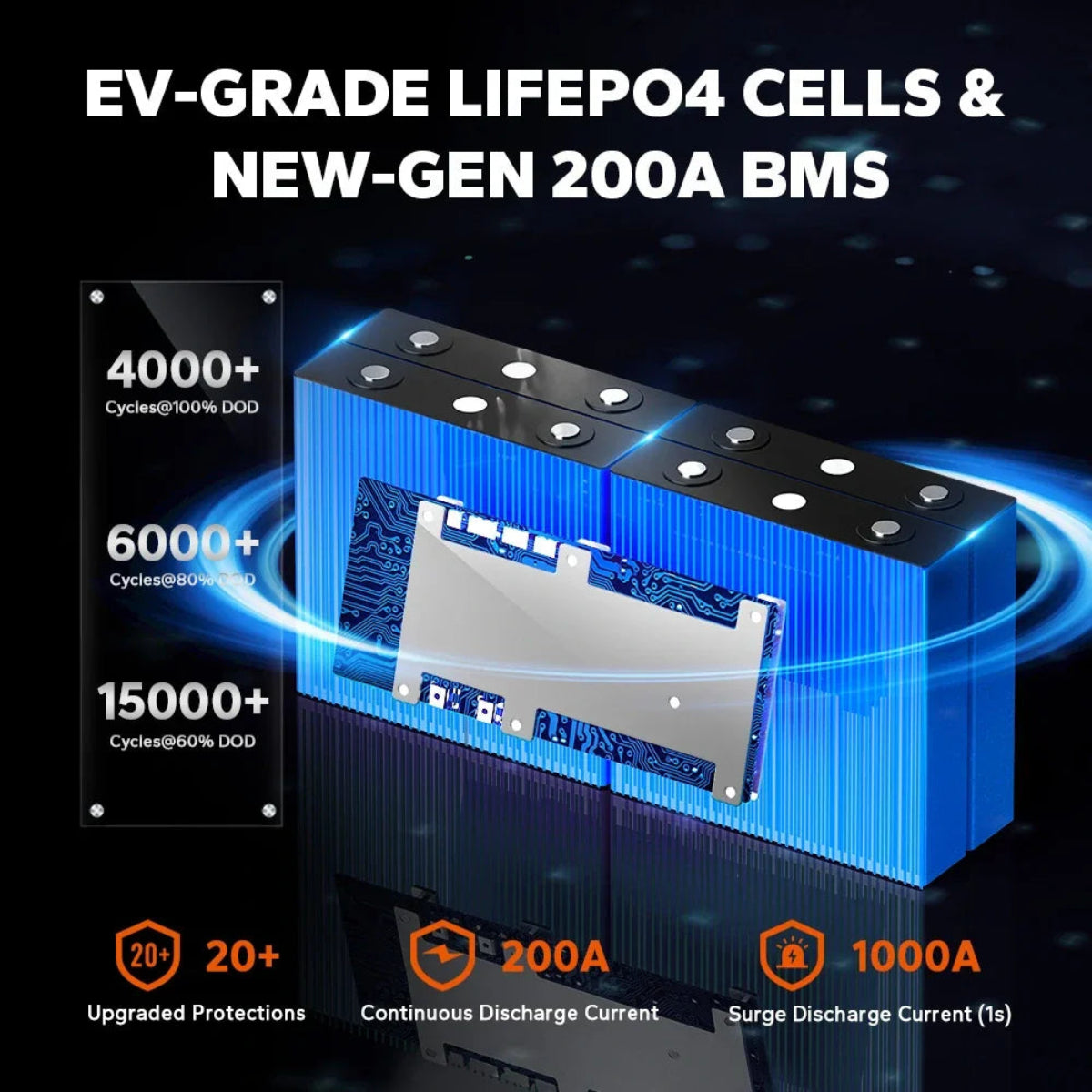

- EV-grade LiFePO4 cells: Uses lithium iron phosphate cells rated for over 4000 cycles at 100% depth of discharge and long service life.
- Comprehensive safety protections: Includes over 20 protections such as overload protection with automatic recovery, moisture resistance, salt-spray resistance, and a pre-charge function.
- Expandable system design: Supports series and parallel configurations up to 4P4S for higher voltage and large-capacity battery banks.
- Multiple charging sources: Compatible with LiFePO4 chargers, solar systems, alternators, and generators.
Specs & Details
- Nominal voltage: 12V
- Capacity: 230Ah

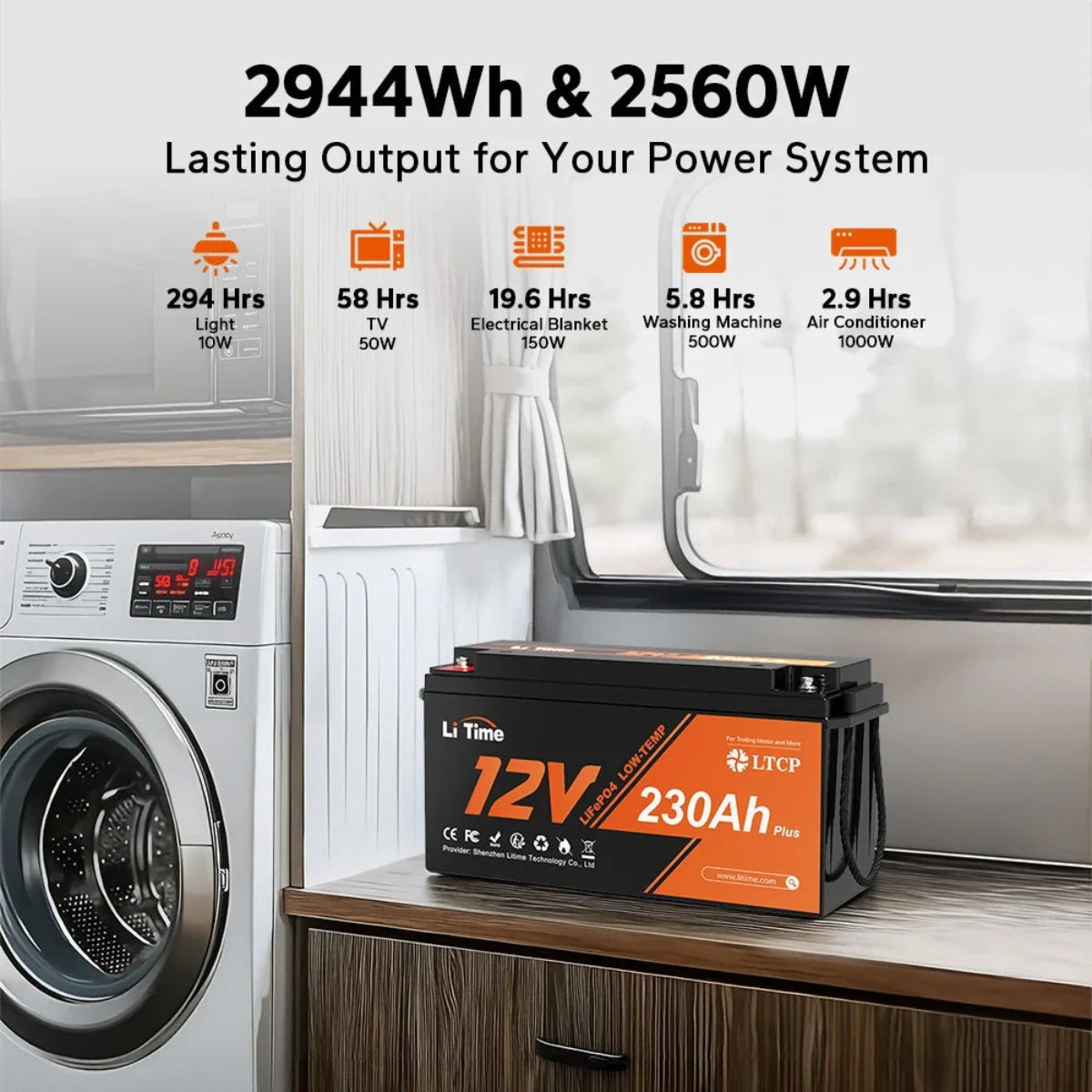

- Energy capacity: 2944Wh
- Continuous output power: 2560W
- Continuous discharge current: 200A

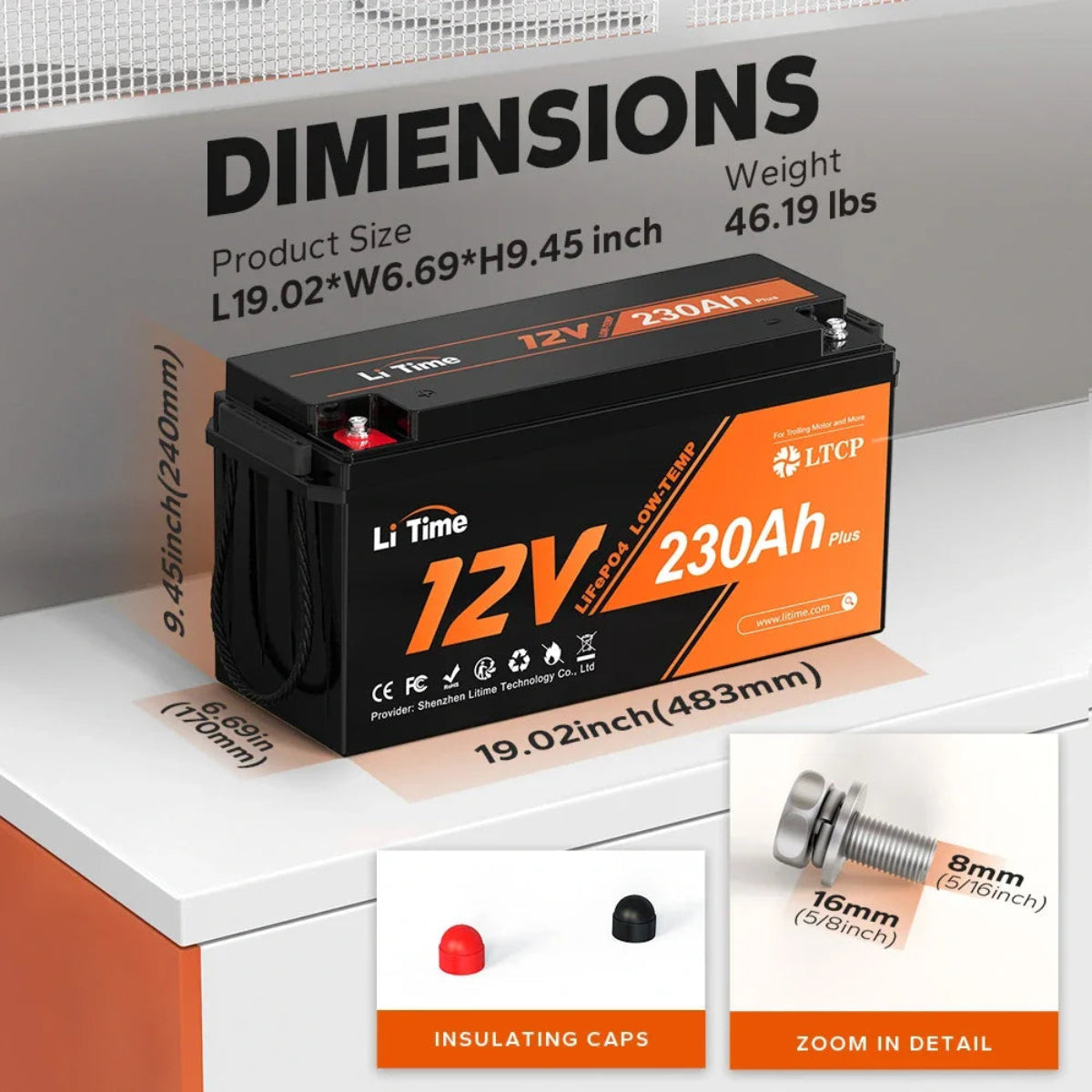

- Dimensions: 19 × 6.7 × 9.5 inches
- Cycle life: 4000+ cycles at 100% depth of discharge
- Expansion capability: Up to 4P4S, maximum 51.2V 920Ah (47.10kWh)
- Energy density: 65Wh per lb
- Certifications: UL-1973 tested, FCC, CE, RoHS, UN38.3; compliant with ABYC E-13 installation standards
