Overview

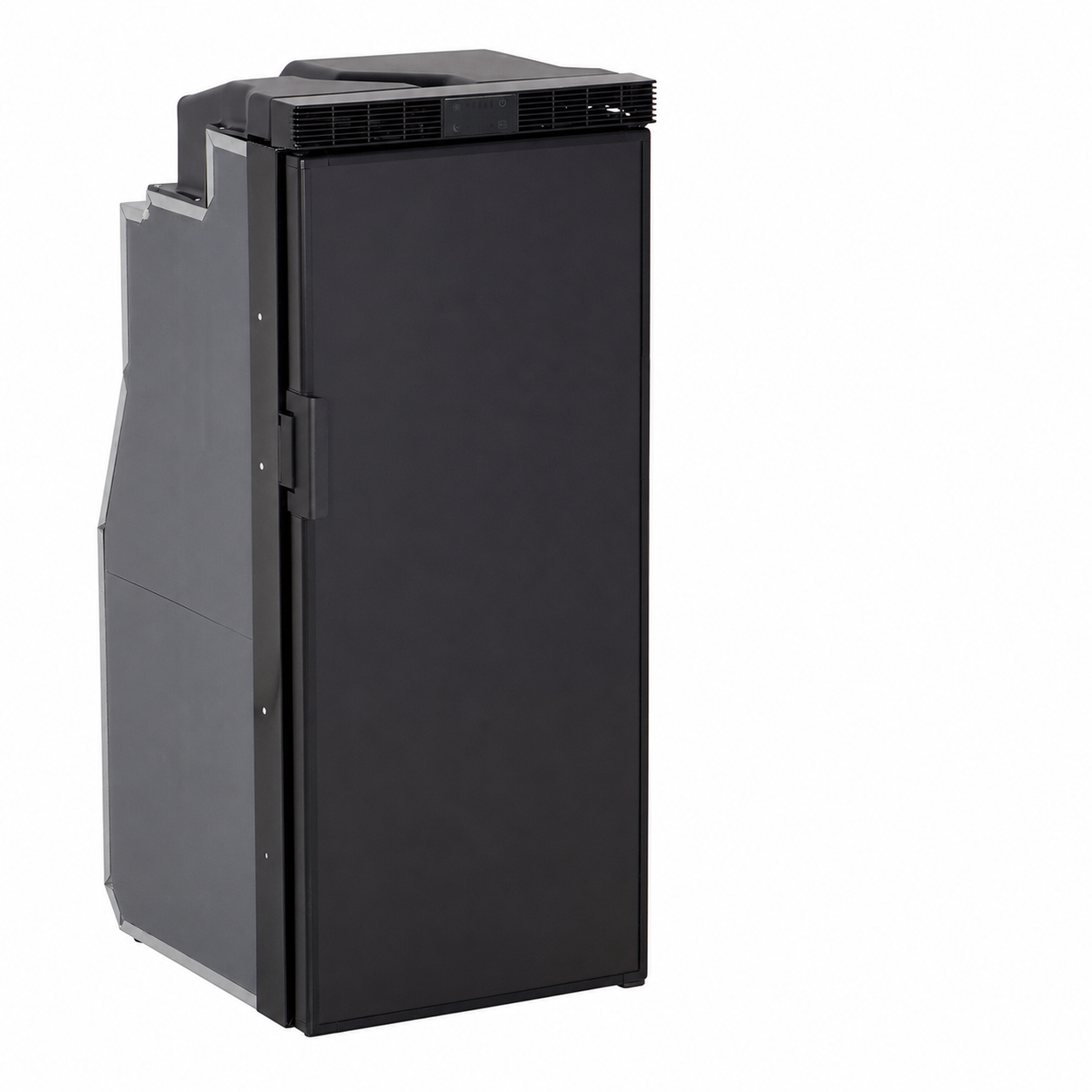

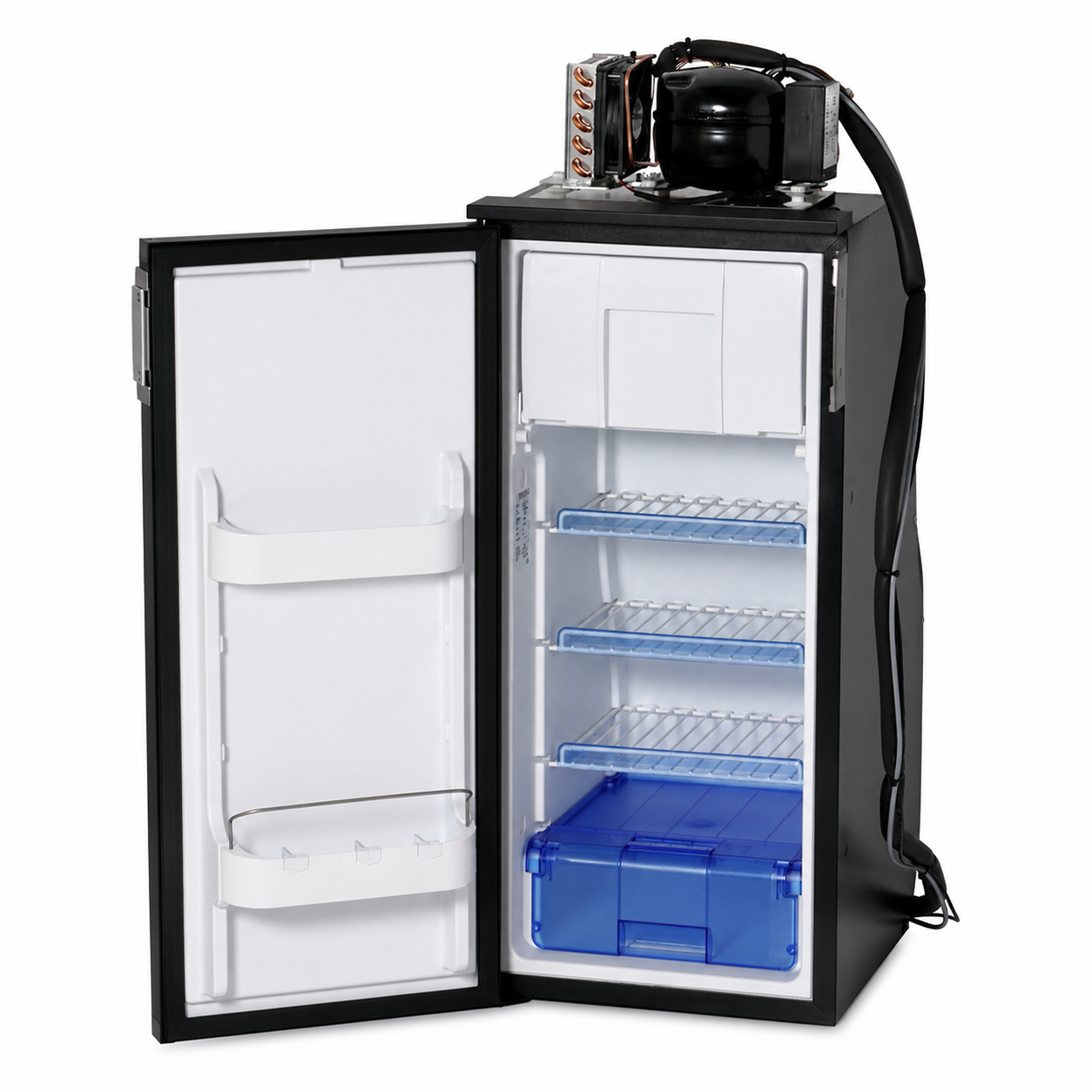

The Vitrifrigo SLIM90 CHR is a narrow 12V DC refrigerator and freezer designed for campervan galleys and other compact mobile installations. Its slim cabinet provides 2.9 cubic feet of total storage while using an externally mounted Secop BD35K compressor to provide additional flexibility when planning cabinetry and ventilation. The refrigerator includes a separate 0.35-cubic-foot freezer compartment, reversible door, mechanical thermostat, and black laminate finish.
Installation Notice: Published dimensions are for reference only and include the top-mounted refrigeration components, external lines, and door handle. Measure the actual refrigerator before completing cabinetry or cutout construction. Mounting screws are not included.
Key Features
- Slim cabinet design: Measures approximately 19 inches wide overall for installation in narrow campervan galley layouts.
- Separate freezer compartment: Provides 0.35 cubic feet of dedicated frozen-food storage within the 2.9-cubic-foot total capacity.

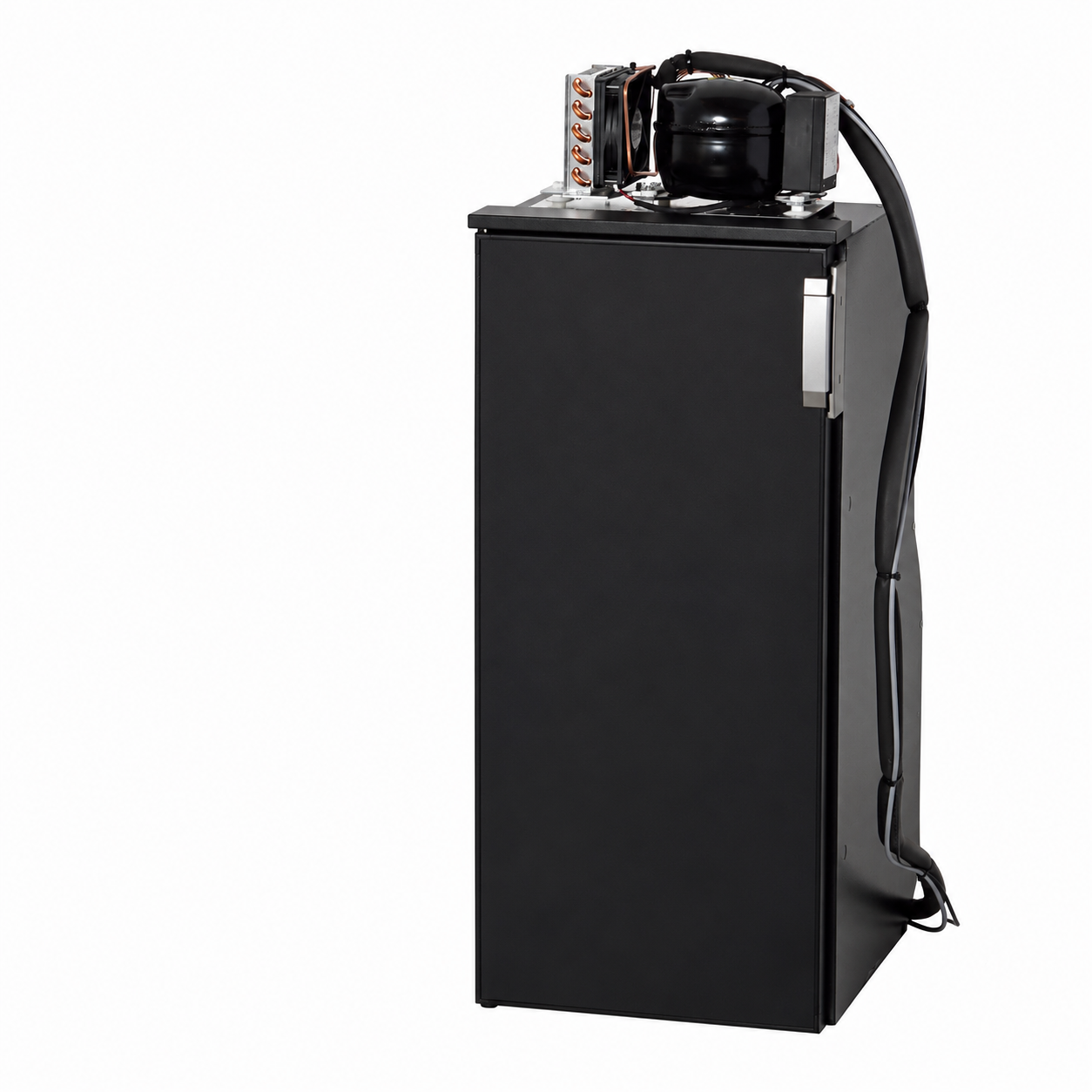

- Remote compressor configuration: External Secop BD35K compressor provides more flexibility when positioning the refrigerator and refrigeration components.
- 12V DC operation: Connects directly to a compatible 12V electrical system without requiring an inverter.
- Low nominal power demand: Rated at 39 watts nominal consumption and 4 amps at 12V DC.
- Reversible door: Left-hinged door can be reversed to accommodate different cabinet and galley arrangements.
- Mechanical thermostat: Provides straightforward temperature adjustment without a digital control panel.
- Travel-ready refrigeration: The compressor and cabinet are designed for mobile applications including campervans, RVs, marine vessels, and overland vehicles.
Specs & Details
- Model: Vitrifrigo SLIM90 CHR
- Manufacturer part number: SLIM90RBD3-L
- Total capacity: 2.9 cu. ft.
- Refrigerator capacity: 2.55 cu. ft.
- Freezer capacity: 0.35 cu. ft.
- Approximate overall dimensions: 42 in. H Ă— 19 in. W Ă— 20.75 in. D
- Approximate proud-mount cutout: 35.5 in. H Ă— 16.5 in. W Ă— 17.25 in. D
- Approximate flush-mount cutout: 36 in. H Ă— 16.5 in. W Ă— 20.25 in. D
- Power source: 12V DC only
- Nominal power consumption: 39 watts
- Average daily power consumption: 328 watt-hours
- DC current: 4A at 12V
- Low-voltage shutdown: 10.4V
- Restart voltage: 11.7V
- Required fuse: 15A
- Recommended wire size: 10 AWG for runs up to 12 feet
- Compressor: Secop BD35K remote compressor
- Refrigerant: R134a
- Thermostat: Mechanical
- Door swing: Left, reversible
- Finish: Black laminate
- Weight: 30 lbs.
- Included: Refrigerator and instruction manual
- Not included: Mounting screws
