Vitrifrigo C115iX OCX2 (C115iXD4X-1) RV Electric Refrigerator Freezer - AC/DC - 4.2 CF

Vitrifrigo C115iX OCX2 (C115iXD4X-1) RV Electric Refrigerator Freezer - AC/DC - 4.2 CF

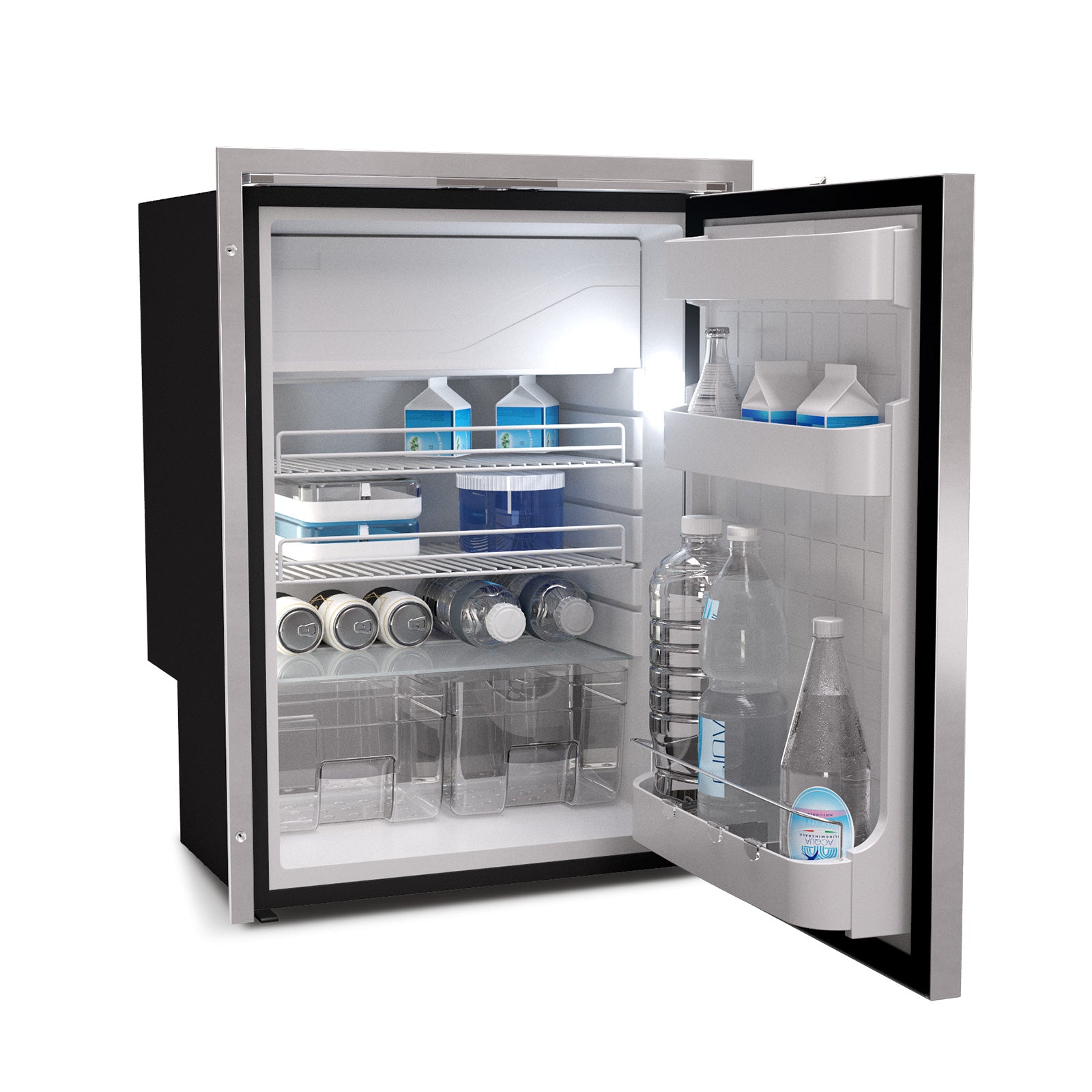

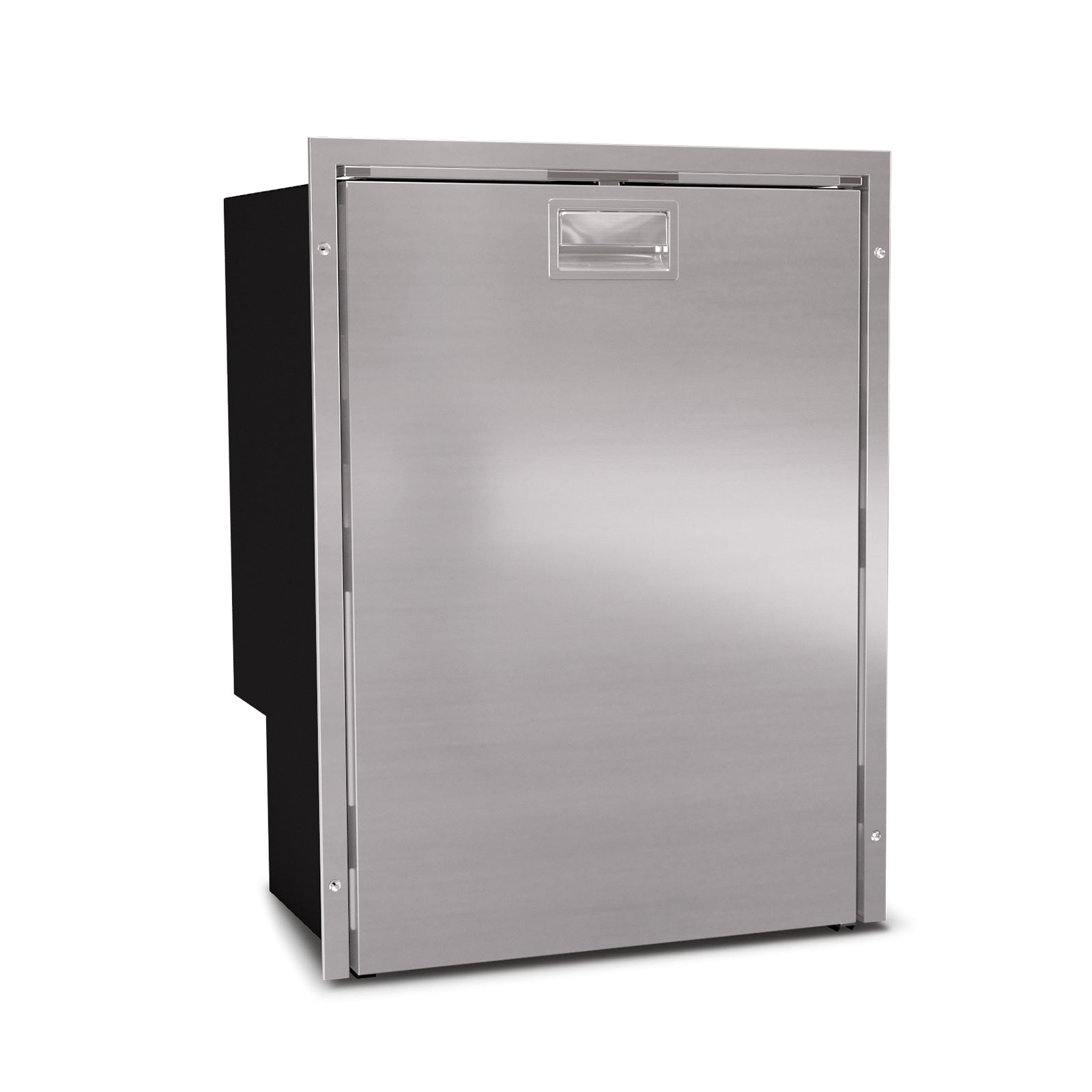

The Vitrifrigo C115iX from the OCX2 series is a compact yet efficient fridge-freezer designed for RVs, campervans, and mobile living. With a 4.2 cubic foot total capacity, including a 0.6 cubic foot freezer compartment, this unit maximizes space while ensuring reliable cooling performance. Designed for durability and efficiency, the C115iX is the perfect cooling solution for your adventures on the road while keeping food fresh and secure.

Superior Quality

Designed and manufactured in Italy, Vitrifrigo refrigerators exemplify superior craftsmanship and adherence to high standards, making them a reliable choice for both marine travel and overland vehicles. Each unit is meticulously engineered to endure the harsh conditions encountered during travel, offering robustness and longevity. The precision manufacturing process ensures that these refrigerators meet stringent European quality standards, providing dependable performance and durability. Whether navigating rough seas or traversing rugged terrains, Vitrifrigo refrigerators deliver consistent, high-quality refrigeration, making them an ideal solution for those seeking reliability and excellence in their mobile refrigeration needs.

Electric refrigerators are sensitive to power changes or insufficient power. It is important that the system can handle 15 amps of 12V DC power. A minimum of 10 gauge wire for installations up to 12 ft. is required. If the refrigerator is supplied with insufficient power, it will not operate, or show signs of difficulty operating.

Additional Info

• Total Capacity: 4.2 cu. ft.

• Refrigerator Capacity: 3.6 cu. ft.

• Freezer Capacity: 0.6 cu. ft.

• Overall Dimensions w/ Flange (Nominal): 31 ⅝"H x 23 ⅛"W x 21 ⅞"D

• Cut-Out Dimensions (Nominal): 30 ¼"H x 21 ¼"W x 21 ⅞"D

• Freezer Compartment Dimensions: 4 ¼" H x 16" W x 11 ⅞" D

• Power Source: 12V DC / 120V AC

• Nominal Power Consumption: 45 Watts

• DC Current: 3.78 A @ 12V

• Compressor: Secop R134A

• Series: OCX2 Steelock

• Thermostat Type: Mechanical

• Lighting Type: LED

• Weight: 70.5 lbs.

• Door Swing: Right

• Door Reversible: Yes

Note: The dimensions listed here are for reference and are not intended to be used for cabinet design. We highly recommend taking measurements from the actual product before finalizing the design of your cabinetry and/or cutouts.
