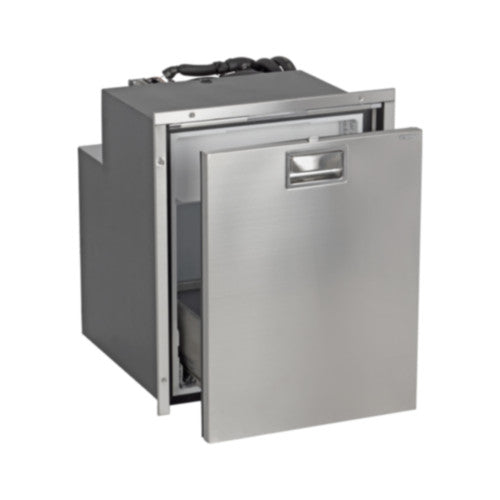

Vitrifrigo DW90i OCX2 (DW90iXD4-1) RV Electric Refrigerator Freezer Stainless Steel - AC/DC - 3.2 CF

Vitrifrigo DW90i OCX2 (DW90iXD4-1) RV Electric Refrigerator Freezer Stainless Steel - AC/DC - 3.2 CF

The Vitrifrigo DW90i from the OCX2 series is a space-saving and efficient fridge-freezer designed for RVs, campervans, boats, and off-grid living. Built to perform reliably in mobile and marine environments, it handles vibration and variable power conditions with ease. With a 3.2 cubic foot total capacity, including a 0.3 cubic foot freezer compartment, it delivers dependable cooling in a compact, stainless steel footprint—ideal for life on the road or on the water.

Superior Quality

Designed and manufactured in Italy, Vitrifrigo refrigerators exemplify superior craftsmanship and adherence to high standards, making them a reliable choice for both marine travel and overland vehicles. Each unit is meticulously engineered to endure the harsh conditions encountered during travel, offering robustness and longevity. The precision manufacturing process ensures that these refrigerators meet stringent European quality standards, providing dependable performance and durability. Whether navigating rough seas or traversing rugged terrains, Vitrifrigo refrigerators deliver consistent, high-quality refrigeration, making them an ideal solution for those seeking reliability and excellence in their mobile refrigeration needs.

Danfoss / Secop Compressor

Vitrifrigo refrigerators are made with the reliable and quiet Danfoss / Secop DC Compressor. The Danfoss / Secop compressor is tried and true, with Danfoss having more than 60 years experience manufacturing compressors, and is used by marine refrigerator manufactures because of its durability, dependability, and long life.

Electric refrigerators are sensitive to power changes or insufficient power. It is important that the system can handle 15 amps of 12V DC power. A minimum of 10 gauge wire for installations up to 12 ft. is required. If the refrigerator is supplied with insufficient power, it will not operate, or show signs of difficulty operating.

Additional Info

• Total Capacity: 3.2 cu. ft.

• Refrigerator Capacity: 2.9 cu. ft.

• Freezer Capacity: 0.3 cu. ft.

• Overall Dimensions w/ Flange (Nominal): 21"W x 25 ½"H x 22 ⅛"D

• Cut-Out Dimensions (Nominal): 24 ½"H x 18 ½"W x 22 ⅛"D

• Power Source: 12V DC / 120V AC

• Avg. Daily Power Consumption: 378 Watts

• Nominal Power Consumption: 45 Watts

• DC Current: 3.78A @ 12V

• Series: OCX2 Steelock

• Thermostat Type: Mechanical

• Lighting Type: LED

• Weight: 66.1 lbs.

• Finish: Stainless Steel

Note: The dimensions listed here are for reference and are not intended to be used for cabinet design. We highly recommend taking measurements from the actual product before finalizing the design of your cabinetry and/or cutouts.
