GoCode 20-Gallon Galley Water Tank for Camper Vans (Fresh or Grey)

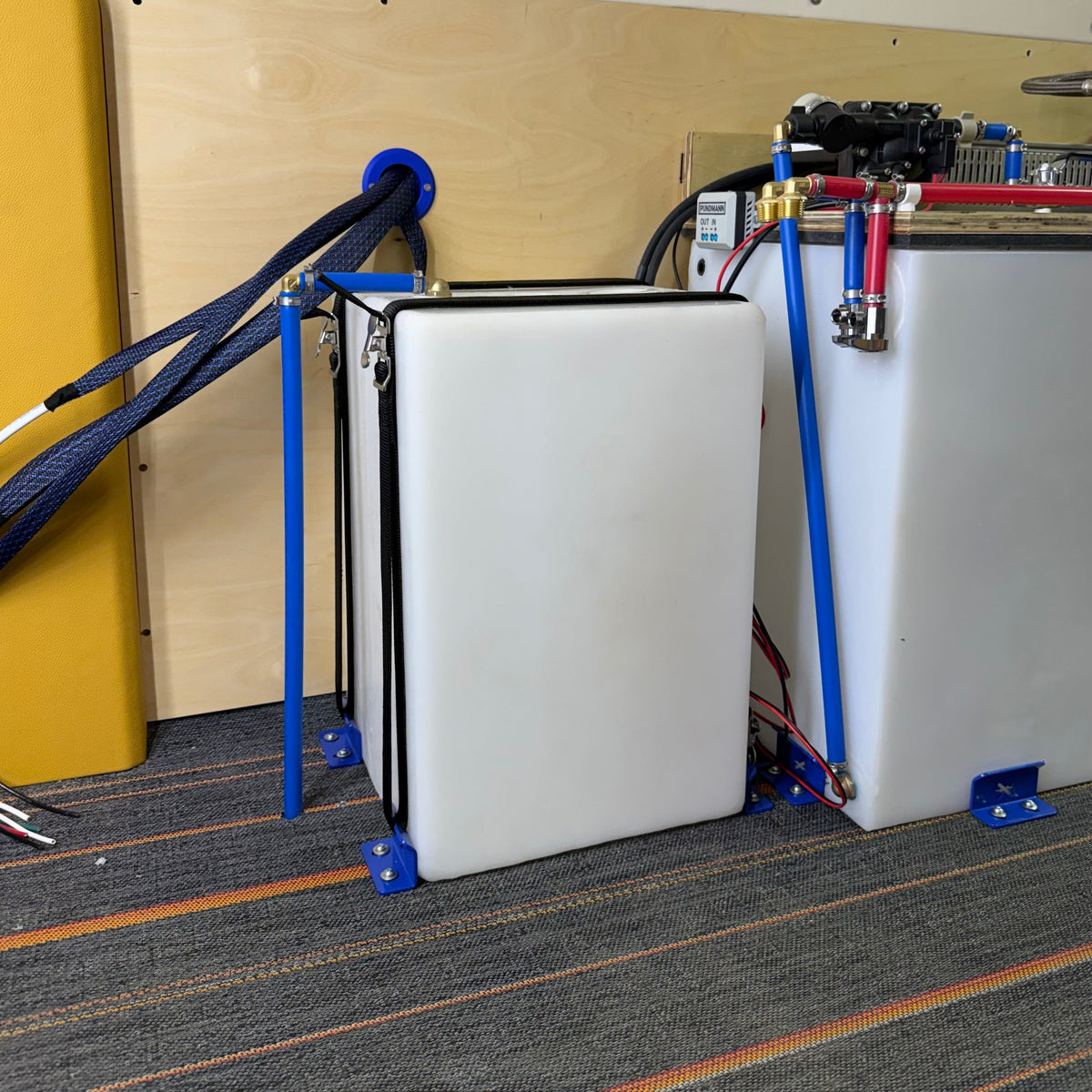

With 20 gallons of capacity in a compact box shape, this GoCode galley water tank fits into tight spaces without sacrificing interior room. Install it in a galley cabinet, bench seat, or custom storage cavity in a Sprinter, Transit, or ProMaster camper van build. It works for fresh or grey water: drain straight through your subfloor with a ball valve, or connect it to an undermount tank for additional storage.

Specifications

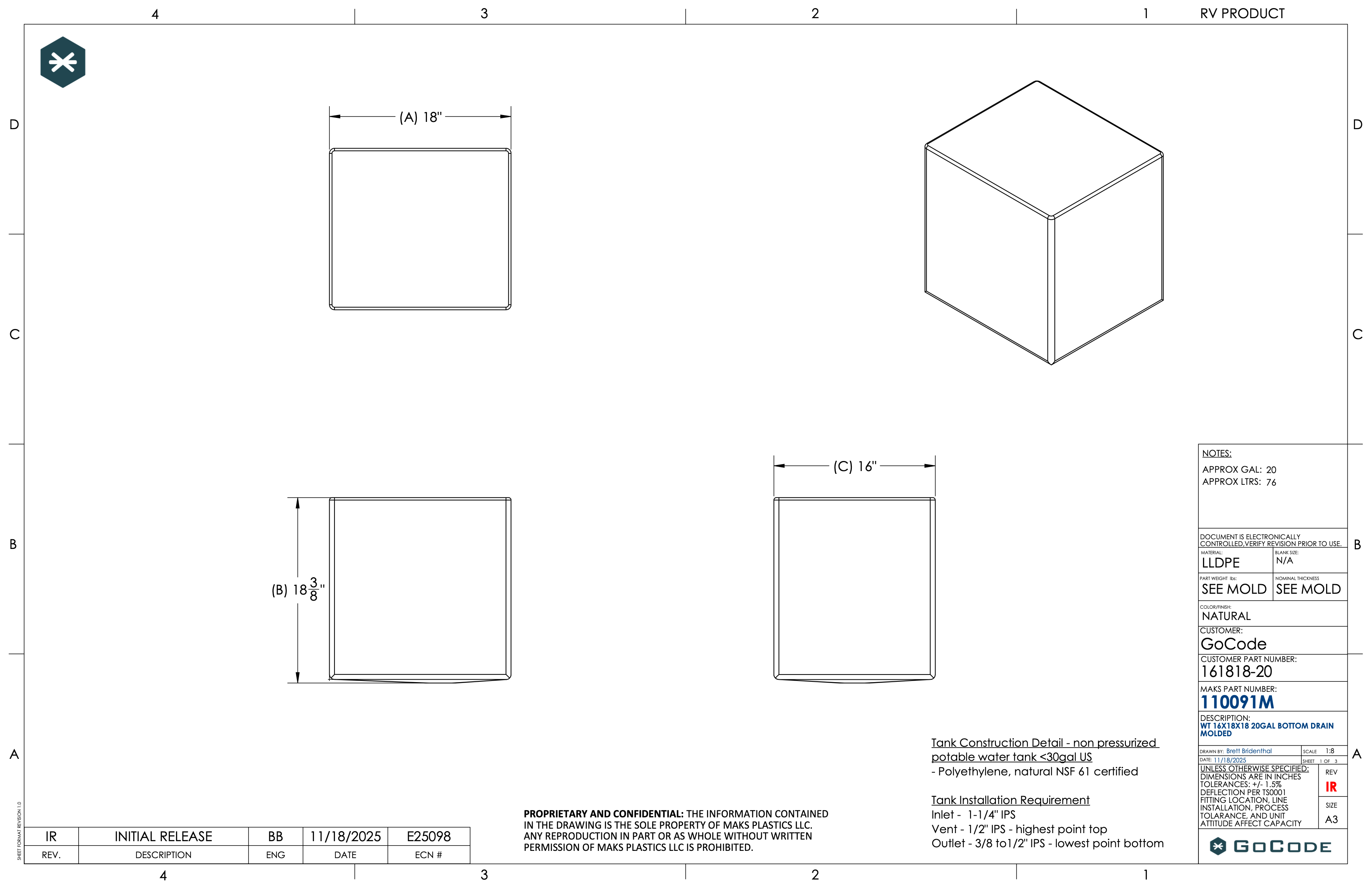

• Nominal dimensions: 18" L x 16" W x 18.375" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 20 gallons
• Dry Weight: 16 lbs
• Filled Weight: 183 lbs
• Recommended Sensor: KUS S5U-17
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• IAPMO TS 4 Certified (fresh water)
• IAPMO TS 2 Certified (grey water)
• CSA B45.6 Certified
• Made in the USA
• TEI listed and RVIA approved

Ports & Plumbing

• 1/2" NPT fittings, pre-installed
• 1.5" NPT fittings, pre-installed

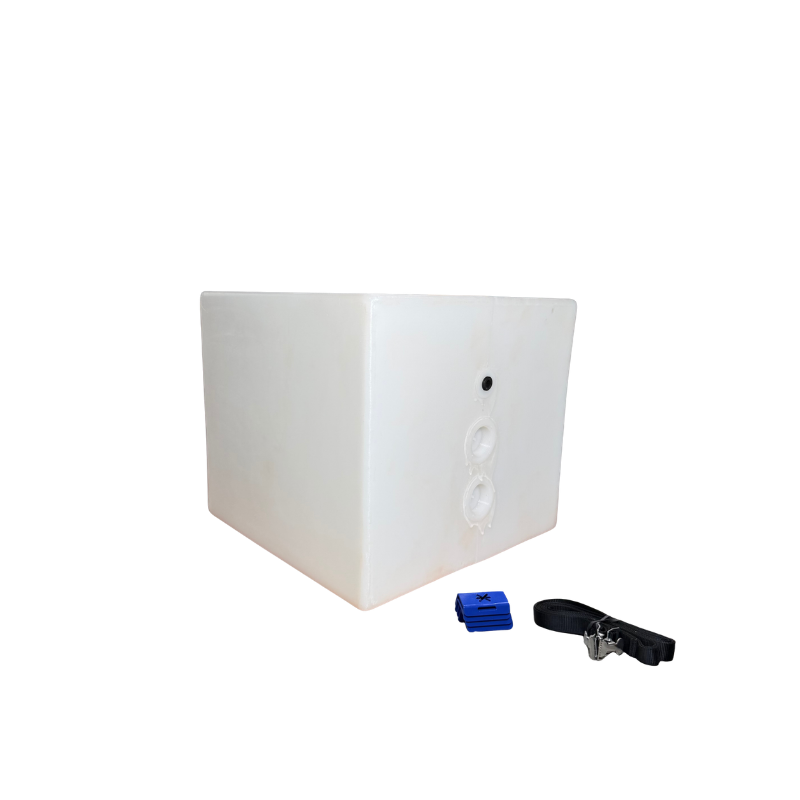

What's Included

• Water Tank
• (x2) Adjustable straps
• (x4) Mounting brackets

Compatibility & Fitment

• Compatible with any van, truck, or RV platform where dimensions allow, including Sprinter, Transit, and ProMaster builds

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
