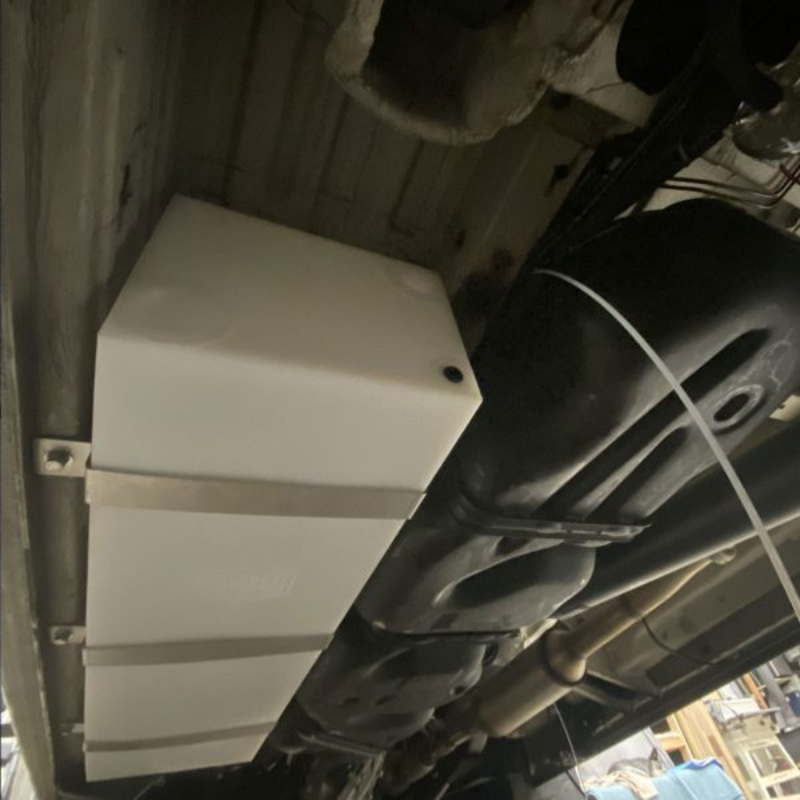

This 22-gallon GoCode undercarriage water tank mounts right next to your fuel tank on the driver side of your Mercedes Sprinter, completely out of sight, in space that would otherwise go unused. Three laser-cut stainless steel straps use the existing fuel tank strap mounting points, minimizing new holes and keeping installation clean and straightforward.
Specifications
-

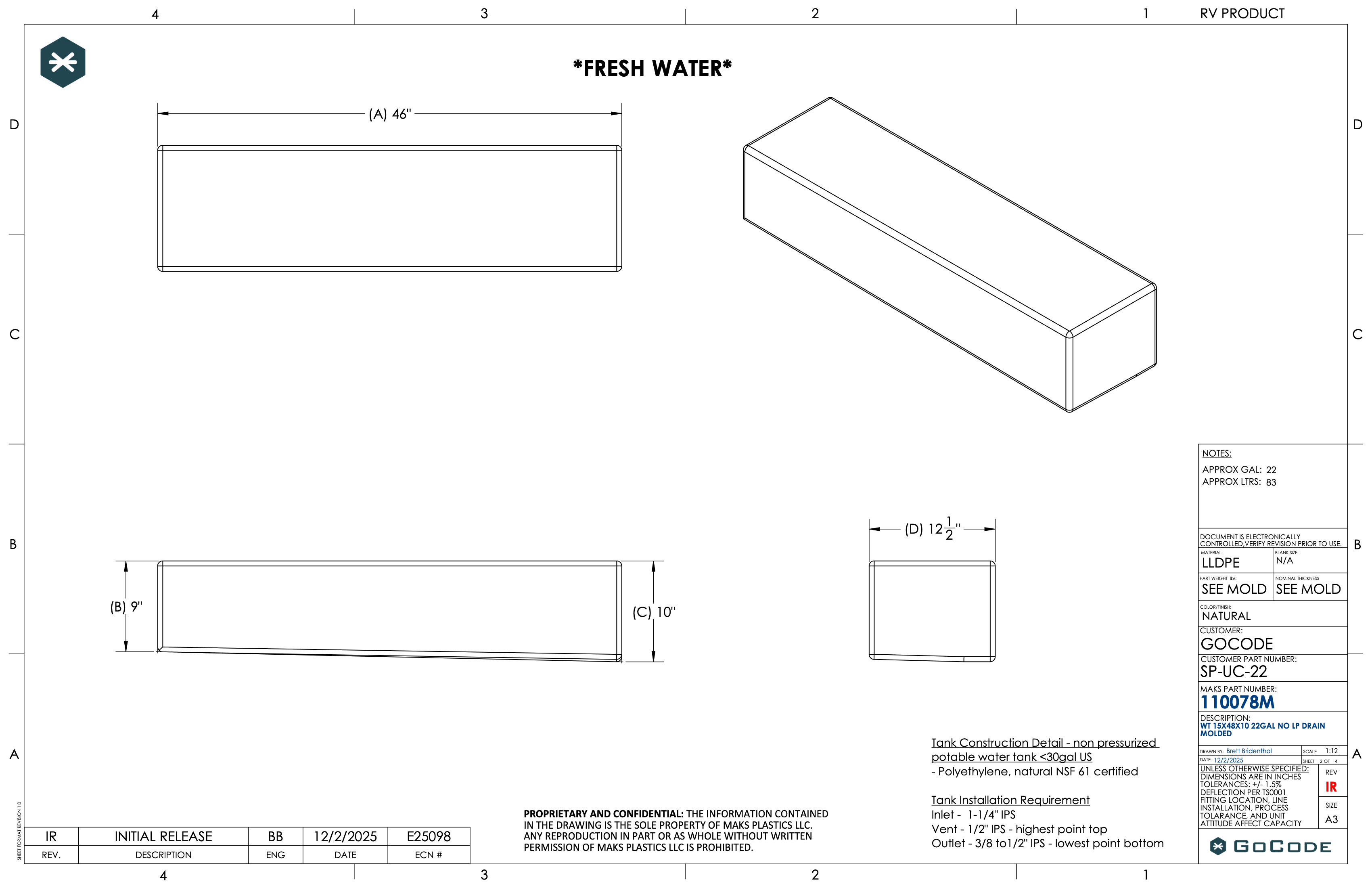

Nominal dimensions: 46" L x 12.5" W x 10" H
- Actual dimensions may vary up to 1.5% each.
- Capacity: 22 gallons
- Dry Weight: 14 lbs
- Filled Weight: 197 lbs
- Recommended Sensor: KUS S5U-8
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade polyethylene
- IAPMO TS 4 Certified / TEI Listed / RVIA Approved
- Made in the USA

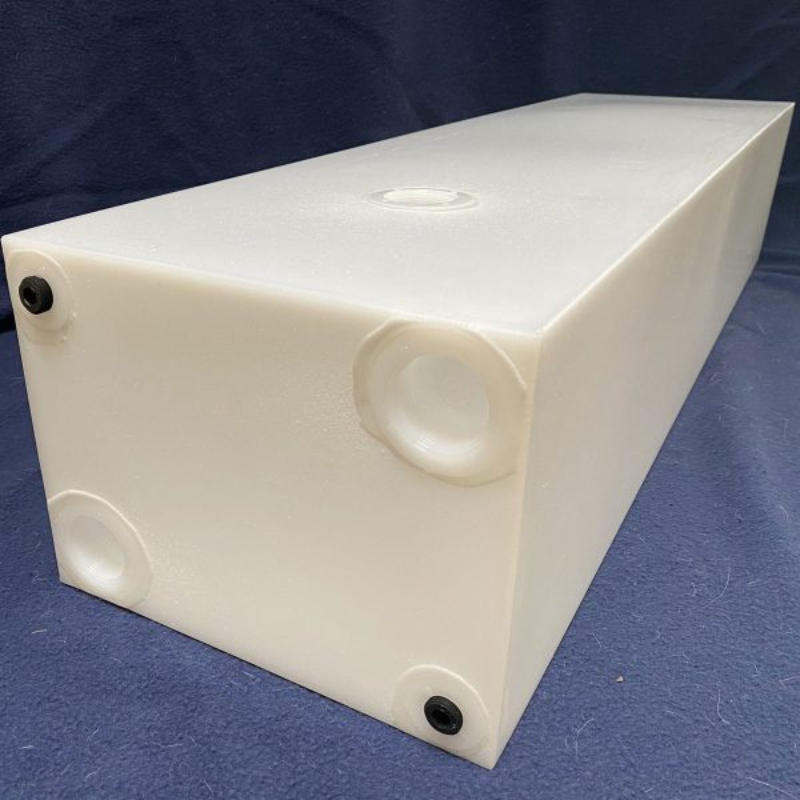

Ports & Plumbing
- (2) 1.5" NPT ports on the rear-facing end
- (2) 1/2" NPT ports on the rear-facing end
- (1) 1.5" NPT port on top, 8.5" back from end

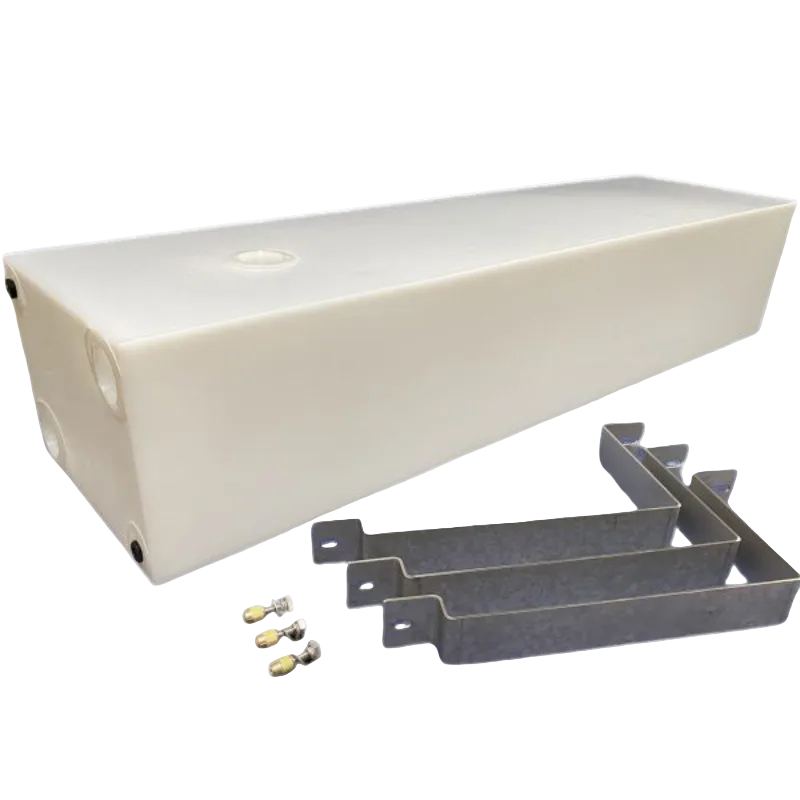

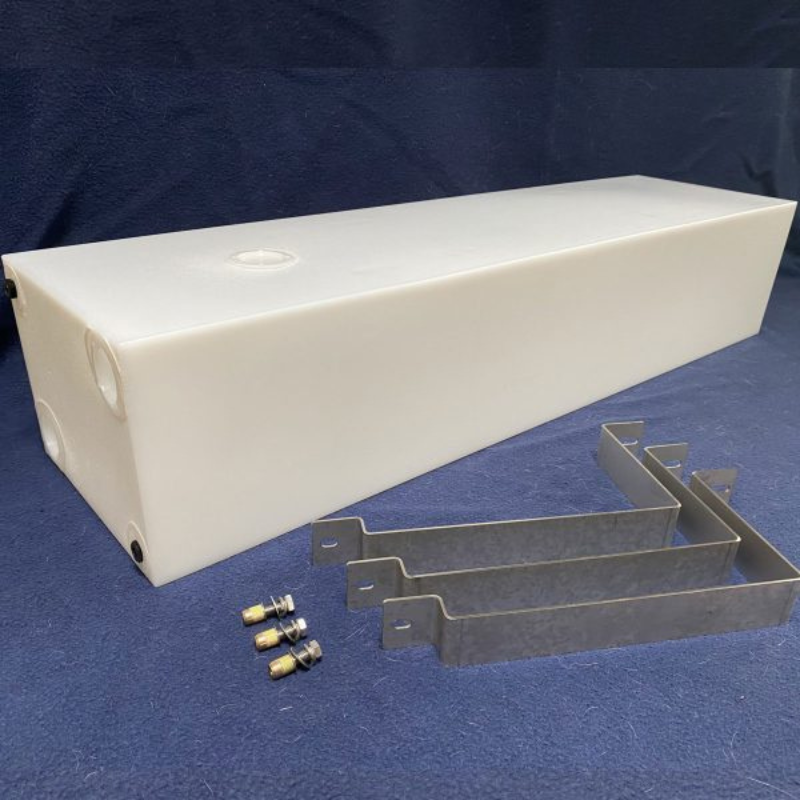

What's Included
- Water Tank
- (3) stainless steel laser-cut mounting straps
- Stainless 3/8" hardware and 3/8" rivnuts
- Note: rivnut tool required, not included
Compatibility & Fitment
- Mercedes Sprinter 2007-present, all wheelbases
- Driver side undercarriage, next to fuel tank
- May fit other makes and models, confirm dimensions before ordering
- Compatible with AMP Research PowerStep Electric Running Boards for 2019+ Mercedes Sprinter 907/VS30 (part #76264-01A), may be compatible with additional running boards
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Need it installed?
Contact us to get a quote
