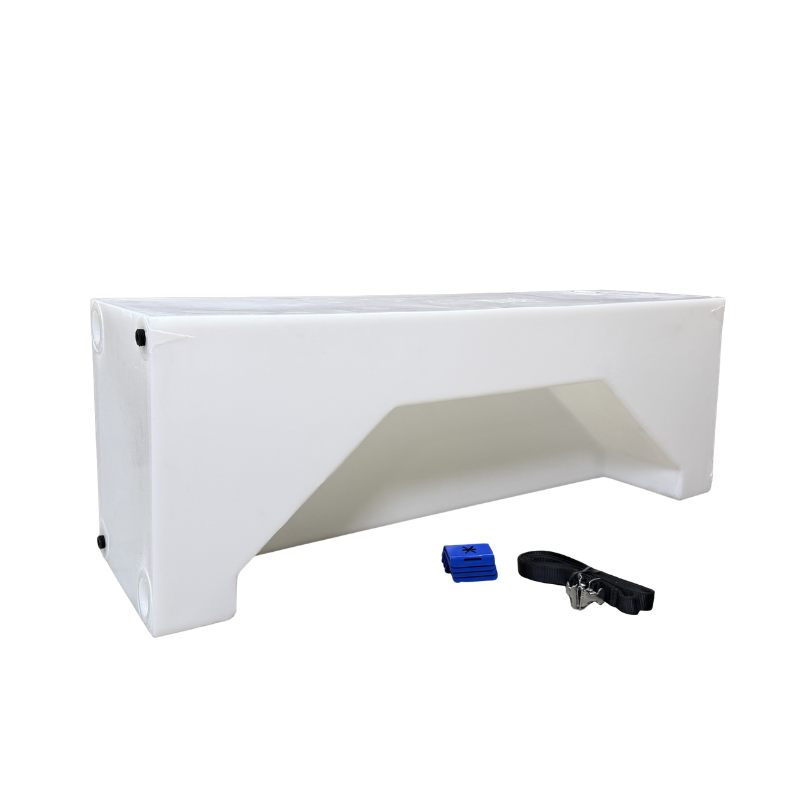

GoCode 24-Gallon Ford Transit Wheel Well Water Tank - Center (TR-C-24)

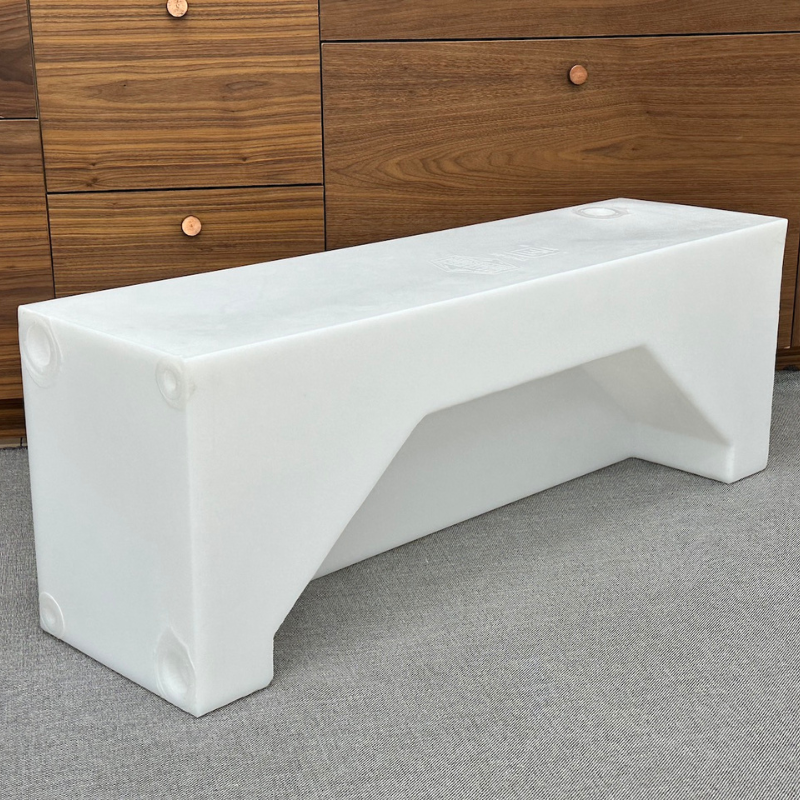

Designed specifically for the Ford Transit van, this 24-gallon GoCode water tank sits centered over the wheel well, keeping your floor plan open while adding water capacity. It can be placed on either the driver or passenger side.

Specifications

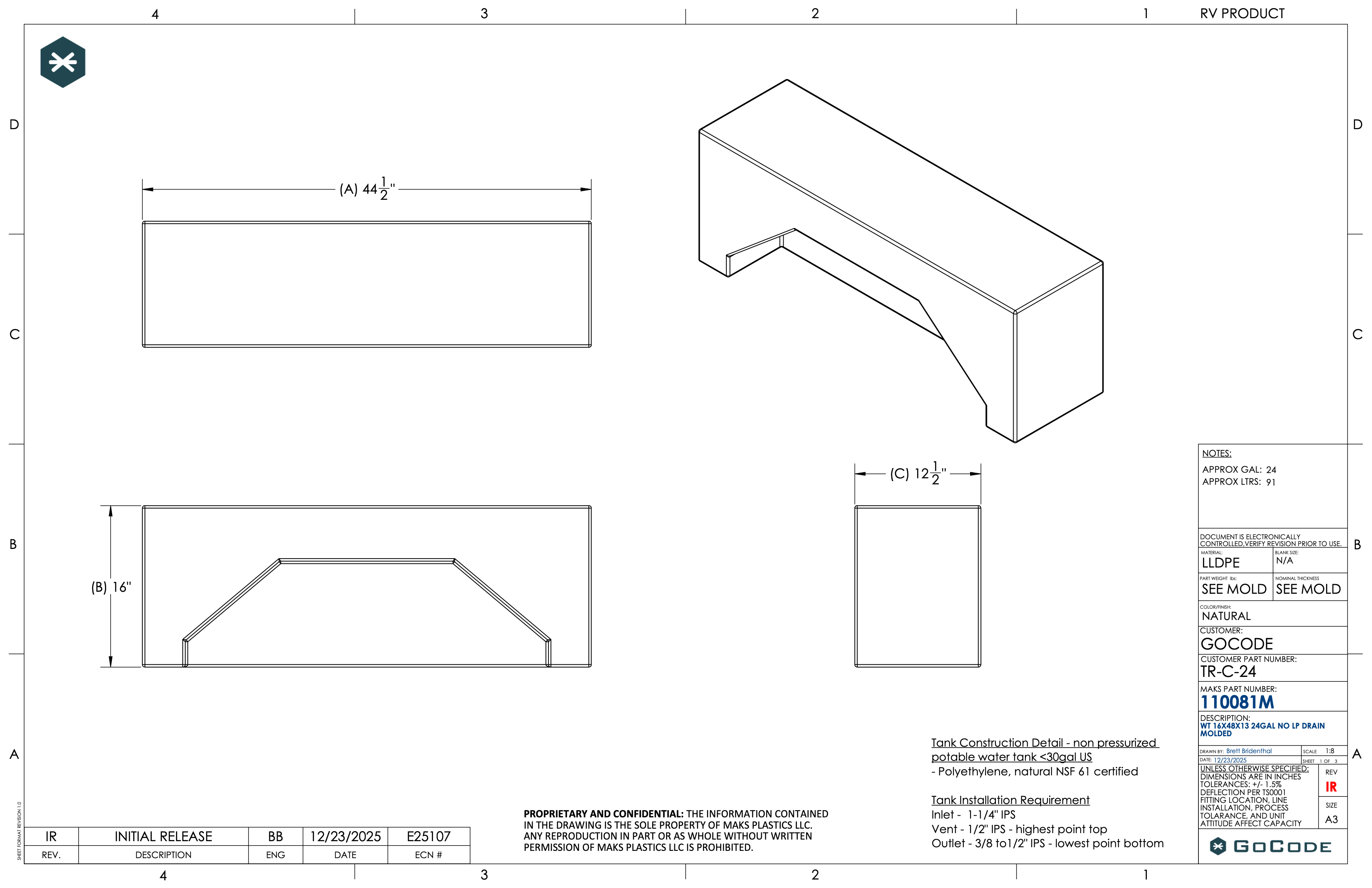

• Nominal dimensions: 44.5" L x 12.5" W x 16" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 24 gallons
• Dry Weight: 22 lbs
• Filled Weight: 222 lbs
• Recommended sensor: KUS S5U-15
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• Made in the USA
• IAPMO TS 4 Certified
• TEI listed and RVIA approved

Ports & Plumbing

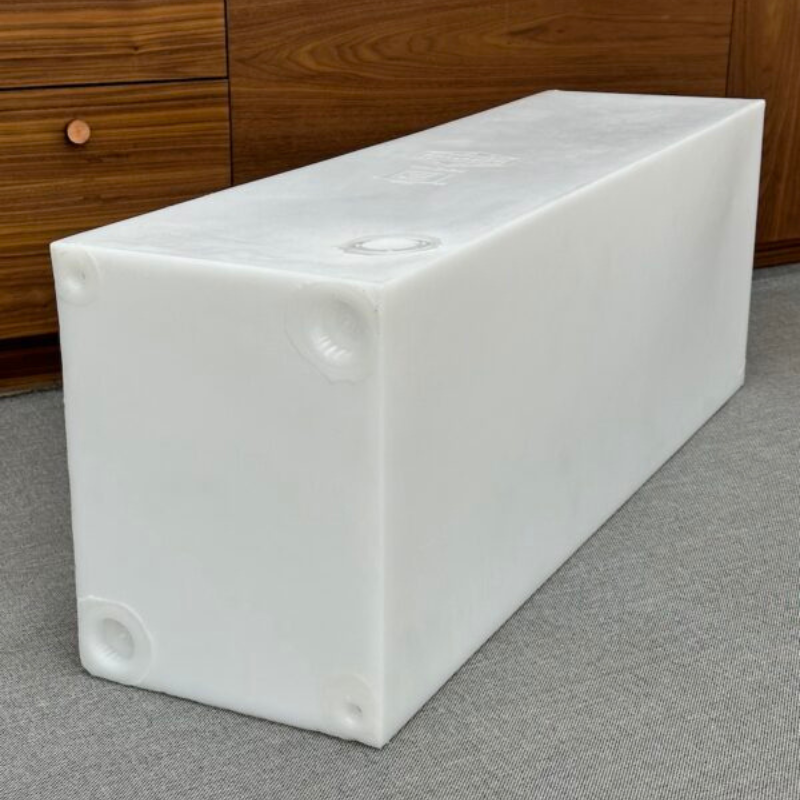

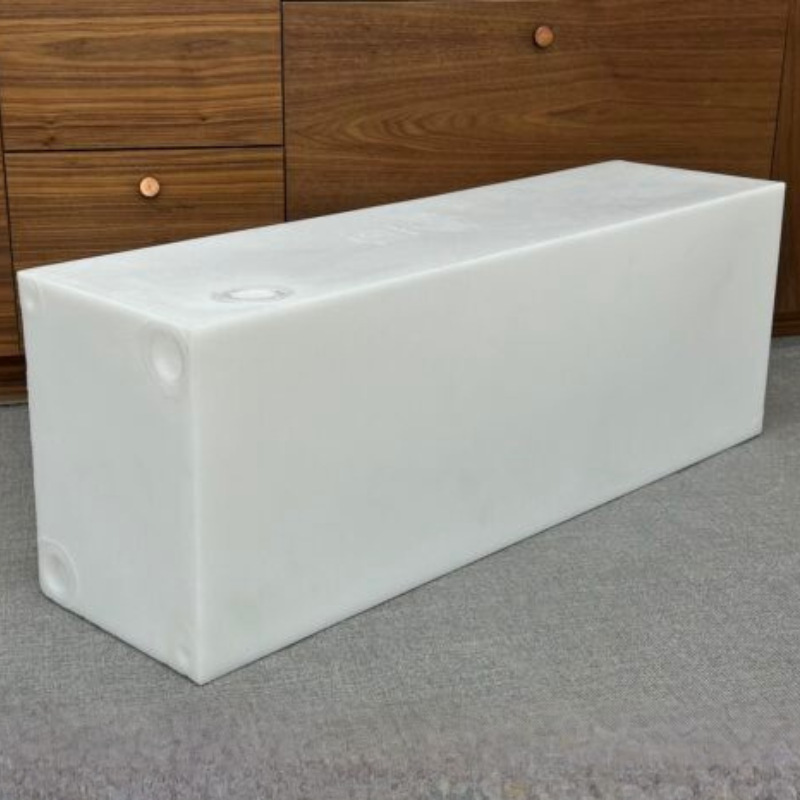

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

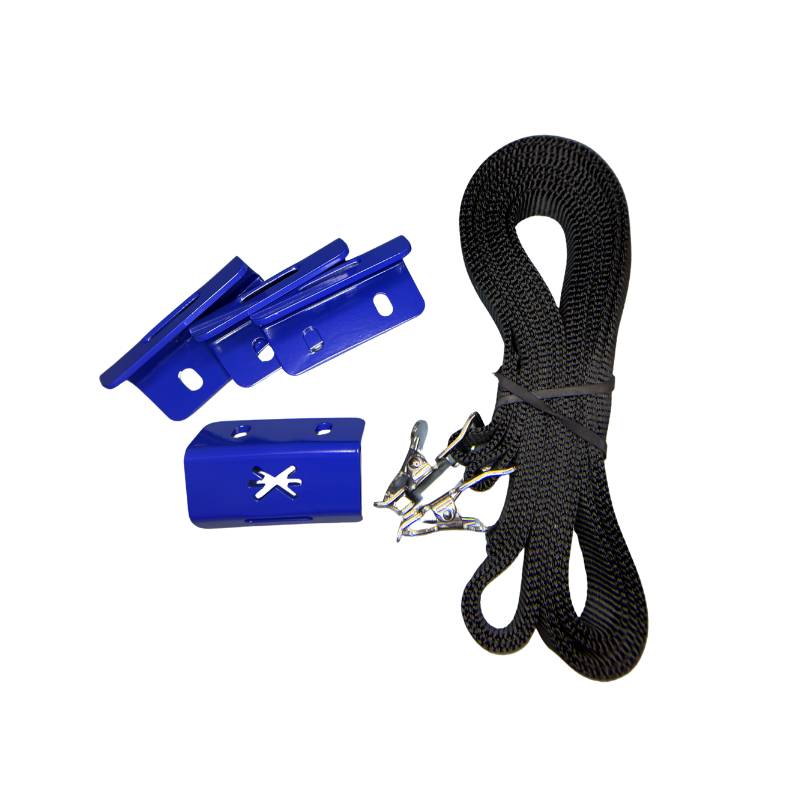

What's Included

• Water Tank

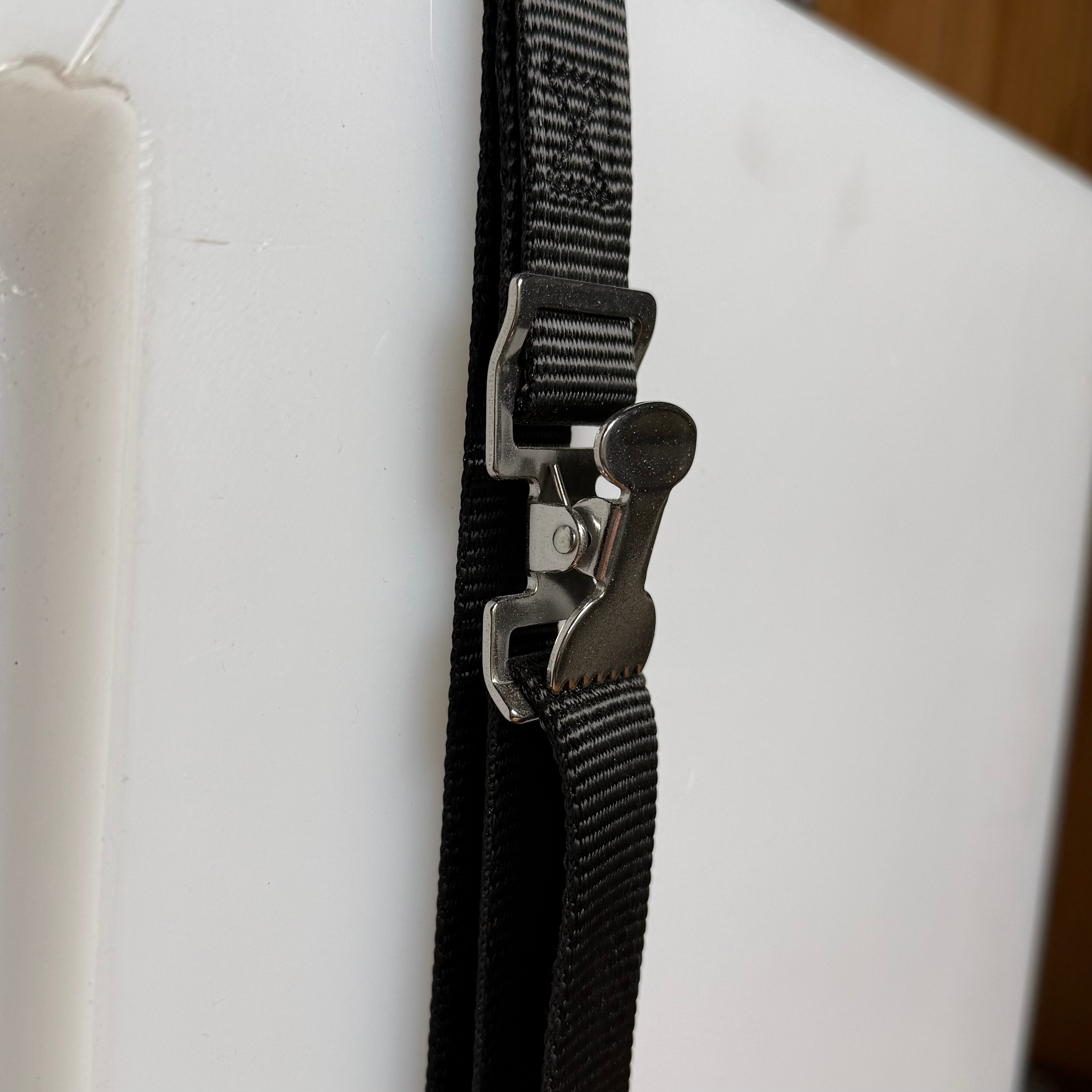

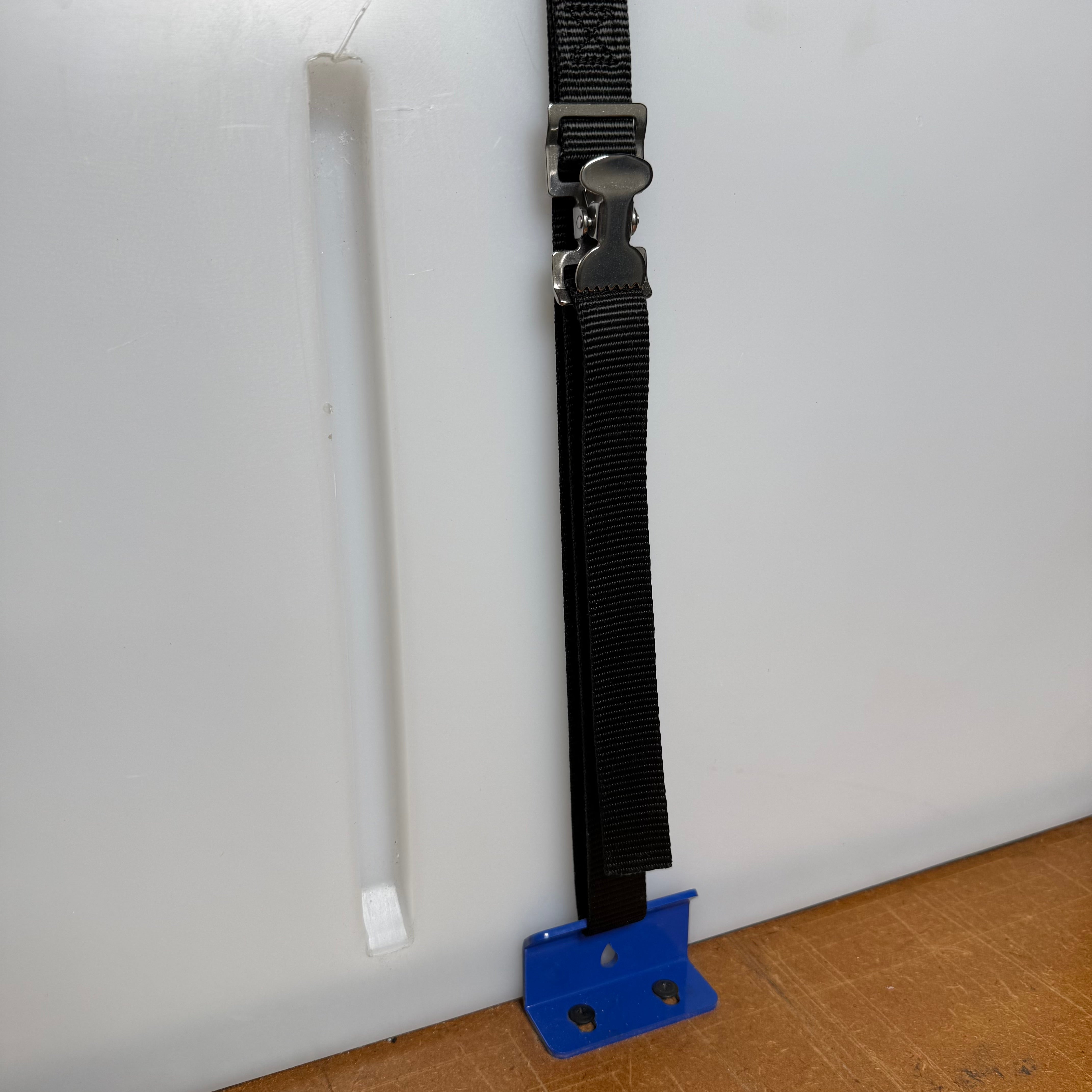

• (x2) Adjustable straps

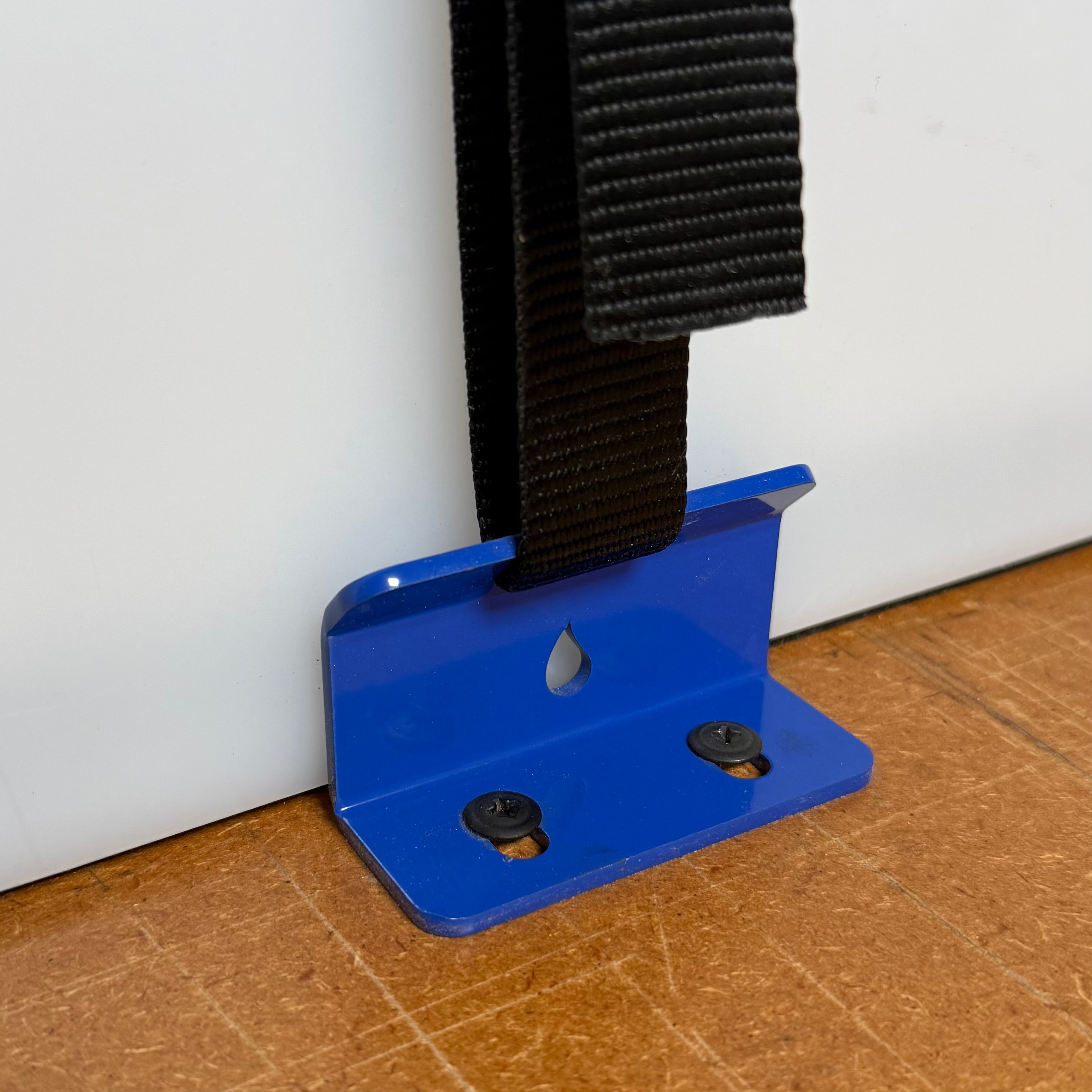

• (x4) Mounting brackets

Compatibility & Fitment

• Designed specifically for the Transit van
• Can be placed on either driver or passenger side

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
