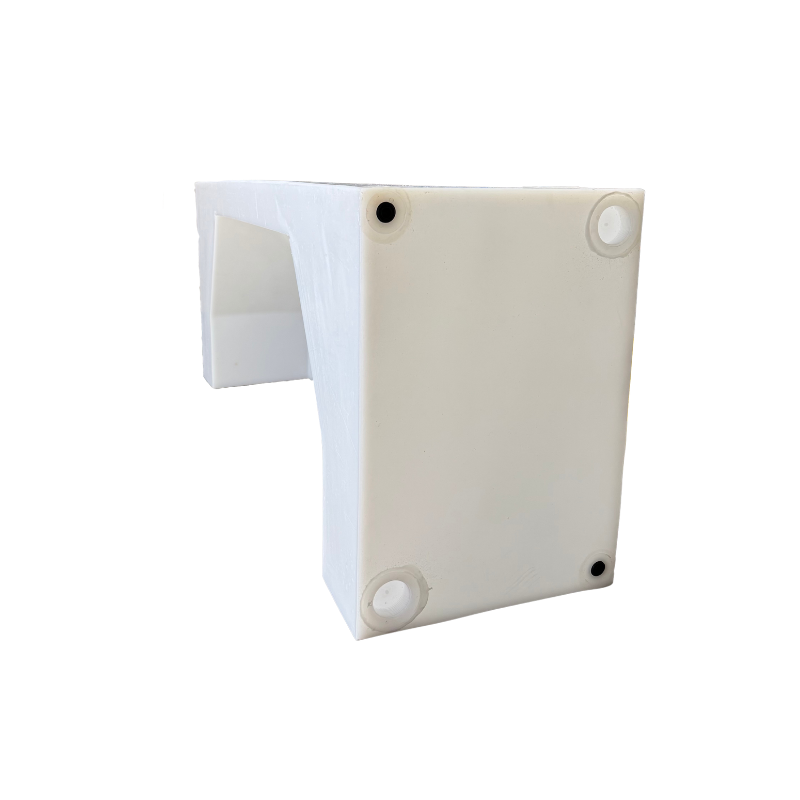

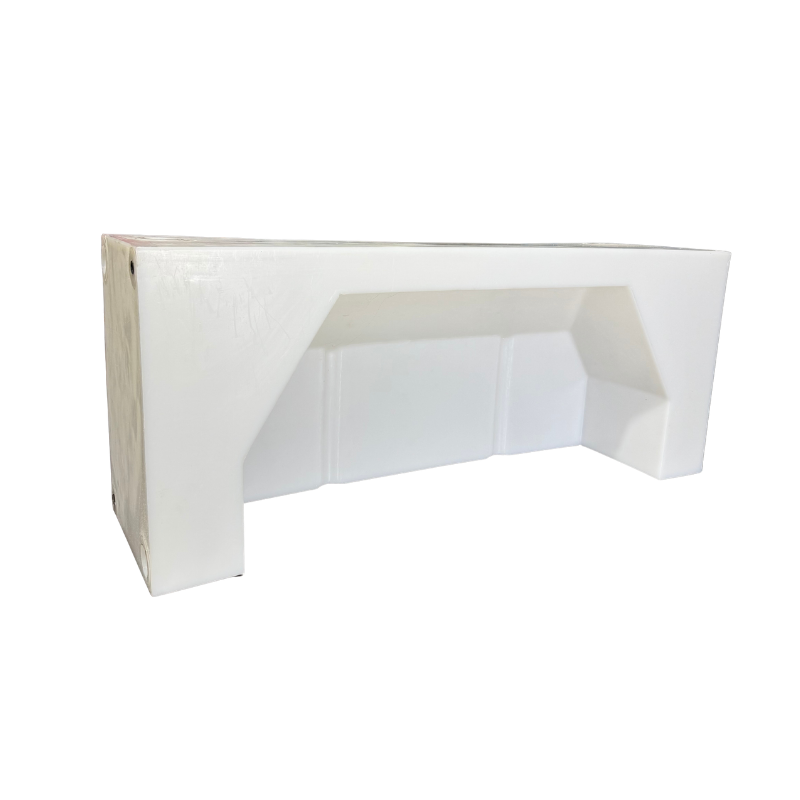

GoCode 28-Gallon Ram ProMaster Wheel Well Water Tank - Center (PM-C-28)

Designed specifically for the Ram ProMaster, this 28-gallon GoCode water tank contours directly over the wheel housing for a near-perfect fit over the factory wheel well. Build your bed or cabinetry flush against the wall without losing interior volume. It can be placed on either the driver or passenger side.

Specifications

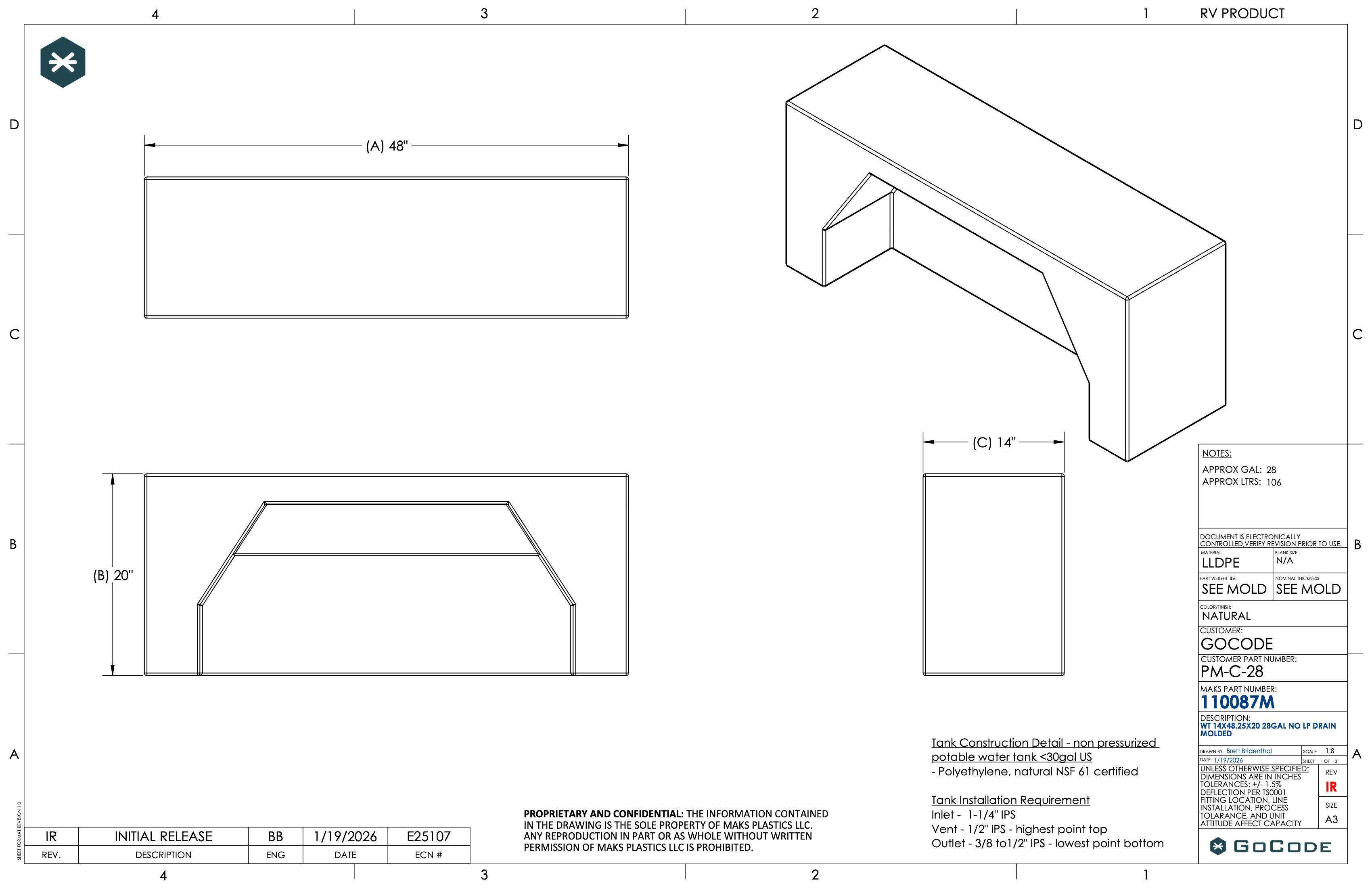

• Nominal dimensions: 48" L x 14" W x 20" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 28 gallons
• Dry Weight: 31 lbs
• Filled Weight: 264 lbs
• Recommended sensor: KUS S5U-19
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• Made in the USA
• IAPMO TS 4 Certified
• TEI listed and RVIA approved

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end, open and ready to use
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

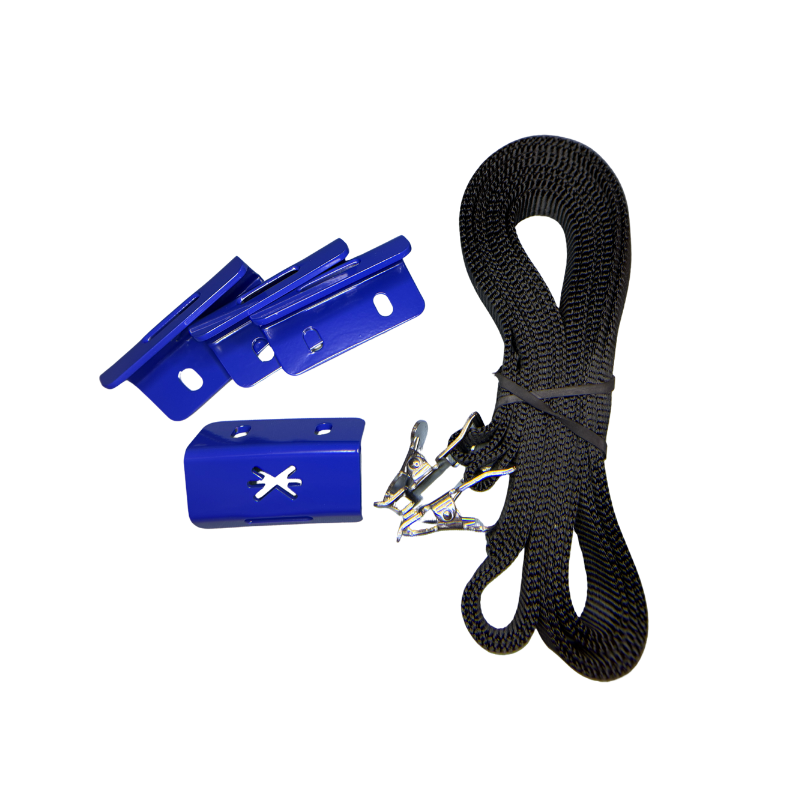

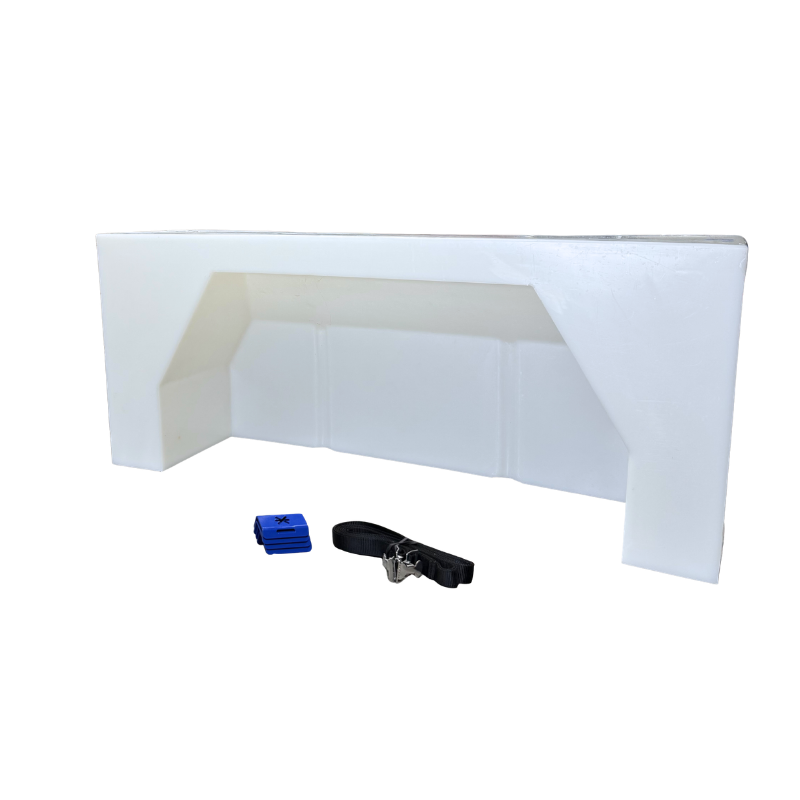

What's Included

• Water Tank

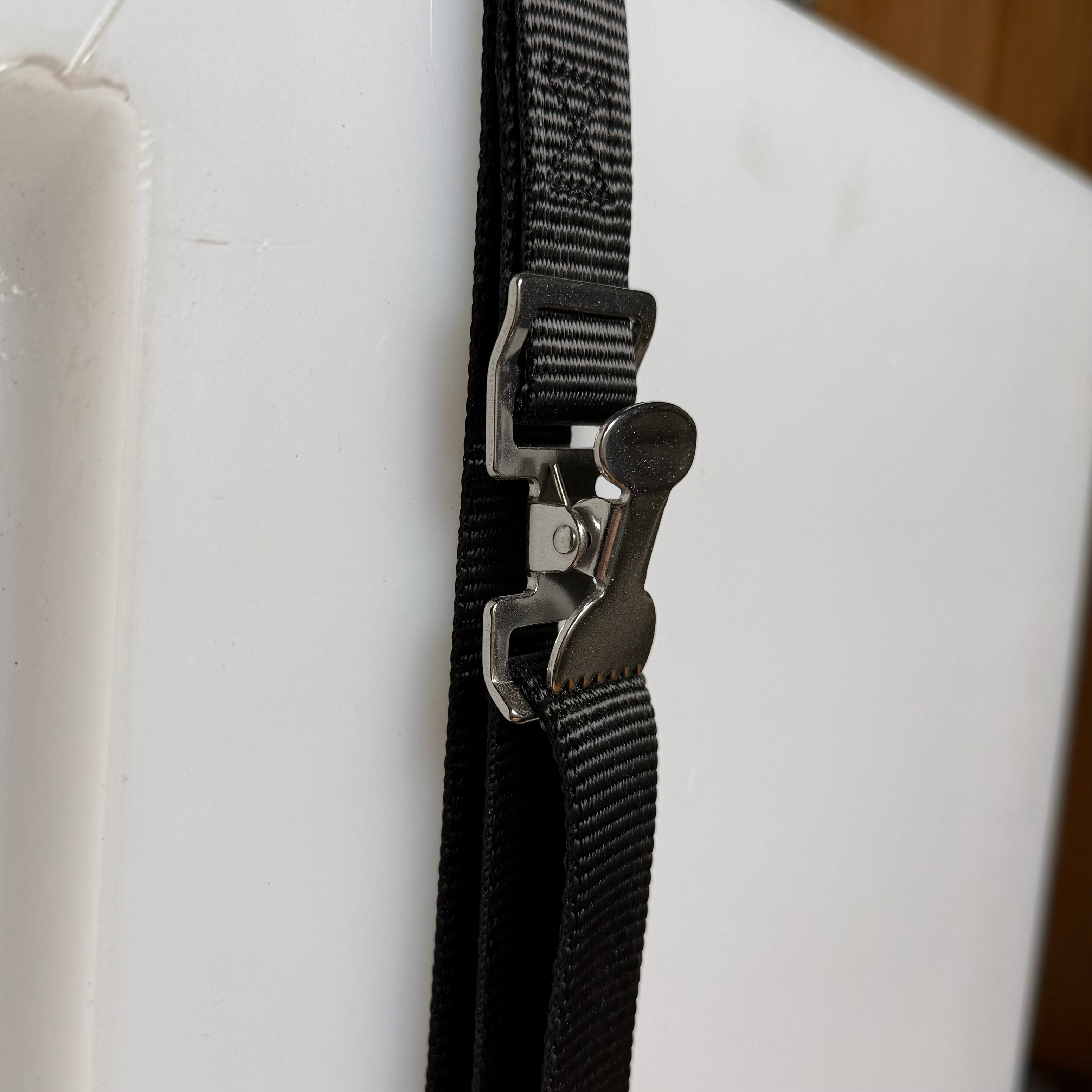

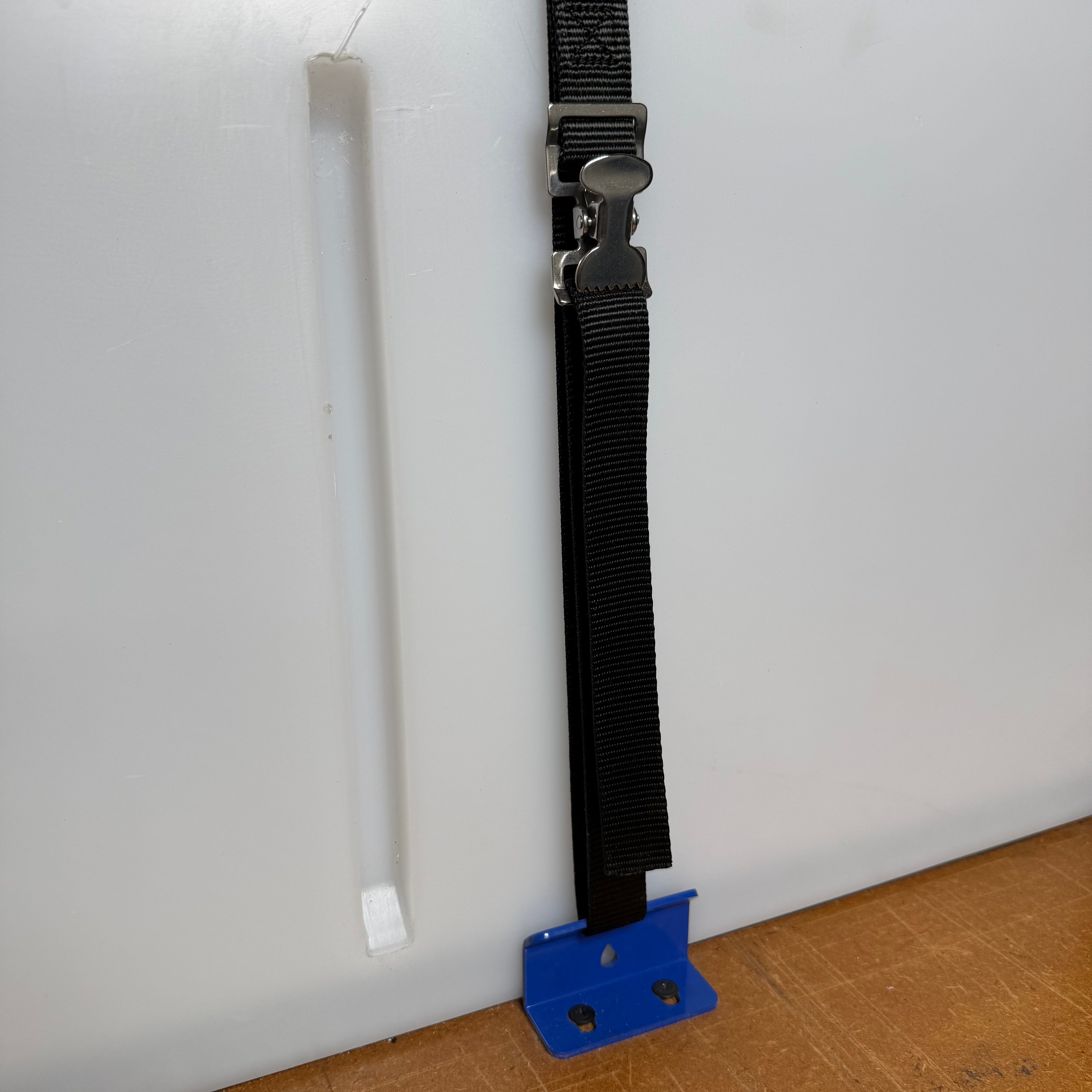

• (x2) Adjustable straps

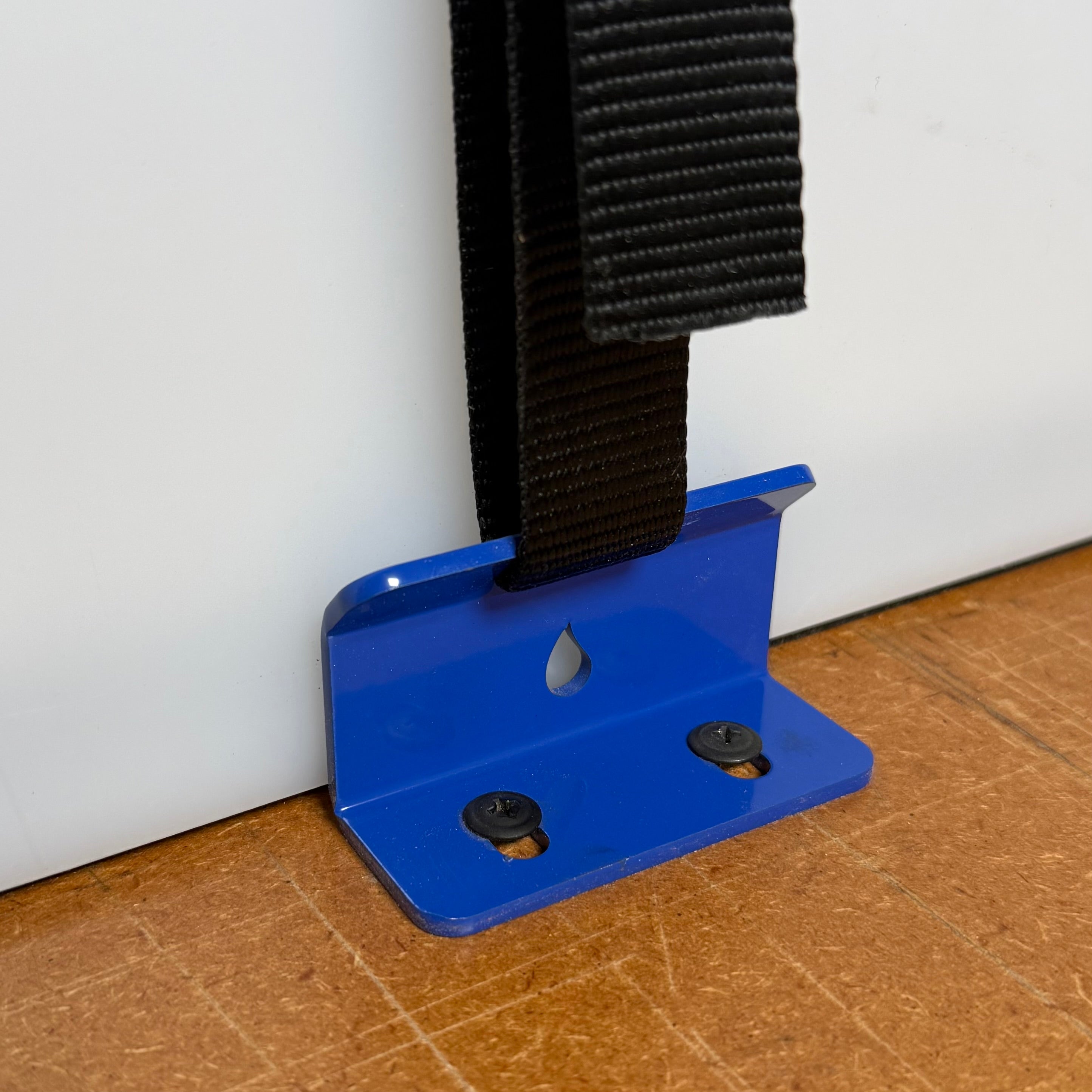

• (x4) Mounting brackets

Compatibility & Fitment

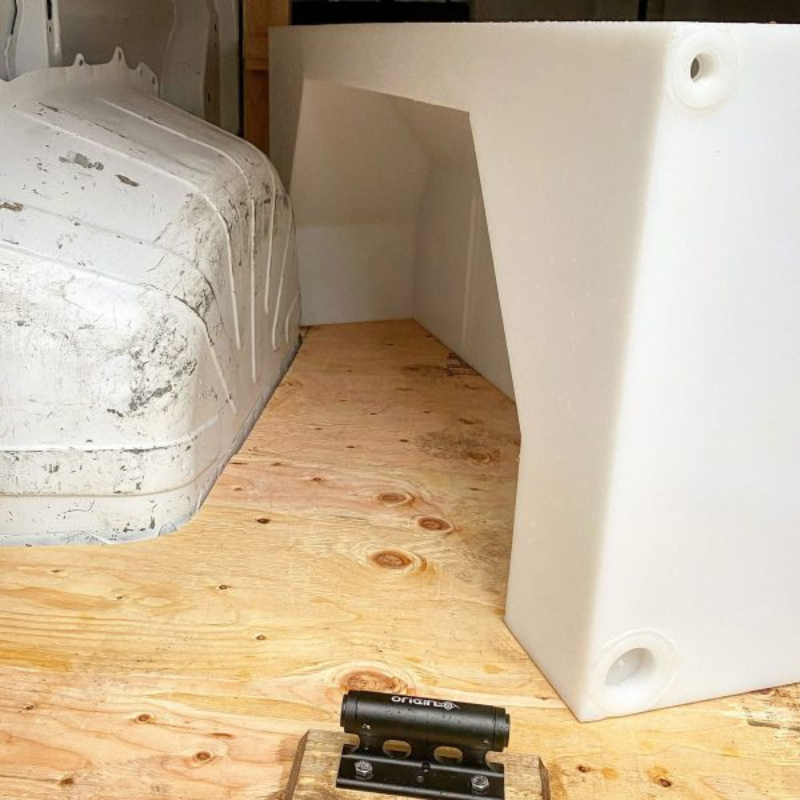

• ProMaster designed for a near-perfect fit over the factory wheel well
• Sprinter & Transit will fit securely with a gap around the top of the wheel well, ideal for insulation or sound deadening
• Compatible with other vehicles such as box trucks and trailers where dimensions allow
• Can be placed on either driver or passenger side

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
