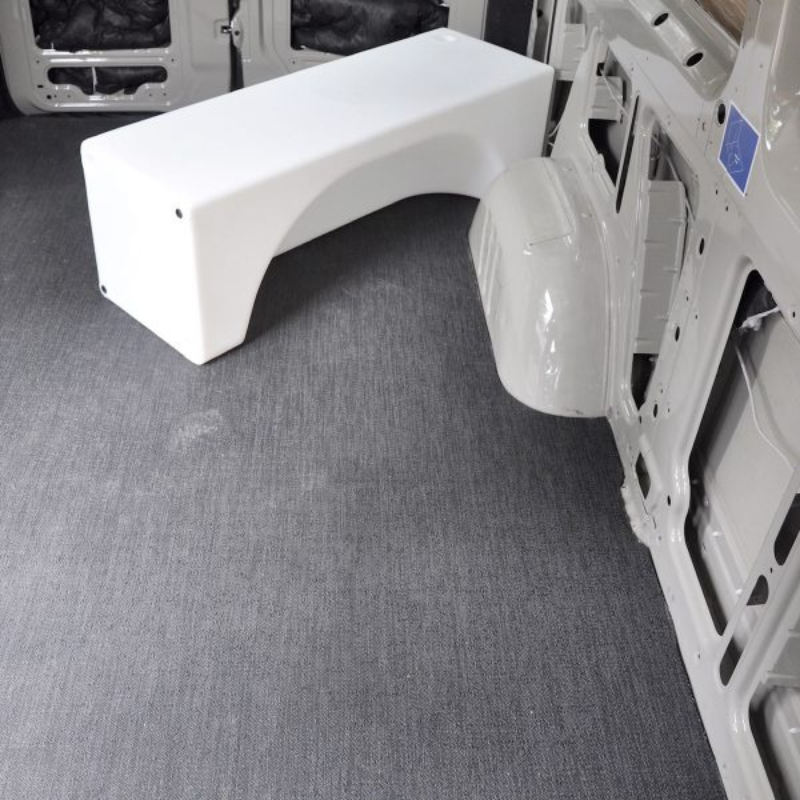

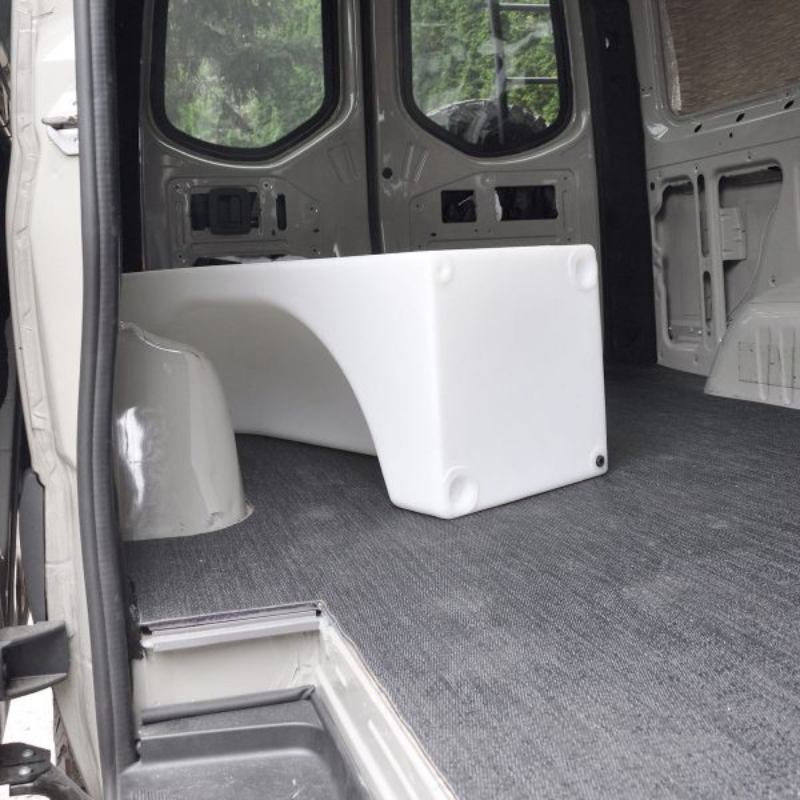

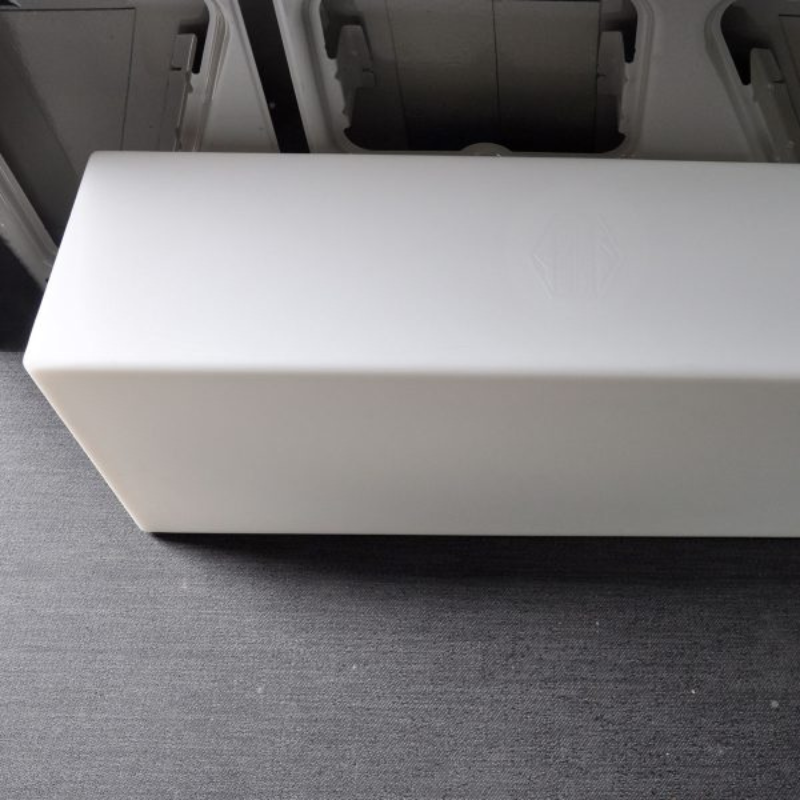

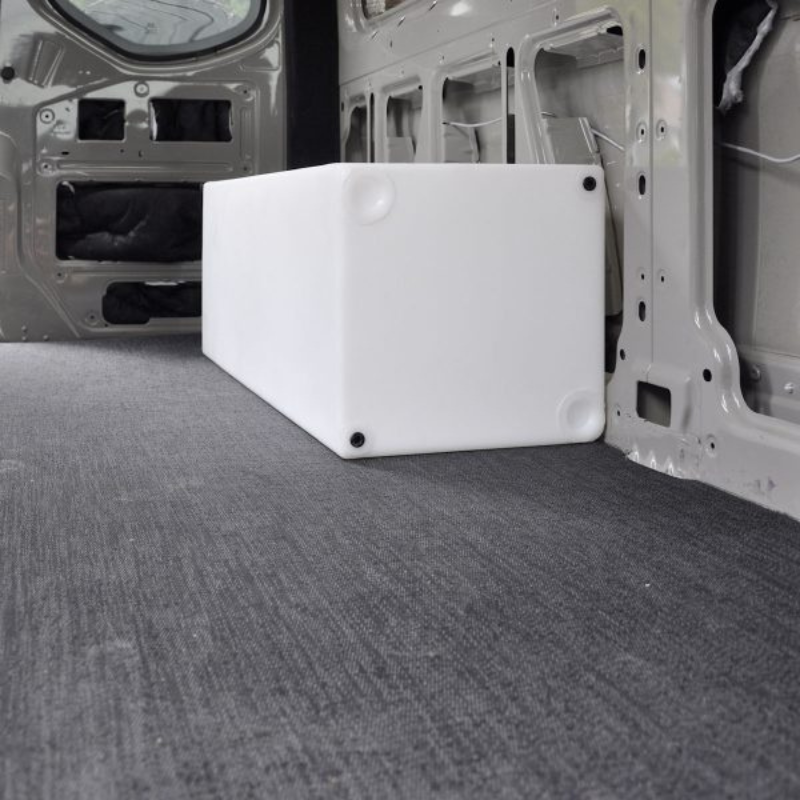

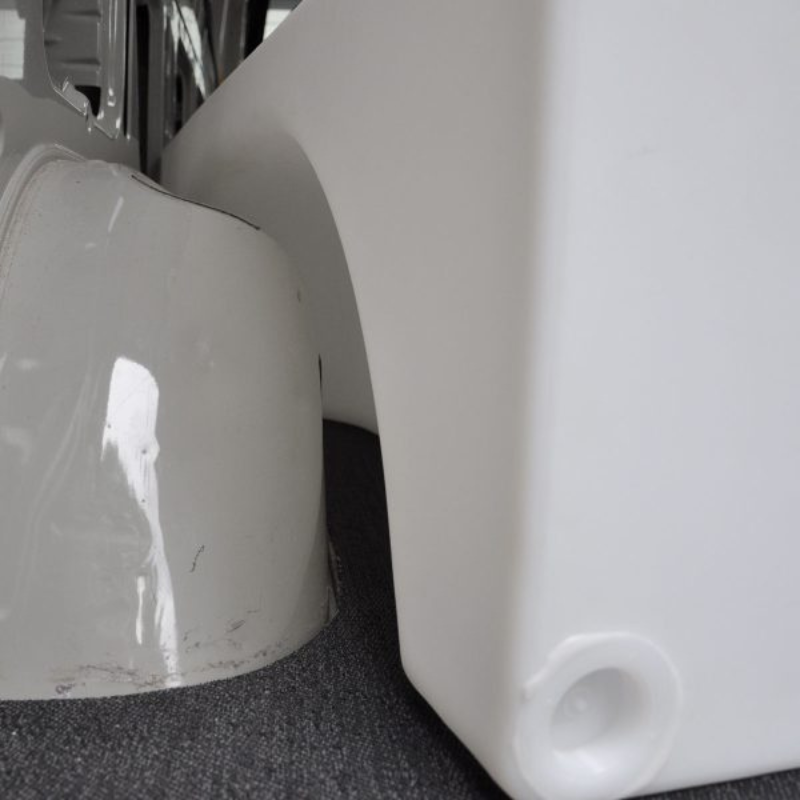

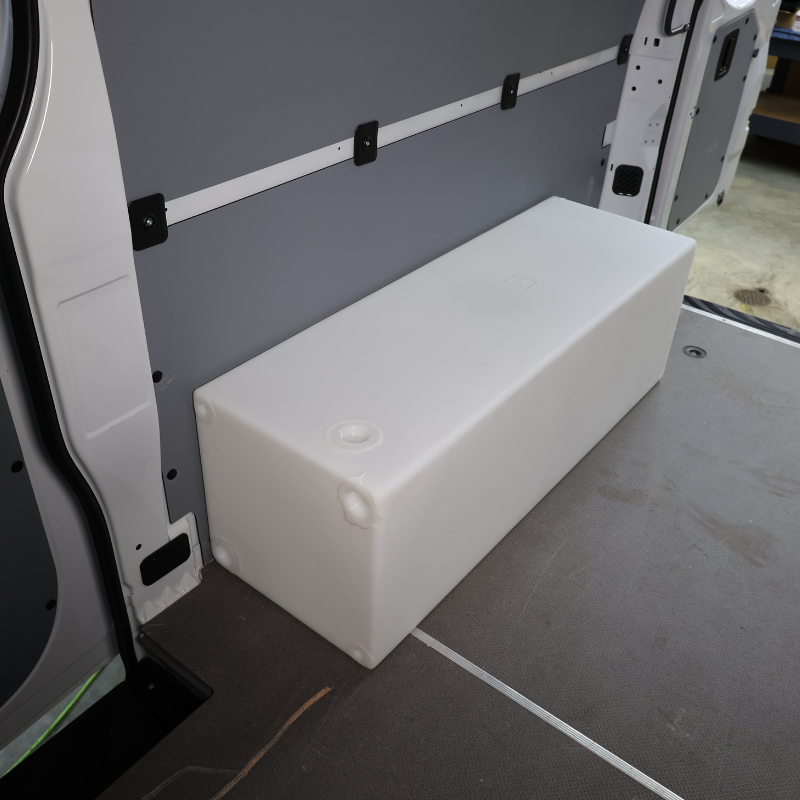

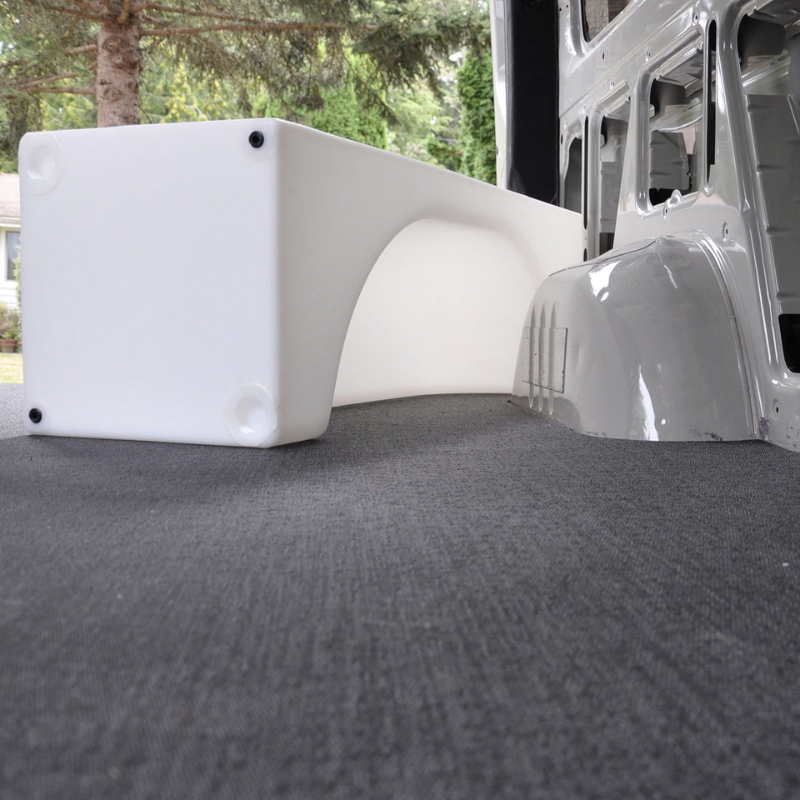

Made for the Mercedes Sprinter, this 36-gallon GoCode wheel well water tank sits centered over the wheel well, keeping your floor plan open while adding serious water capacity. It can be placed on either the driver or passenger side and is a direct fit for the Sprinter 2500.
Specifications
-

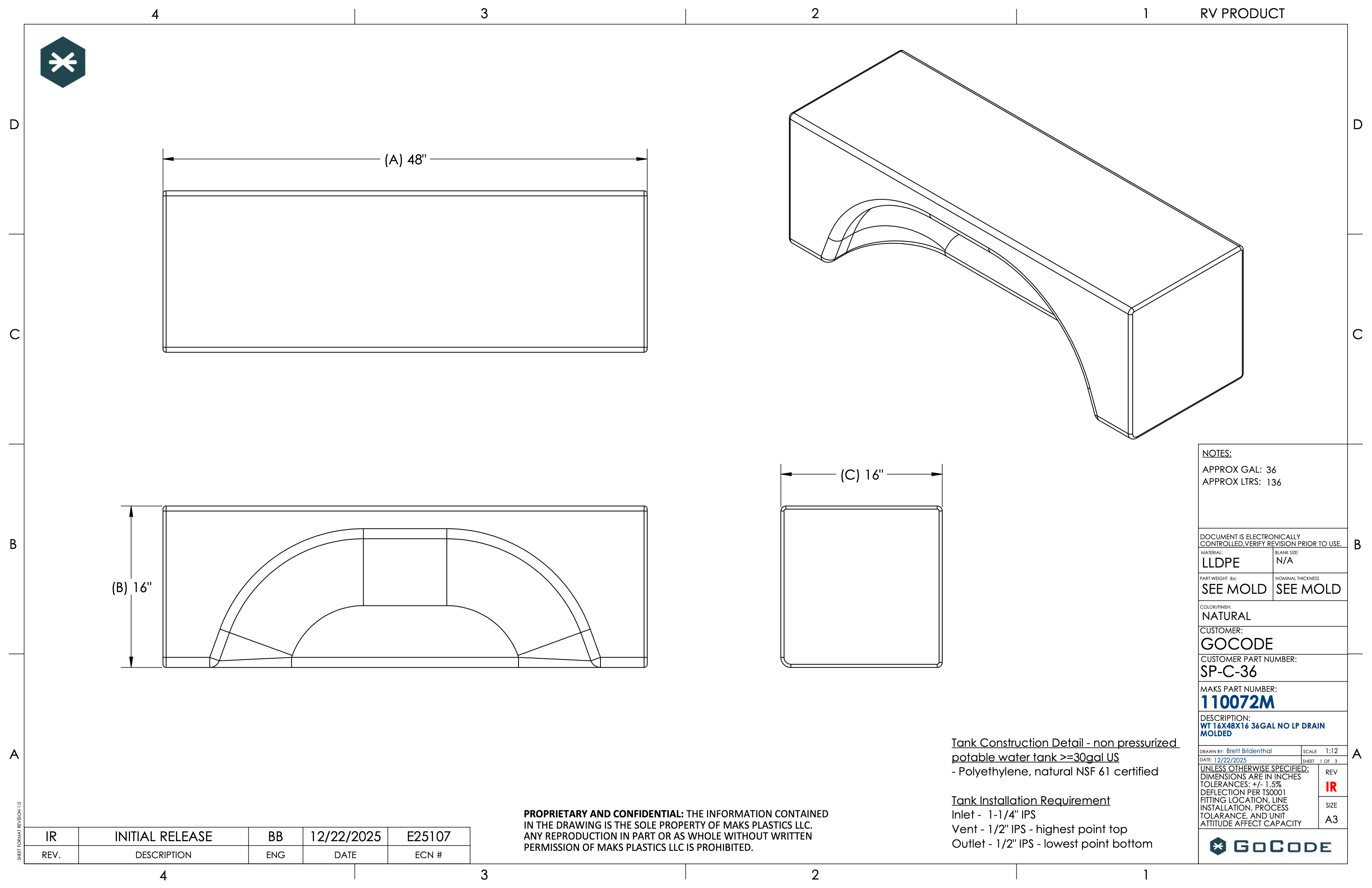

Nominal dimensions: 48" L x 16" W x 16" H
- Actual dimensions may vary up to 1.5% each.
- Capacity: 36 gallons
- Dry weight: 27 lbs
- Filled Weight: 327 lbs
- Recommended Sensor: KUS S5U-15
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade plastic
- IAPMO TS 4 Certified
- Made in the USA
- TEI listed and RVIA approved
Ports & Plumbing
- (2) 1.5" NPT ports on either end, pre-marked, drill out to use
- (2) 1/2" NPT ports on either end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

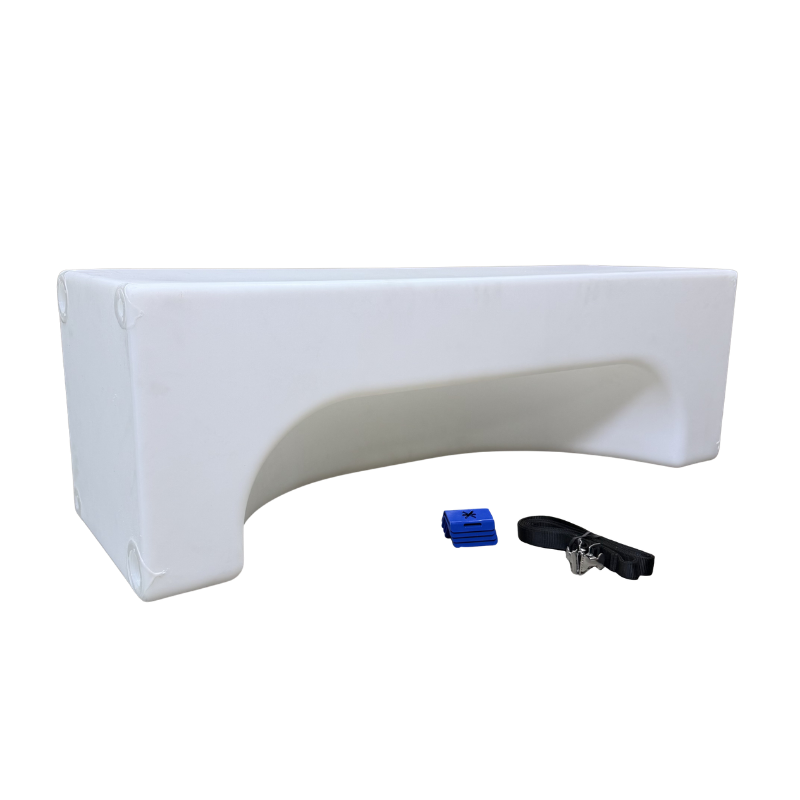

What's Included
- Water Tank

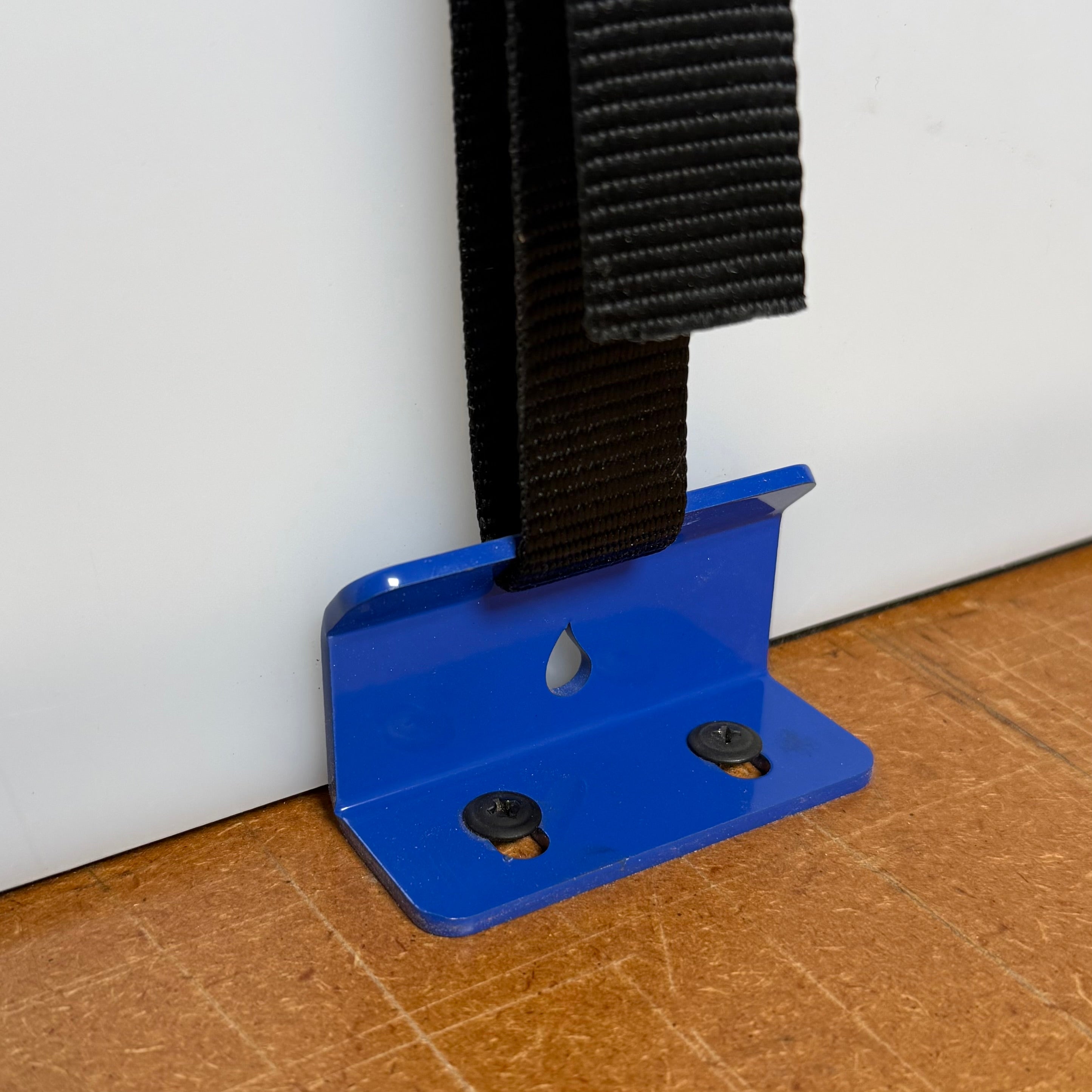

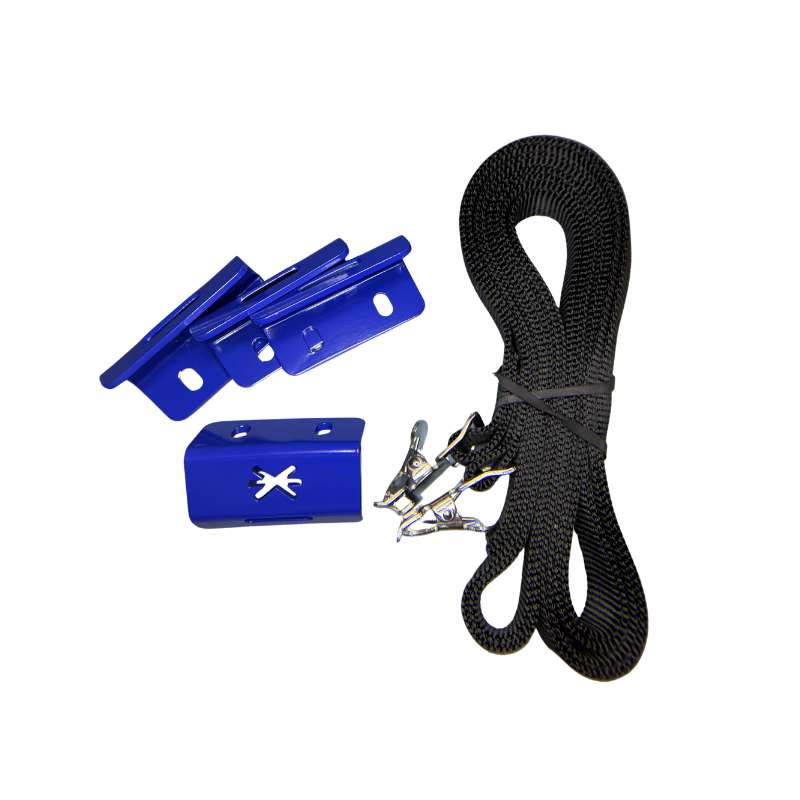

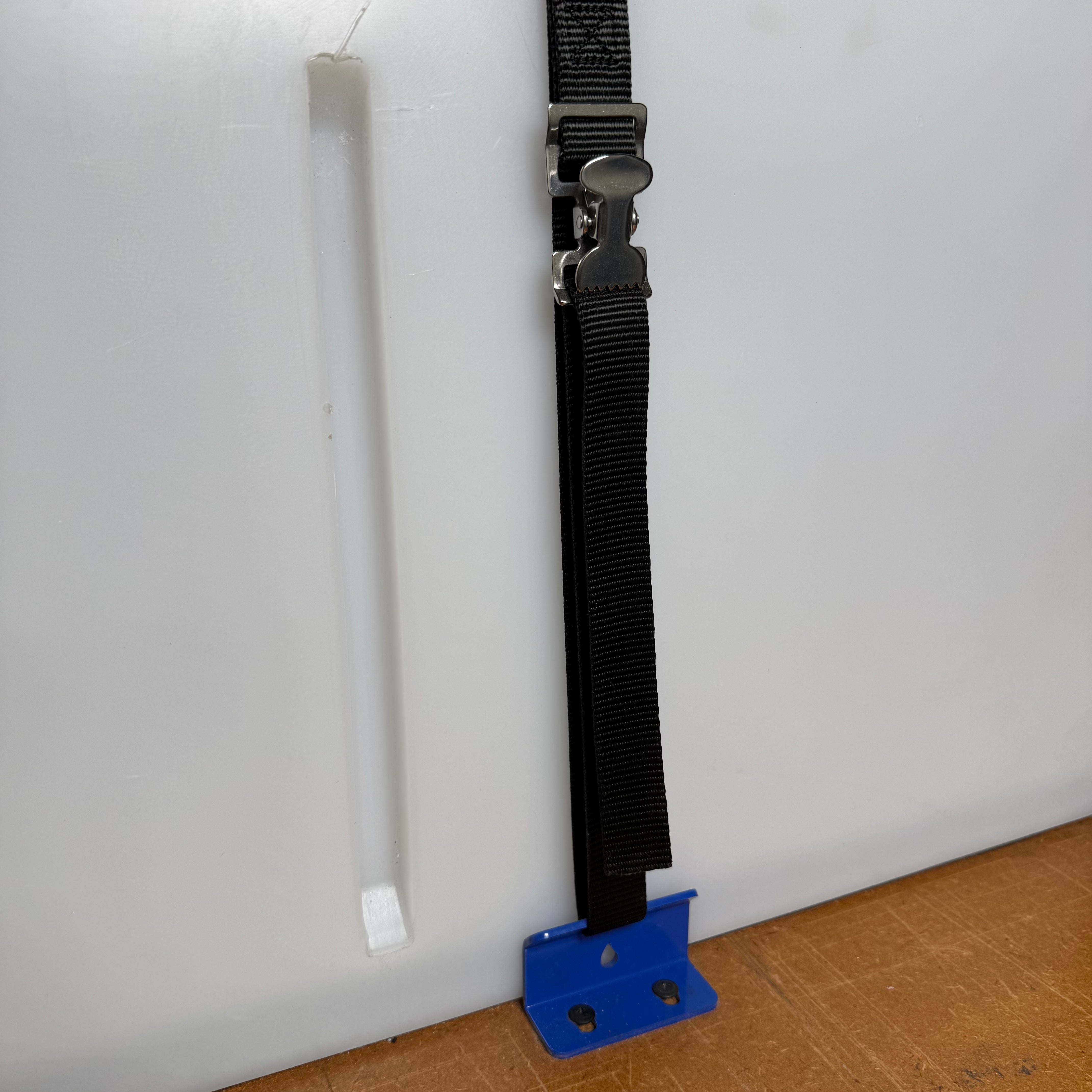

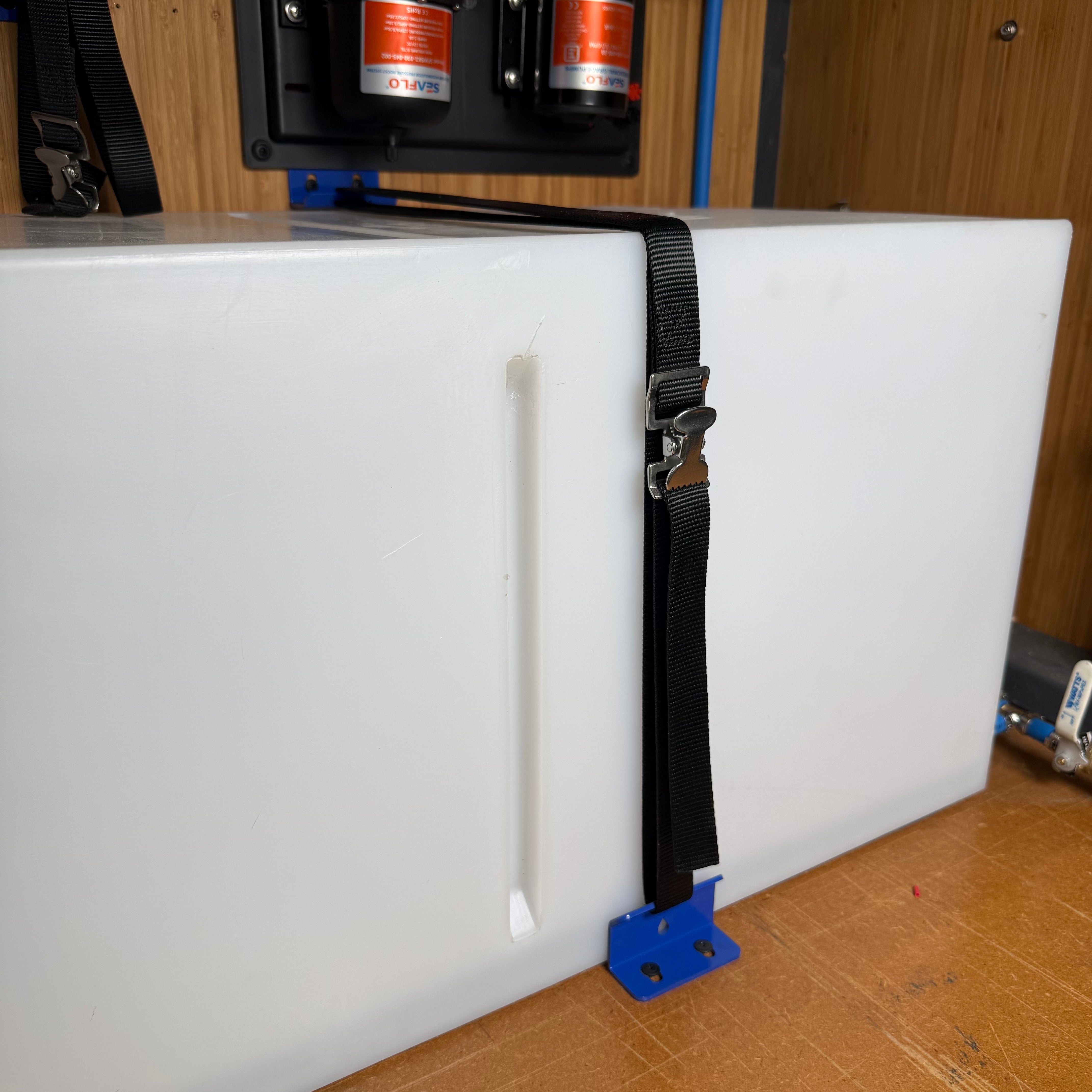

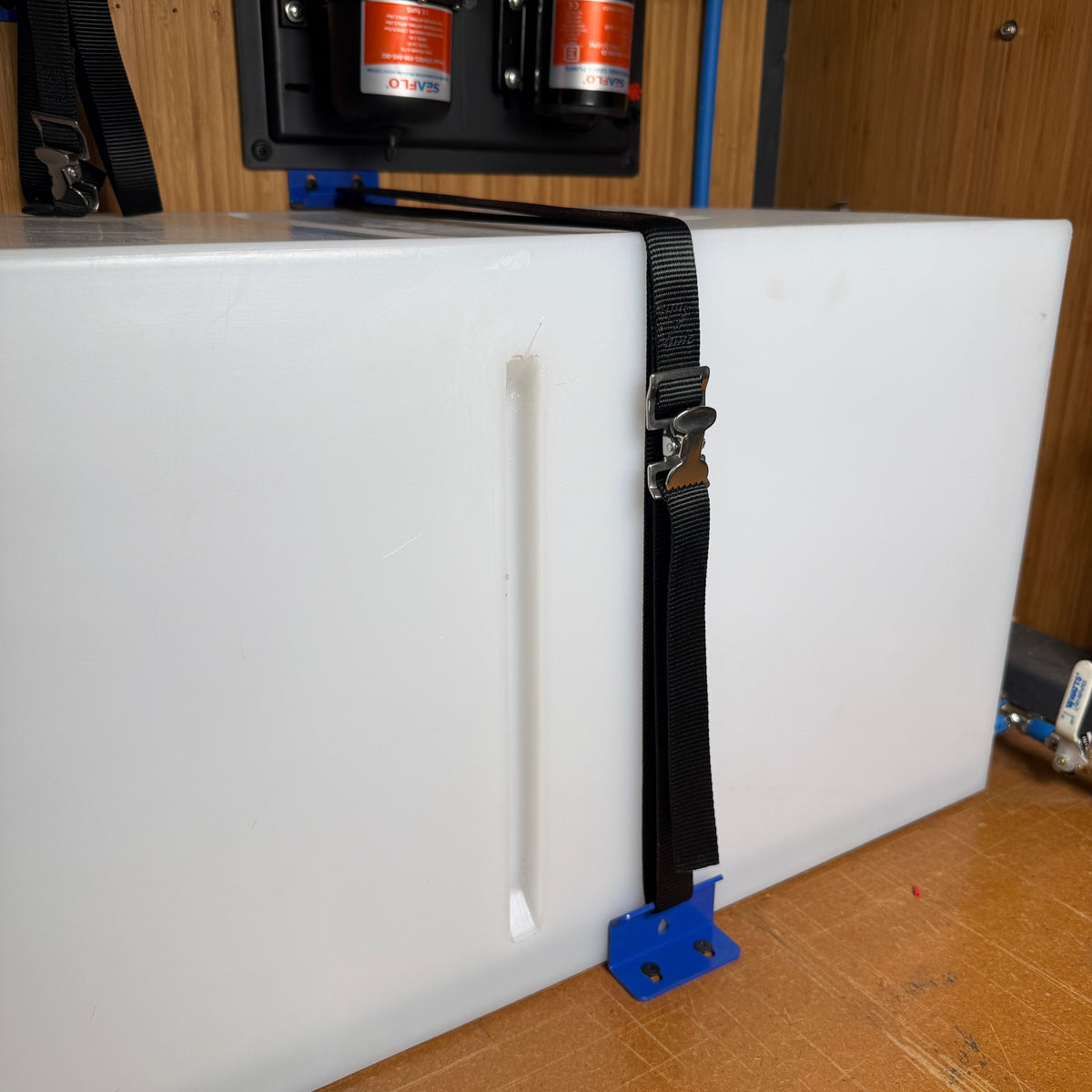

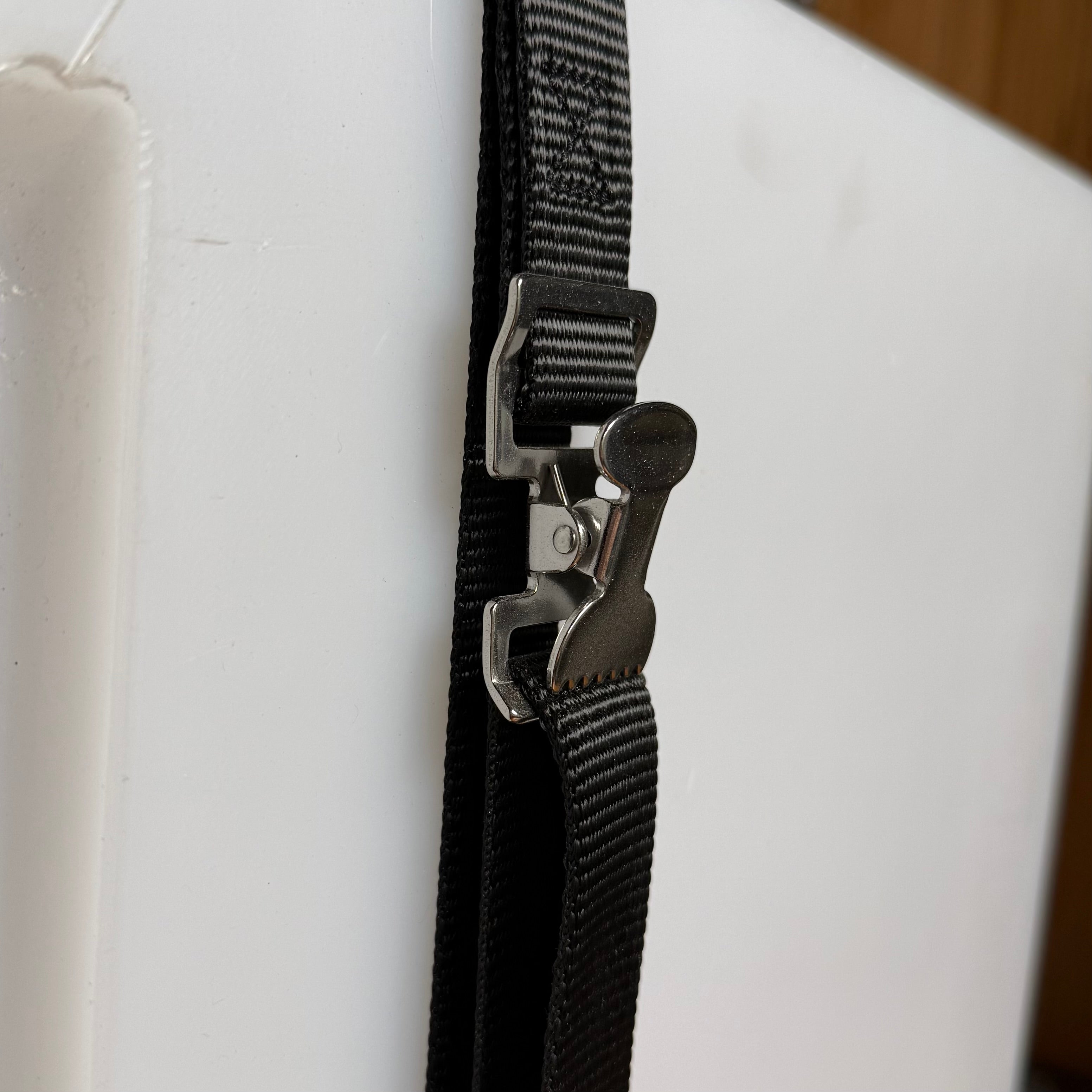

- (x2) Adjustable straps
- (x4) Mounting brackets
Compatibility & Fitment
- Sprinter 2500 direct fit (also fits Sprinter T1N)
- Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
- ProMaster requires a 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models
- Can be placed on either driver or passenger side
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
