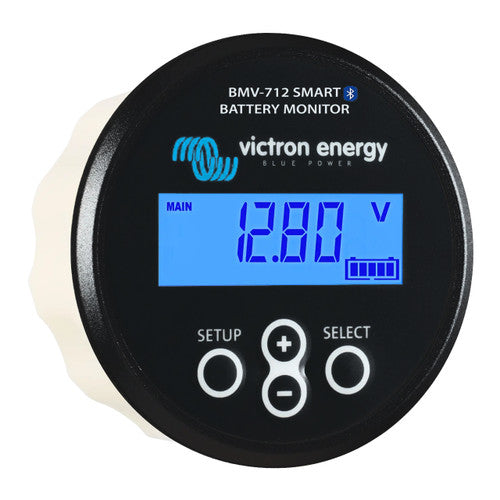

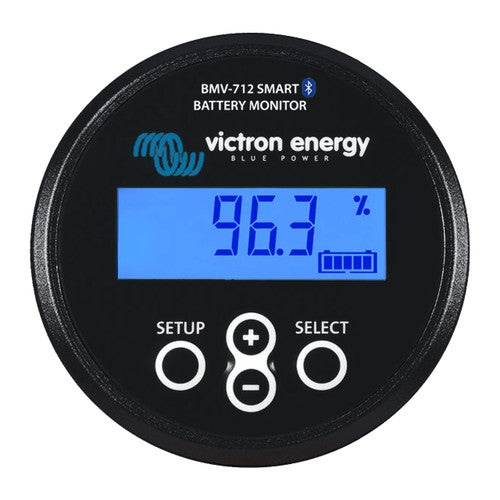

Victron BAM030712200 BMV-712 Smart Battery Monitor - Black

Victron BAM030712200 BMV-712 Smart Battery Monitor - Black

The Victron BMV-712 Smart is an advanced battery monitor designed to provide precise, real-time insight into the condition and performance of your battery system. Engineered for accuracy and ease of use, the BMV-712 measures battery voltage and current to calculate essential information such as state of charge, consumed amp-hours, and time remaining until empty. With built-in Bluetooth connectivity, the BMV-712 integrates seamlessly with the VictronConnect app, allowing users to access system data, configure settings, and review performance history directly from a smartphone or tablet. This monitor is ideal for RVs, vans, boats, off-grid systems, and any installation where maintaining reliable battery health is essential.

• Advanced Battery Monitoring Technology: The BMV-712 calculates state of charge and time-to-go based on real-time voltage and current measurements. It also records historical data including deepest discharge, average discharge, and total charge/discharge cycles, giving users a complete picture of battery performance over time.
• Built-In Bluetooth Connectivity: Wireless communication through the VictronConnect app allows convenient setup, monitoring, and diagnostics. Users can view detailed battery information, adjust settings, and update firmware without needing physical access to the monitor. USB connectivity is also possible with an optional VE.Direct to USB interface.
• System Integration & Smart Networking: When connected to a GX device such as the Cerbo GX, the BMV-712 becomes part of a larger system interface, enabling local or remote monitoring via the VRM portal. Through VE.Smart Networking, the BMV-712 can broadcast real-time battery temperature, voltage, and current to compatible Victron solar chargers and select AC chargers, enhancing overall system performance.

Flexible Monitoring Capabilities

The BMV-712 includes an auxiliary input that can be configured to monitor the voltage of a second battery, the midpoint of a battery bank, or battery temperature when paired with an optional temperature sensor. This flexibility makes it suitable for diverse system configurations and ensures accurate monitoring of critical conditions.

Enhanced Usability & Simple Operation

The onboard display and four-button interface allow users to view all monitored parameters and configure system settings directly from the unit. Whether accessed through the screen, a GX device, or the VictronConnect app, the BMV-712 offers straightforward interaction and dependable visibility into battery health.

Additional Info

• Supply Voltage Range: 6.5 - 70VDC
• Battery Capacity: 1 - 9999 Ah
• Operating Temp Range: -40 - 120°F
• Temp Measurement Range: -20 +50°C
• Color: Black
• Body Diameter: 2"
• Depth: 1.2"
