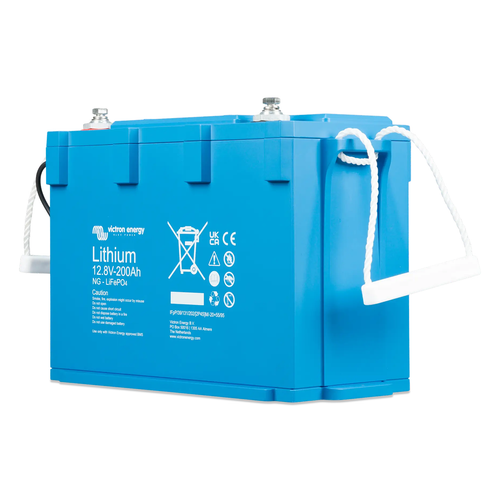

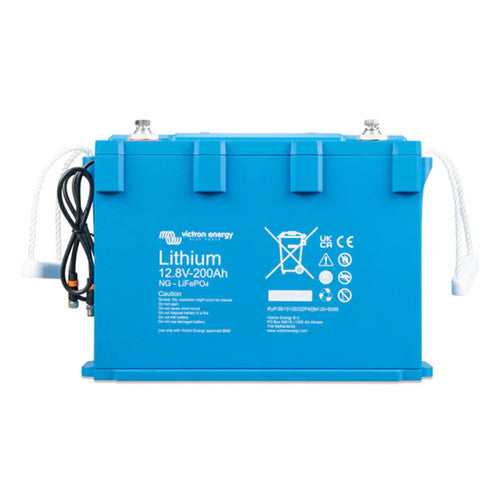

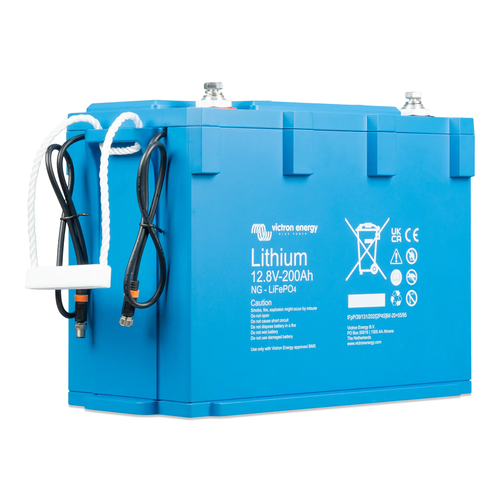

Victron BAT512120620 Lithium LiFePO4 Battery Next Generation - 12.8V / 200Ah

Victron BAT512120620 Lithium LiFePO4 Battery Next Generation - 12.8V / 200Ah

The Victron Lithium Next Generation (NG) 12.8V / 200Ah Battery is a premium, high-performance energy storage solution designed for modern off-grid, mobile, and backup power systems. This next-gen LiFePO₄ battery delivers exceptional cycle life, improved monitoring, and rugged durability with an IP65 protection rating. Built for everything from RVs and vans to marine, solar, and commercial power systems, the Lithium NG series offers advanced cell balancing, reliable discharge capability, and full integration with Victron’s Smart Battery Management Systems (BMS) for maximum control and safety.

• Advanced LiFePO₄ Technology: Using safe and stable Lithium Iron Phosphate chemistry, the Lithium NG battery provides long cycle life, high efficiency, and dependable performance across a wide temperature range.
• Improved System Monitoring: The Next Generation series offers detailed readouts of individual cell voltages, temperatures, and status when paired with a compatible Victron BMS, giving users exceptional visibility and control over their power system.
• Scalable Energy Storage: Multiple batteries can be connected in series, parallel, or both, enabling system configurations from small RV setups to large multi-kilowatt installations with ease.

Compatibility with Victron BMS Systems

The Lithium NG battery must be paired with a compatible Victron Energy BMS—such as the Lynx Smart BMS, VE.Bus BMS NG, or BMS Can system. These BMS units manage cell balancing, charging, protection, and power flow, ensuring the battery bank operates safely and efficiently. This makes the Lithium NG battery ideal for use with Victron inverters, chargers, solar charge controllers, and GX monitoring devices.

High Performance & Long Cycle Life

The Lithium NG series utilizes high-quality LiFePO₄ cells designed for strong continuous discharge, long lifespan, and excellent efficiency. With proper BMS integration, the battery delivers thousands of cycles—significantly outperforming AGM or Gel batteries in both longevity and usable capacity.

Multiple Electronic Protections

When paired with a Victron BMS, the Lithium NG battery benefits from a full suite of built-in electronic protections. These include safeguards against over-voltage, under-voltage, and over-temperature conditions, along with active cell balancing, continuous monitoring, and protection from short-circuit or over-current events. Together, these features ensure the battery operates safely, efficiently, and reliably in demanding applications.

Additional Info

• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Energy (Wh - Watts X Hours): 2560Wh
• Charging Temperature Range: +5°C to +50°C
• Discharging Temperature Range: –20°C to +50°C
• Ingress Protection: IP65
• Dimensions: 9-1/4"H X 13-1/2"W X 6-3/10"D
• Net Weight: ~67.2 lbs
