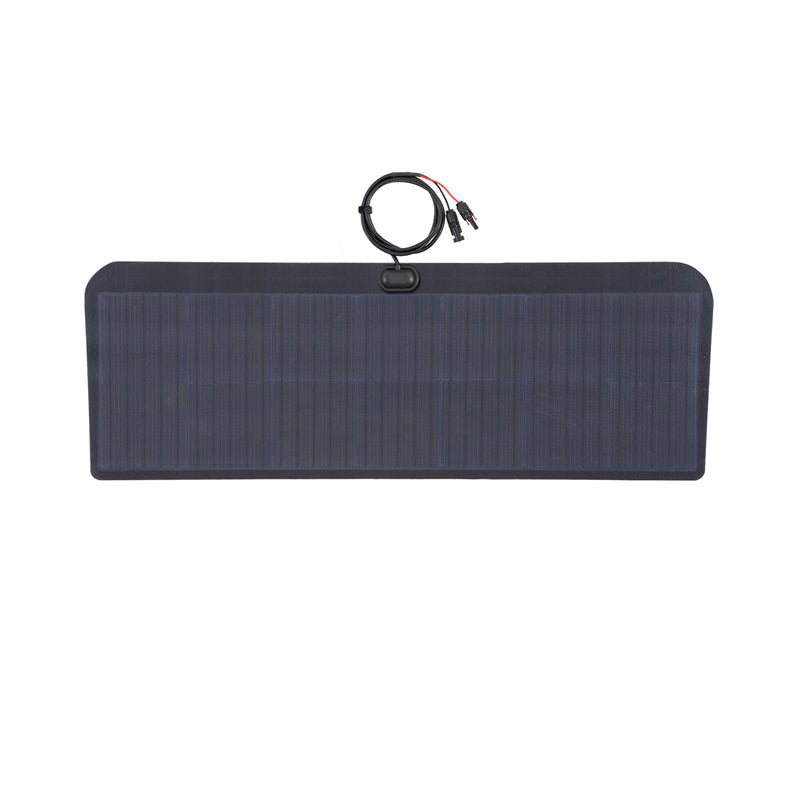

75W Hood-Mounted Flexible Solar Panel for Chevrolet Express Van
This hood-mounted flexible solar panel is designed to fit the hood of Chevrolet Express vans and provide daytime charging without running the engine. It can be used to maintain a starter battery, auxiliary battery, or compatible portable power stations while the vehicle is parked or in use. The panel mounts directly to the hood with a vehicle-specific shape and uses plug-and-play wiring, making it suitable for camping, off-grid use, or extended parking where battery maintenance is needed.
Key Features

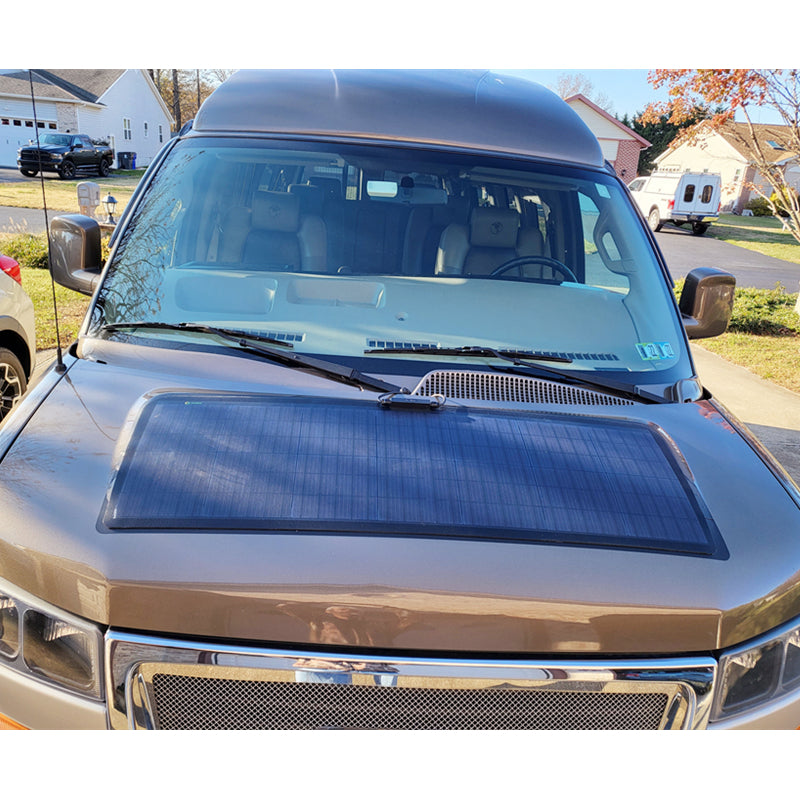

- Vehicle-specific hood fit: Shaped to match the hood of Chevrolet Express vans for direct mounting.
- Flexible monocrystalline solar cells: Uses Grade A PERC monocrystalline cells designed for higher efficiency and durability.
- ETFE protective surface: ETFE film provides resistance to heat, UV exposure, and weather while improving light transmission.
- Low-profile installation: Approximately 3 mm thick, allowing the panel to sit close to the hood surface.

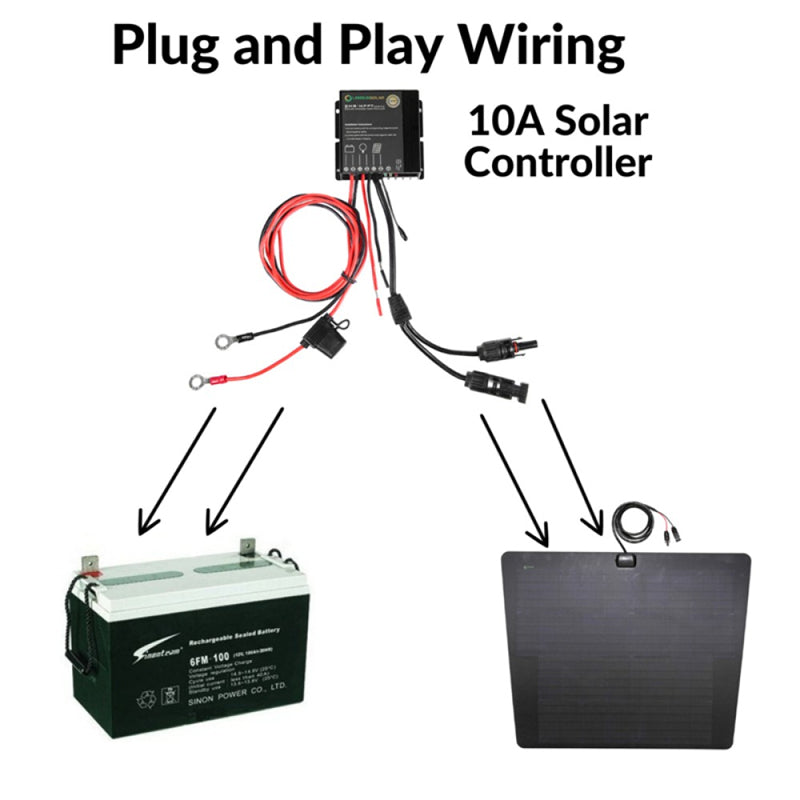

- Plug-and-play wiring: Designed for straightforward electrical connection to vehicle, auxiliary battery, or compatible power stations.
- Reduced hood glare: ETFE surface minimizes light reflection compared to painted hood surfaces.
- Optional protective layers: Optional vinyl decal can be installed between the panel and hood to help protect vehicle paint.
Specs & Details
- Vehicle compatibility: Chevrolet Express Van
- Rated power: 75 W
- Solar cell efficiency: 23.5%
- Maximum power voltage: 19 V
- Maximum power current: 3.94 A
- Open circuit voltage: 22.42 V
- Short circuit current: 4.34 A
- Power tolerance: ±3%
- Maximum system voltage: 500 V
- Panel thickness: Approx. 3 mm (0.12 in)
- Weight: 2 kg (4.4 lb)
- Junction box: IP68 rated with 1.5 m (5 ft) cables
- Standard test conditions: AM1.5, 1000 W/m² irradiance, 25°C cell temperature
- Included items: 75 W hood-mounted flexible solar panel

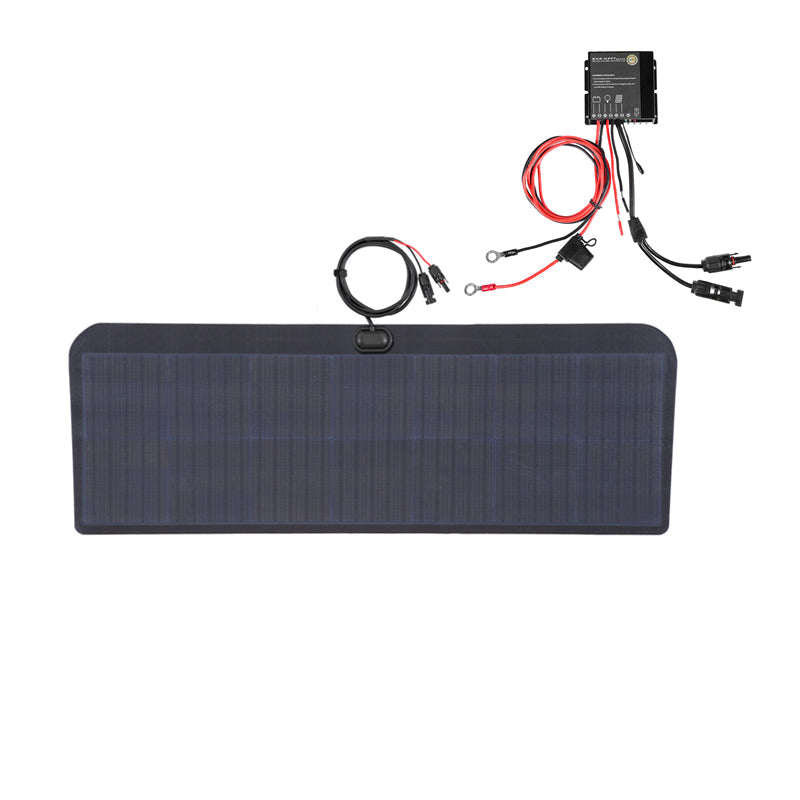

- Optional items: Vinyl decal; 10A waterproof solar controller
