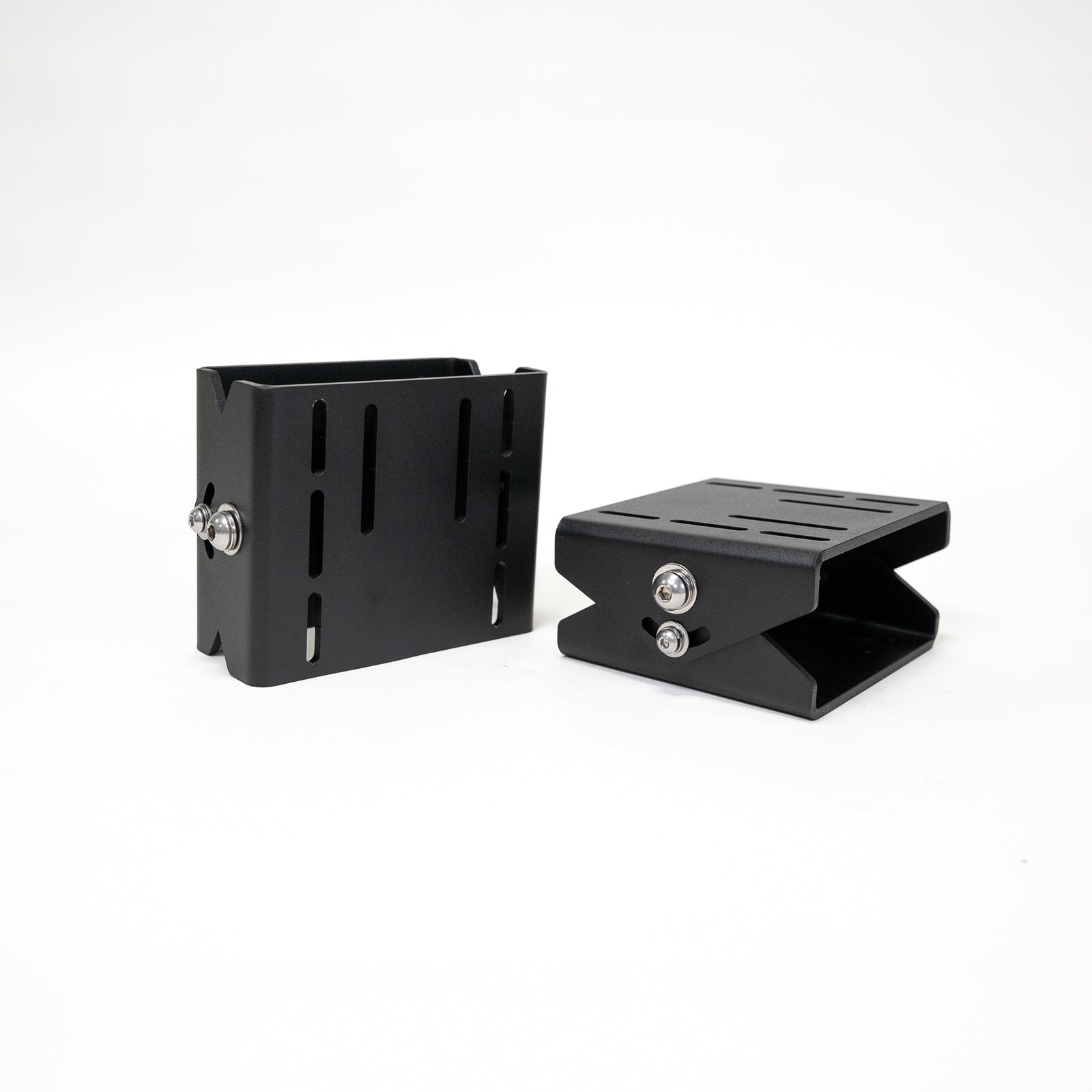

Articulating Awning Mounts for Flat and Angled Surfaces

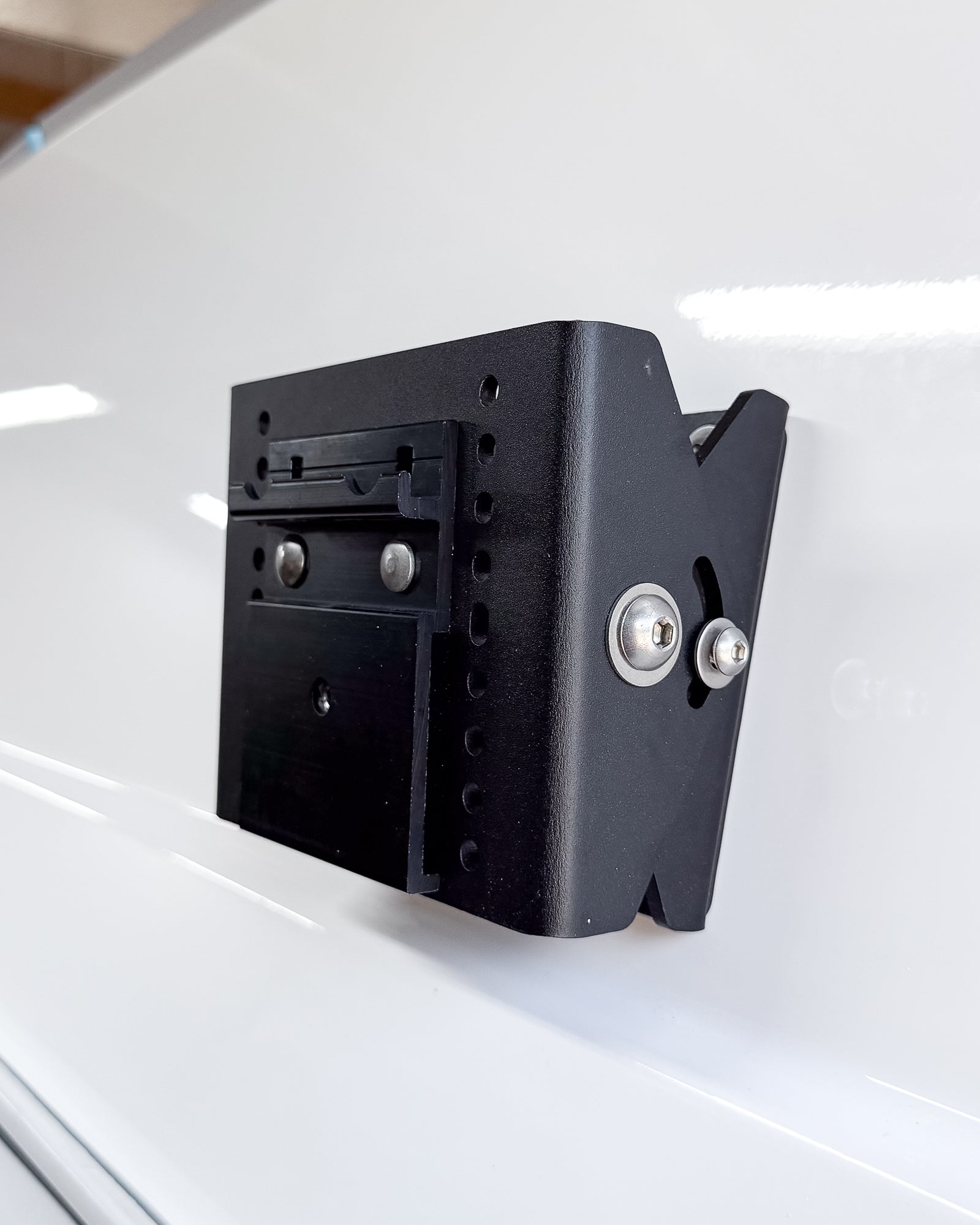

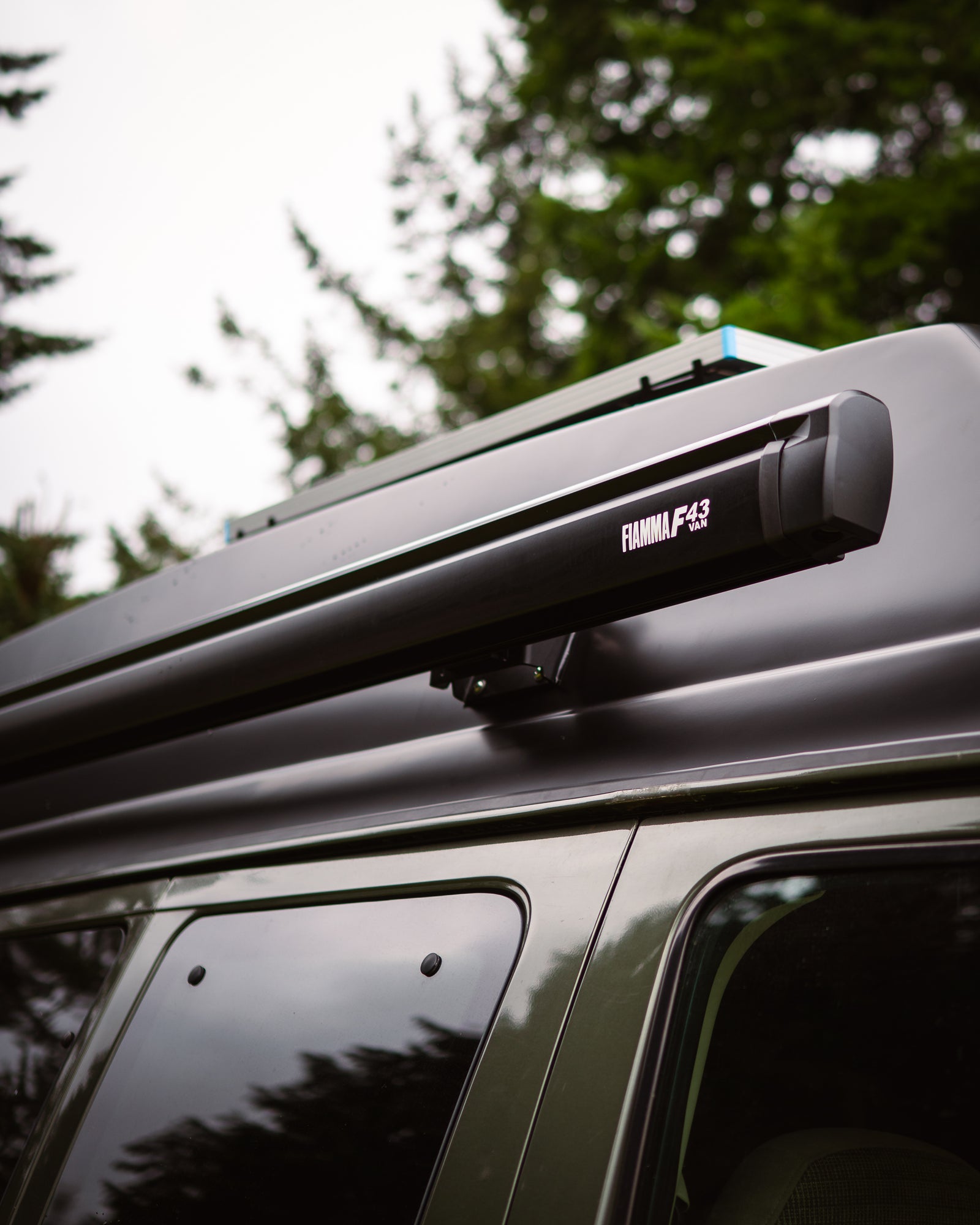

These articulating awning mounts are designed to install awnings on flat or angled exterior surfaces where standard fixed brackets are not suitable. They are commonly used on fiberglass van high tops, vertical RV walls, trailers, and other flat or sloped mounting areas. The articulating design allows the awning to remain vertically aligned even when the mounting surface is angled, helping achieve proper fit and operation across a wide range of installations.
Important: On very thin fiberglass or aluminum surfaces, additional internal structure such as 1/2 in plywood is required to properly support the weight of the awning.
Key Features

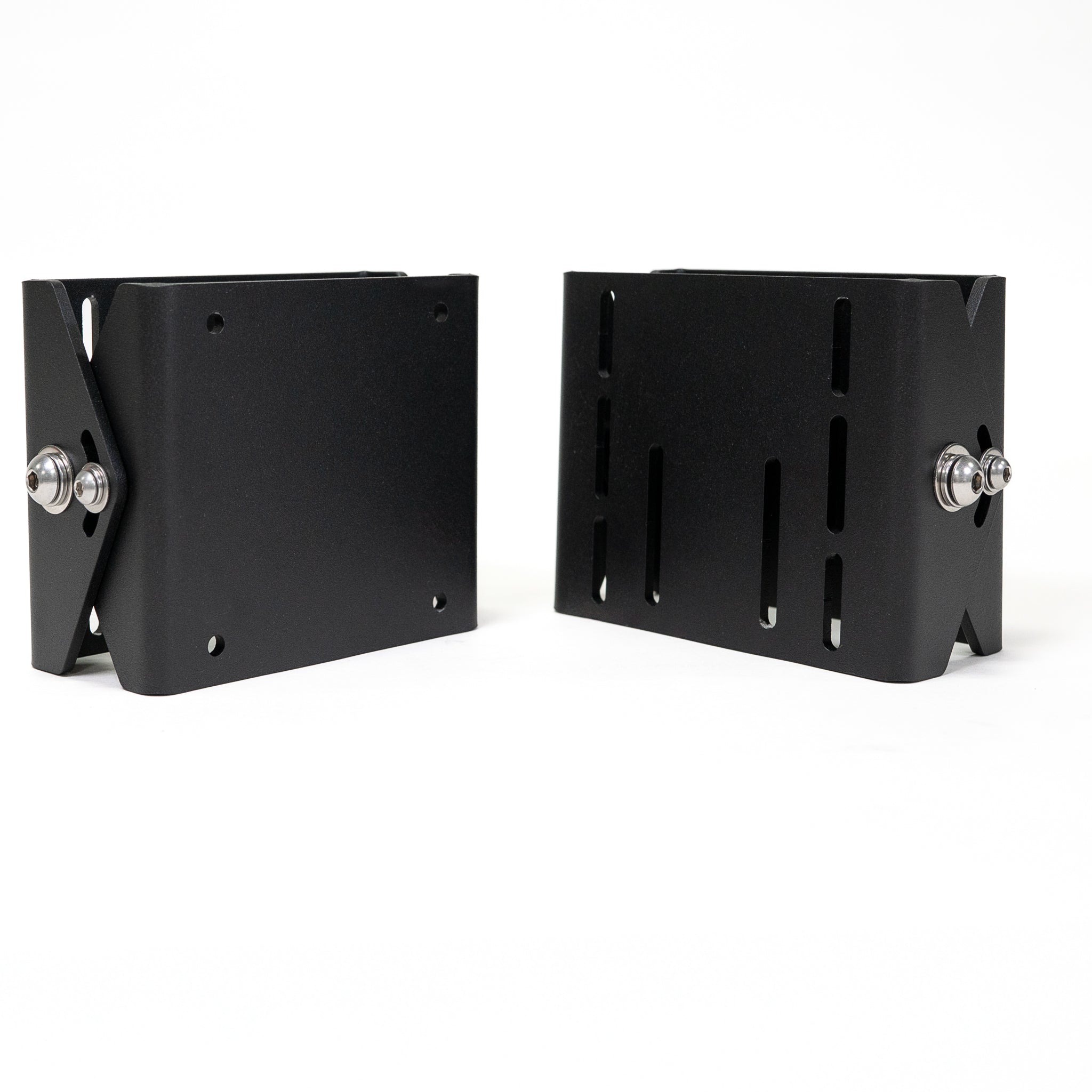

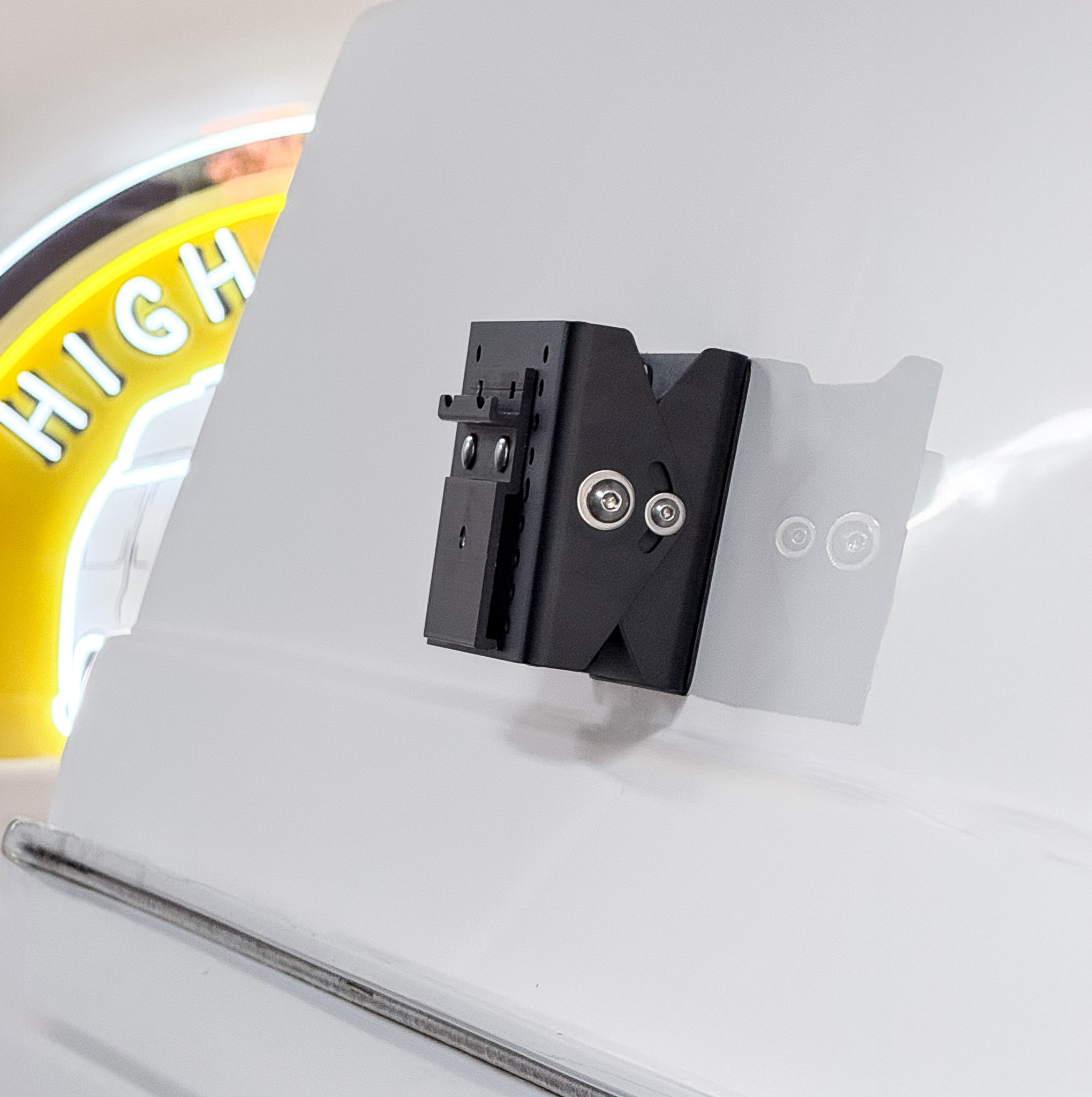

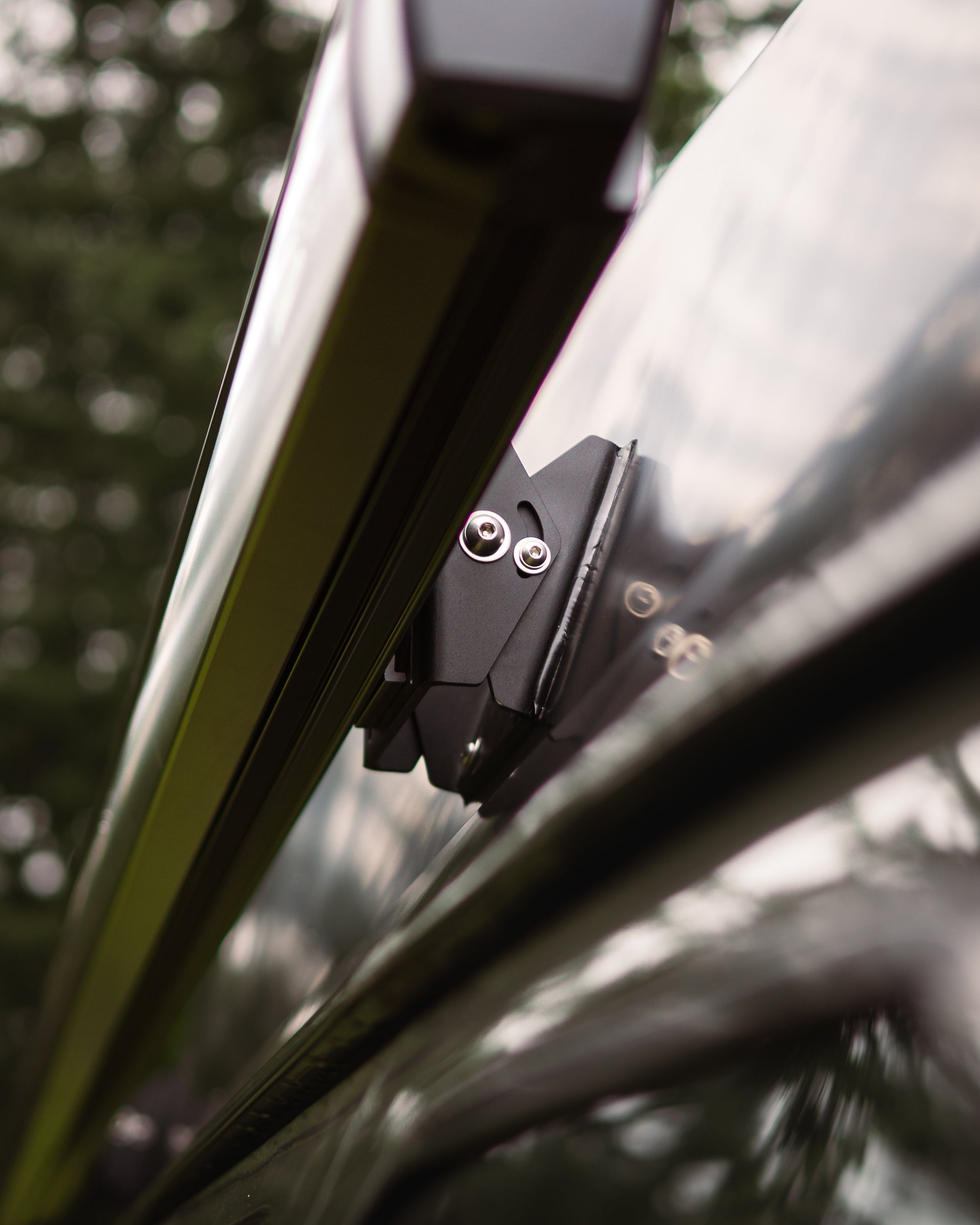

- Articulating bracket design: Allows the awning to mount vertically even when installed on angled surfaces such as fiberglass van tops.
- Flat-surface compatibility: Can be mounted to flat exterior surfaces including RV walls, trailers, and van bodies.
- 5052 aluminum construction: Provides strength and corrosion resistance for exterior mounting applications.
- Stainless steel hardware: Supplied for improved durability and resistance to corrosion.
- Interior backer plate included: Aluminum backer plate helps distribute load on the interior mounting surface.
- Weather sealing components: Includes neoprene rubber gaskets to help seal exterior mounting points against water intrusion.

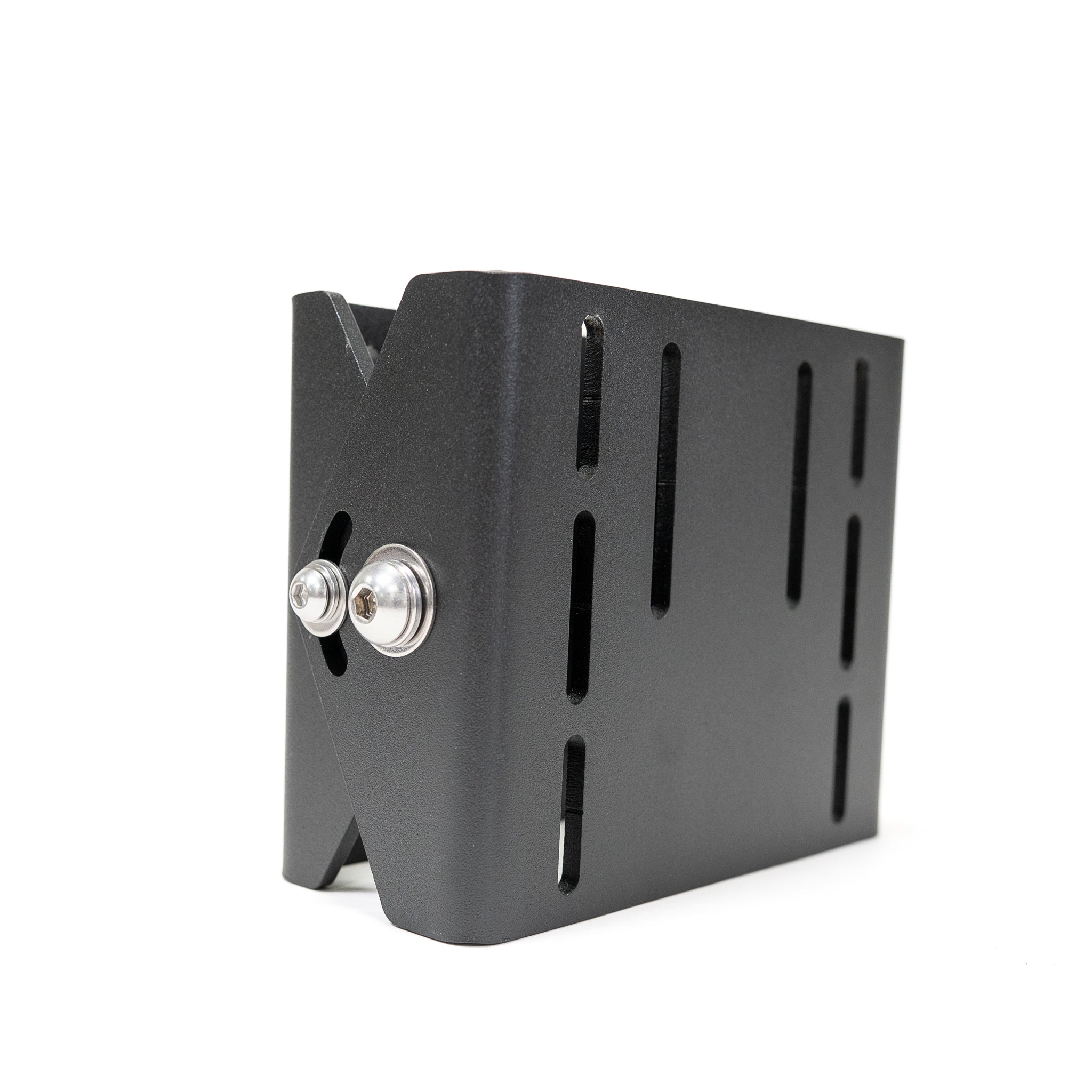

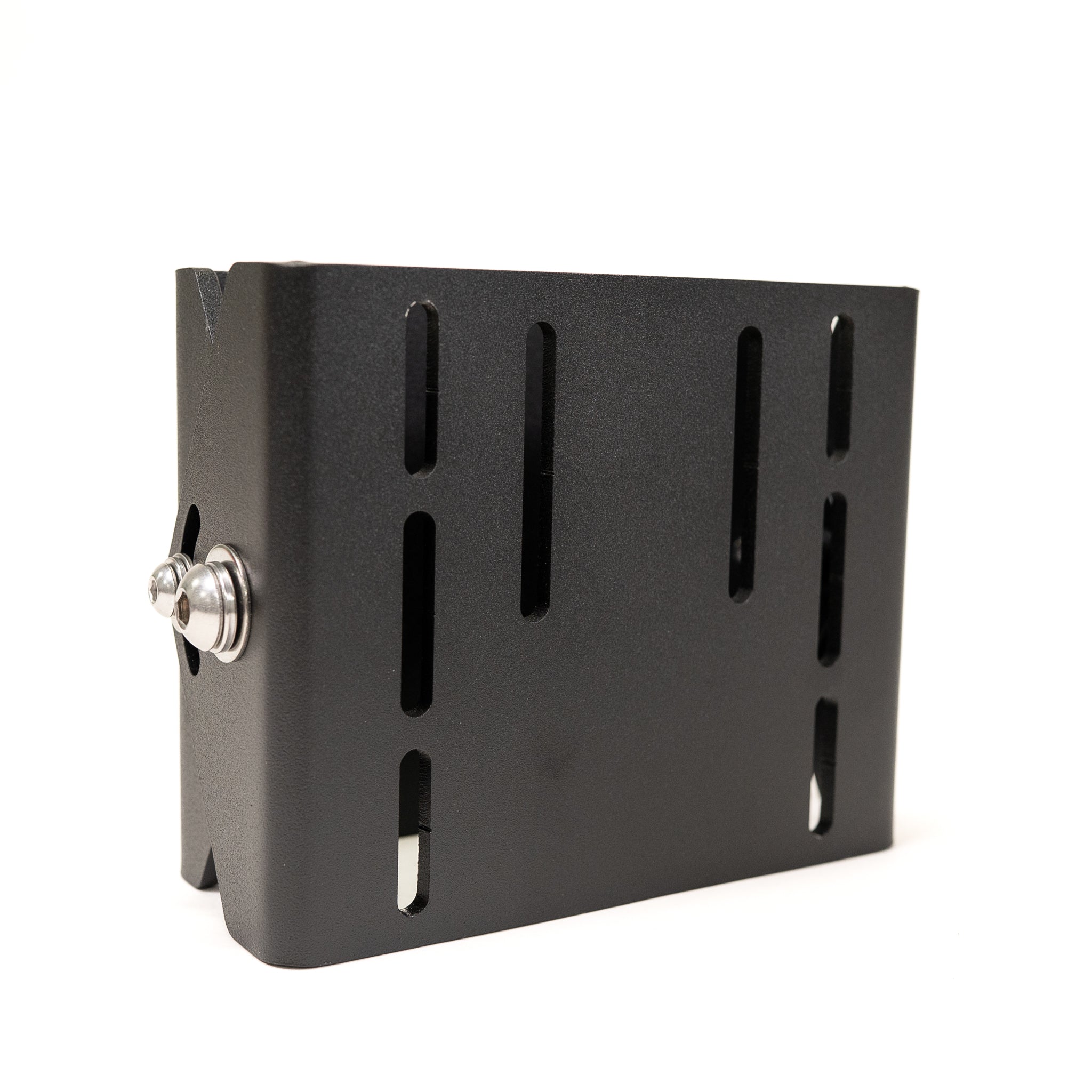

- Adjustable mounting slots: Slotted design allows height adjustment for proper fit with compatible awnings.
- Flexible awning compatibility: Designed for Fiamma and ARB awnings, with the option to drill additional holes for other awning patterns.
Specs & Details
- Material: 5052 aluminum brackets
- Hardware: Stainless steel
- Mounting surfaces: Fiberglass van tops, vertical RV walls, trailers, flat or angled surfaces

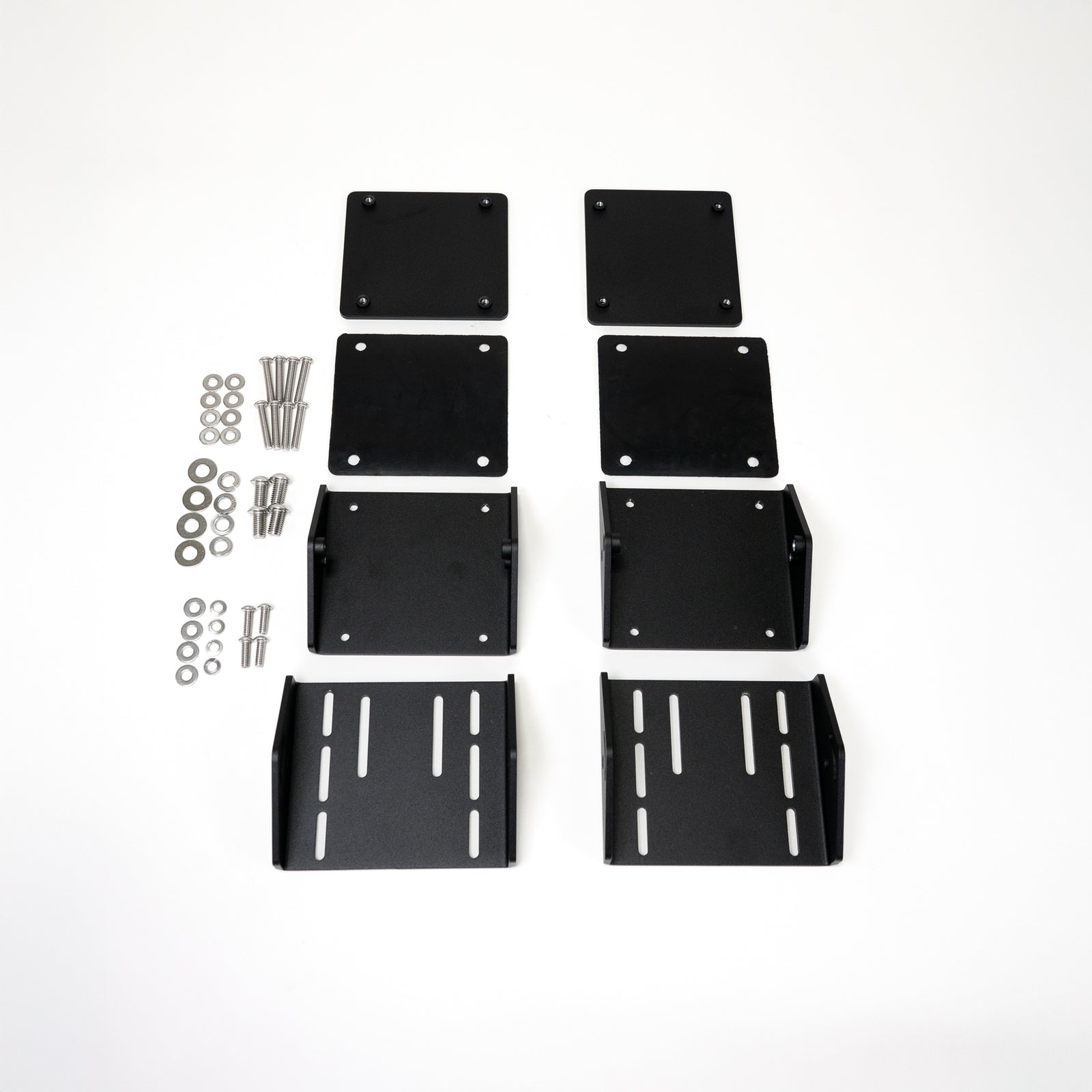

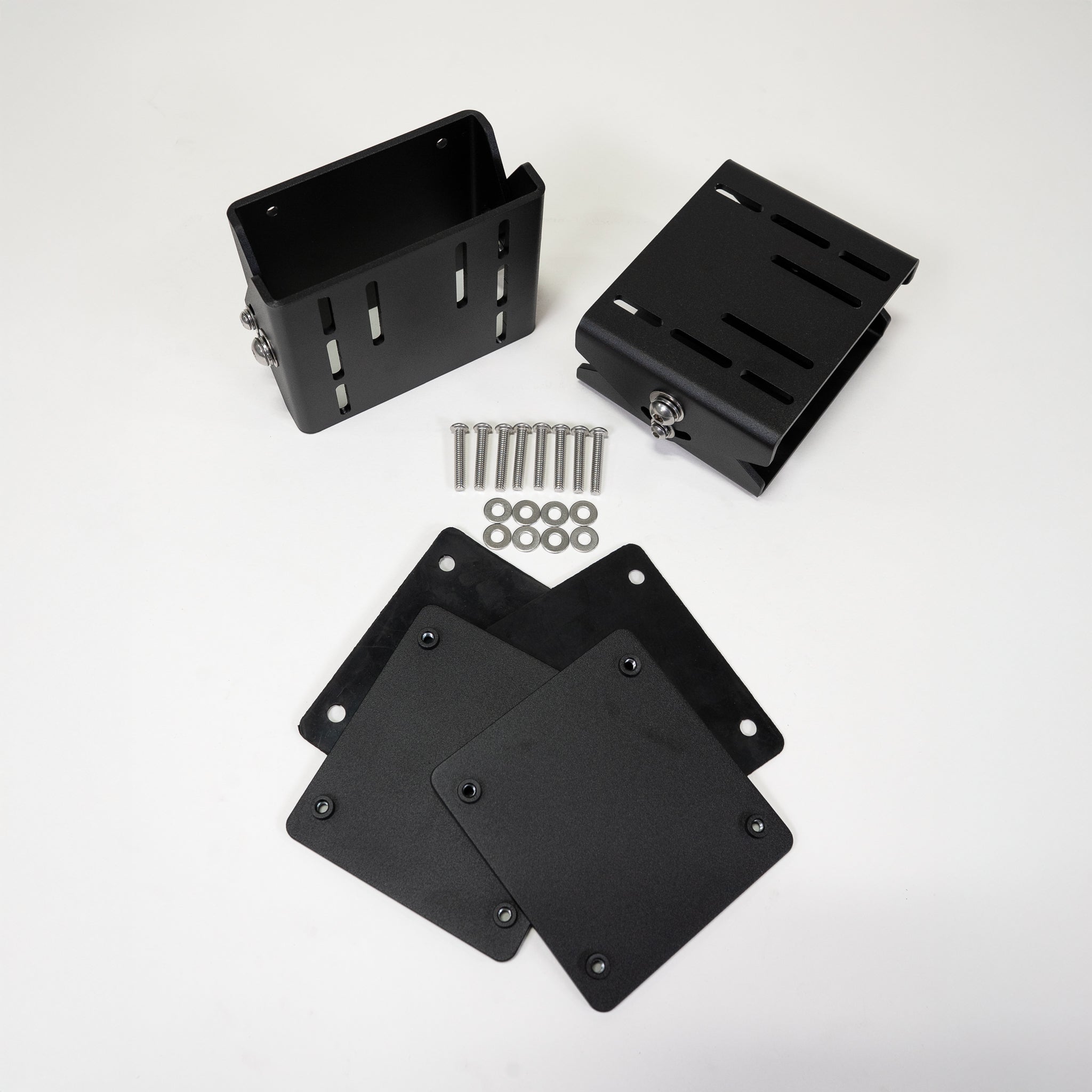

- Included components: Articulating brackets, aluminum interior backer plate, neoprene rubber gaskets, mounting hardware
- Awning compatibility: Fiamma and ARB awnings; additional hole patterns can be drilled as needed
