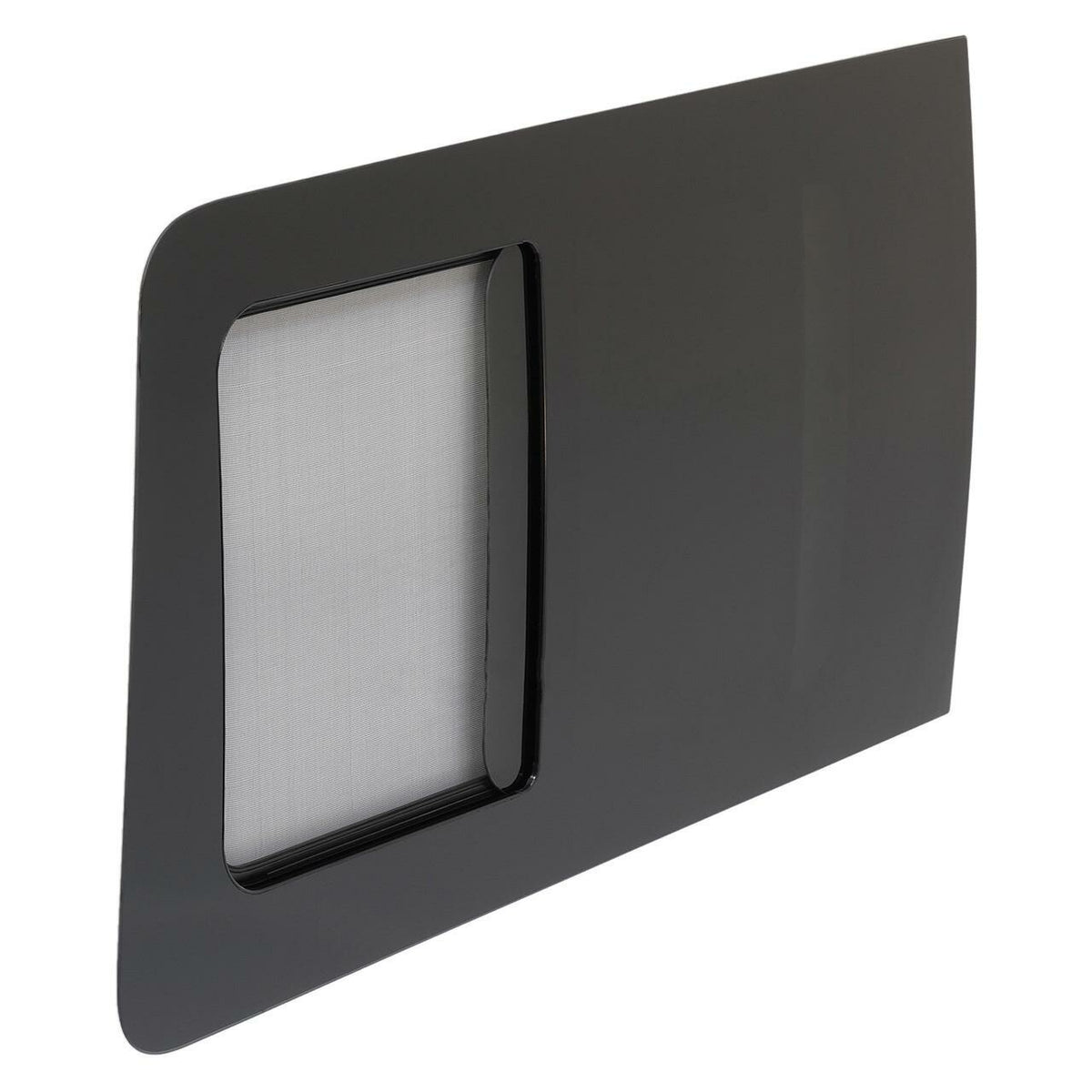

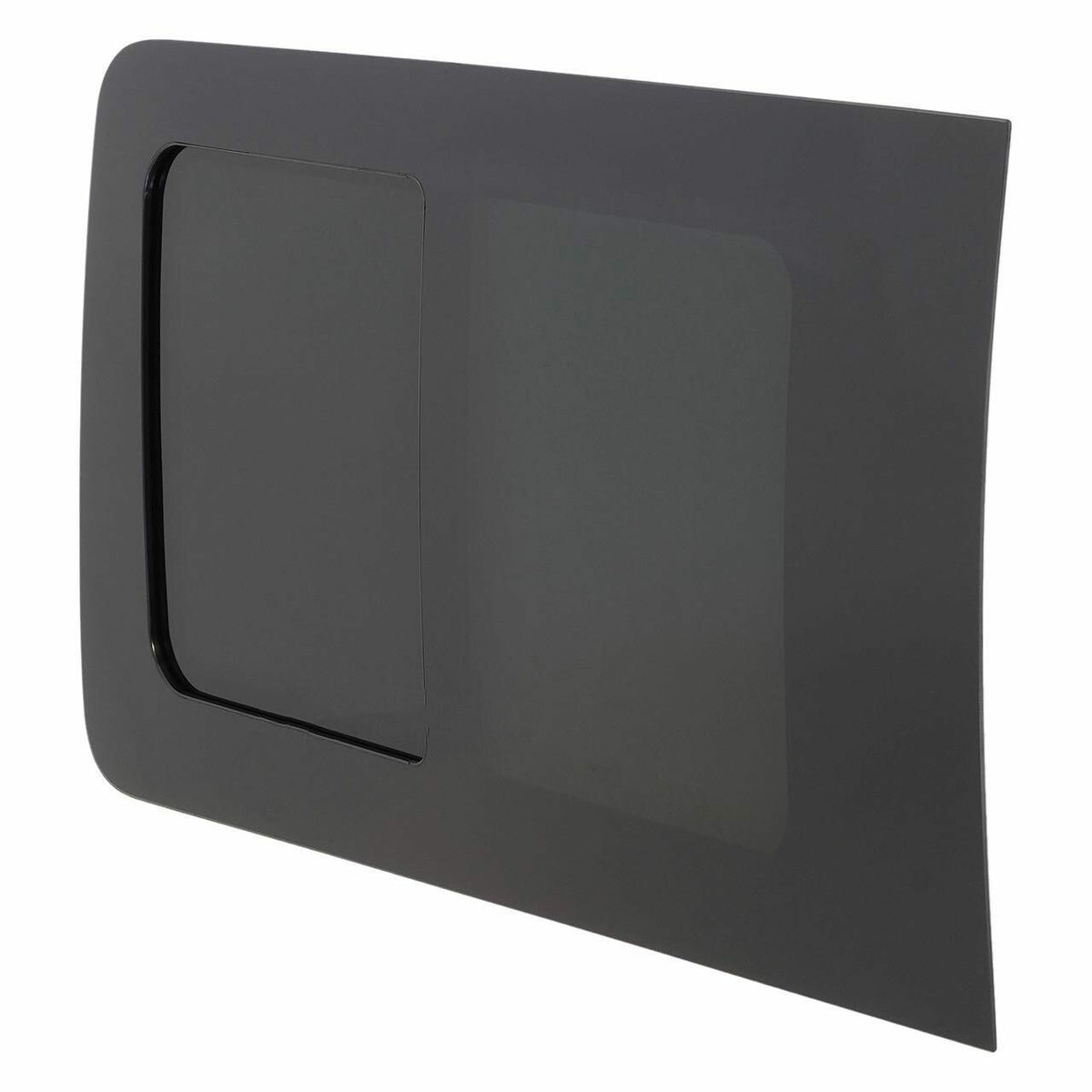

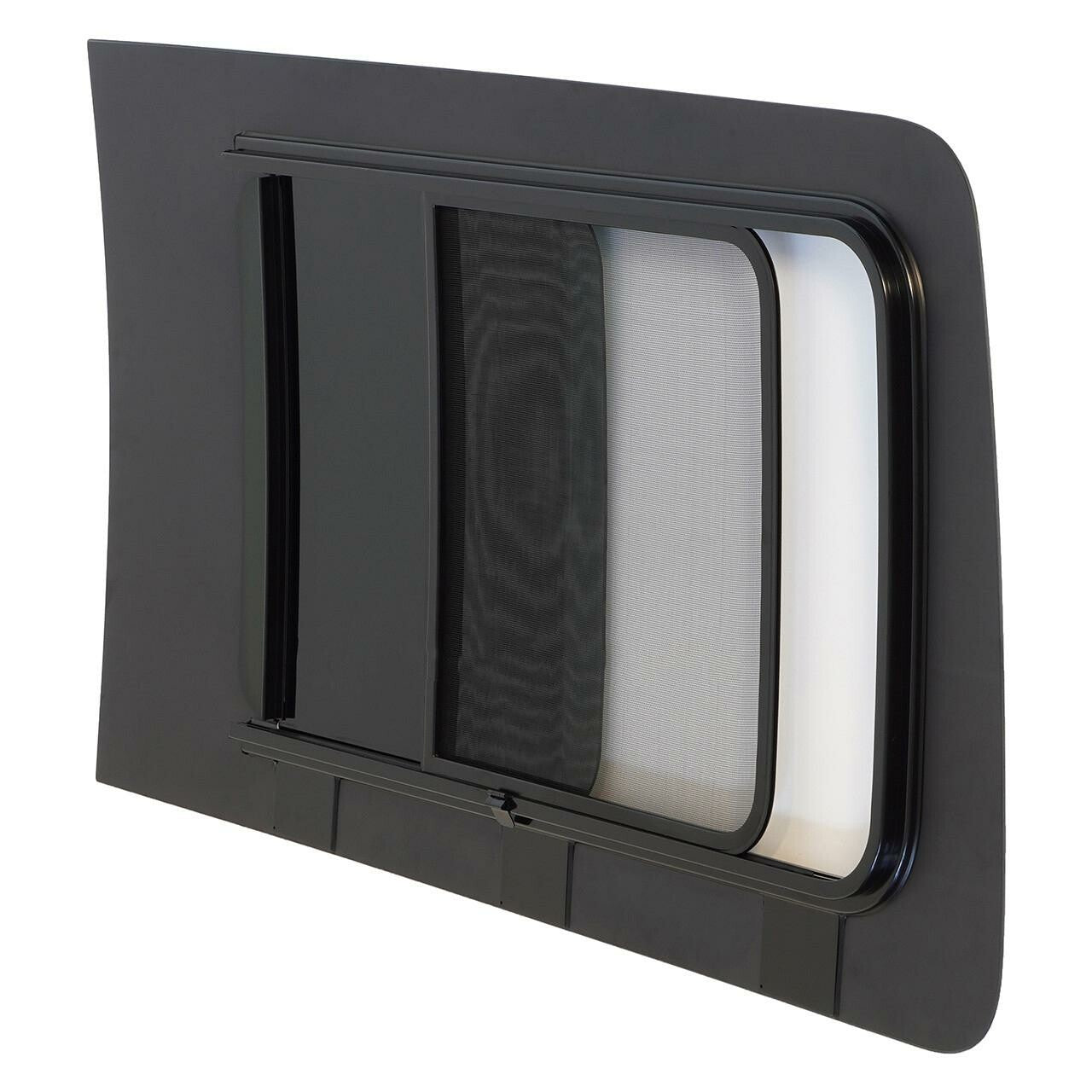

AM Auto FT14-LS1-FHSS Ford Transit Driver's Side Forward Window

AM Auto Windows are a quality option for any campervan outfitter who demands the highest quality and purpose-built design. Designed and manufactured by an OEM-approved factory renowned for producing glass for leading automotive manufacturers such as Ford, GM, Volkswagen, and more, AM Auto windows guarantee consistent quality and reliability. This window uses a Half-Slider design that sets it apart from the competition.

This window elevates the overall look and feel of the vehicle, offering a professional and polished appearance. By utilizing a urethane style installation, it replicates the OEM standard and provides a reliable and industry-standard installation method. This helps maintain consistency with the original design and ensures that the installed windows meet or exceed the quality and safety standards set by the vehicle manufacturer.

Additional Info

• Location: Driver's Side Forward
• Overall Dimensions: 53-3/4" x 29"
• Half-Slider Opening Size: 15" x 20-1/4"
• Glass Type: Tempered Privacy Glass
• Light Transmission: 17%

Compatible With

• 2015-2026 Ford Transit Medium and High Roof Vans

Installation

• Cutting Out the Panel: The first step is to carefully cut out the panel on the van's sidewall, following the interior curvature of the vehicle. This ensures that the window will fit seamlessly into the designated area.
• Cleaning Up the Edges: After cutting out the panel, the edges are cleaned up using a grinder or similar tool. This step helps to create a smooth and even surface for proper window installation.
• Applying Primer: To prevent rust and promote adhesion, primer is applied to both the edges of the cut-out panel and the surface of the van where the window will be installed. The primer creates a protective barrier and enhances the bond between the window and the van body.
• Applying Urethane: Urethane adhesive, a strong and durable bonding agent, is applied to the van body in the designated area where the window will be placed. The urethane adhesive ensures a secure attachment between the window and the van, providing a watertight and long-lasting seal.
• Installing the Window: Once the urethane adhesive is applied, the window is carefully positioned and pressed into place. It is crucial to align the window properly within the cut-out panel and ensure a snug fit. The adhesive creates a strong bond between the window and the van, securing it in position.

Throughout the installation process, attention to detail and precision are key to achieving a professional result. Please note that the installation of this window product should be performed by an experienced installer. It is essential to have the necessary expertise and knowledge of proper installation techniques to ensure the window is securely and accurately installed. Instructions for installation are not included with this product. Improper installation of the window may lead to structural issues, water leaks, and other potential risks.
