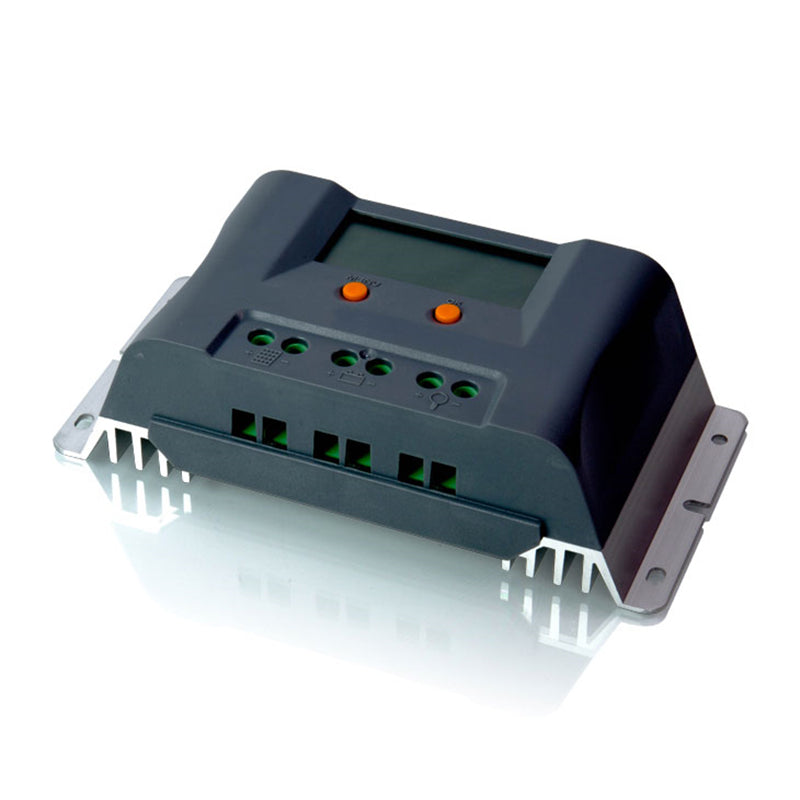

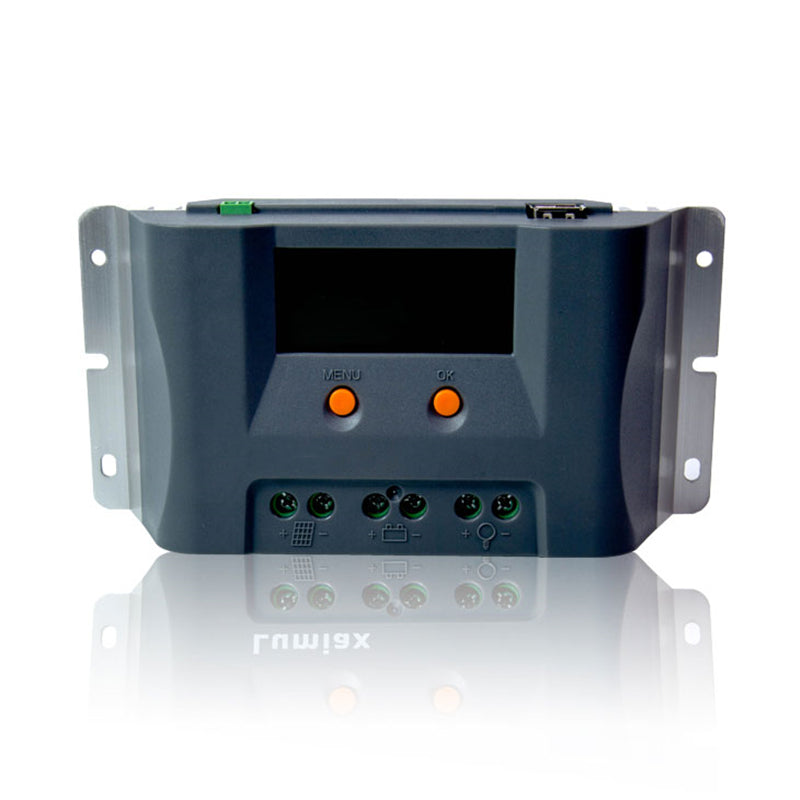

Lensun 10A 12V MPPT LCD Solar Regulator Controller

Note: We have warehouses in the US, UK, and Germany, and we will ship to you according to your country to avoid paying import duties.

Lensun 10A MPPT 12V Solar Panel Regulator Charge Controller LCD DisplayLS-MT1050EU

Feature:
1. Innovative MPPT technology, tracking efficiency of 99.9%, conversion efficiency up to 97%
2. Real-time display of the operational data and working status of the controller in digital, graphic, and textual forms by a large LCD
3. AGM, Gel, Liquid, and Lithium batteries to choose
4. Two navigation buttons, easy to implement various operations
5. 5V2A, 2 USB interface

Specification:
Model No: LS-MT1050EU
Nominal System Voltage: 12VDC
Rated Battery Current: 10A
Maximum Battery Voltage: 20V
Max. Solar Input Voltage: 100VDC
Max. PV input power: 35V/ 130W
Self-consumption: 7mA(12V);
Charge Circuit Voltage Drop: 0.26V
Discharge Circuit Voltage Drop: 0.15V
Communication: RS485/RJ45 interface

Environmental Parameter:
Working temperature: -20 to +50 C
Storage temperature: -25 to +80 C
Humidity: 10%-90% NC
Enclosure: IP32

Mechanical Parameter:
Dimension: 189 x 96 x 53 / mm
Mounting hole size: Φ4.5
Weight: 0.48 kg

Packing:
1 x 10A MPPT LCD solar regulator
