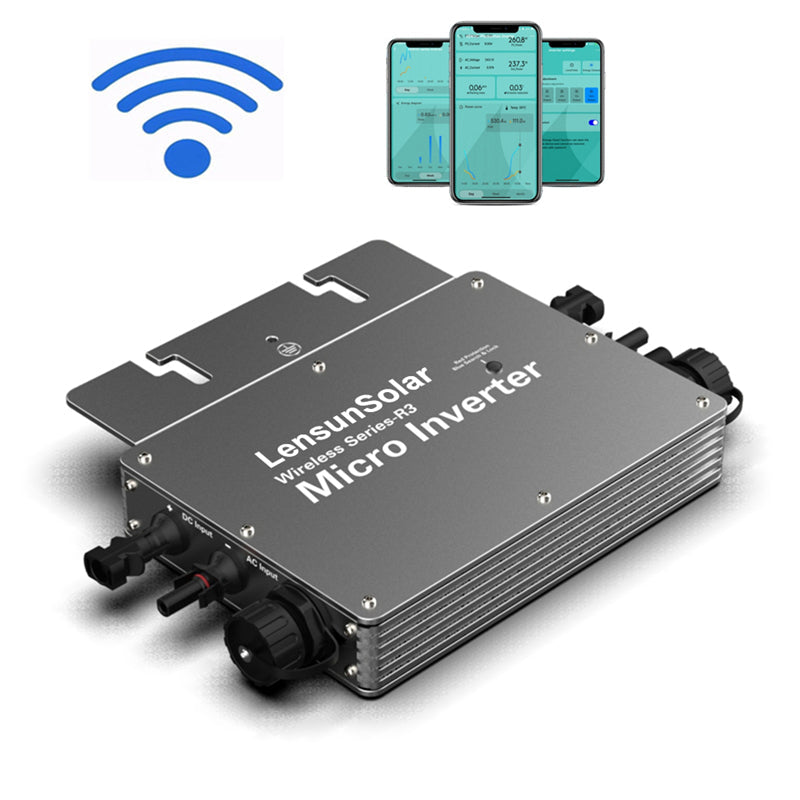

LensunSolar 600W Grid Tie Solar Micro Inverter with WIFI, 230V 110V Auto Switch
A solar micro-inverter is a simple plug-and-play device especially used in photovoltaic, which converts DC produced by a single photovoltaic module into alternating current (AC.) Micro-inverters also known as PV inverters, are compact and very easy to install in residential as well as commercial photovoltaic systems.
Lensunsolar inverter is equipped with wifi communication function as standard. Let you
monitor the working status of your inverter anytime and anywhere. This
Smart On Grid system improves safety; maximizes solar energy harvest;
increases system reliability, and simplifies solar system design,
installation, maintenance, and management.
The built-in maximum power point tracking engine (MPPT) can better capture changes in lighting, and it can work even in rainy weather. It can maximize the capture and collection of sunlight. The inverter is compatible with a variety of conventional solar panels with an open circuit voltage of 22~60V.
Lensunsolar micro inverters adopt waterproof flow line design, which can provide better heat dissipation function for the equipment. The power output mode of Lensun Micro-Inverter is reverse transmission technology, which supplies power to the load first, and then uploads the excess power to the local power grid.
monitor the working status of your inverter anytime and anywhere. This
Smart On Grid system improves safety; maximizes solar energy harvest;
increases system reliability, and simplifies solar system design,
installation, maintenance, and management.
The built-in maximum power point tracking engine (MPPT) can better capture changes in lighting, and it can work even in rainy weather. It can maximize the capture and collection of sunlight. The inverter is compatible with a variety of conventional solar panels with an open circuit voltage of 22~60V.
Lensunsolar micro inverters adopt waterproof flow line design, which can provide better heat dissipation function for the equipment. The power output mode of Lensun Micro-Inverter is reverse transmission technology, which supplies power to the load first, and then uploads the excess power to the local power grid.
Feature
1. Lensunsolar inverter is easy to operate, convenient, and fully functional.
1. Lensunsolar inverter is easy to operate, convenient, and fully functional.
2. Suitable for solar energy systems, household, commercial, agricultural, outdoor use, etc.
3. WiFi Real time monitoring.
4. High efficiency up to 99%
5. Come with a built-in WIFI module, so that it can communicate with the router directly
6. Waterproof IP65ï¼?0 years warranty
6. Waterproof IP65ï¼?0 years warranty
Product Parameters
| Model |
VWC-600 |
|
Maximum input power |
2×400Watt |
|
Output voltage mode |
120V/230V Auto Switch |
| PV Open circuit voltage |
30-60 Voc |
|
Operating voltage range |
22-60V |
| Starting voltage range |
22-60V |
|
short-circuit current |
2*15A |
|
Maximum working current |
2*12A |
|
Output parameters |
@120V |
@230V |
|
Output peak power |
660Watt |
660Watt |
|
Rated output power |
600Watt |
600Watt |
| Output current |
5A |
2.6A |
|
AC voltage range |
80-160VAC |
180-280VAC |
|
AC frequency range |
47-52/57-62Hz |
47-52/57-62Hz |
|
Power factor |
>95% |
>95% |
| Number of branch connections |
6 units |
12 units |
Output efficiency
|
Static MPPT efficiency |
99.5% |
|
Max output efficiency |
95% |
|
Loss of power at night |
<0.5w |
|
Total current harmonics |
<5% |
Appearance and technical features
|

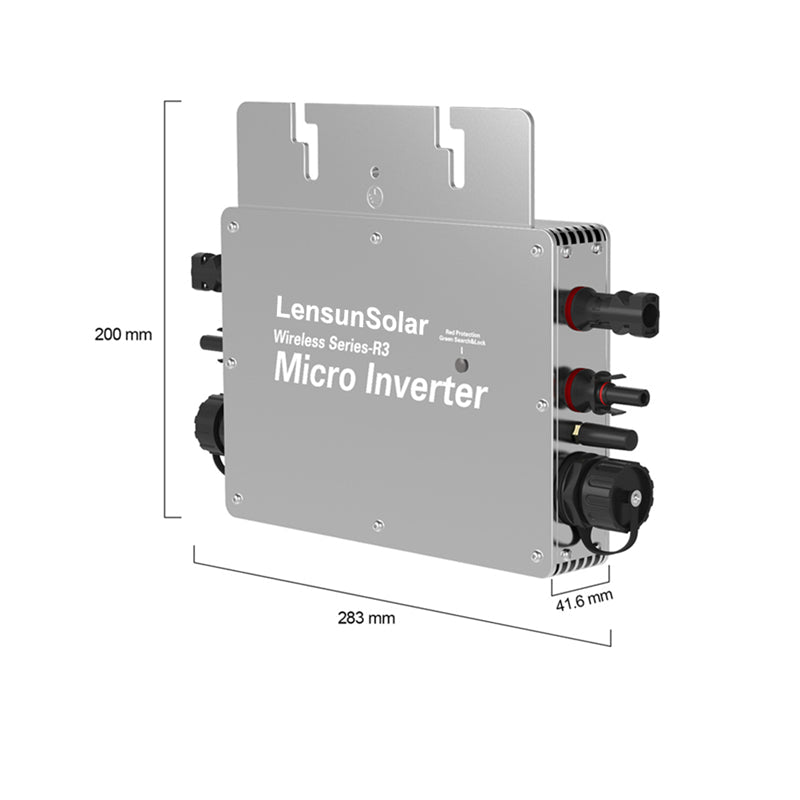

Size（L×W×H), Net amount |
283×200×41.6mm 1.56kg |
| Waterproof grade |
IP65 |
| Temperature range |
-40°C to +65°C |
| Heat dissipation mode |
Self-cooling |
|
Communication mode |
Wifi |
|
Power transmission mode |
Reverse transmission,Load priority |
| Monitoring system |
Mobile phone APP、Browser |
|
Electromagnetic compatibility |
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 |
|
Power grid |
EN61000-3-2 EN62109.UL STD.1741 |
| Certificate |
VDE, 50549 |

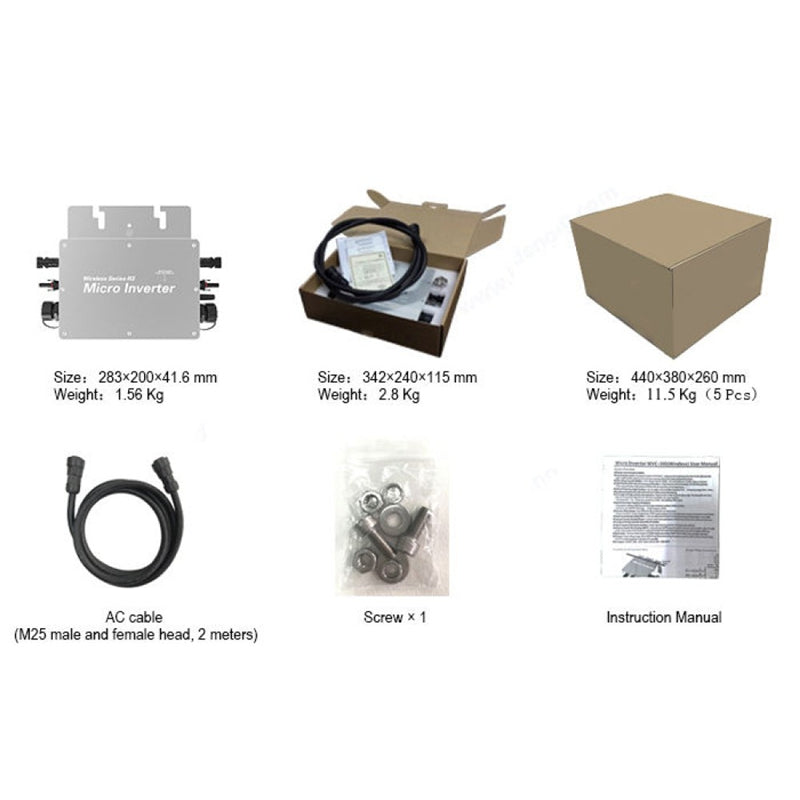

Packing:
1 x 600w Lensunsolar microinverter

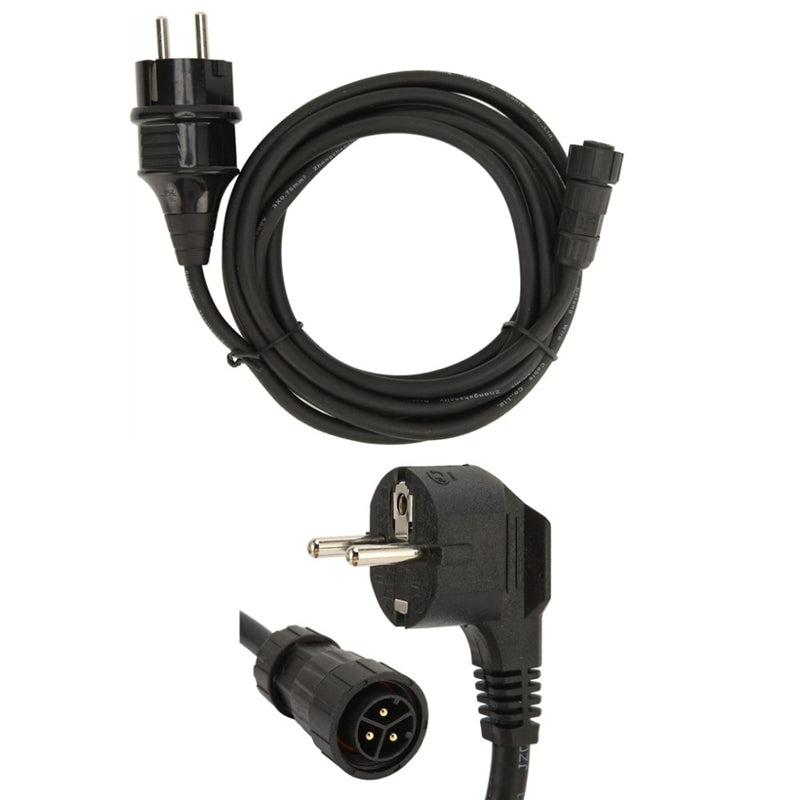

1 x 1m AC plug cable
