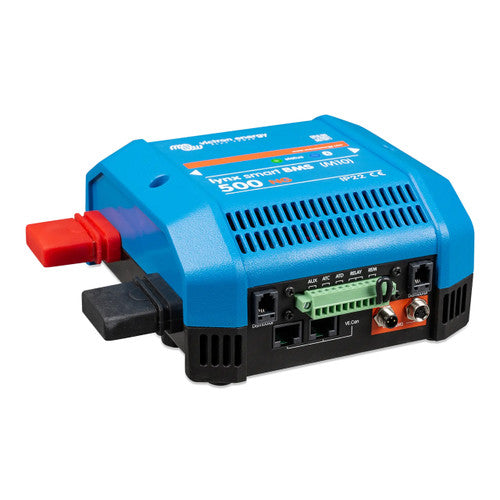

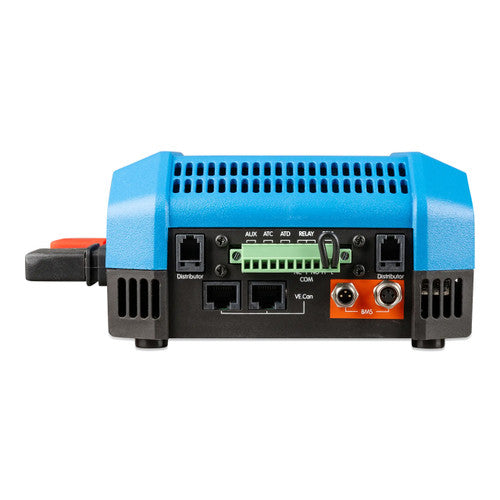

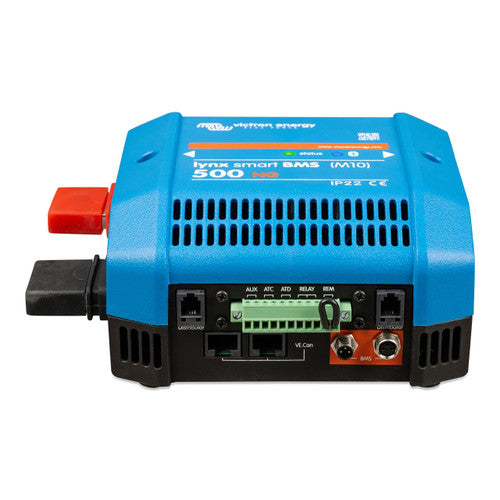

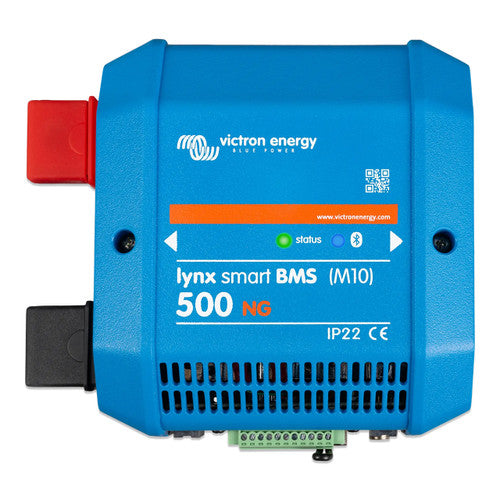

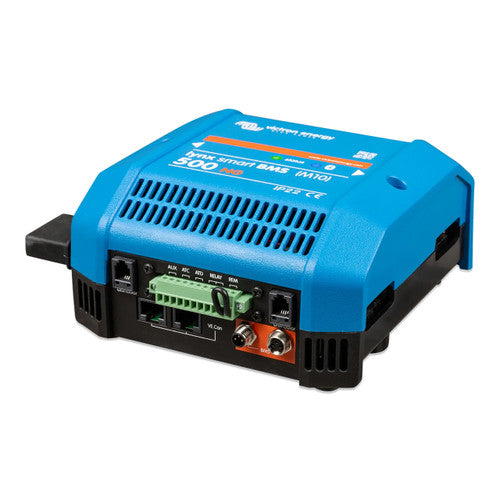

Victron LYN034160310 Lynx Smart BMS Next Generation M10 - 500A

Victron LYN034160310 Lynx Smart BMS Next Generation M10 - 500A

The Victron Lynx Smart BMS Next Generation (NG) M10 is an advanced battery management system specifically engineered for Victron Lithium NG batteries. Designed as the central safety and control unit for modern lithium battery banks, it ensures optimal performance, comprehensive protection, and seamless system monitoring. Compatible with 12.8V, 25.6V, and 51.2V Lithium NG batteries, the Lynx Smart BMS NG supports 12V, 24V, and 48V system architectures and integrates directly into the Victron Lynx modular distribution system. Built for scalability and reliability, the Lynx Smart BMS NG allows battery banks to be configured in series, parallel, or combined layouts. Systems can support up to 50 Lithium NG batteries, delivering up to 192 kWh at 12V or 384 kWh at 24V/48V. Multiple Lynx Smart BMS NG units can be paralleled to increase capacity and provide redundancy in larger installations.

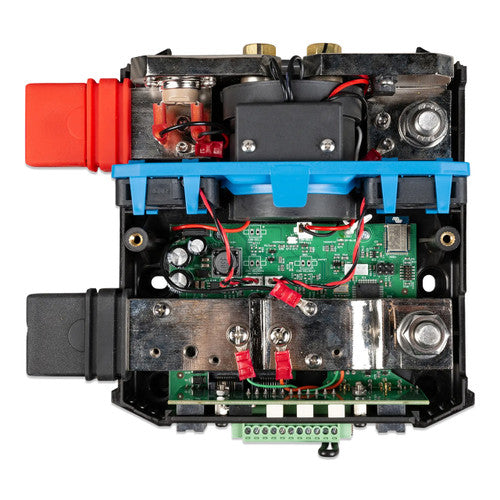

• Integrated High-Current Contactor & System Safety: The Lynx Smart BMS NG features a built-in high-current contactor (available in 500A or 1000A versions) that provides critical system protection and enables remote-controlled main system switching. This contactor acts as a fail-safe, disconnecting the battery bank in the event of unsafe operating conditions.
• Advanced Battery Monitoring & Pre-Alarm Protection: The BMS continuously monitors battery state of charge and key operating parameters to support efficient energy management. A dedicated pre-alarm signal provides early warning before shutdown due to low cell voltage, allowing connected systems to respond gracefully before power is interrupted.
• Bluetooth Configuration & Diagnostics: Built-in Bluetooth connectivity enables easy setup, monitoring, and diagnostics through the VictronConnect app. Users can access real-time system data, review status information, and perform troubleshooting directly from a mobile device.

System Integration & Remote Monitoring

The Lynx Smart BMS NG integrates seamlessly with Victron GX devices such as the Cerbo GX, enabling both local system monitoring and remote access through the Victron Remote Management (VRM) portal. This allows full visibility of battery status, alarms, and system behavior from anywhere in the world. Designed with M10 busbar connections, the BMS connects directly to all Lynx M10 components, including Lynx Distributors and Power In modules, forming a clean, modular, and professional DC distribution system.

Scalable & Modular Lynx Architecture

As a core component of the Lynx Distribution system, the Lynx Smart BMS NG simplifies installation while supporting future expansion. Its modular design makes it ideal for high-capacity mobile, marine, off-grid, and commercial energy systems requiring robust lithium battery management.

Additional Info

• Battery Voltage Range: 9 - 60VDC
• Maximum Input Voltage: 75VDC
• Color: Blue
• Weight: 4.19lbs
• Dimensions: 7.5"H X 7.1"W X 3.1"D
