GoCode 16-Gallon Ford Transit Undercarriage Water Tank (TR-UC-16)

Move your water storage outside the van with this 16-gallon Ford Transit undercarriage water tank from GoCode. It mounts on the passenger side under the slider door or on the driver side next to the fuel tank, so you can place it where your build layout needs it, and it works with factory Transit Trail running boards. Three laser-cut stainless steel mounting straps and all required hardware are included. Suitable for fresh or grey water and made in the USA.

Specifications

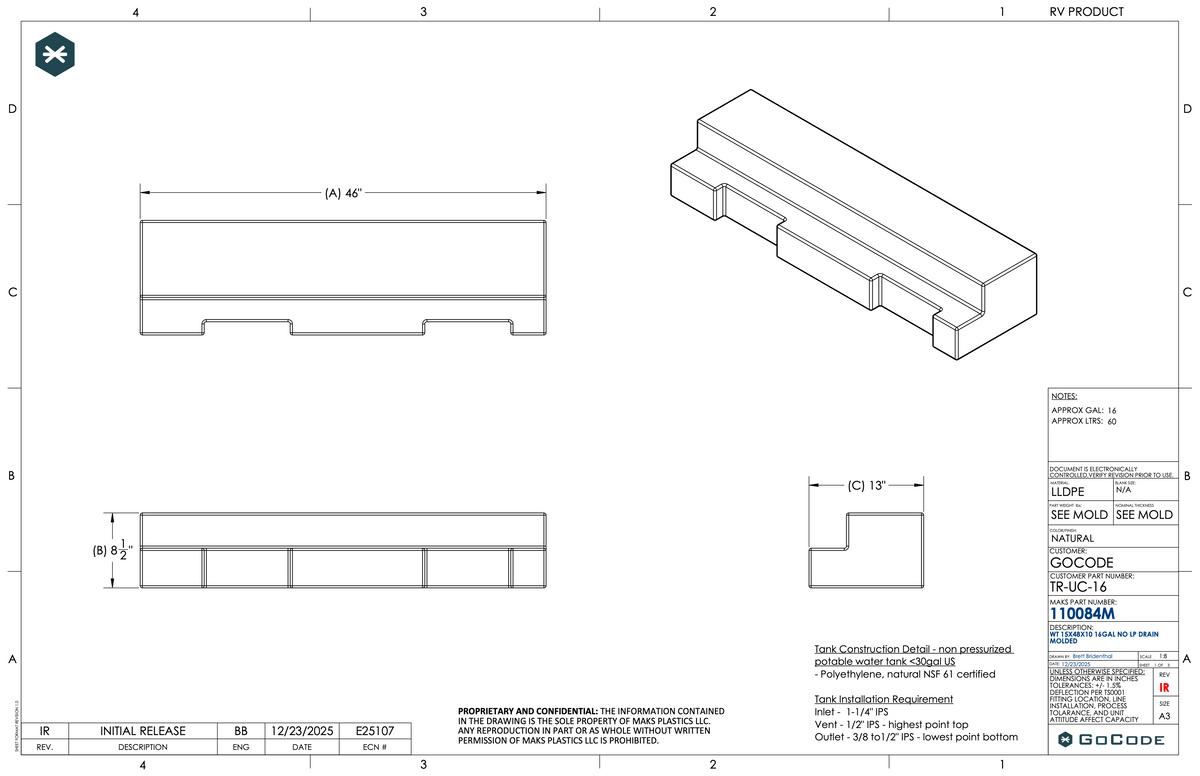

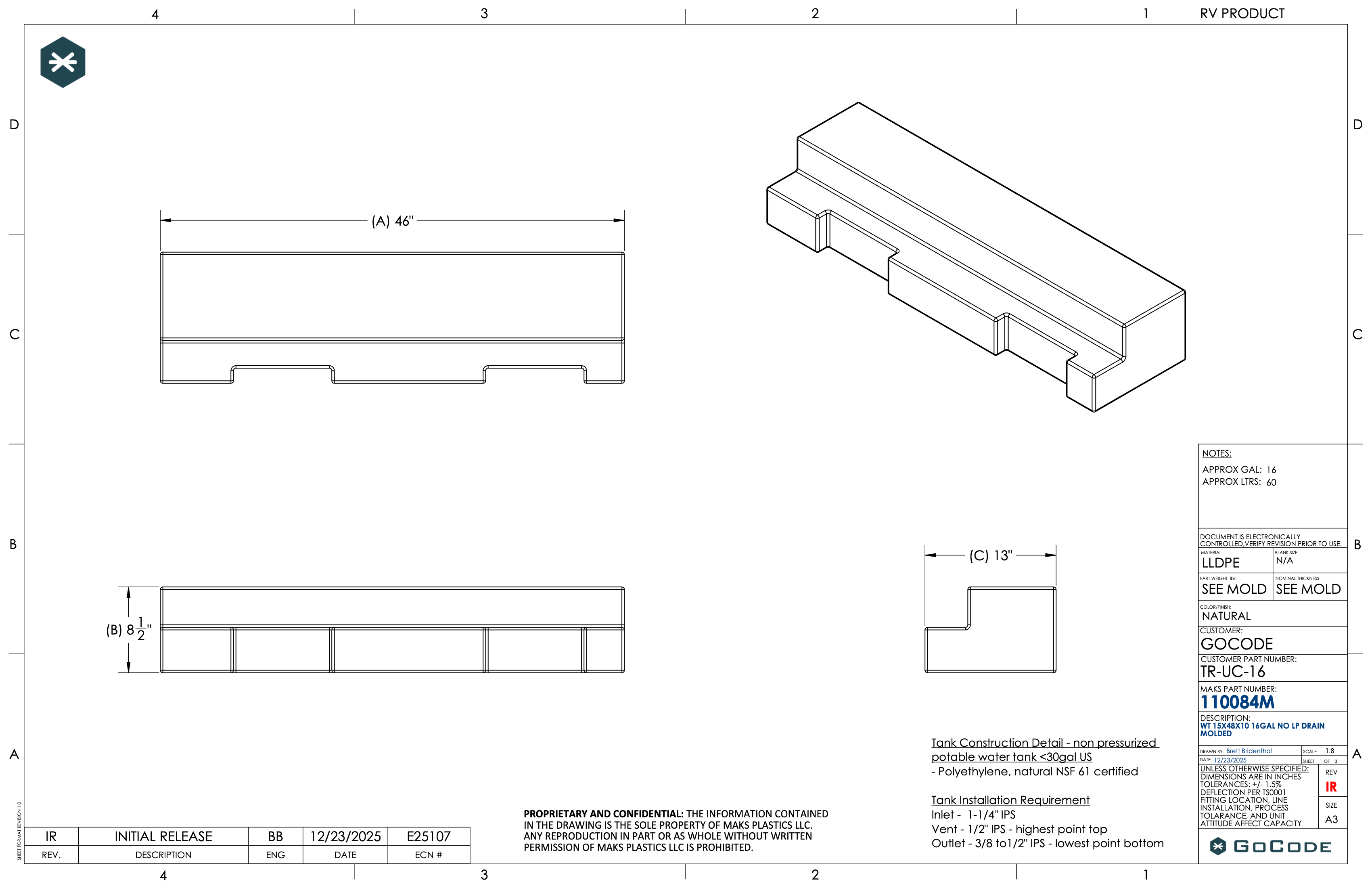

• Nominal dimensions: 46" L x 13" W x 8.5" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 16 gallons
• Dry Weight: 14 lbs
• Filled Weight: 147 lbs
• Recommended Sensor: KUS S5U-8
• System type: Non-pressurized, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• IAPMO TS-4 / TEI Listed / RVIA Approved
• Made in the USA

Ports & Plumbing

• (1) 1.5" NPT port on rear-facing end
• (2) 1/2" NPT ports on rear-facing end

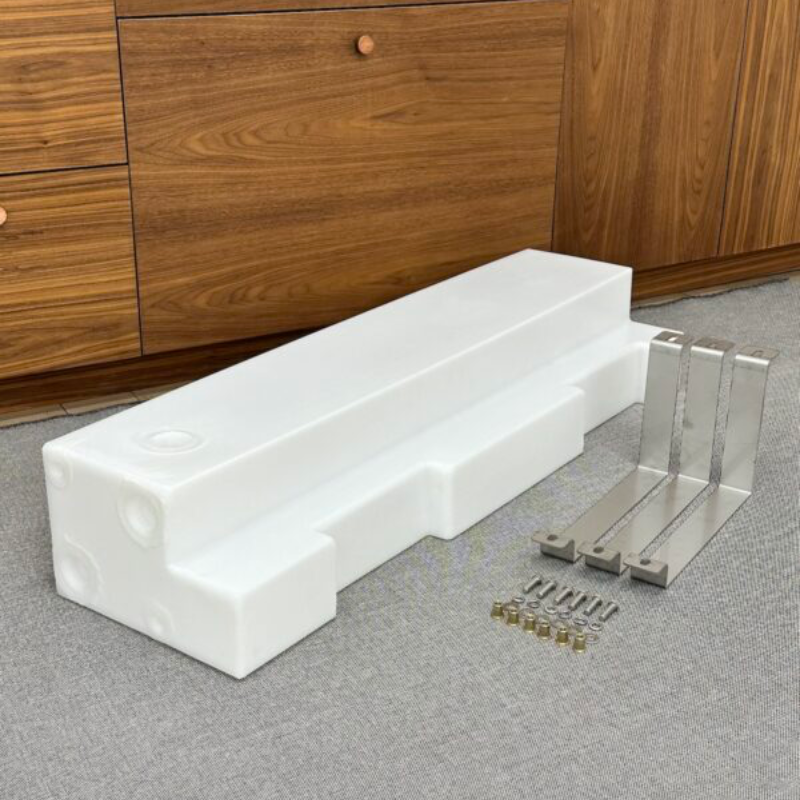

What's Included

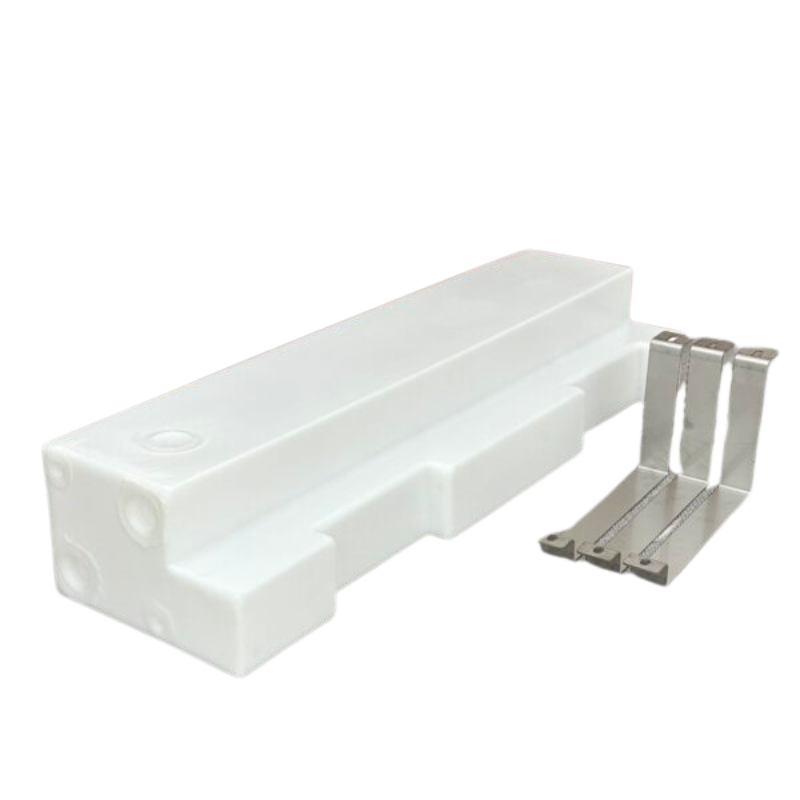

• Water Tank
• (3) stainless steel laser-cut mounting straps
• Stainless 3/8" hardware and 3/8" rivnuts
• Note: rivnut tool required, not included

Compatibility & Fitment

• Ford Transit 130", 148", and 148" EXT (2014-present), all wheelbases

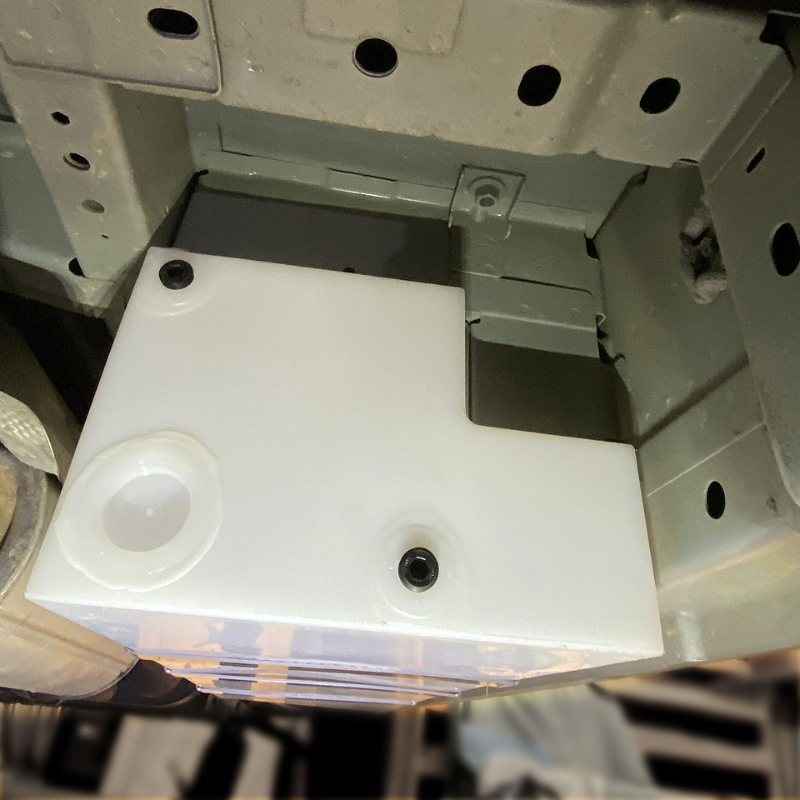

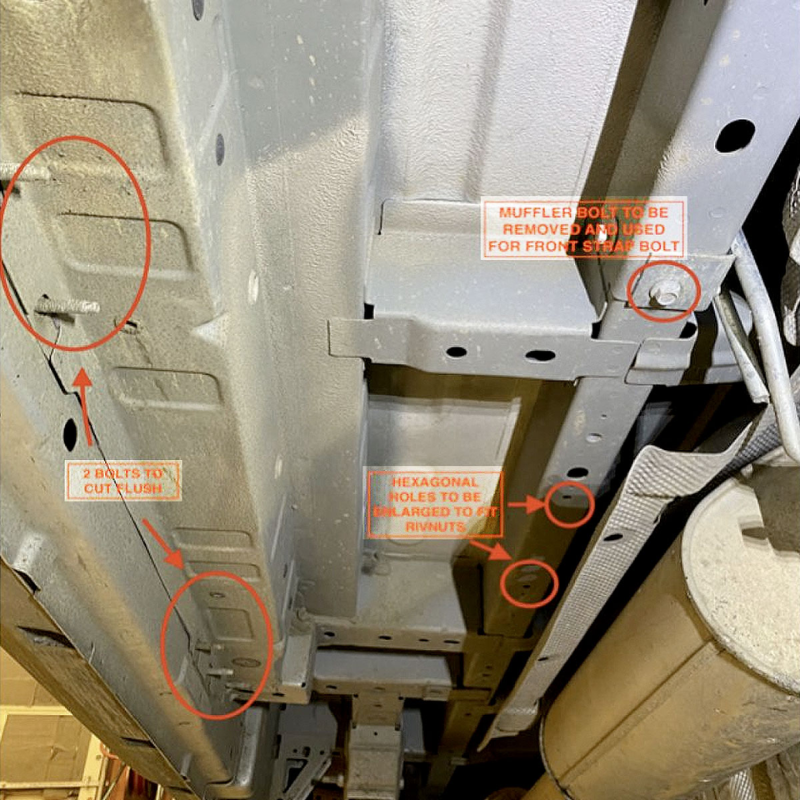

• Mounts on passenger side (under slider) or driver side (next to fuel tank)
• Fits Transit Trail with factory running boards
• Also compatible with Owl running boards
• May require minor bracket modification with other aftermarket boards

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
