GoCode 20-Gallon Ford Transit Driver Side Undercarriage Water Tank (TR-UC-20)

Maximize your Ford Transit's water capacity with this 20-gallon GoCode driver side undercarriage water tank. It mounts next to the OEM fuel tank using the existing fuel strap mounting points to minimize drilling. Suitable for fresh or grey water, it is sized to give serious water capacity without compromising your interior layout. Made in the USA.

⚠️ May NOT fit Transit vans with a rear passenger heater or AC unit due to heater lines in the mounting bay. Consider the TR-UC-16 if your van has this option.

Specifications

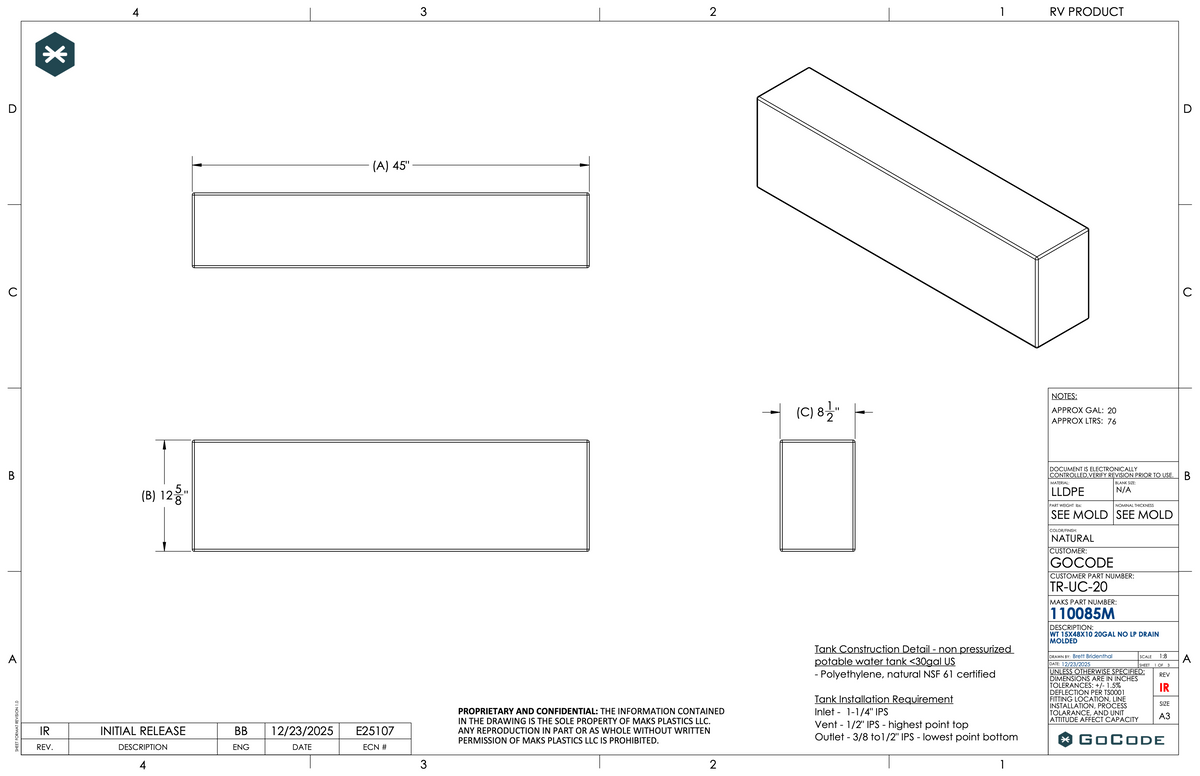

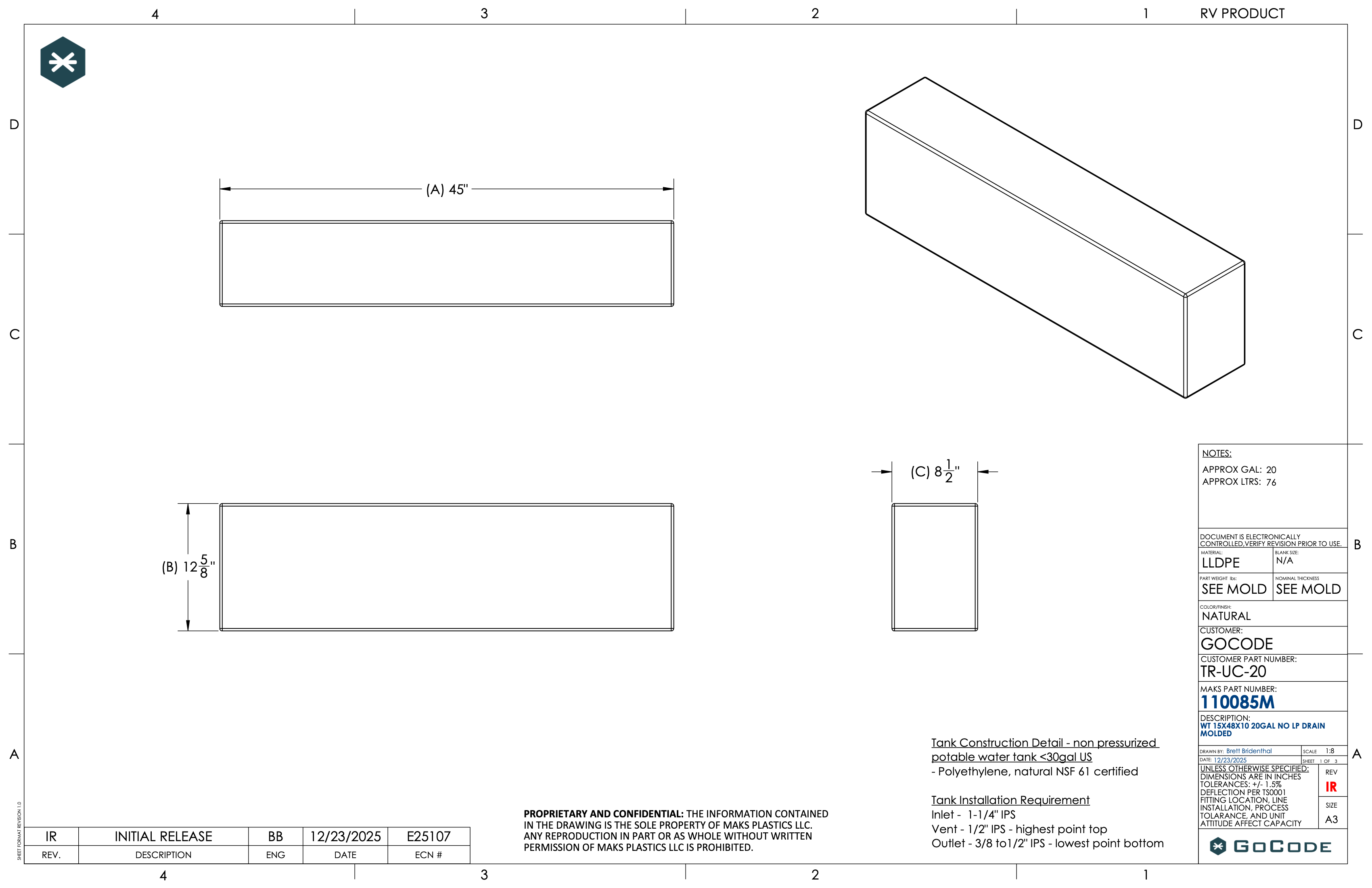

• Nominal dimensions: 45" L x 12.625" W x 8.5" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 20 gallons
• Dry Weight: 14 lbs
• Filled Weight: 181 lbs
• Recommended Sensor: KUS S5U-8
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• IAPMO TS-4 / TEI Listed / RVIA Approved
• Made in the USA

Ports & Plumbing

• (2) 1.5" NPT + (2) 1/2" NPT on rear-facing end
• (1) 1.5" NPT port on top

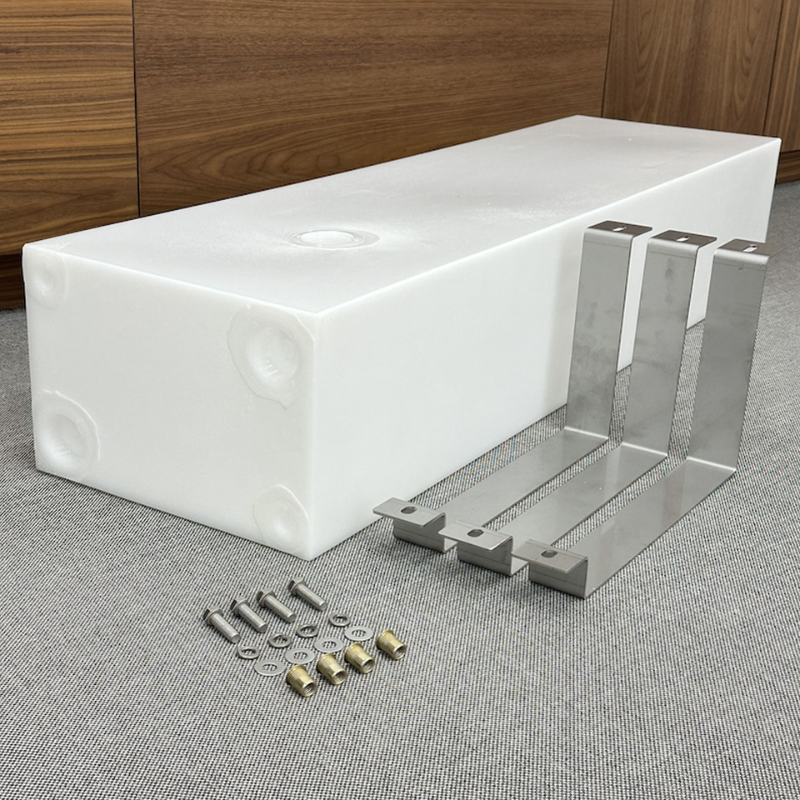

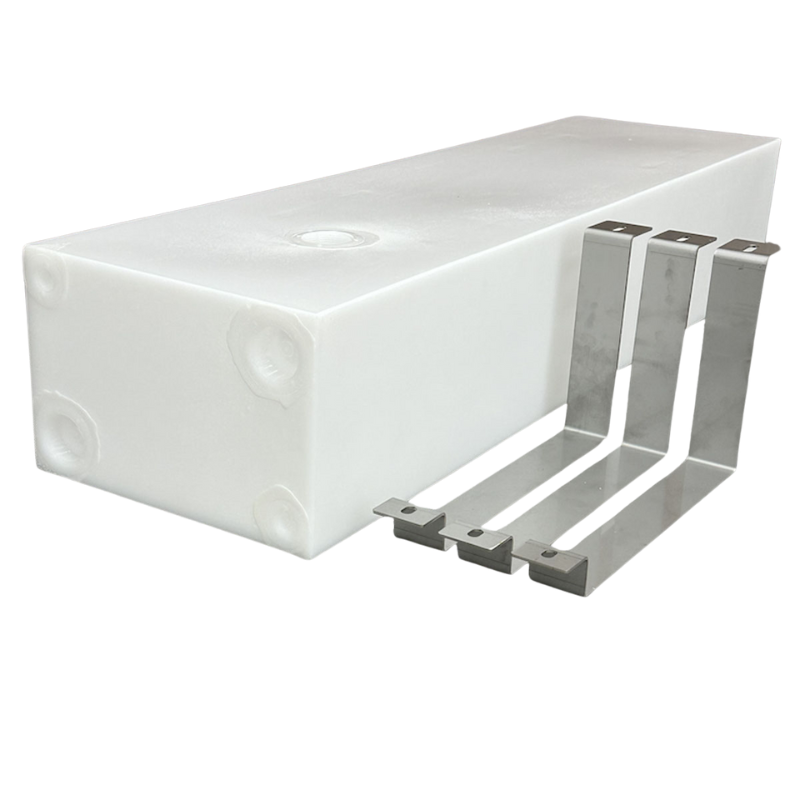

What's Included

• Water Tank
• (3) stainless steel laser-cut mounting straps
• Stainless 3/8" hardware and 3/8" rivnuts
• Note: rivnut tool required, not included

Compatibility & Fitment

• Ford Transit 148" / 148" EXT (2014-present)

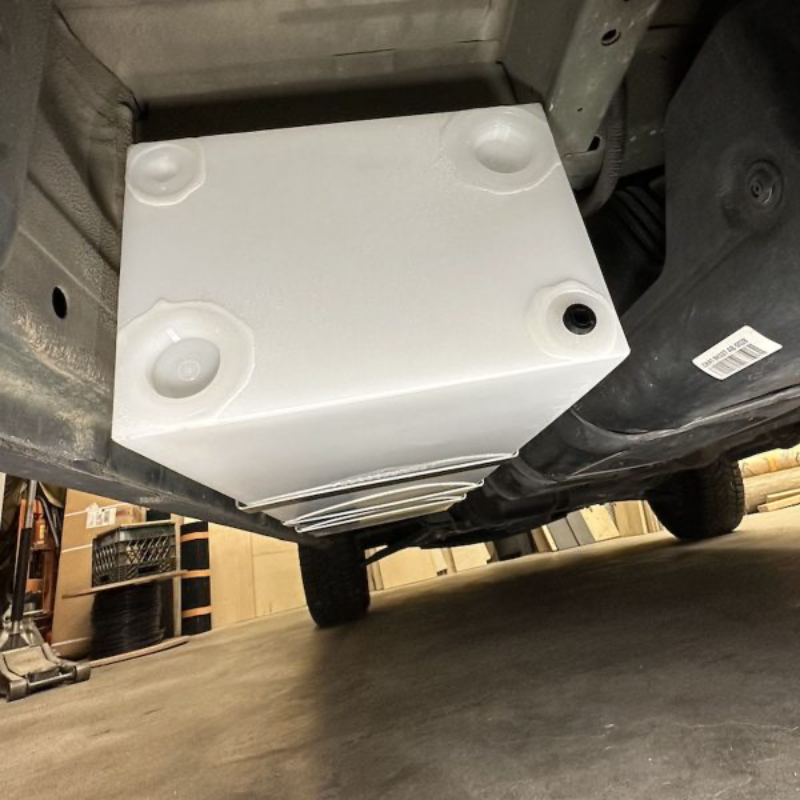

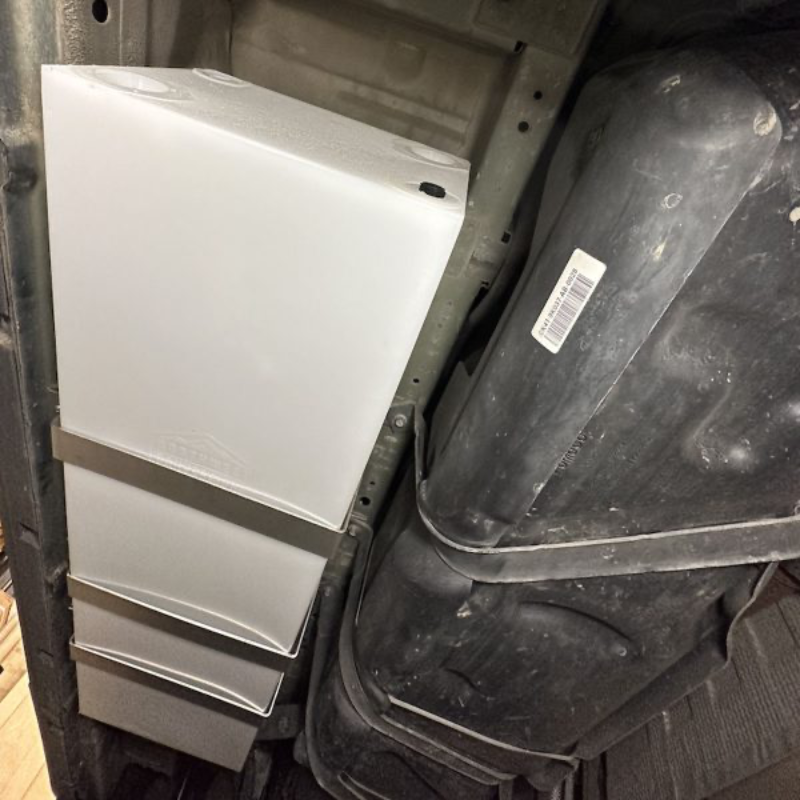

• Driver side undercarriage, next to fuel tank
• ⚠️ Does NOT fit vans with factory running boards or rear passenger heater/AC unit. Confirm clearance before ordering.

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
