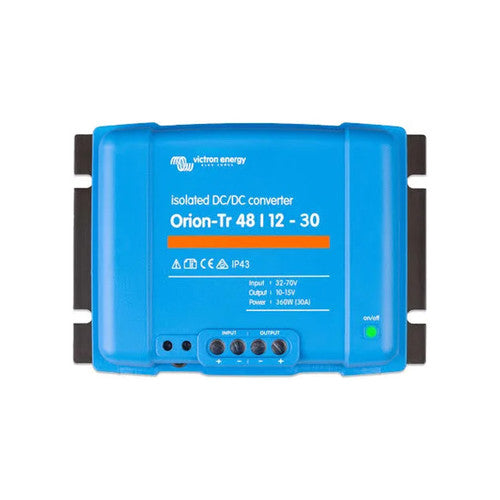

Victron ORI481240110 Orion-Tr Isolated DC-DC Converter 48V / 12V-30A
The Victron Orion-Tr Isolated DC-DC Converter 48V / 12V-30A is a robust, high-performance voltage converter designed to safely step down 48V DC power to a stable 12V output. Featuring full galvanic isolation, this converter is ideal for applications where electrical separation between input and output is required. It is well suited for RVs, commercial vehicles, marine systems, telecom, and off-grid installations that rely on mixed-voltage DC systems. Built for reliability, the Orion-Tr delivers consistent output power, supports parallel operation to increase current capacity, and includes remote on/off functionality for seamless system control.
- Isolated DC-DC Conversion: This model provides full galvanic isolation between input and output, improving system safety and reducing the risk of ground loops or electrical interference. It delivers up to 30A at 12V from a 48V DC source, making it ideal for sensitive electronics and auxiliary systems.
- Remote On/Off Control: The integrated remote on/off feature allows the converter to be controlled using a low-power switch or an external signal such as an engine run/stop circuit. This eliminates the need for a high-current switch in the input wiring and simplifies system integration.
- Parallel Operation Capability: All Orion-Tr isolated converters are short-circuit proof and can be connected in parallel to increase output current. There is no limit to the number of units that can be paralleled, offering excellent scalability for higher-power applications.
Durable Design & Reliable Protection
The Orion-Tr converter features an IP43 protection rating when installed with screw terminals facing downward, making it suitable for demanding environments. Its rugged construction ensures dependable operation in mobile and stationary systems.
Simple Installation & Practical Design
Screw terminals allow for straightforward wiring without the need for special tools. This 48V input model does not require an internal input fuse, streamlining installation while maintaining system safety through external protection as required.
Additional Info
- Input Voltage Range: 32 - 70V
- Under Voltage Shut Down: 28V
- Under Voltage Restart: 30V
- Nominal Output Voltage: 12.2V
- Output Voltage Adjustment Range: 10 - 15V
- Cont. Output Current at Nominal Output Voltage & 40°C: 30A
- Color: Blue
- Weight: 3.5lbs
- Dimensions: 5.1"H X 7.3"W X 3.2"D
