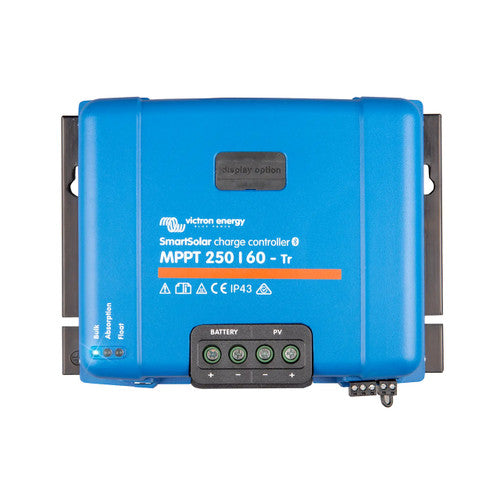

Victron SCC125060221 SmartSolar Charge Controller MPPT - 250V/60A

Victron SCC125060221 SmartSolar Charge Controller MPPT - 250V/60A

The Victron SmartSolar MPPT -Tr 250V/60A a high-efficiency solar charge controller designed to maximize energy harvest and deliver fast, reliable charging for 12V, 24V, 36V, and 48V battery systems. Using advanced Maximum Power Point Tracking (MPPT) technology, it continuously tracks the optimal power point of your solar array, ensuring maximum performance even in low or variable sunlight. With automatic system voltage detection, support for higher-voltage PV arrays, and built-in Bluetooth for easy setup, this controller is ideal for RVs, vans, boats, cabins, and off-grid solar installations.

• Ultra Fast MPPT Technology: The SmartSolar controller rapidly adjusts to changing sunlight, harvesting more energy than PWM and slower MPPT chargers. Its advanced tracking algorithm maintains optimal power output and performs exceptionally well during cloudy conditions or partial shading.
• High Conversion Efficiency: With a peak efficiency above 98%, the 250V/60A delivers strong charging power without a cooling fan. It maintains its full rated output up to 40°C (104°F), offering consistent, quiet, and efficient operation across a wide range of environments.
• Automatic System Voltage Detection: The controller automatically detects 12V, 24V, 36V, and 48V system voltage during initial setup. If needed, system voltage can be manually changed through the VictronConnect app or charger settings.

Extensive Electronic Protection

The SmartSolar MPPT -Tr 250V/60A offers over-temperature protection with automatic output derating, as well as PV reverse polarity and reverse current protection. These features help safeguard both the controller and connected components during demanding or unpredictable conditions.

Monitoring & Control with VictronConnect

Built-in Bluetooth allows simple configuration and real-time monitoring through the VictronConnect app. Users can view live solar and battery data, review 30 days of history, adjust settings, and update firmware wirelessly. When paired with a GX device, the system can also be monitored locally or remotely via the Victron VRM portal.

Superior Battery Charging & Recovery

SmartSolar technology helps batteries reach full charge quickly while maintaining long-term battery health. The controller can even recover and recharge batteries that have fallen to 0V, provided the cells are not permanently damaged.

Additional Info

• Max. PV open circuit voltage: 250V
• Rated charge current: 60A
• Nominal PV power, 12 V: 860W
• Nominal PV power, 24 V: 1720W
• Nominal PV power, 36 V: 2580W
• Nominal PV power, 48 V: 3440W
• Maximum efficiency: 99%
• Color: Blue
• Operating temperature: -30 to +60 °C
• Dimensions: 7-1/2"H X 9-3/4"W X 3-3/4"D
