Super Pacific Cloud Cap For Ford Econoline 1992-2014

CloudCap Pop-Top for Ford E-Series Vans

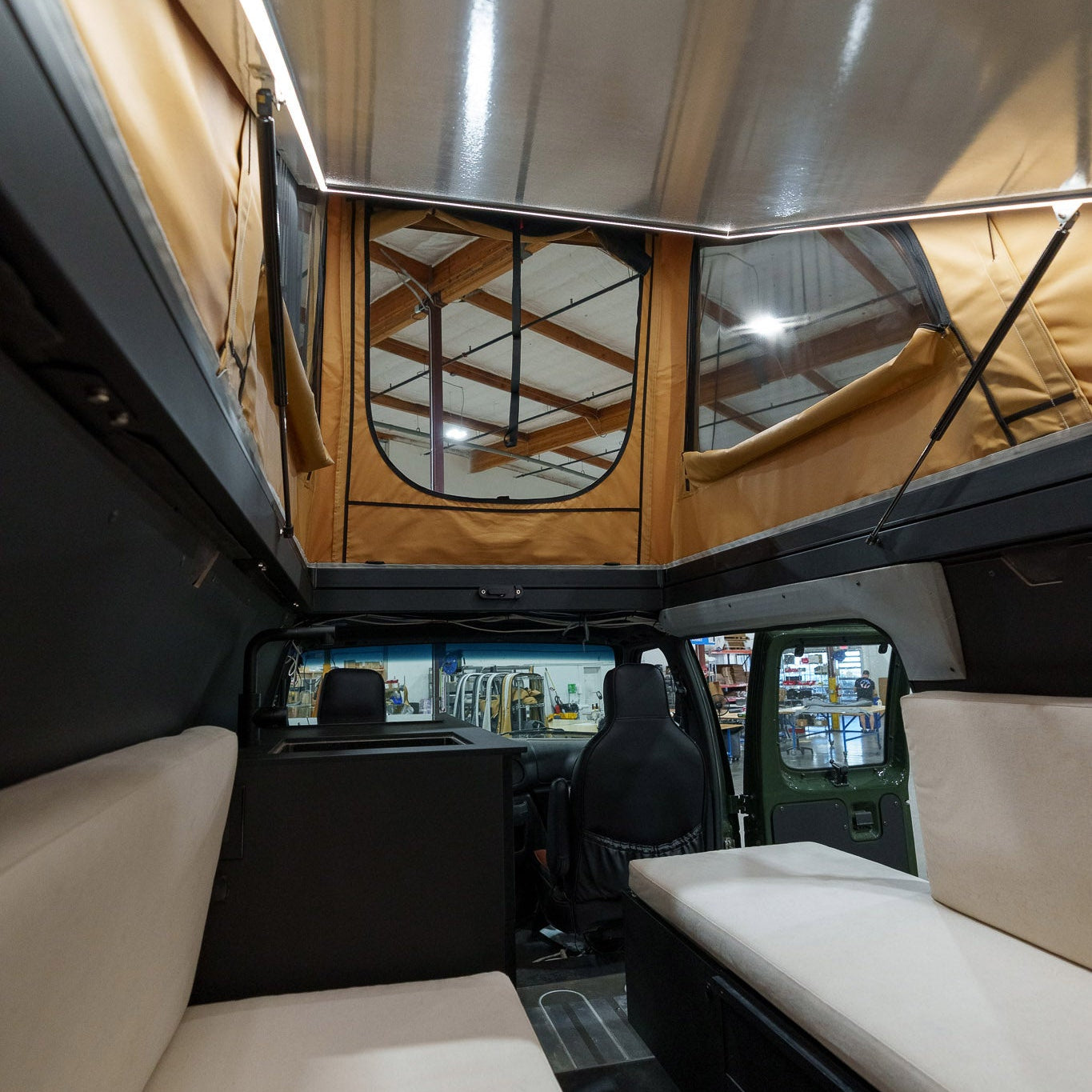

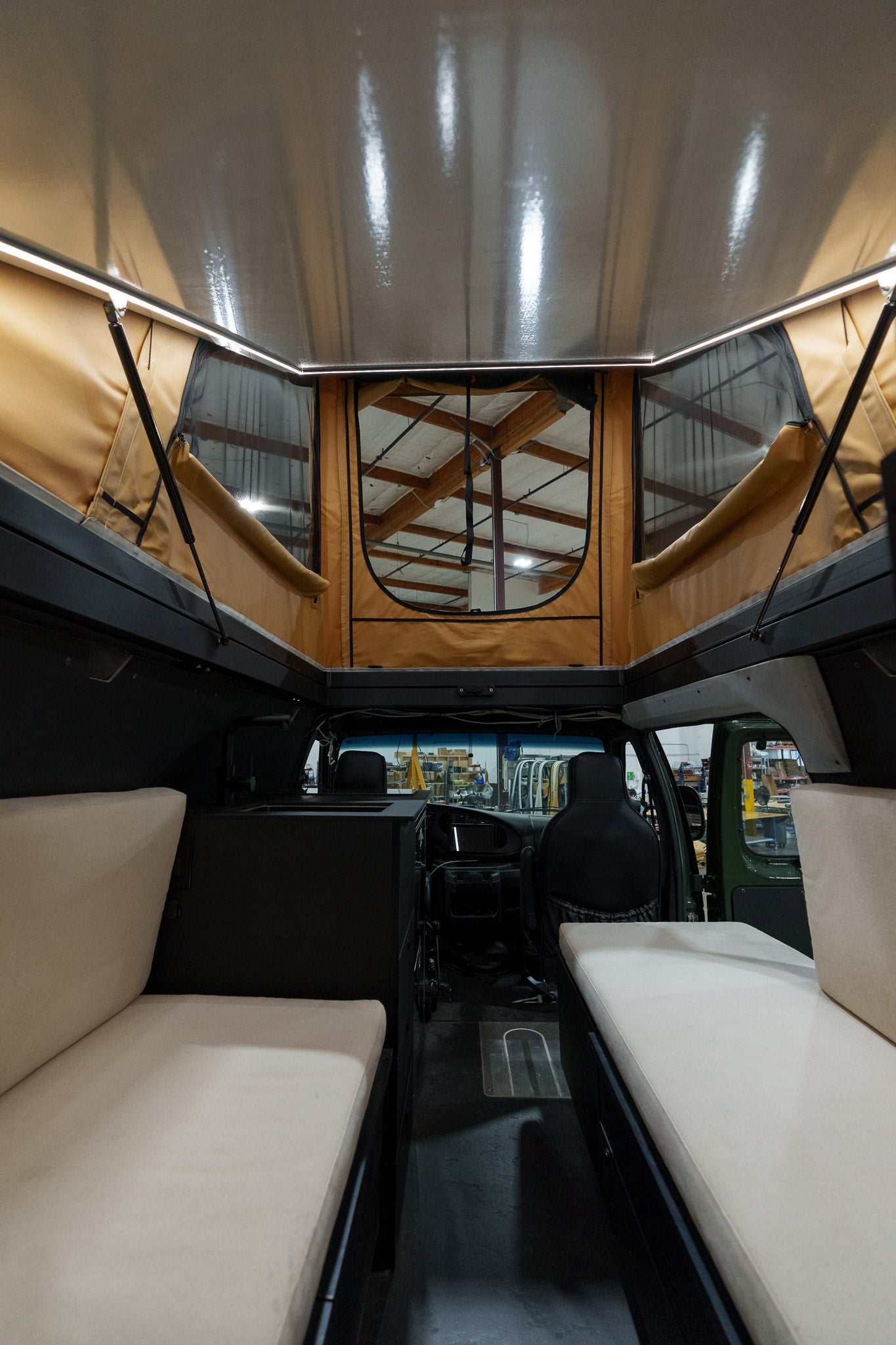

This pop-top adds a dedicated rooftop sleeping and living space to Ford E-Series vans using a complete tent unit with a strut-assisted bed platform and included mattress. It is built as a 4-season soft-sided tent with storm doors, bug screens, and adjustable vents, and installs using a welded steel curb with mounting hardware. It is suited for E-Series builds where you want a fixed pop-top system with defined roof load ratings and integrated mounting features for compatible accessories.

Important: Pricing listed is $16,800. Additional installation and delivery charges may apply. Installation is completed by authorized CloudCap dealers and typically takes 1.5–2 days.

Key Features

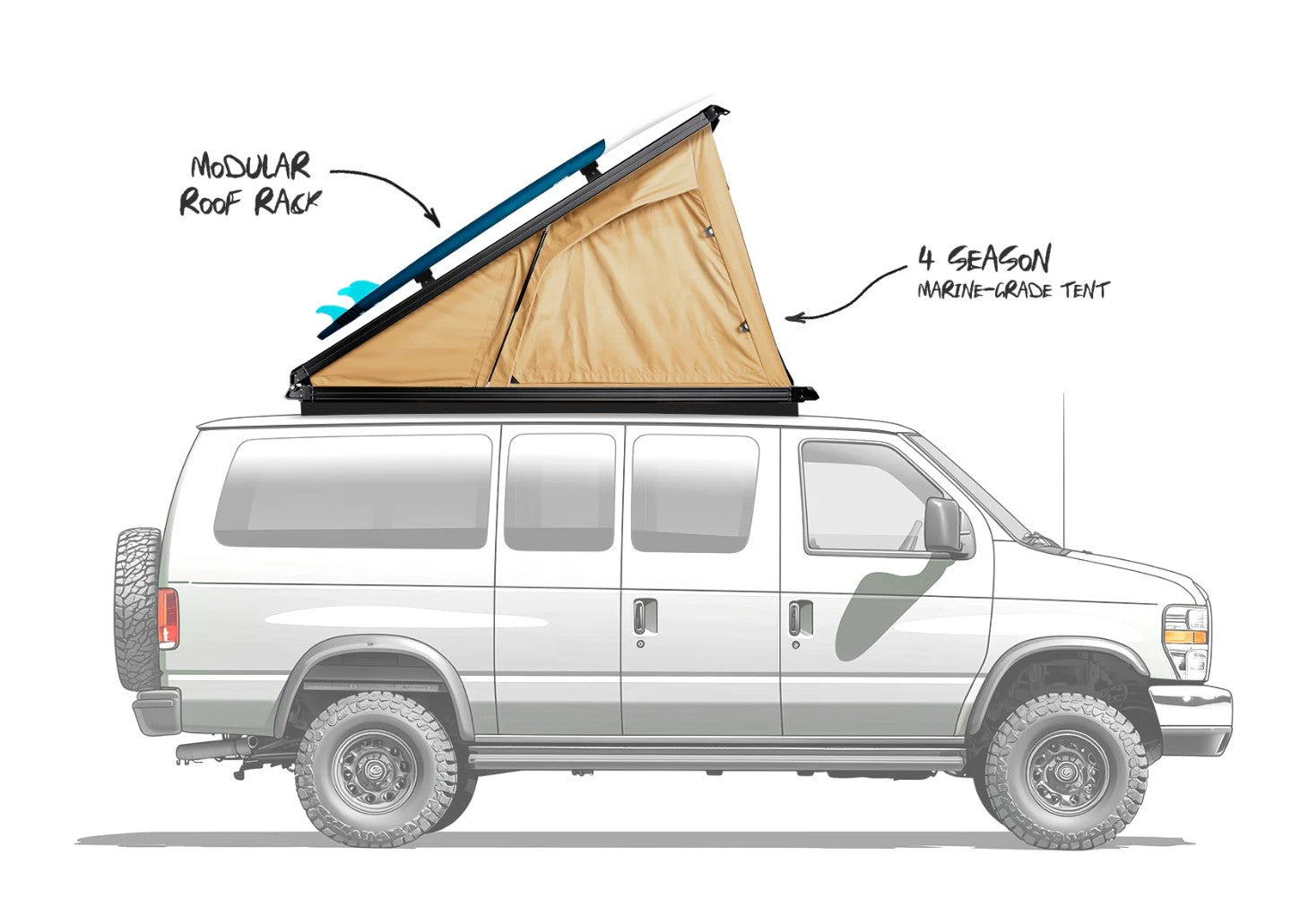

• 4-season tent system: Includes a CloudCap 4-Season Tent designed for extended use across varying conditions.

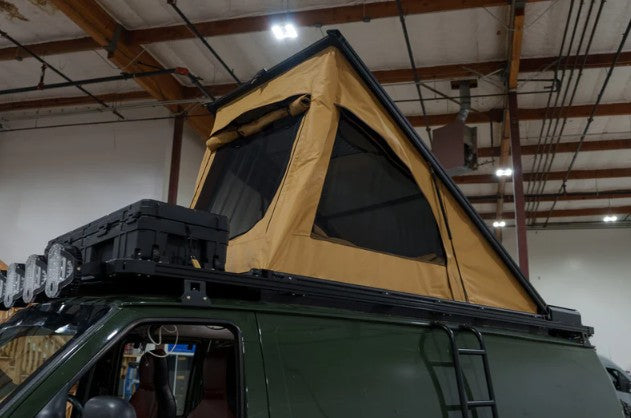

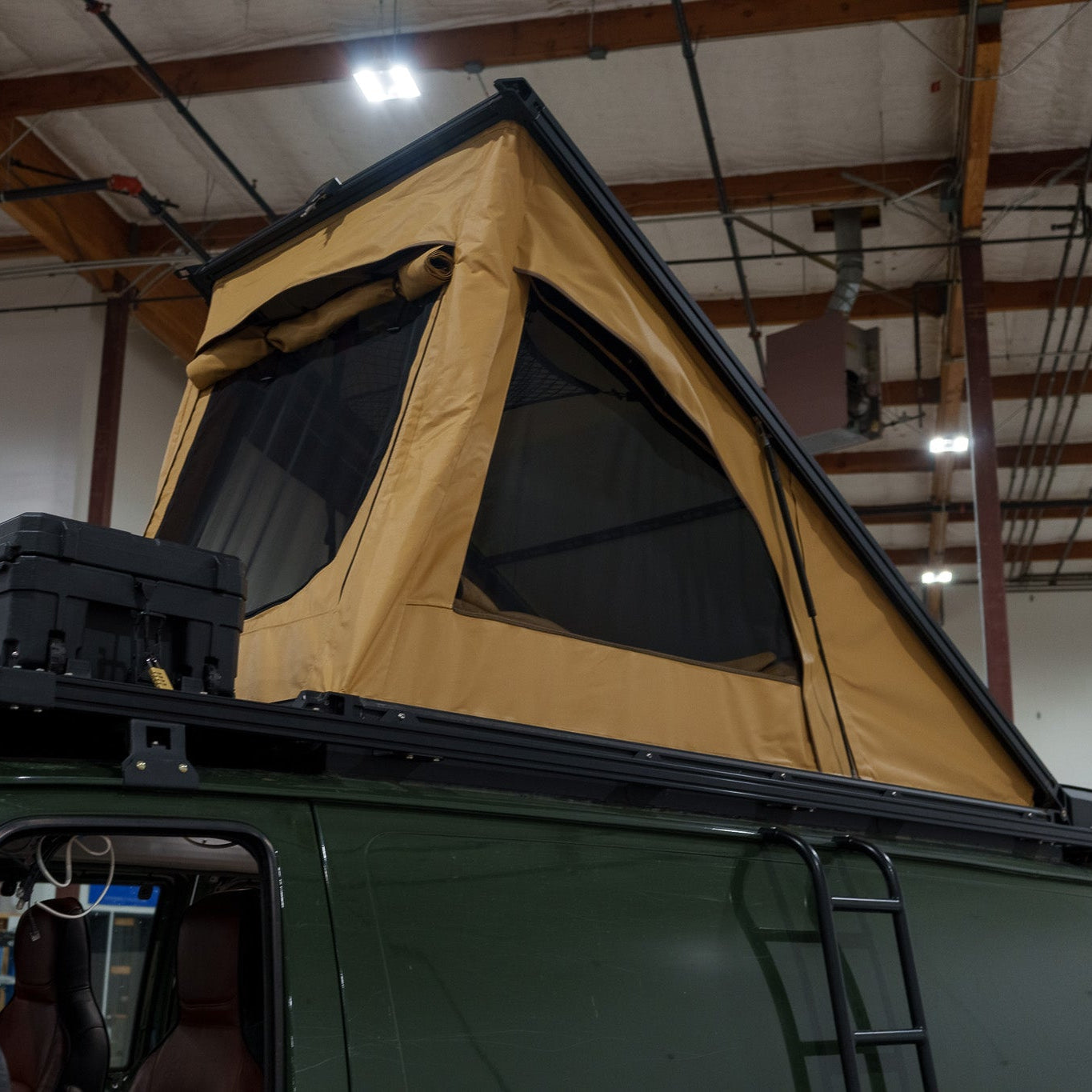

• Storm doors and bug screening: Three zippered storm doors with bug screens allow ventilation and access while managing insects and weather.
• Adjustable ventilation: Three FlowState adjustable vents support airflow control while the tent is deployed.

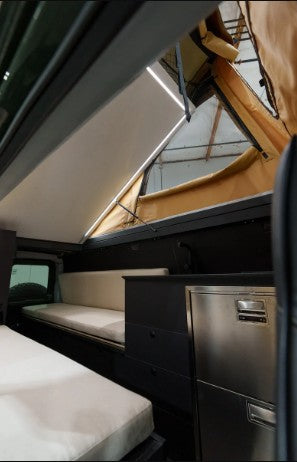

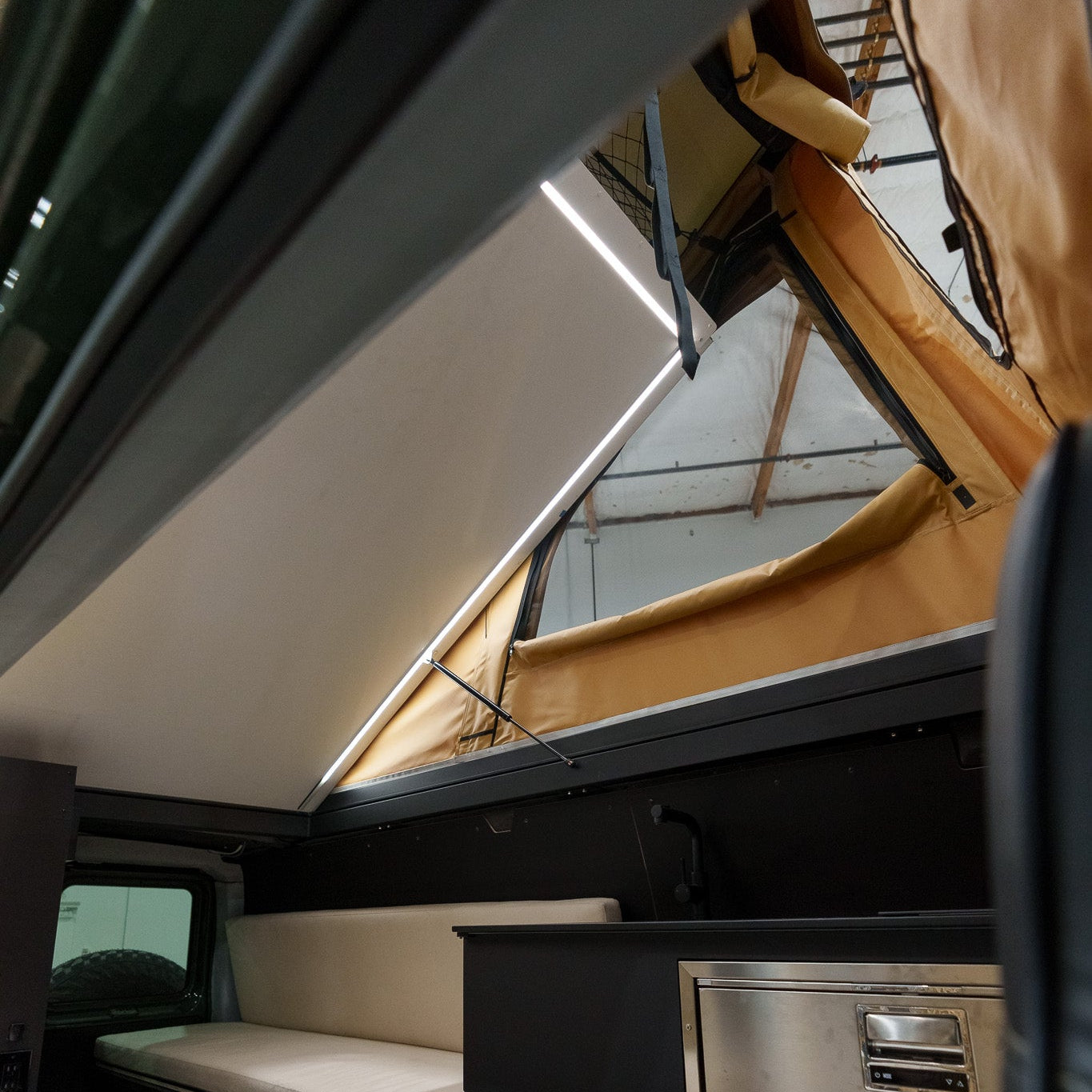

• Strut-assisted bed platform: Bed platform uses strut assist to raise and lower for sleeping or to open interior headroom.
• Included sleeping mattress: Comes with an Exped MegaMat DUO LW+ self-inflating mattress sized for the platform.
• Mounting curb and hardware: Uses a welded steel curb with mounting brackets, hardware, and an internal latch mechanism for secure installation.
• Accessory-ready mounting system: Integrated T-slot channel supports compatible accessories using Series 45 T-nuts.
• Defined roof load ratings: Provides specified roof capacity limits when closed and open for planning rooftop gear and access.

Specs & Details

• Retail price: $16,800 (installation and delivery charges may apply)
• Compatible vehicles: Ford E-Series vans
• Installation time: Typically 1.5–2 days
• Installation locations: Authorized CloudCap dealers across North America
• Tent unit weight: 220 lbs
• Exterior dimensions (closed): 54 in W × 110 in L × 6 in H
• Exterior dimensions (open): 54 in W × 110 in L × 56 in H
• Interior space: 52 in W × 108 in L × 108 in H (with bed platform raised)
• Pass-through opening: 20 in W × 52 in L (with bed platform down)
• Roof capacity (closed walking load): 300 lbs
• Roof capacity (closed dynamic load): 500 lbs (subject to your van’s roof capacity)
• Roof capacity (open): Approximately 75 lbs (upgradeable to 125 lbs)
• T-slot dimensions: 10 mm opening × 20 mm slot
• T-slot hardware: Uses Series 45 T-nut
• Tent materials: 9 oz acrylic-impregnated marine-grade polyester; no-see-um rated bug screen material; YKK zippers
• Roof panel: 0.5 in polypropylene honeycomb panel, white
• Sleeping platform: 1 in polypropylene honeycomb panel, white
• Extrusion: Custom-extruded aluminum with black powder coat finish
• Corner hardware, hinges, and latch mechanism: CNC-machined billet aluminum with architectural-grade UV resistant anodizing
• Included components: CloudCap 4-Season Tent; 3 zippered storm doors and bug screens; 3 FlowState adjustable vents; strut-assisted bed platform; Exped MegaMat DUO LW+ self-inflating mattress; welded steel curb; mounting brackets and hardware; internal latch mechanism; pull-strap

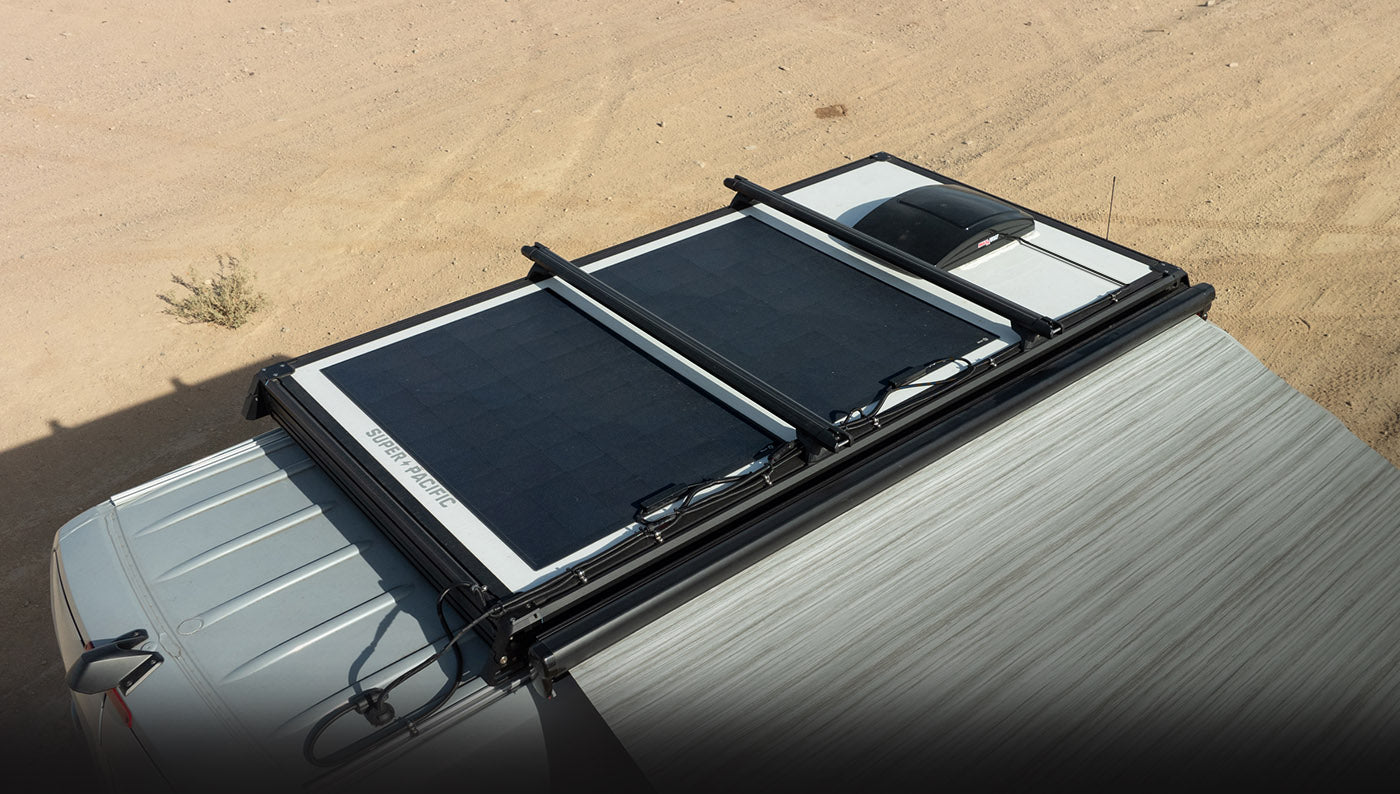

• Available accessories: ThermaPuff Insulation Kit; Fiamma Awning Bracket; Yakima Crossbars; Gear Loft Storage; Artek Solar
