Velit 3000R Rooftop Air Conditioner - 24V

24V DC Rooftop Air Conditioner for Vans and RVs

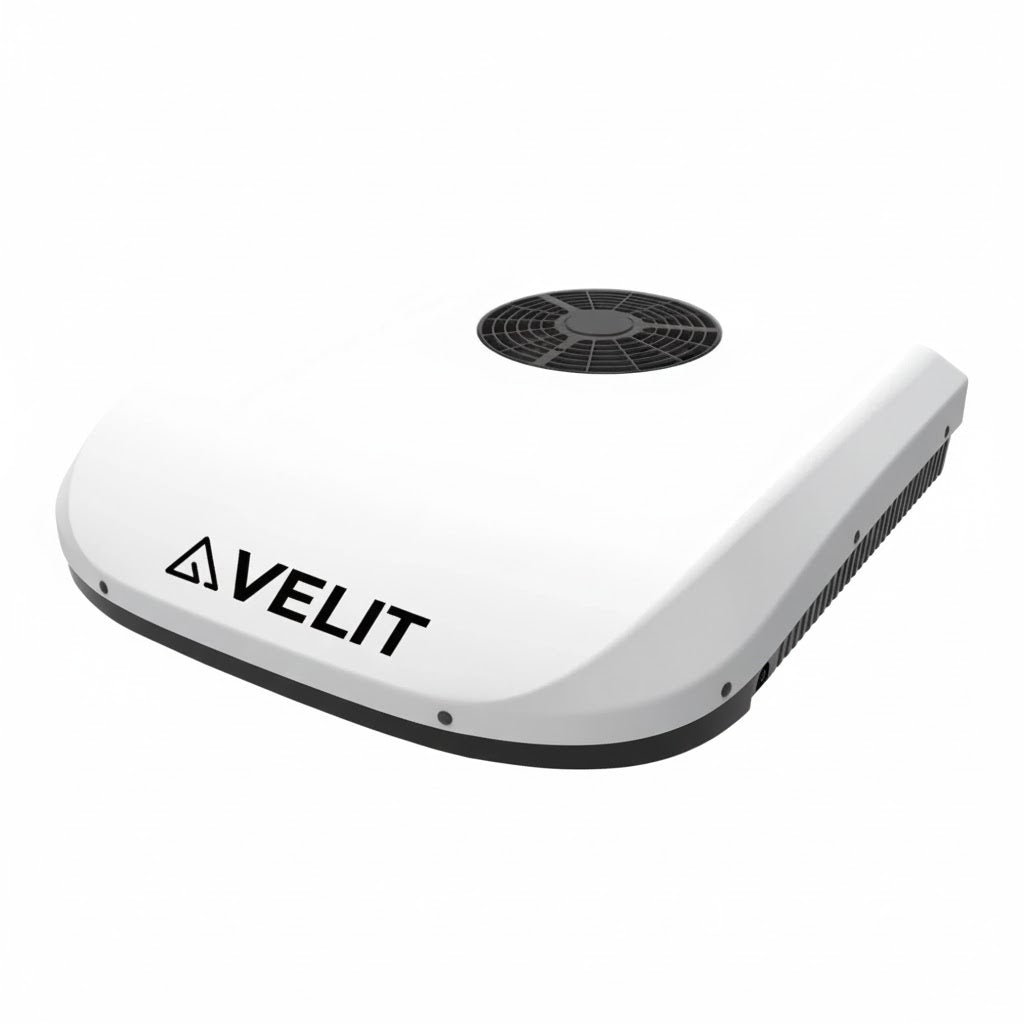

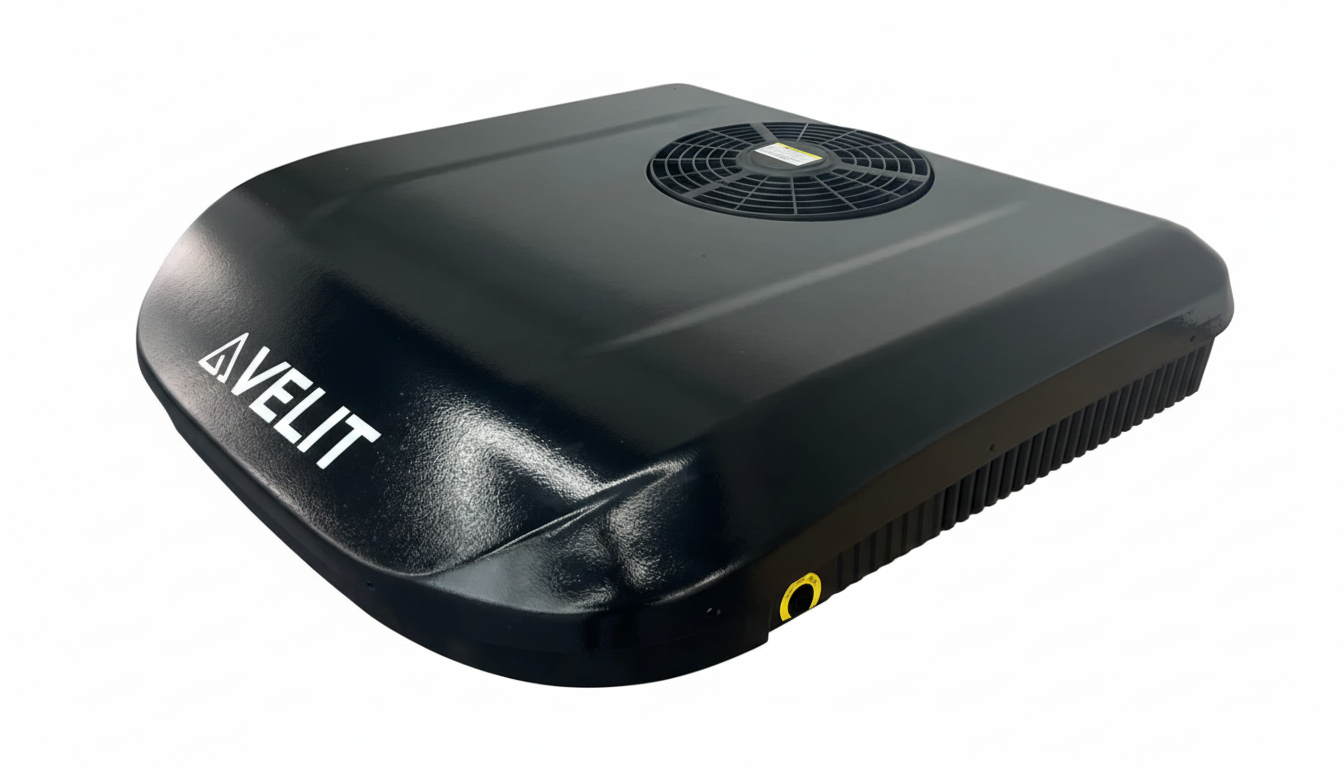

The Velit 3000R Rooftop Air Conditioner (24V) is a high-output DC cooling system designed for vans, RVs, and mobile or off-grid builds using 24V electrical systems. It uses a tuned twin-cylinder rotor compressor to deliver up to 10,000 BTU of cooling while drawing relatively low current, making it suitable for installations where inverter capacity and electrical efficiency matter. Its low-profile housing fits standard rooftop cutouts and is intended for applications where space, airflow, and power consumption must be carefully managed.

Important: For van roofs or other uneven mounting surfaces, a roof vent adapter or custom gasket is required, and sealant should be used to protect the roof cutout. Sealant is not required for flat RV roof installations but is recommended as a precaution.

Key Features

• 24V DC operation: Designed to operate on 24V systems, reducing current draw compared to lower-voltage air conditioners.
• High cooling output: Provides up to 10,000 BTU of cooling capacity for larger vehicle interiors.
• Twin-cylinder rotor compressor: Tuned for efficient, consistent cooling performance.
• Low-profile rooftop design: Requires approximately 7 inches of roof clearance and fits standard 14 in × 14 in cutouts.

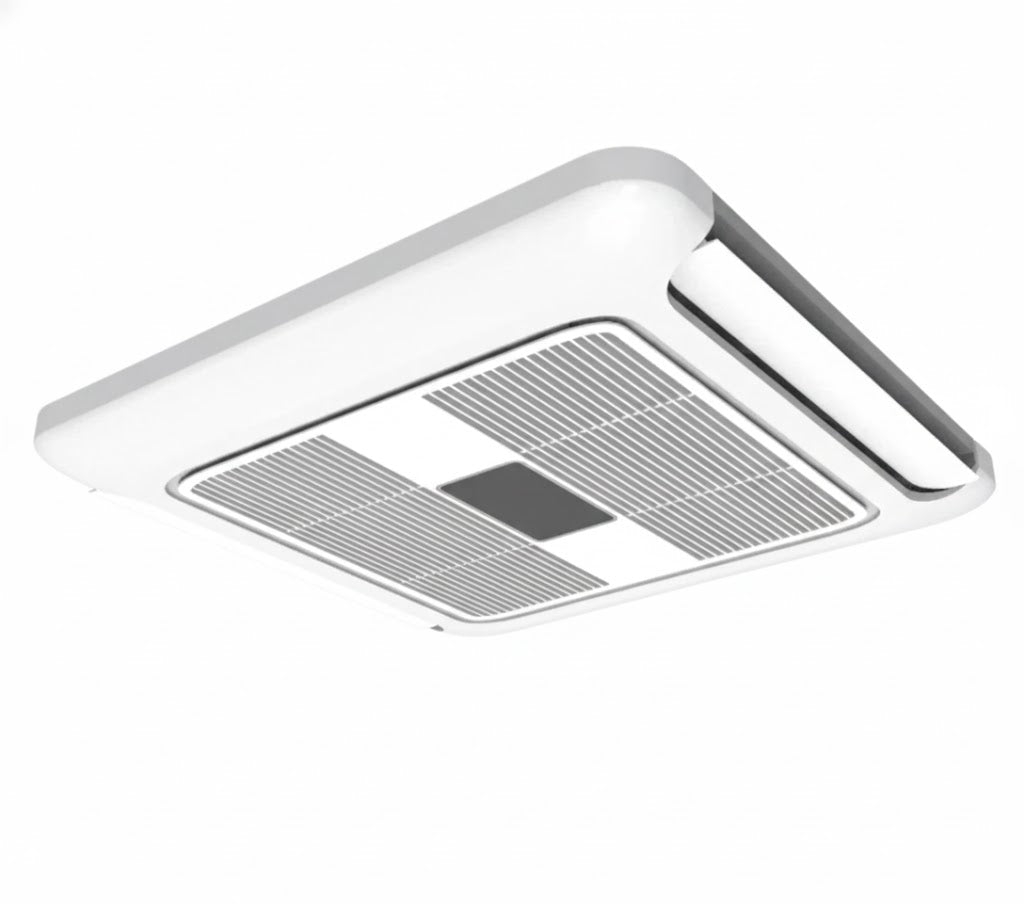

• Flush-mount air distribution box: Motorized interior air distribution helps circulate cooled air evenly.
• Fan-only mode: Allows interior air circulation when active cooling is not required.
• Complete installation kit: Includes mounting hardware, gasket, wiring harness, interior trim panel, and remote control.

Specs & Details

• Model: 3000R
• Input voltage: 24V DC
• Operating current: 13–40 A
• Cooling capacity: 10,000 BTU
• Air flow rate: 250 CFM
• Rated power: 960 W
• Power consumption: Eco mode 300–400 W; Turbo mode 900–1200 W
• Refrigerant: R410a, 470 g
• Noise level: 55 dB (Eco mode), 65 dB (Boost mode)
• Roof unit dimensions: 35.8 in × 35.4 in × 7 in
• Interior ADB dimensions: 20 in × 19.7 in × 2 in
• Roof thickness compatibility: 1.99 in – 3.54 in (5 cm – 9 cm)
• Weight: 75 lb
• Included components: AC unit, mounting brackets, sealing gasket, mounting hardware, interior trim panel, remote, 15 ft wiring harness with in-line fuse, user manual
• Warranty: One-year limited warranty
