GoCode 19-Gallon Slim Dually Sprinter Wheel Well Water Tank (SP-DU-19)

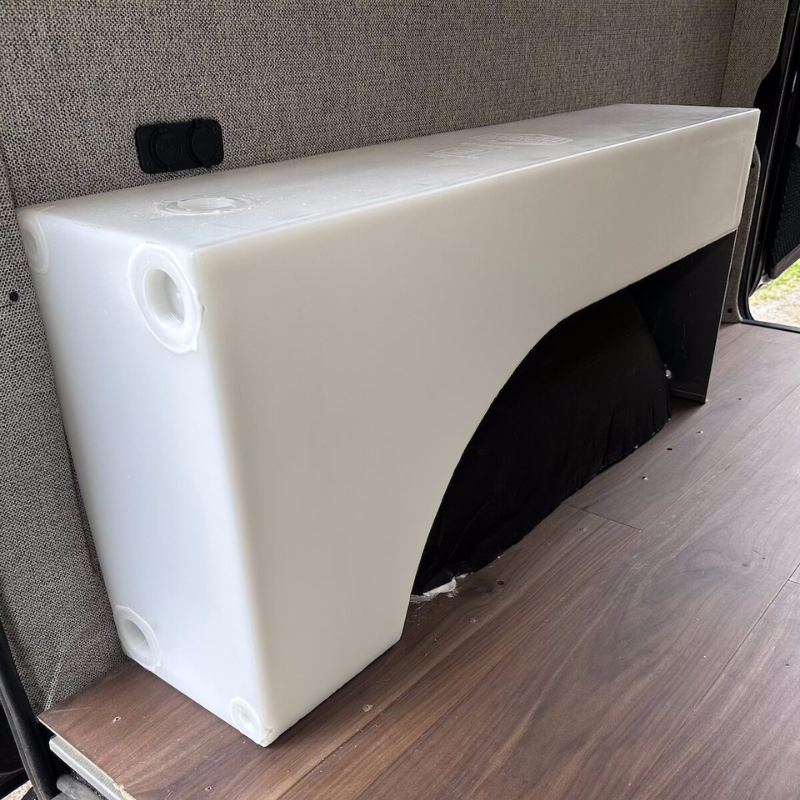

Designed specifically for dual rear wheel vans, this slim 19-gallon GoCode water tank fits the wheel well space without taking up any width between the wheel wells. That leaves the full width free for cabinetry or gear storage. It is a direct fit for Sprinter 2500 and 3500 Dually vans and also fits Transit Dually vans.

Specifications

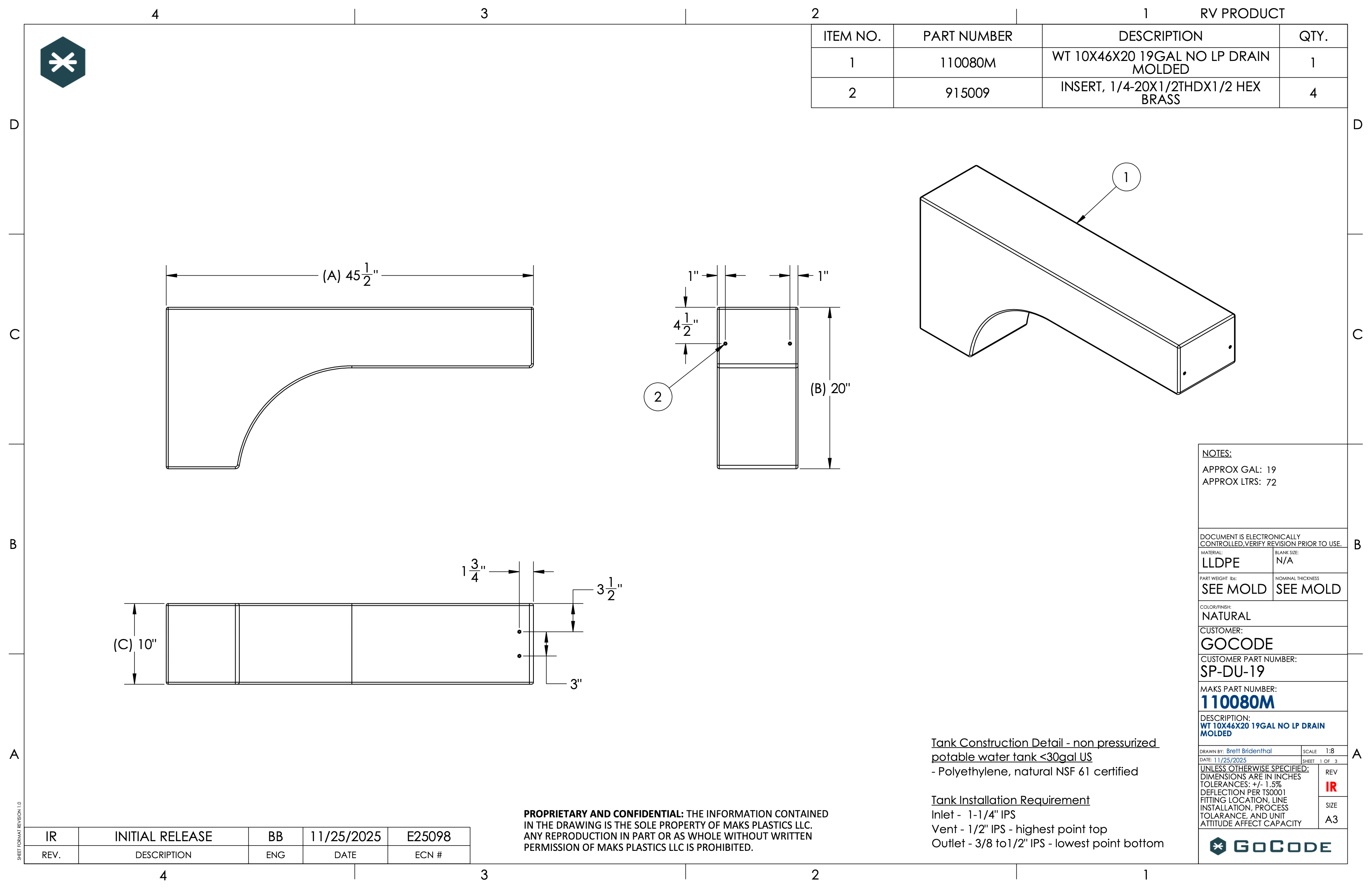

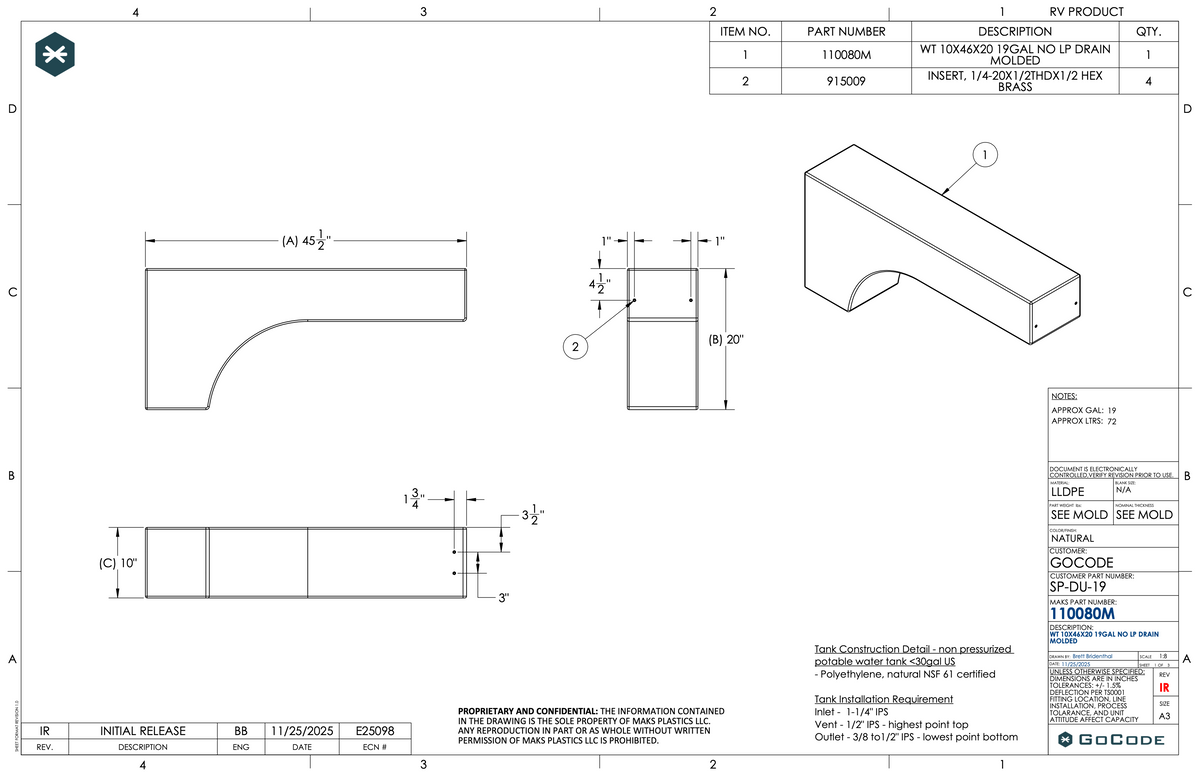

• Nominal dimensions: 45.5" L x 10" W x 20" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 19 gallons
• Dry Weight: 20 lbs
• Filled Weight: 178 lbs
• Recommended Sensor: KUS S5U-19
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA
• TEI listed and RVIA approved

Ports & Plumbing

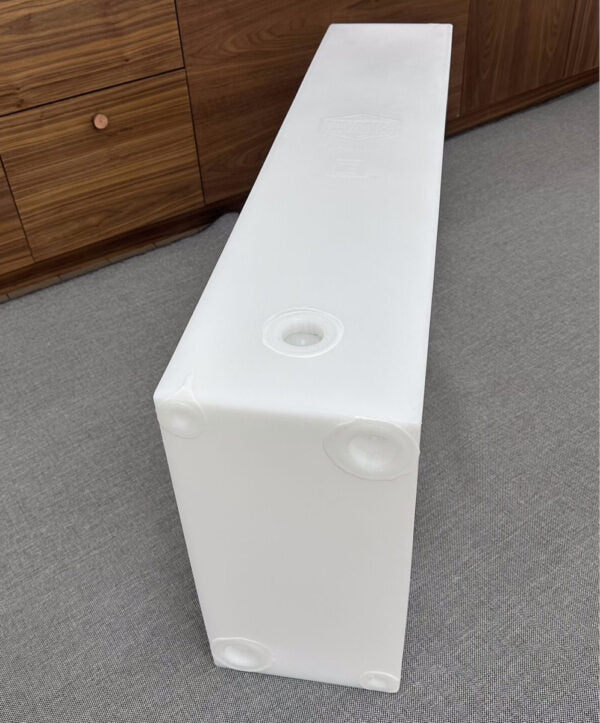

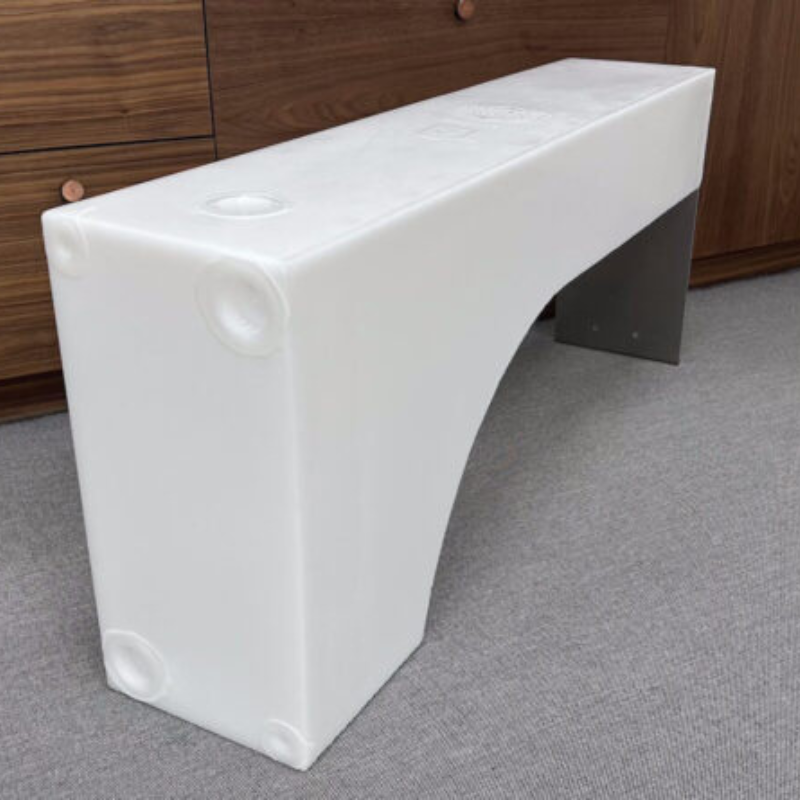

• (2) 1.5" NPT ports on the larger end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the larger end
• (1) 1.5" NPT port on the end above the wheel well, pre-marked, drill out to use
• (1) 1/2" NPT port on the end above the wheel well
• (1) 1.5" NPT port on top, pre-marked, drill out to use

What's Included

• Water Tank

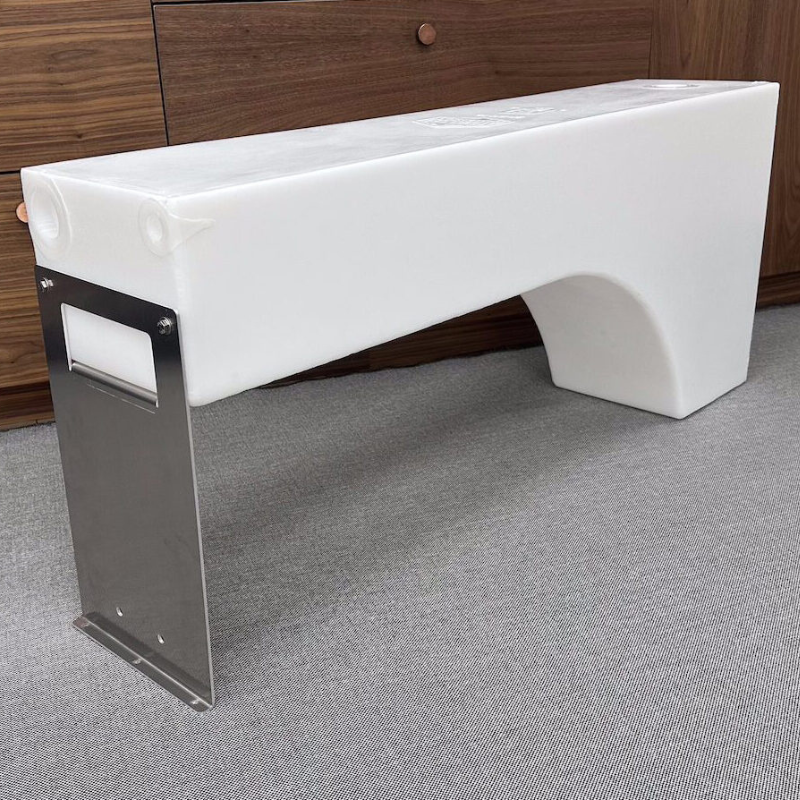

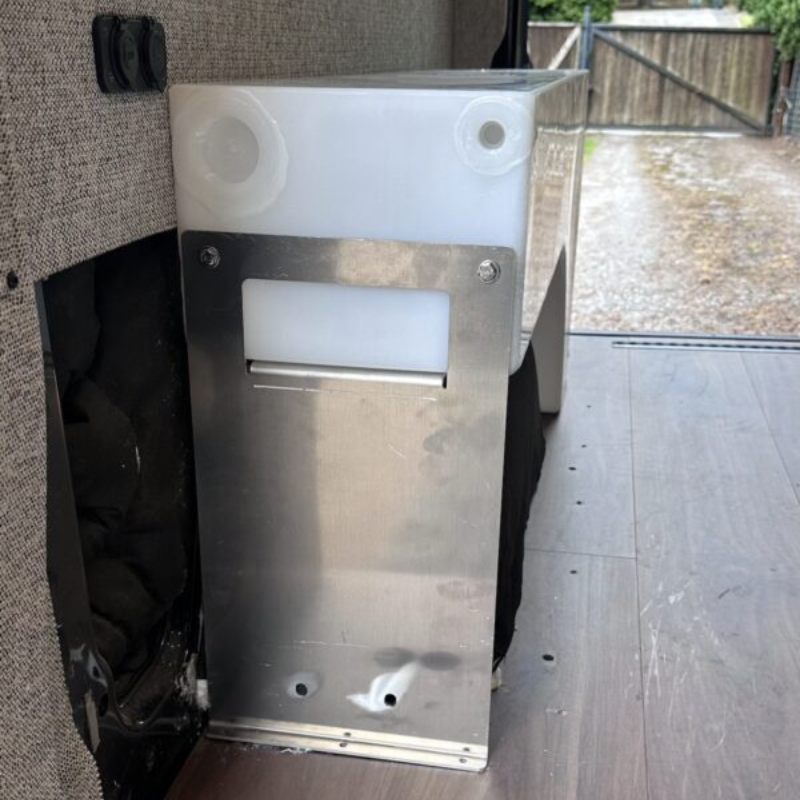

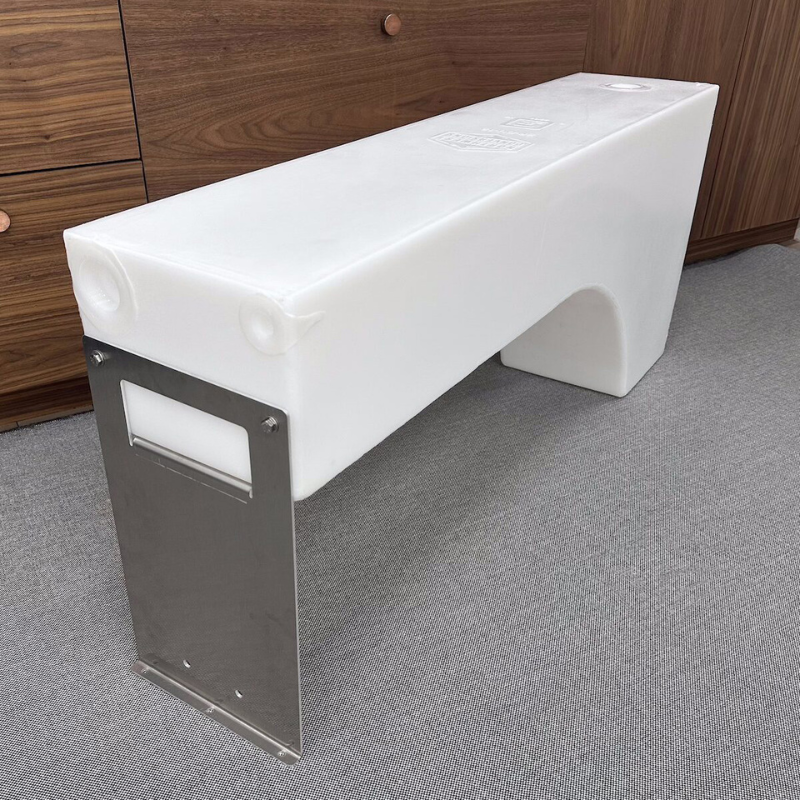

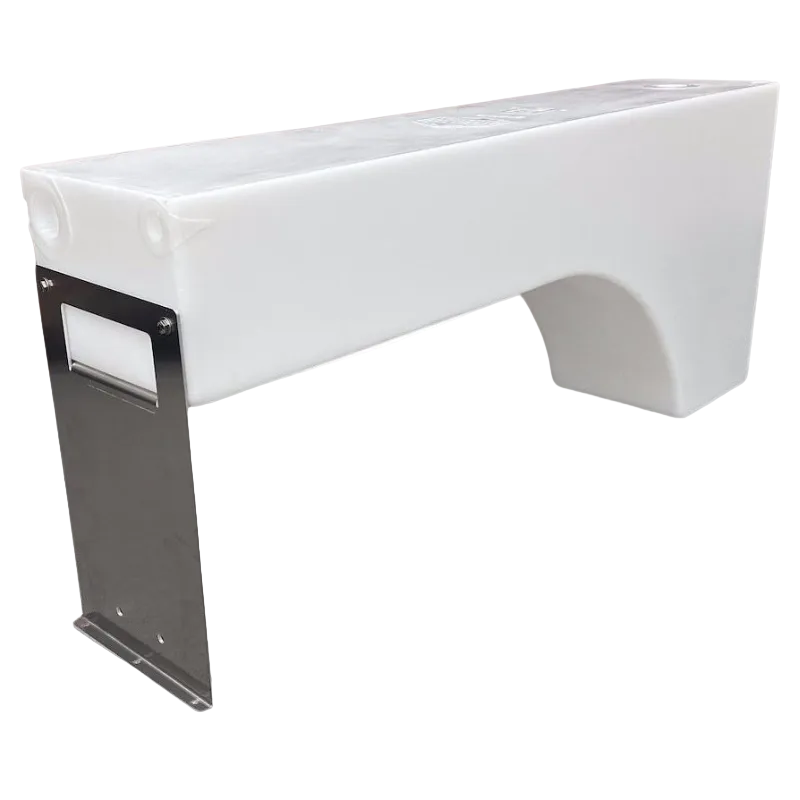

• Support plate and mounting hardware included with every order

Compatibility & Fitment

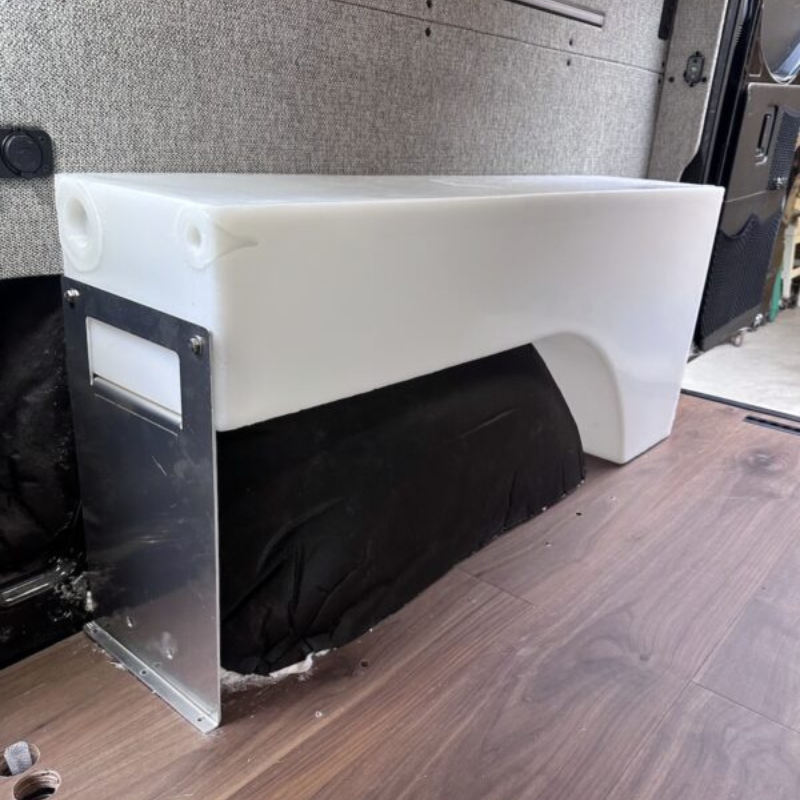

• Sprinter 2500 & 3500 Dually direct fit (also fits Sprinter T1N)
• Transit 2500 & 3500 Dually fits with slightly more room around the wheel well for insulation
• ProMaster requires approximately 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models

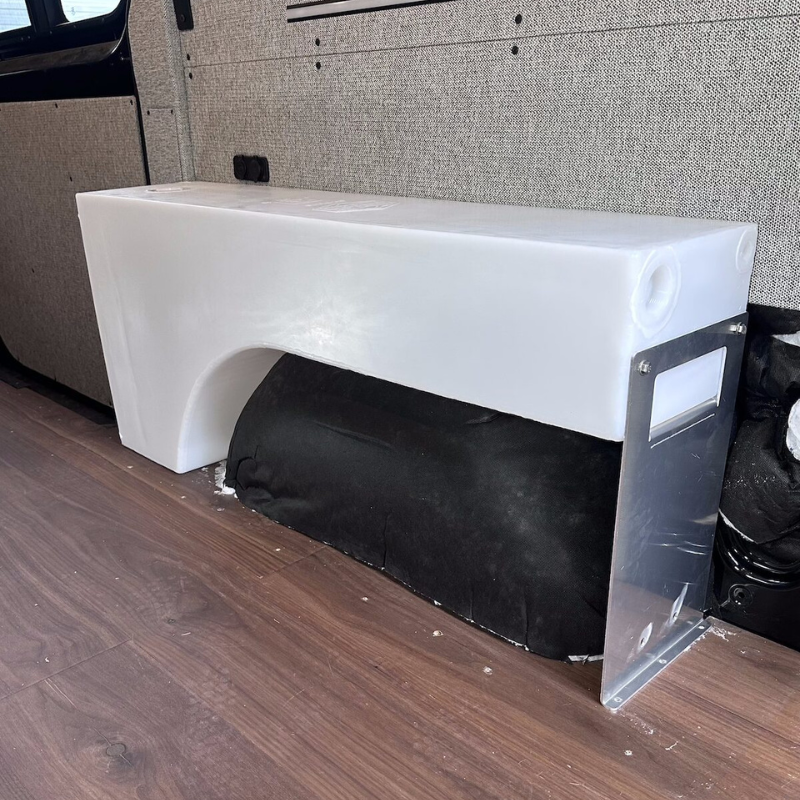

• Can be placed on either driver or passenger side, positioned in front of or rearward of the wheel well

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
