GoCode 22-Gallon Sprinter Wheel Well Water Tank - Right (SP-R-22)

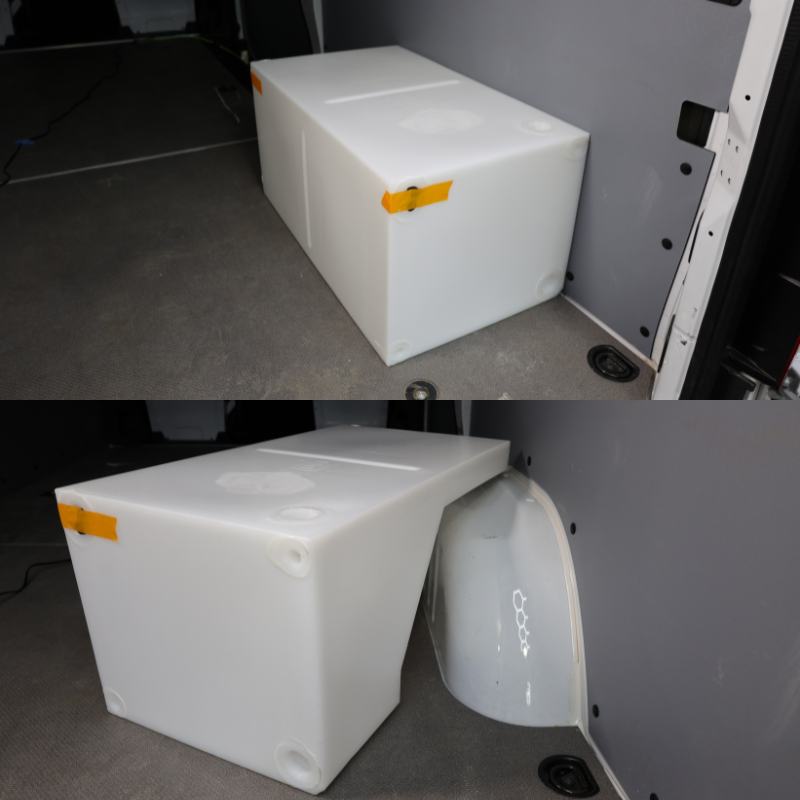

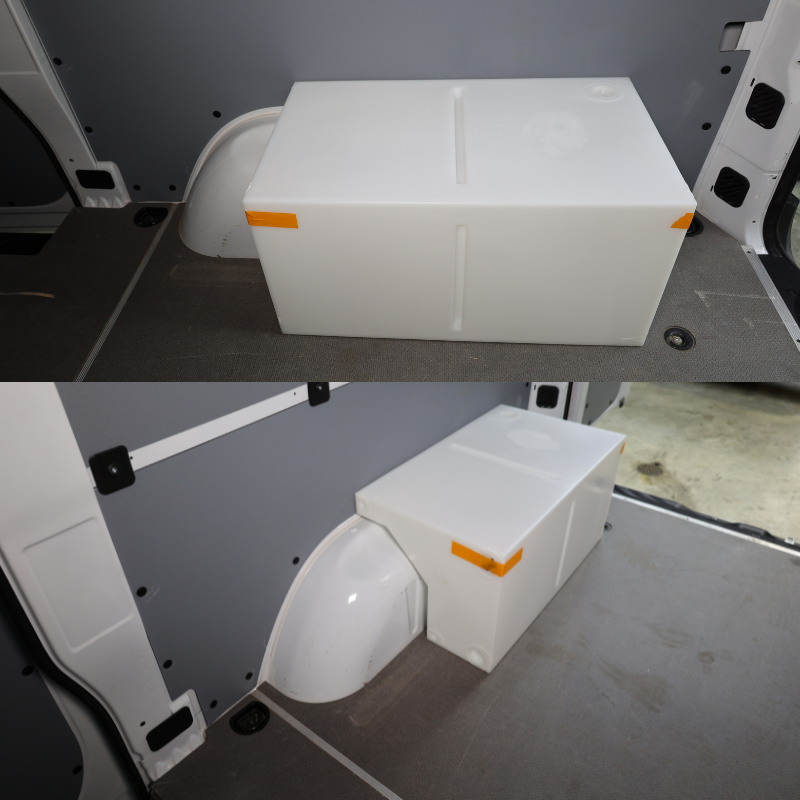

Add 22 gallons of water to your Mercedes Sprinter 2500 build with this direct-fit GoCode wheel well water tank. It uses the space around the wheel well to keep your floor plan open, sitting offset toward the rear or front of the well depending on which side of the van you place it. It also fits single rear wheel Ford Transit vans, and Ram ProMaster vans with a 3.5" elevation.

Specifications

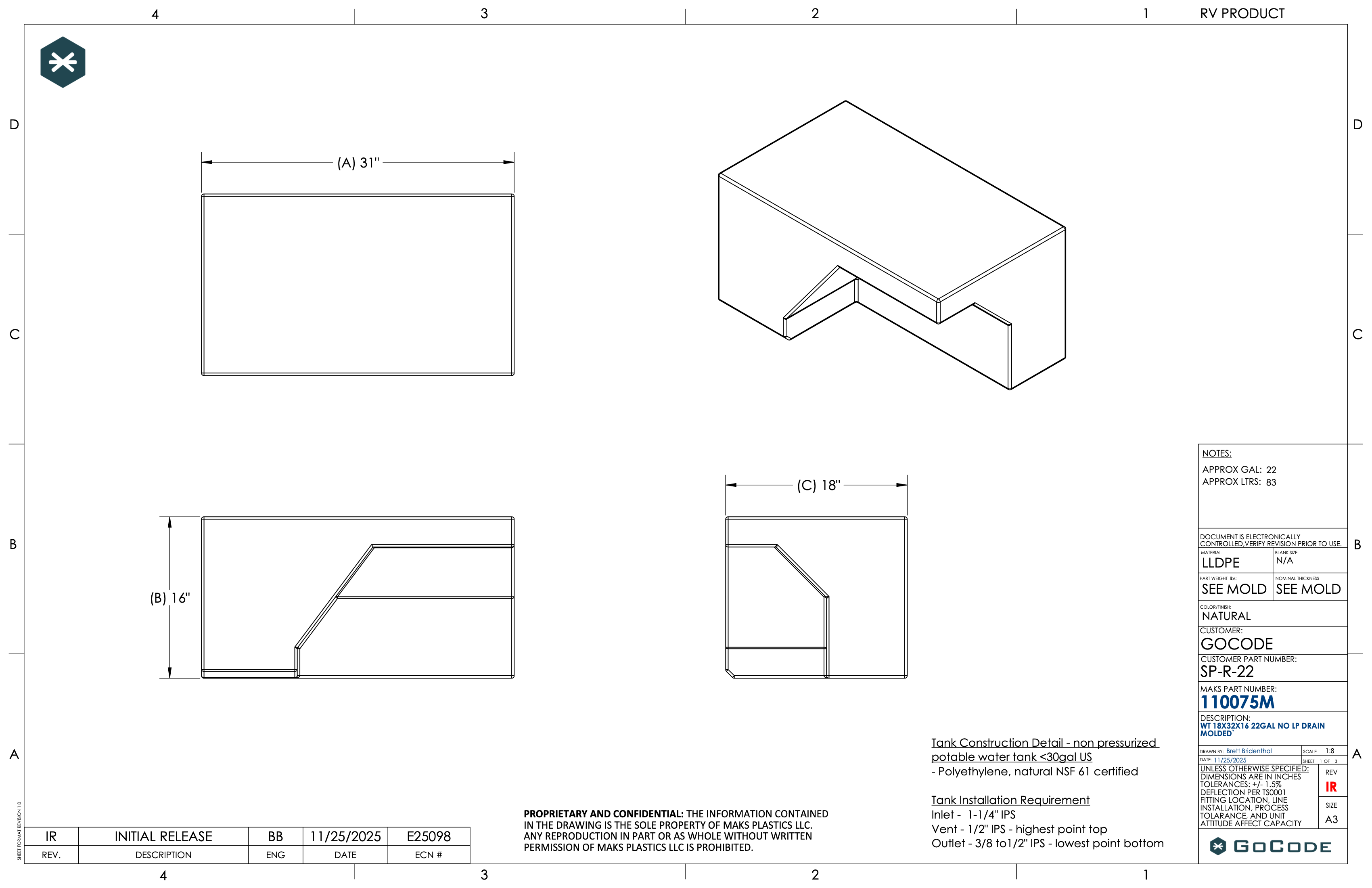

• Nominal dimensions: 31" L x 18" W x 16" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 22 gallons
• Dry Weight: 20 lbs
• Filled Weight: 203 lbs
• Recommended Sensor: KUS S5U-15
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA
• TEI listed and RVIA approved

Ports & Plumbing

• (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the rectangular end
• (2) 1.5" NPT ports on the opposite end, pre-marked, drill out to use
• (1) 1/2" NPT port on the opposite end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

What's Included

• Water Tank

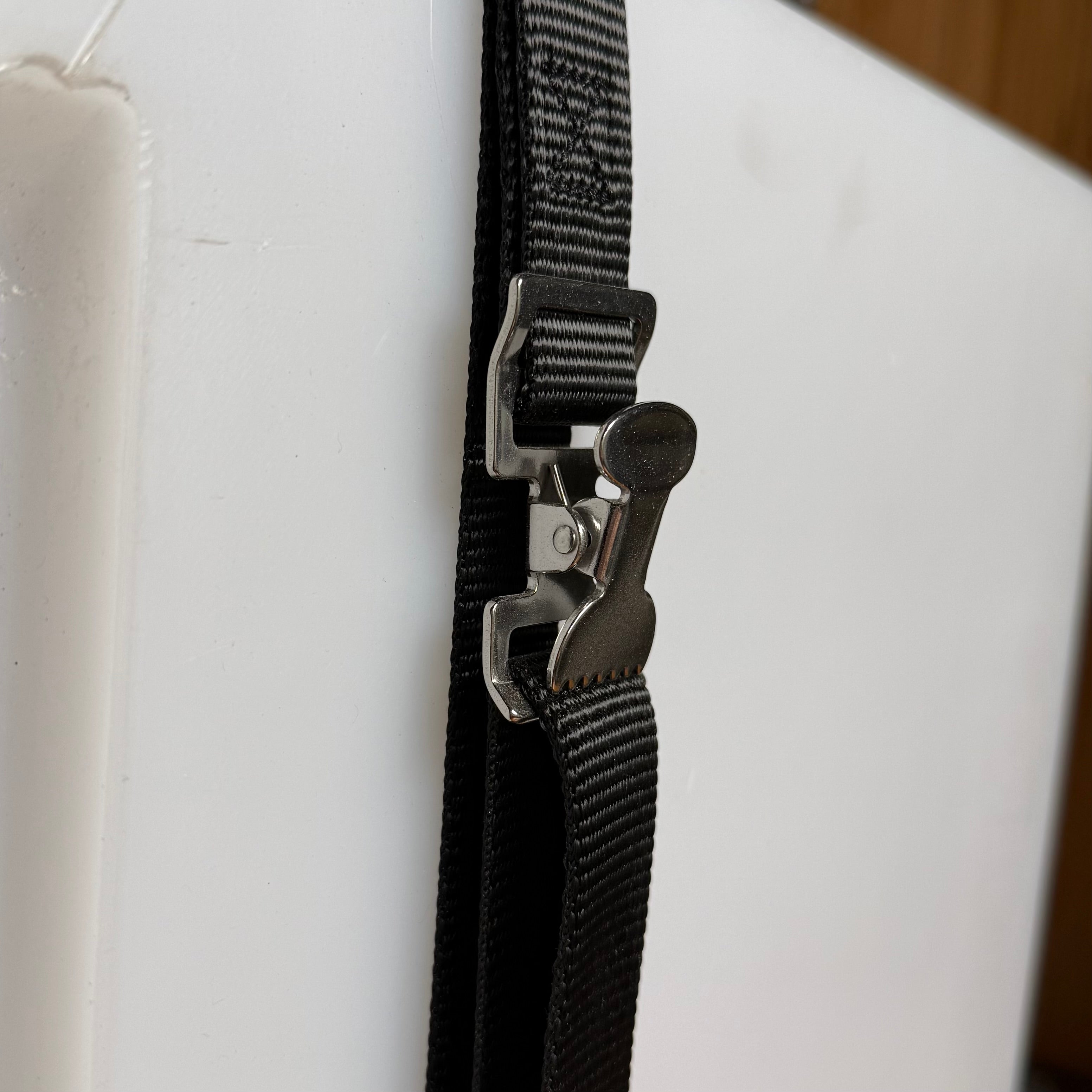

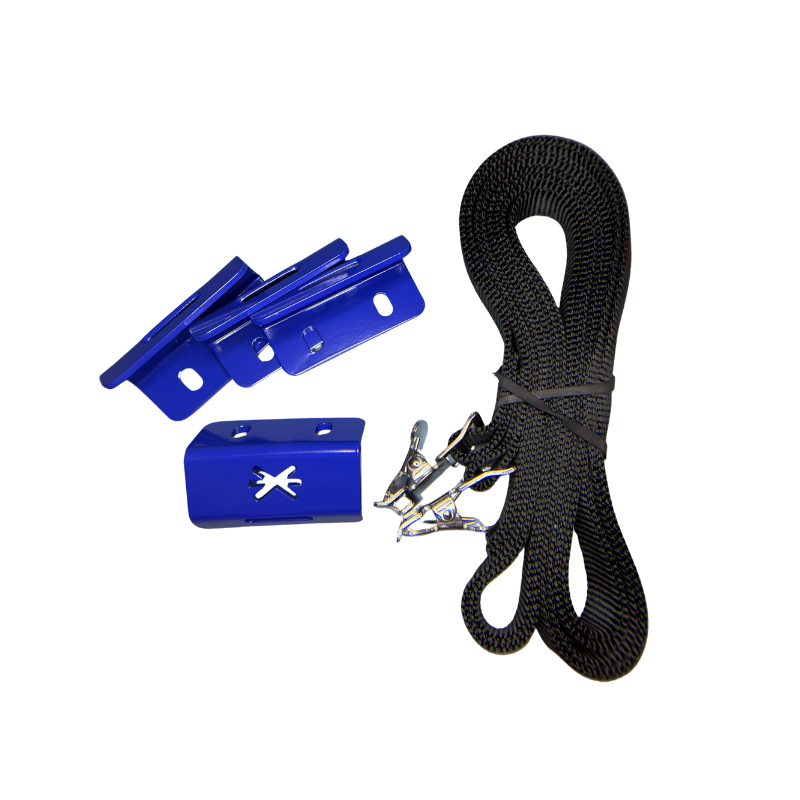

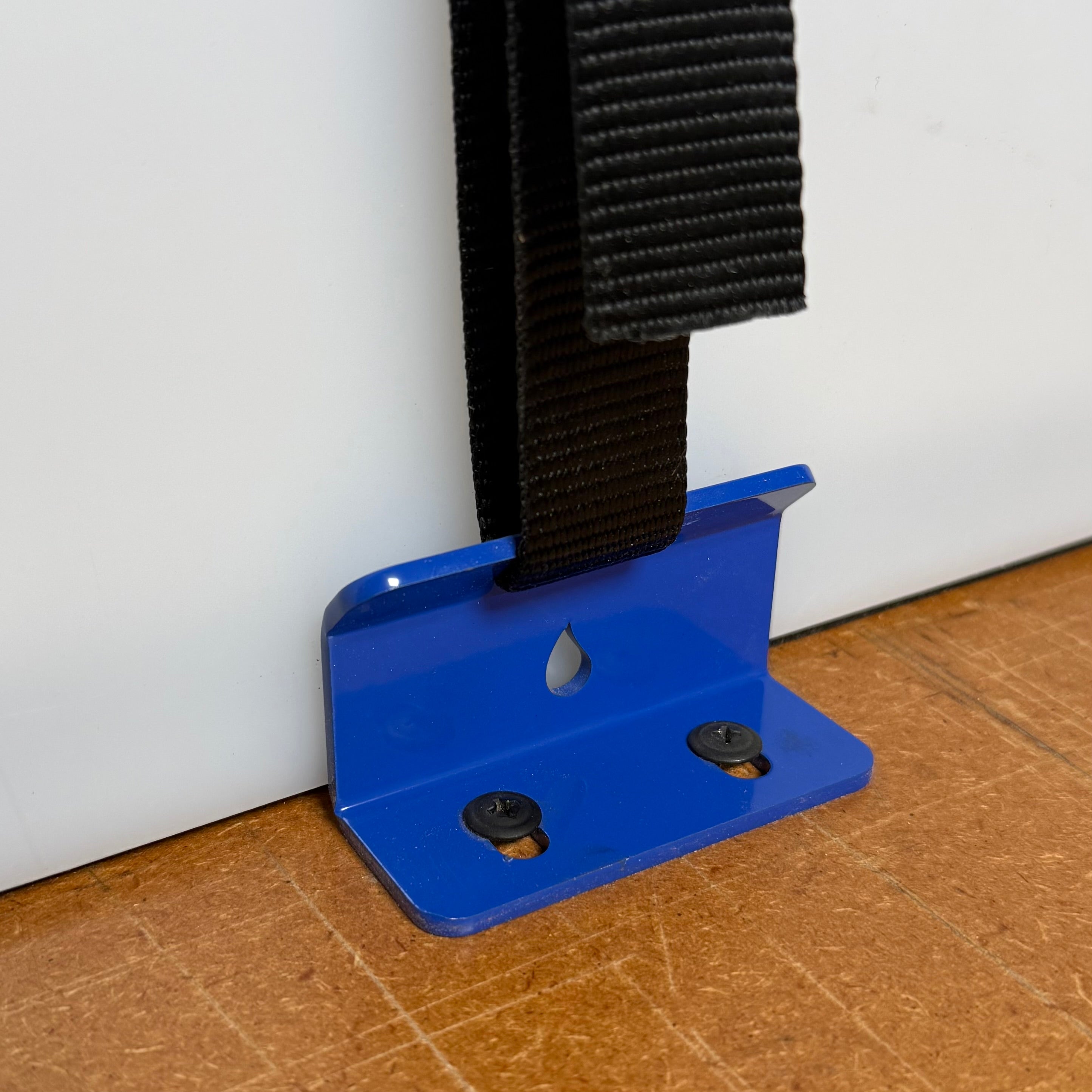

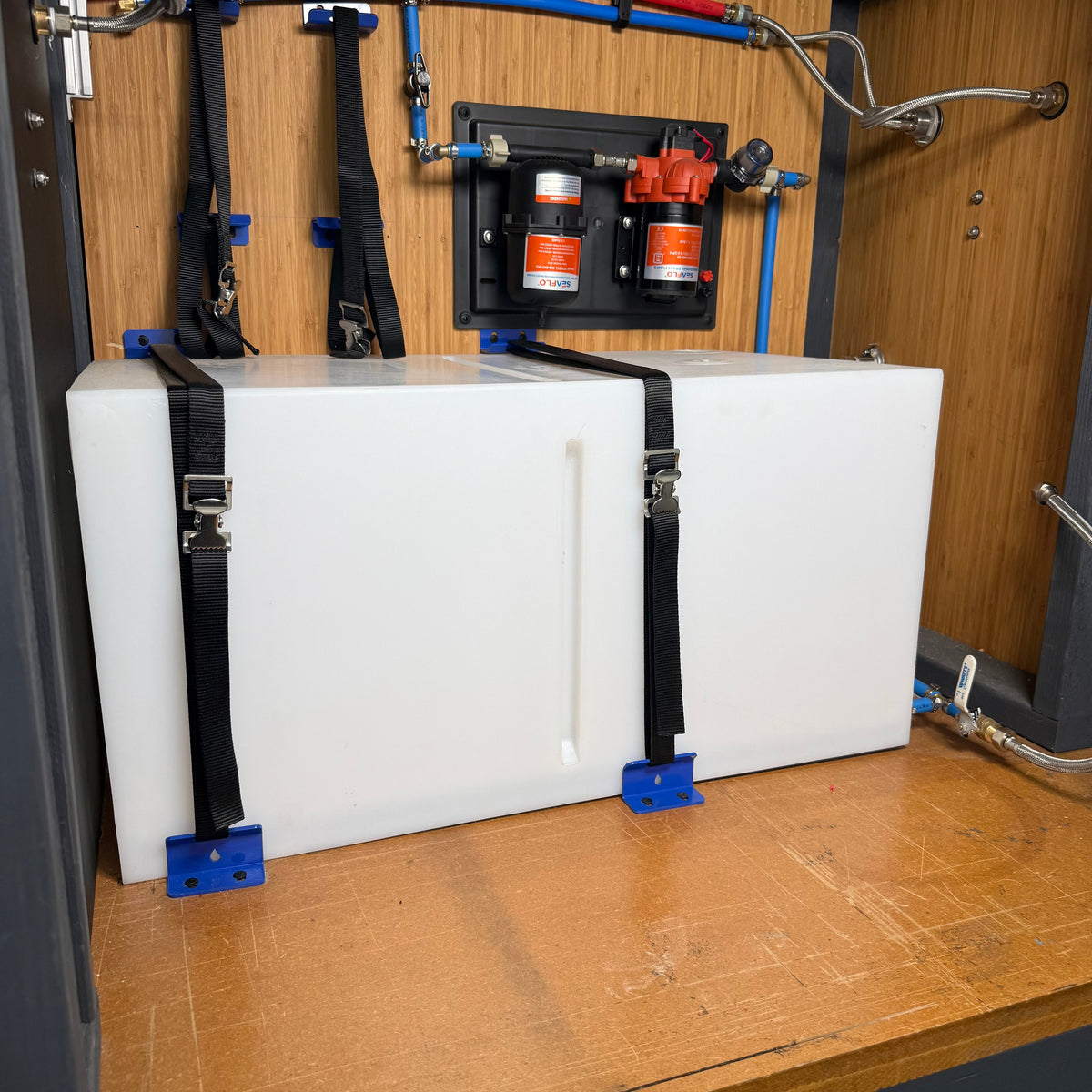

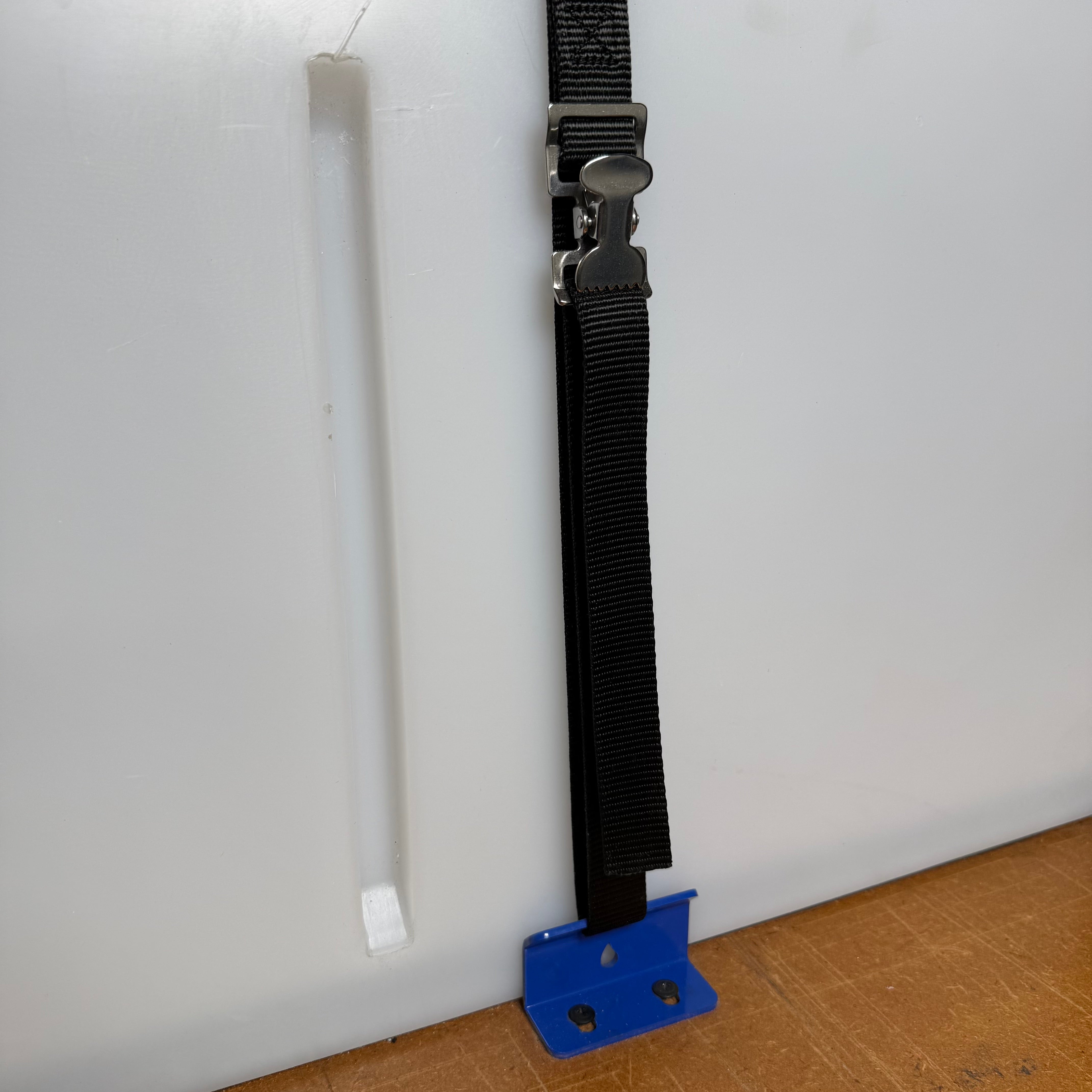

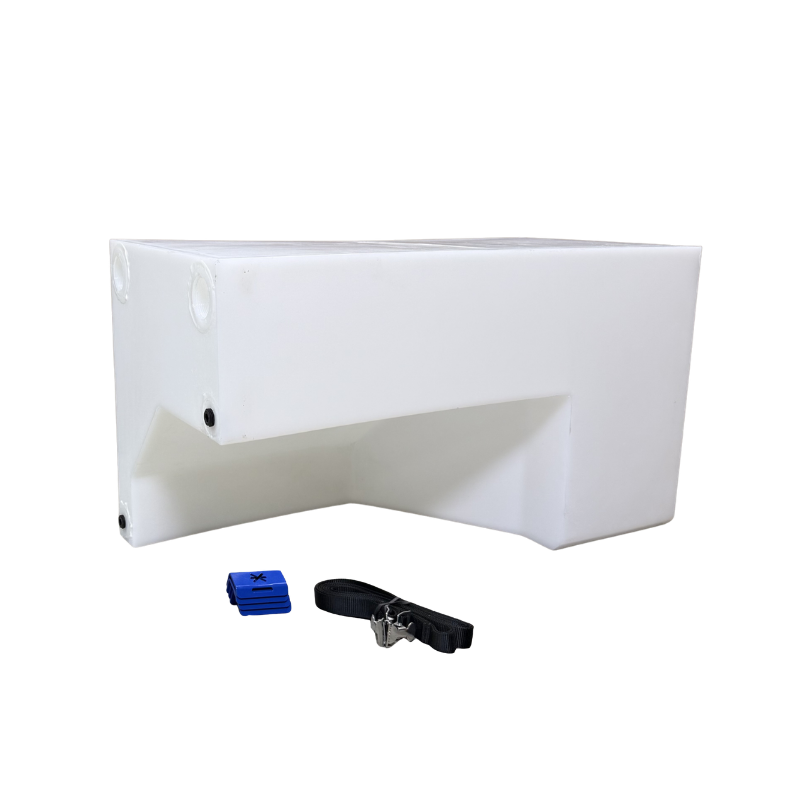

• Adjustable mounting straps and mounting brackets included with every order, as seen in photos

Compatibility & Fitment

• Sprinter 2500 direct fit (also fits Sprinter T1N)
• Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
• ProMaster requires a 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models
• Driver side: tank sits front of wheel well
• Passenger side: tank sits rear of wheel well

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
