GoCode 24-Gallon Sprinter Wheel Well Water Tank - Center (SP-C-24)

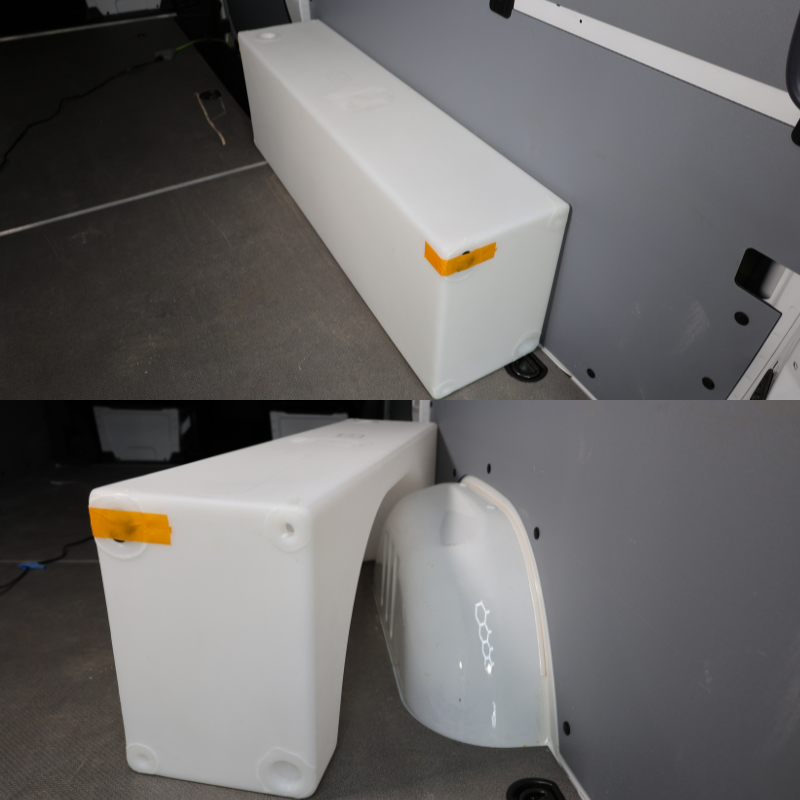

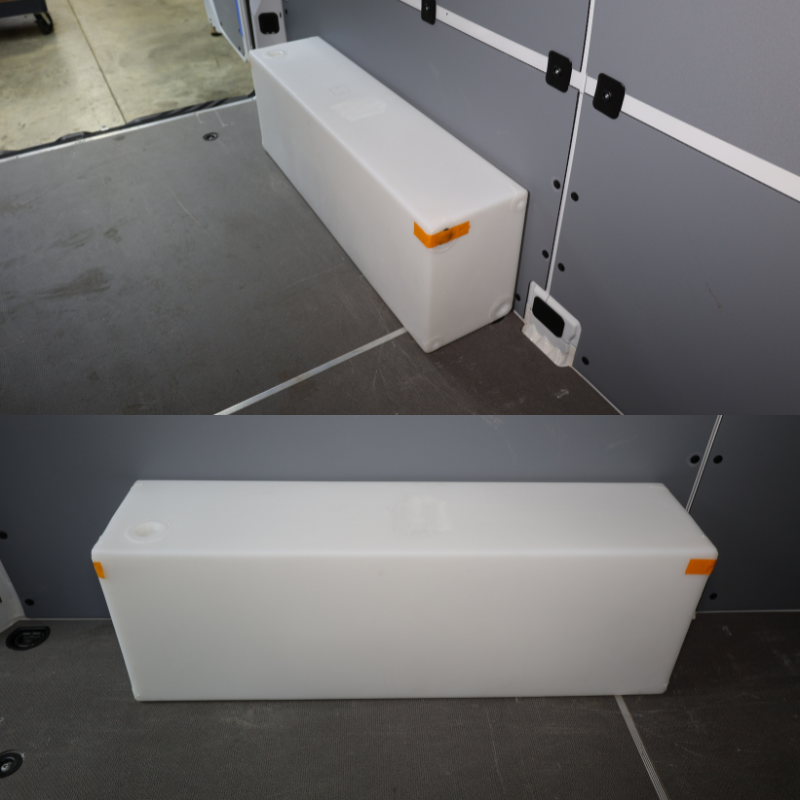

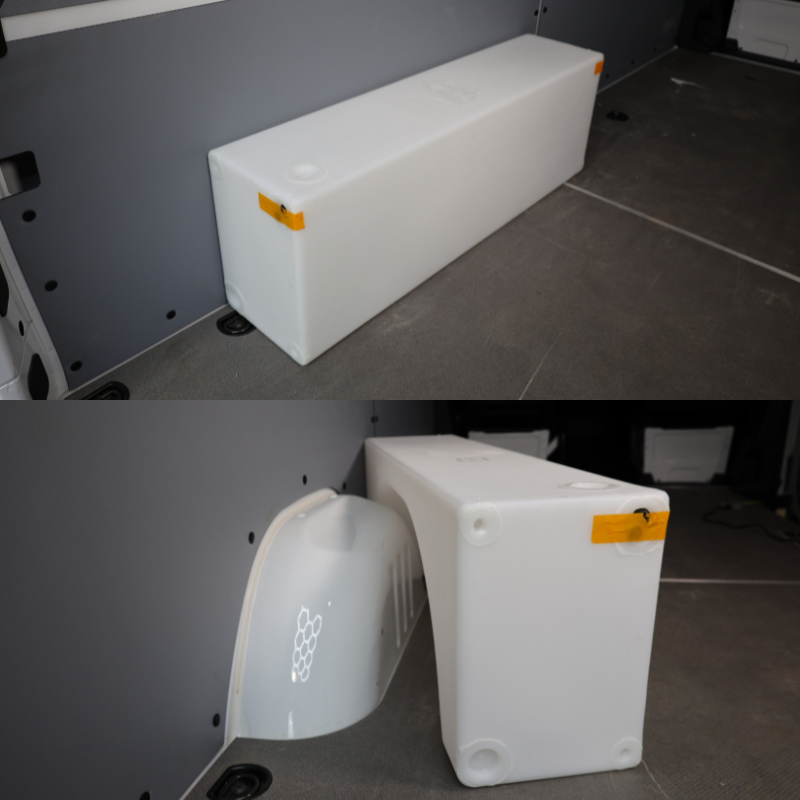

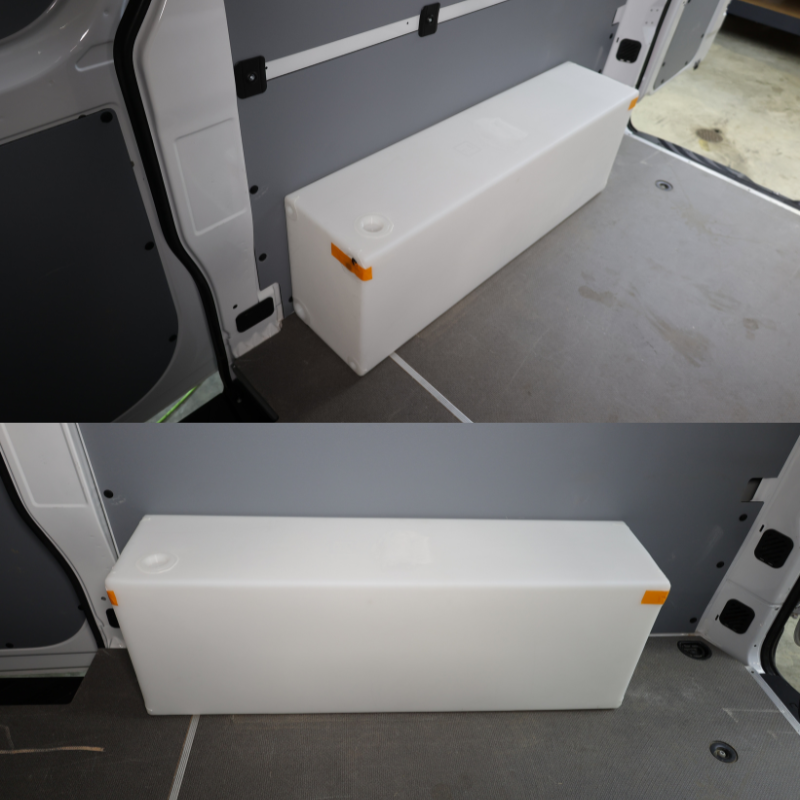

Carry 24 gallons of water over the wheel well and keep your floor plan open. This GoCode wheel well water tank sits centered over the well, is a direct fit for the Mercedes Sprinter 2500, and can be placed on either the driver or passenger side. It also fits single rear wheel Ford Transit vans, and Ram ProMaster vans with a 3.5" elevation.

Specifications

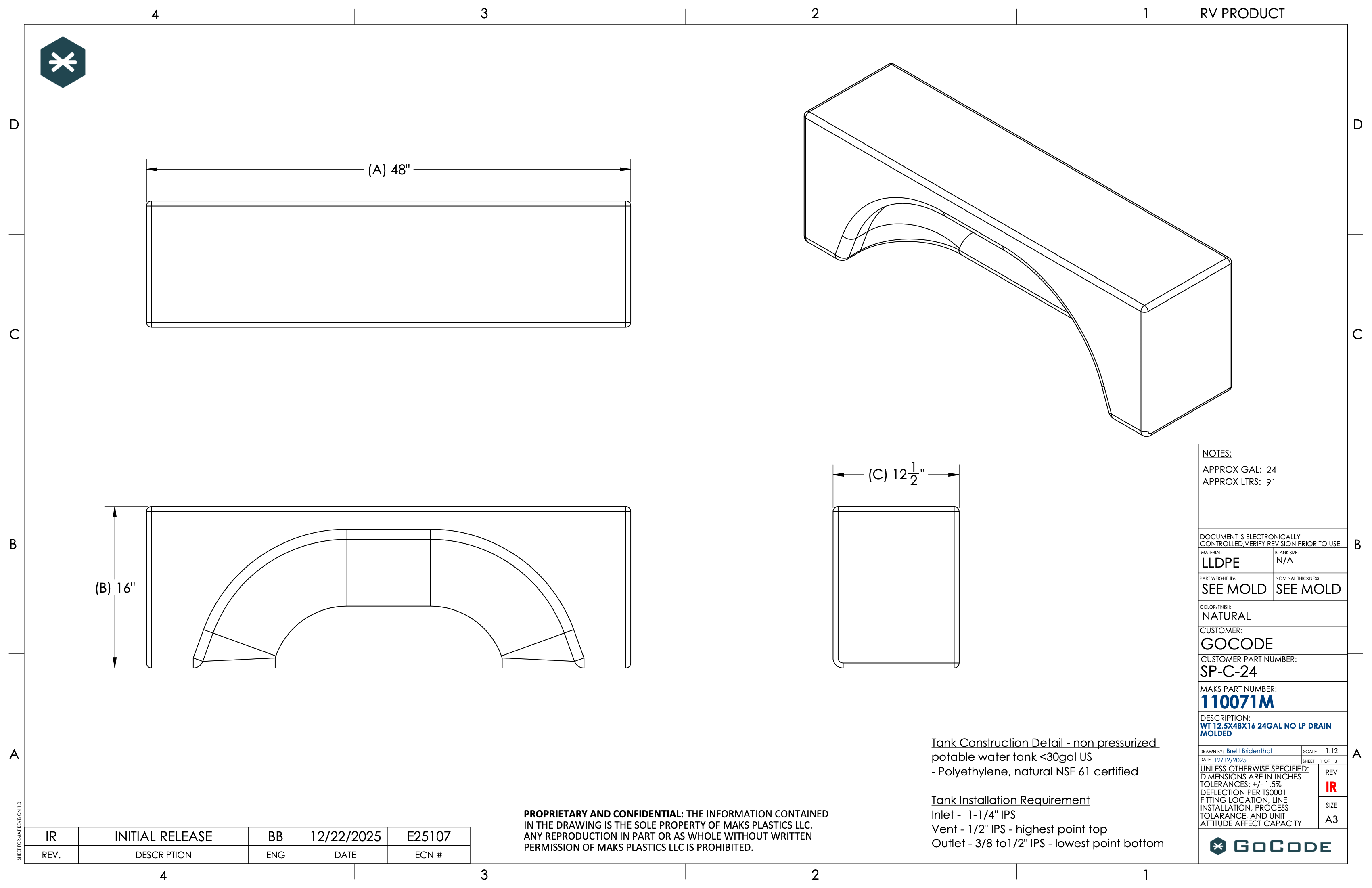

• Nominal dimensions: 48" L x 12.5" W x 16" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 24 gallons
• Dry Weight: 22 lbs
• Filled Weight: 222 lbs
• Recommended Sensor: KUS S5U-15
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• Made in the USA
• IAPMO TS 4 Certified
• TEI listed and RVIA approved

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

What's Included

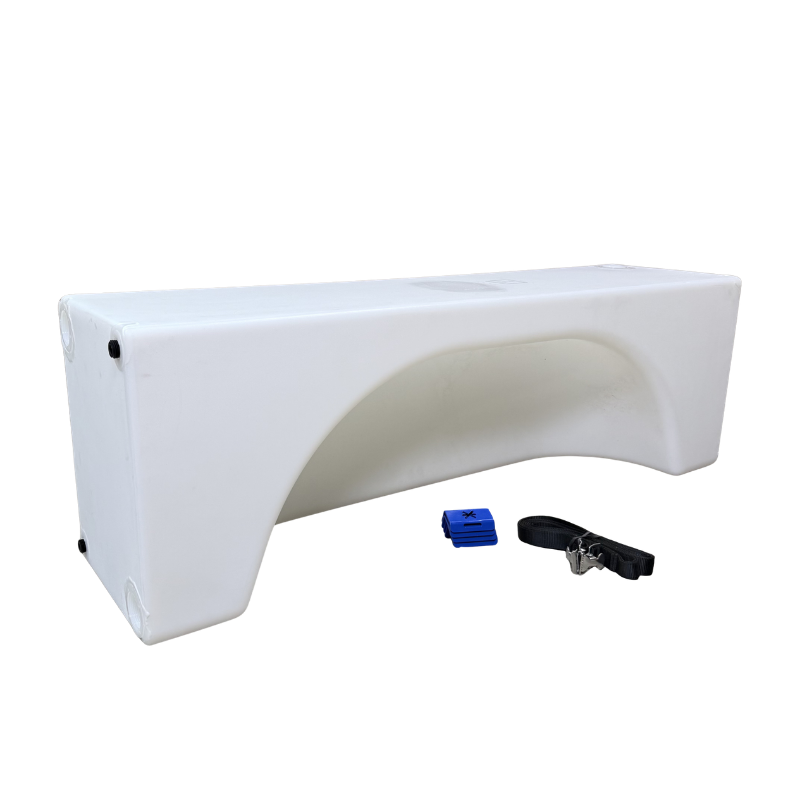

• Water Tank

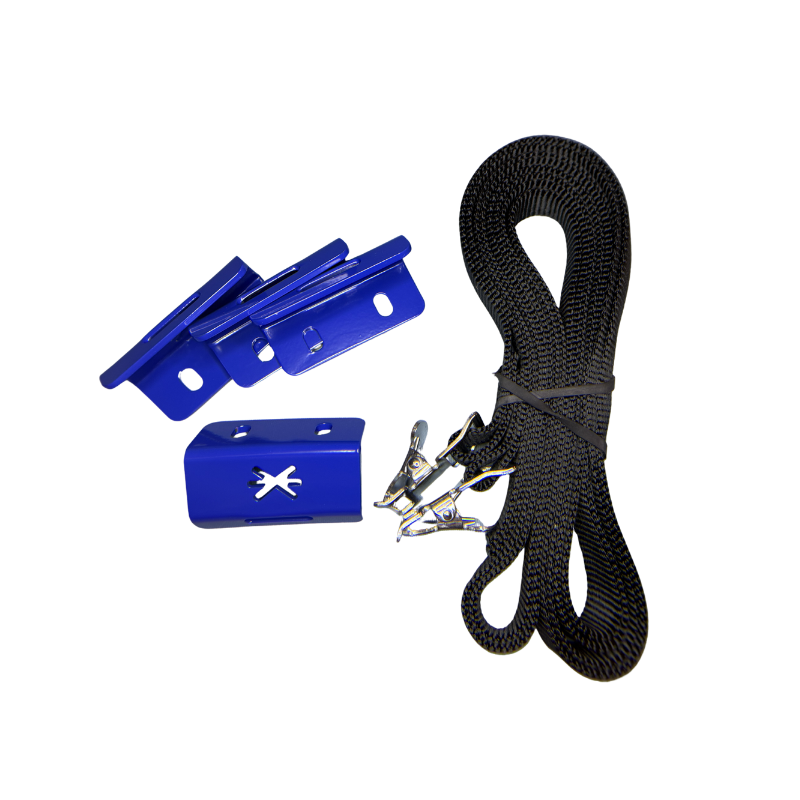

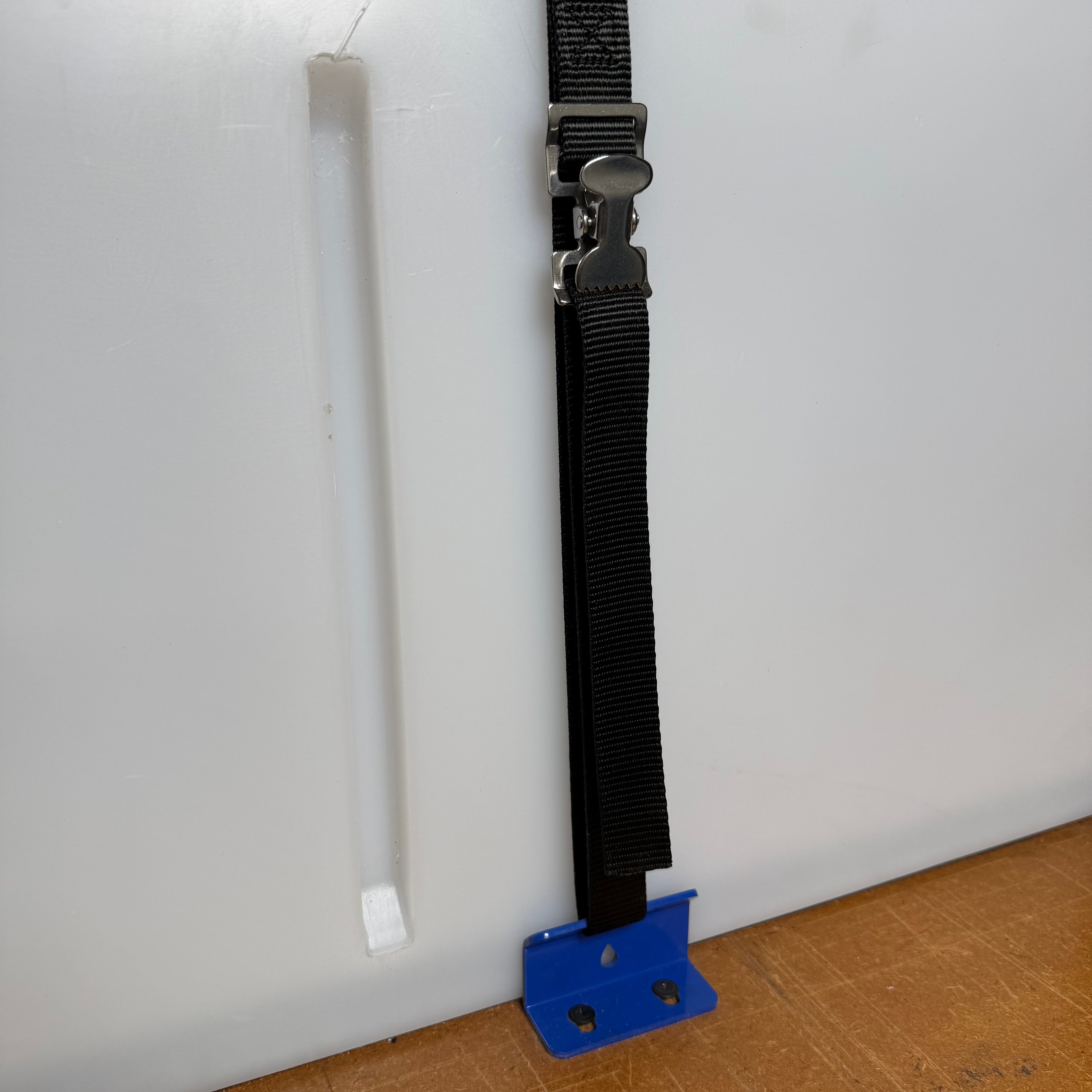

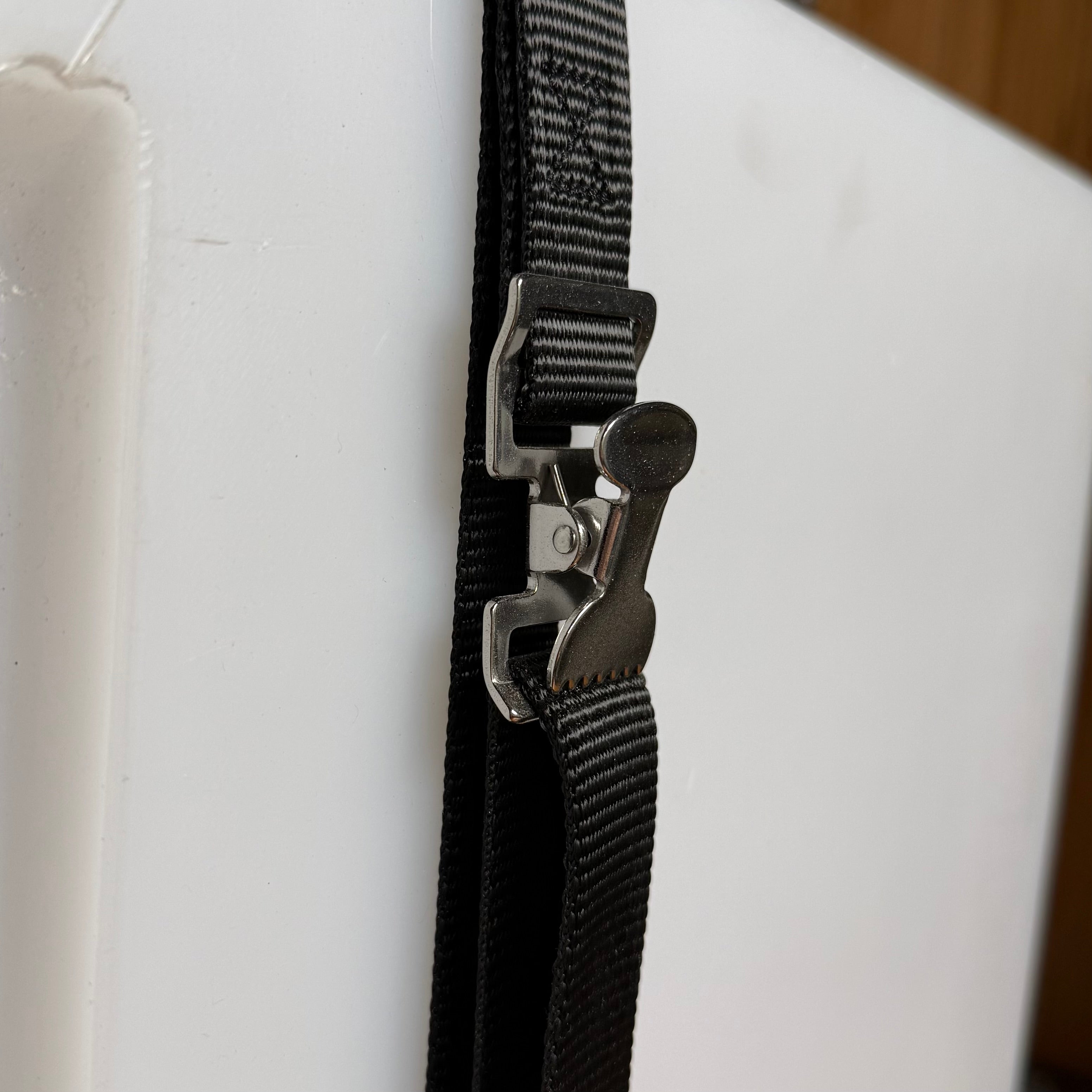

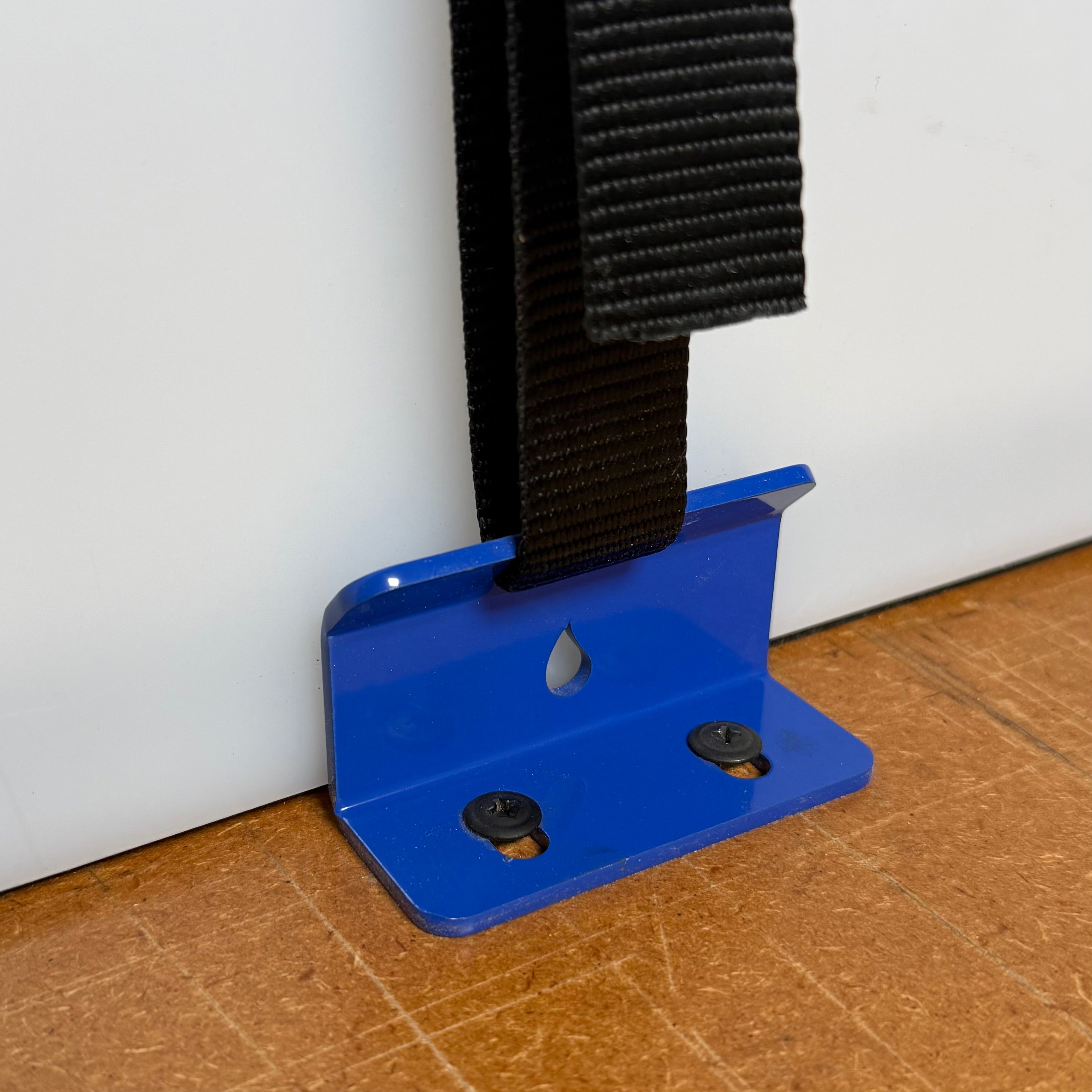

• Adjustable mounting straps and mounting brackets included with every order, as seen in photos

Compatibility & Fitment

• Sprinter 2500 direct fit (also fits Sprinter T1N)
• Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
• ProMaster requires a 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models
• Can be placed on either driver or passenger side

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
