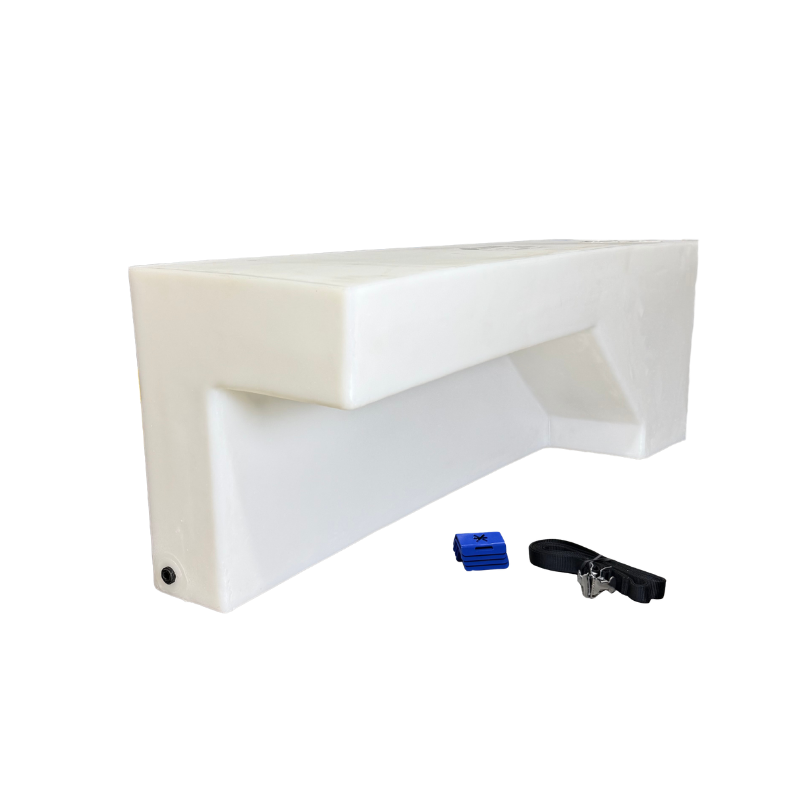

GoCode 24-Gallon Ford Transit Wheel Well Water Tank - Left (TR-L-24)

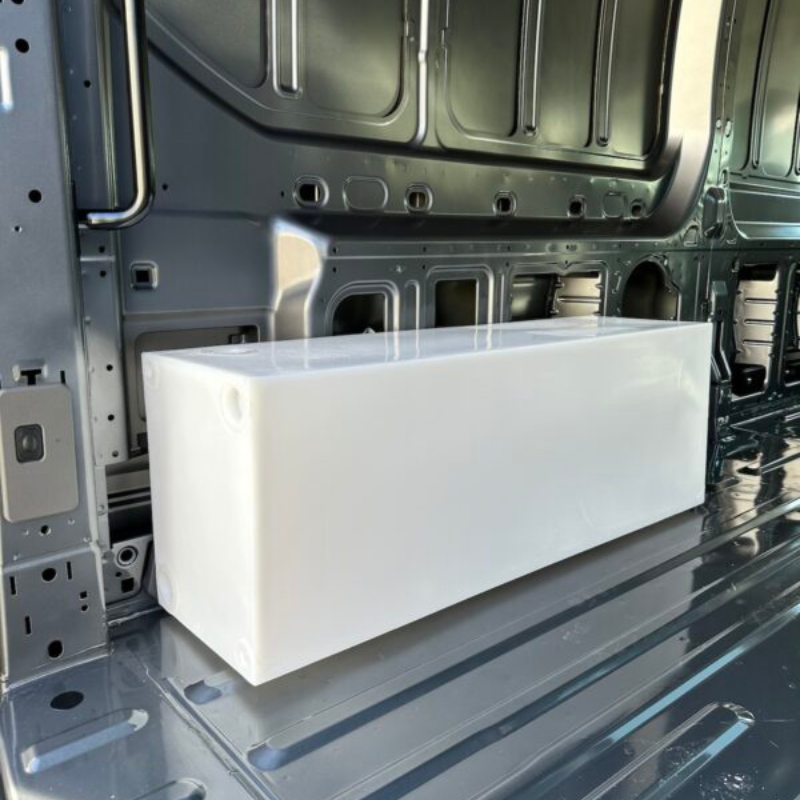

Designed specifically for the Ford Transit van, this 24-gallon GoCode water tank fits the wheel well space, keeping your floor plan open while adding water capacity. The left-hand version sits offset toward the rear or front of the wheel well depending on which side of the van you place it.

Specifications

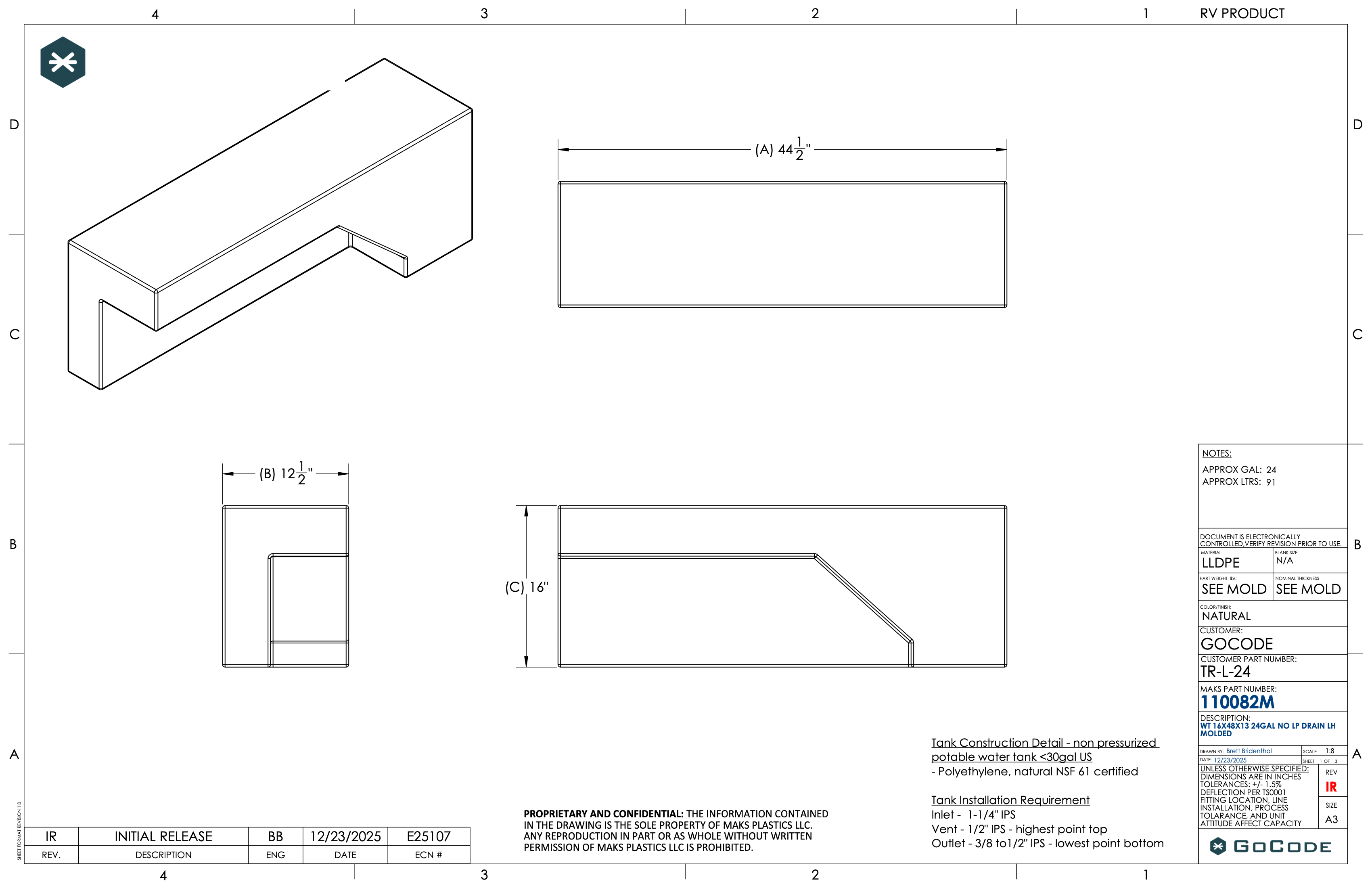

• Nominal dimensions: 44.5" L x 12.5" W x 16" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 24 gallons
• Dry Weight: 22 lbs
• Filled Weight: 222 lbs
• Recommended Sensor: KUS S5U-15
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• Made in the USA
• IAPMO TS 4 Certified
• TEI listed and RVIA approved

Ports & Plumbing

• (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the rectangular end
• (1) 1/2" NPT port on the open end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

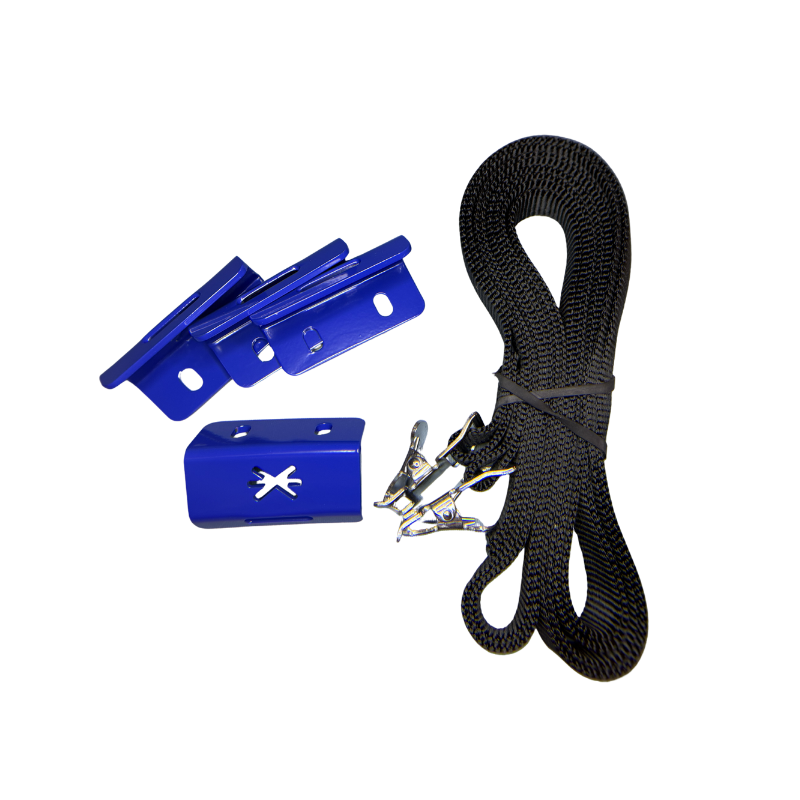

What's Included

• Water Tank

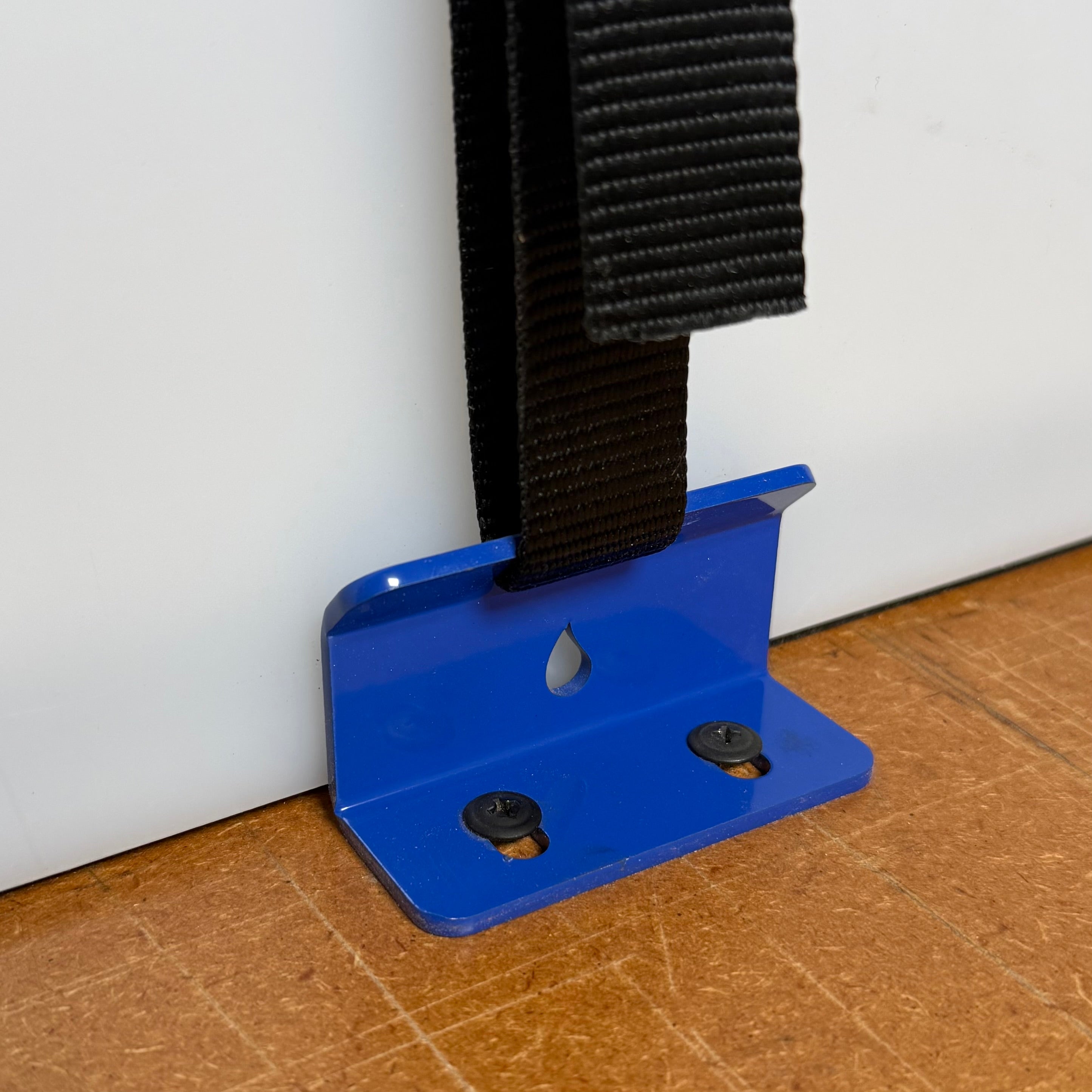

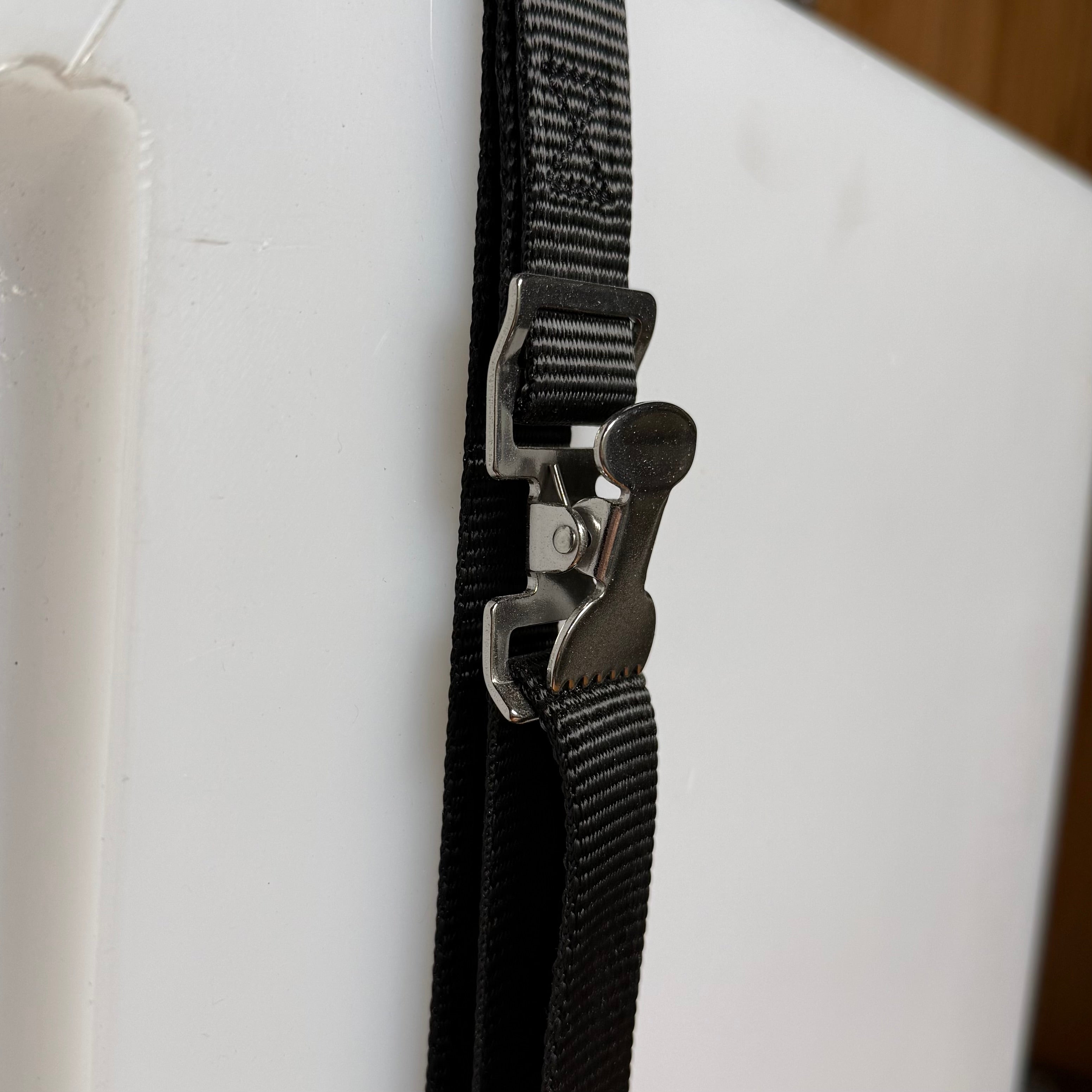

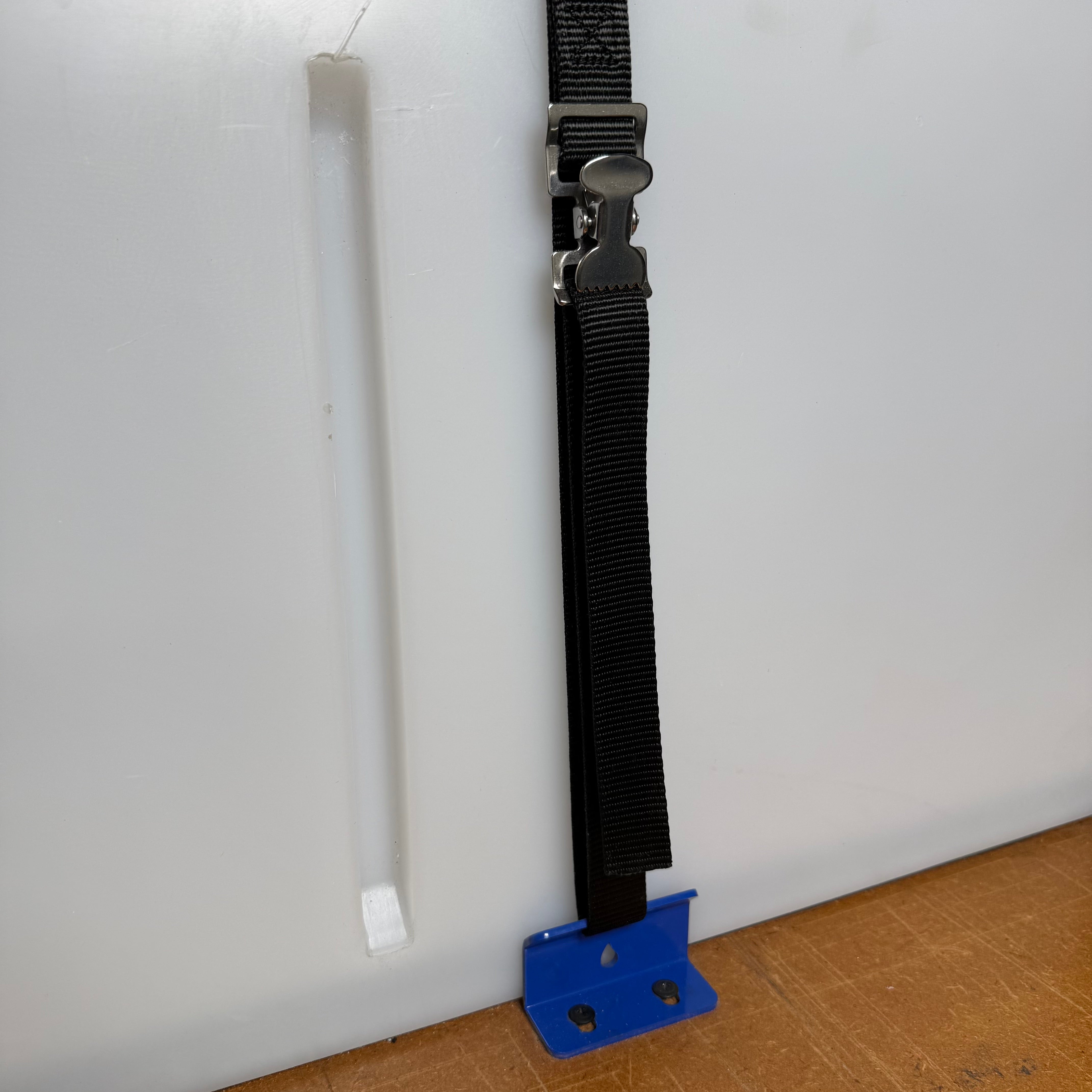

• (x2) Adjustable straps
• (x4) Mounting brackets

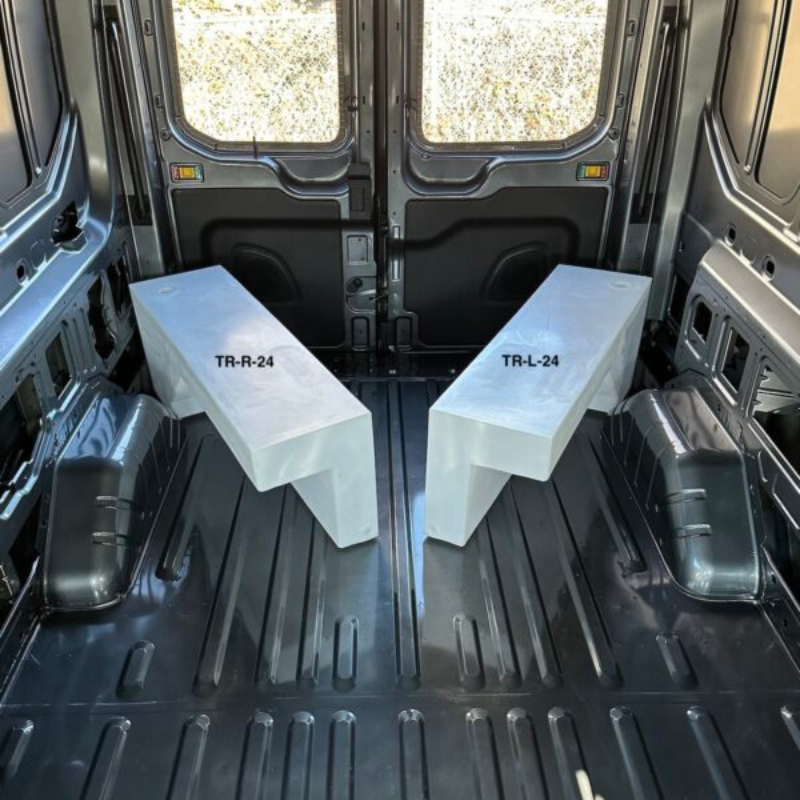

Compatibility & Fitment

• Designed specifically for the Transit van
• May also fit other makes and models

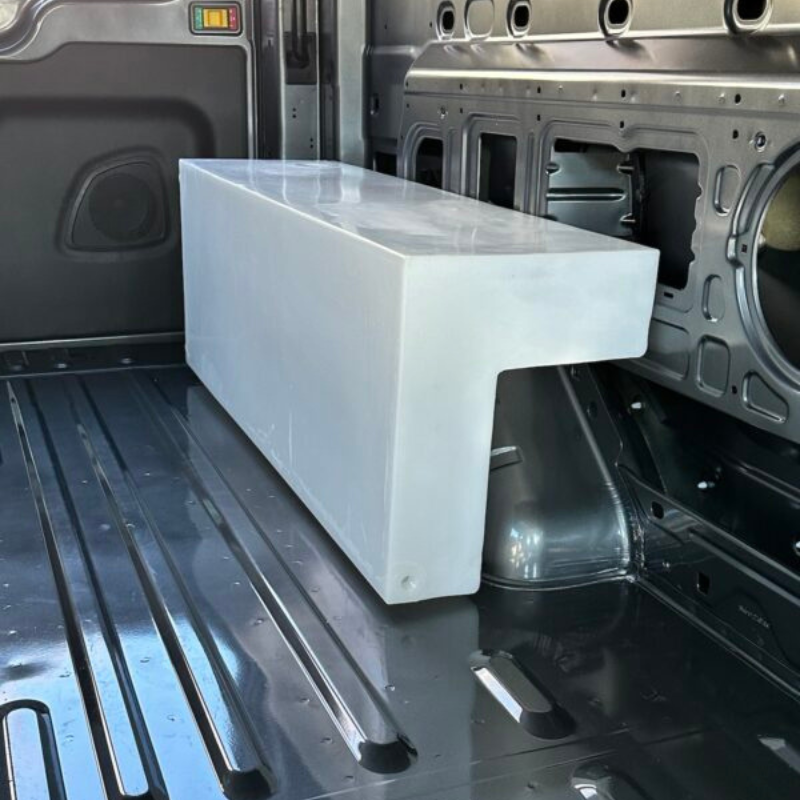

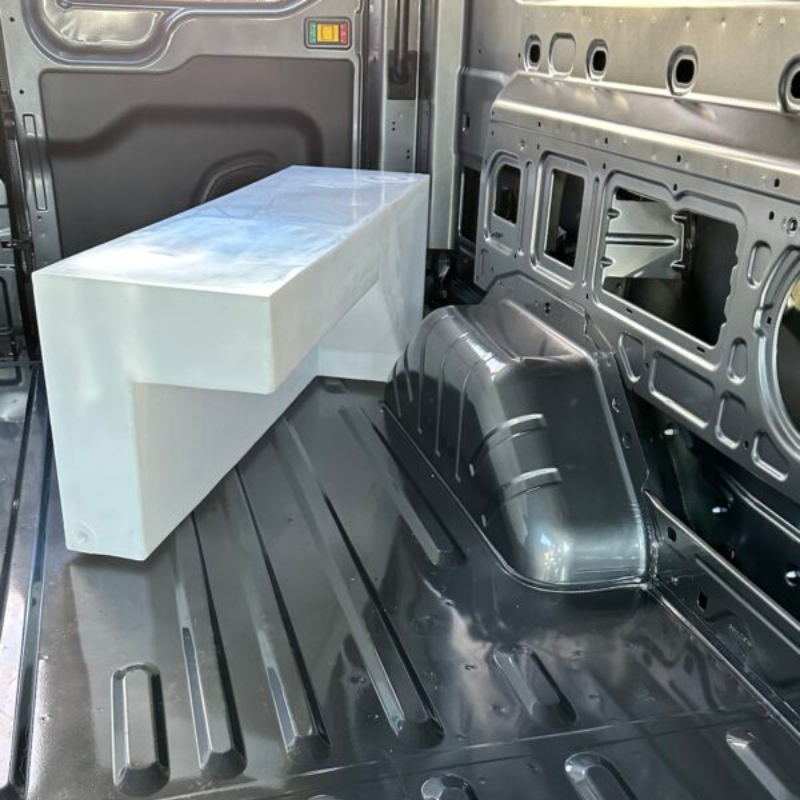

• Driver side: tank sits with majority rear of wheel well
• Passenger side: tank sits with majority front of wheel well

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
