GoCode 24-Gallon Ford Transit Wheel Well Water Tank - Right (TR-R-24)

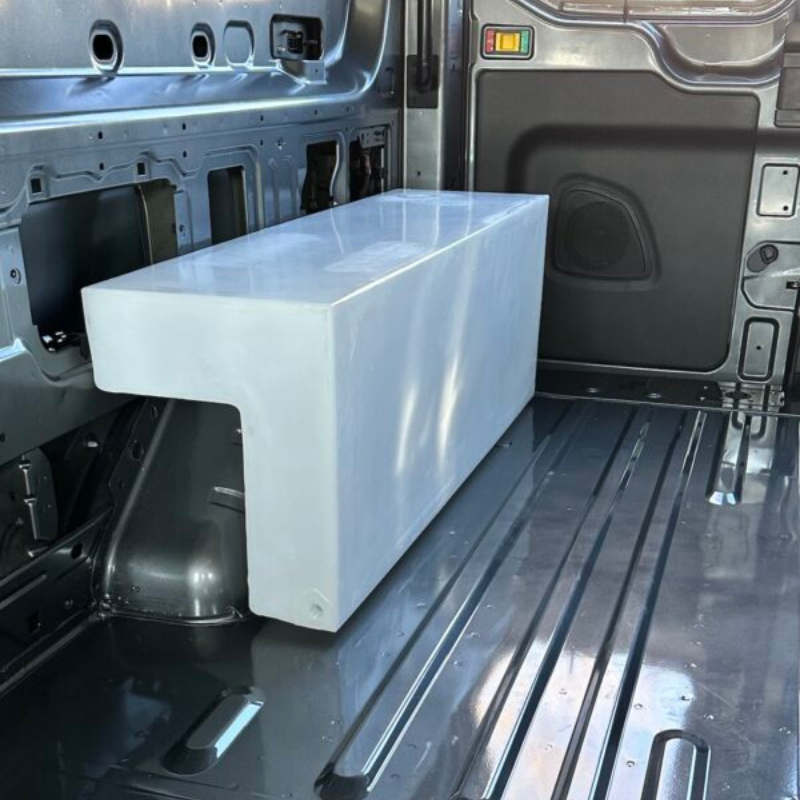

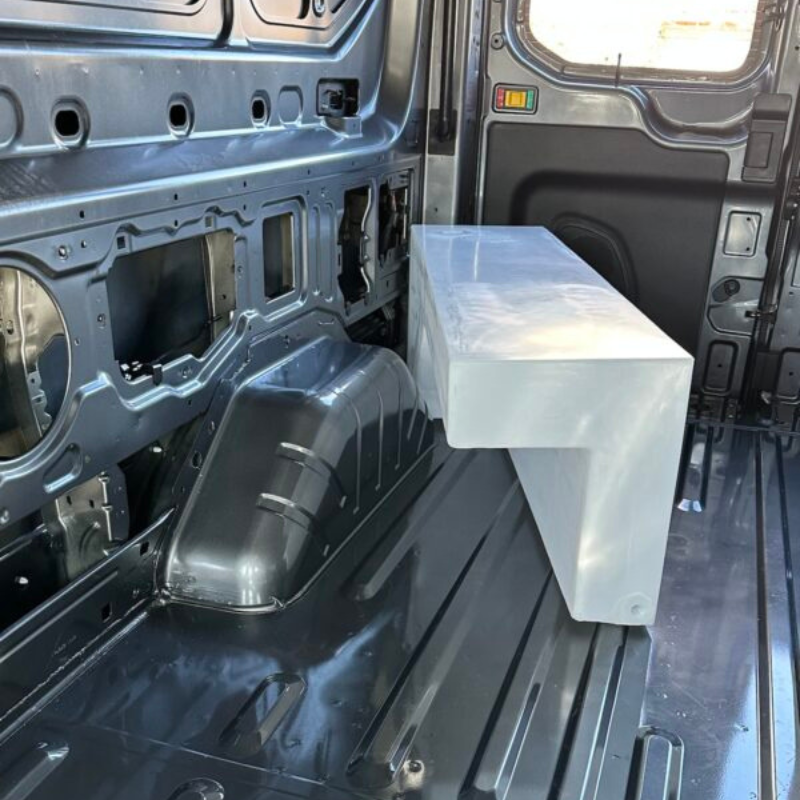

Add 24 gallons of water to your Ford Transit camper van without closing off your floor plan. Designed specifically for the Transit van, this GoCode water tank fits the wheel well space. The right-hand version sits offset toward the rear or front of the wheel well depending on which side of the van you place it.

Specifications

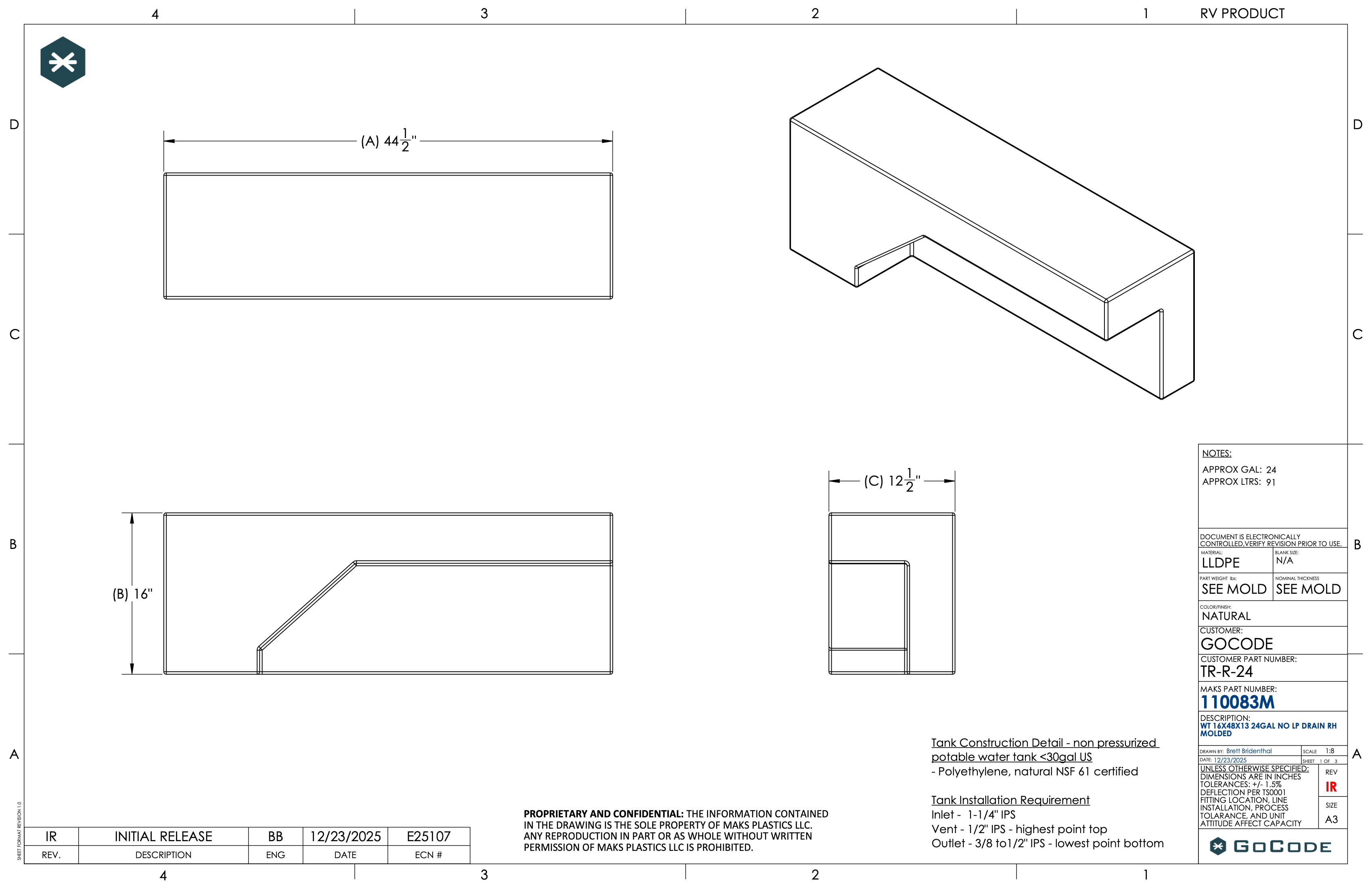

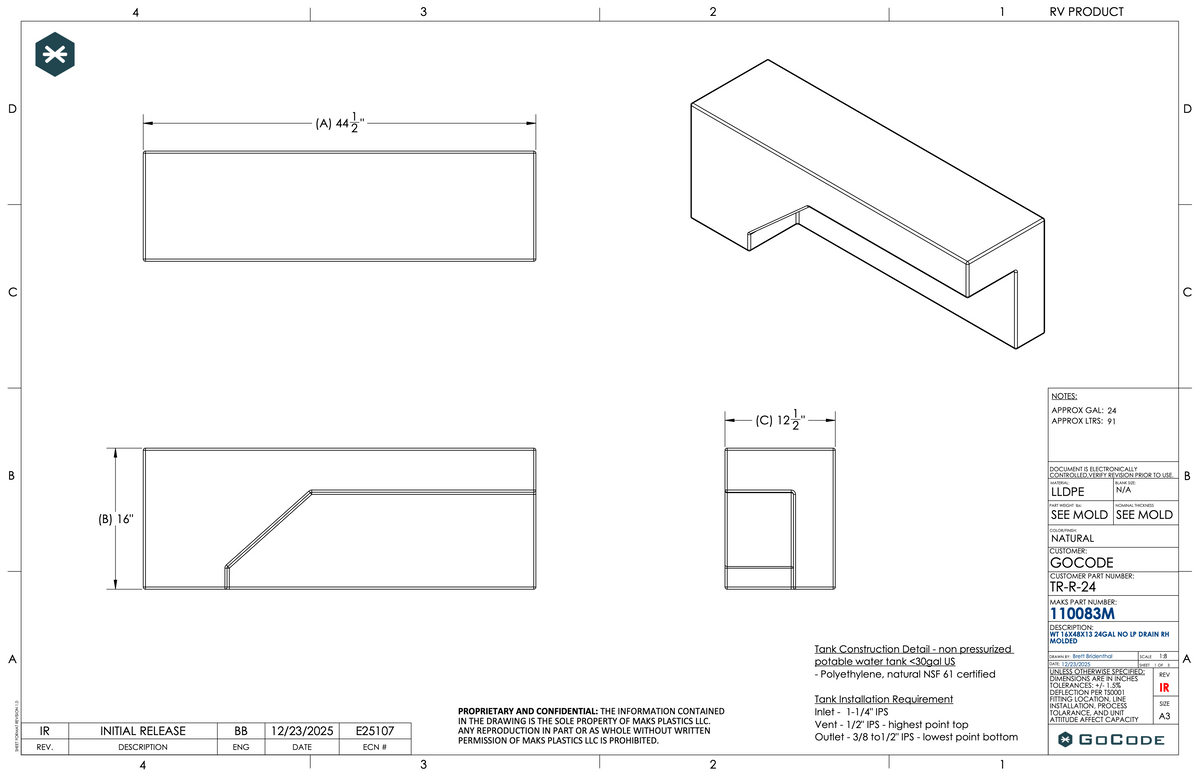

• Nominal dimensions: 44.5" L x 12.5" W x 16" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 24 gallons
• Dry Weight: 22 lbs
• Filled Weight: 222 lbs
• Recommended sensor: KUS S5U-15
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• Made in the USA
• IAPMO TS 4 Certified
• TEI listed and RVIA approved

Ports & Plumbing

• (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the rectangular end
• (1) 1/2" NPT port on the open end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

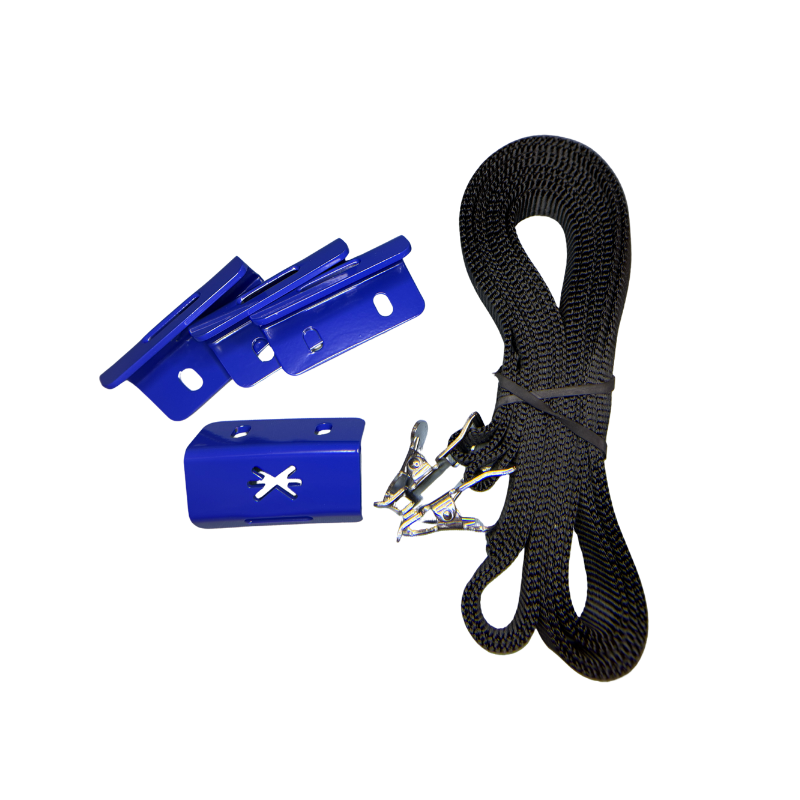

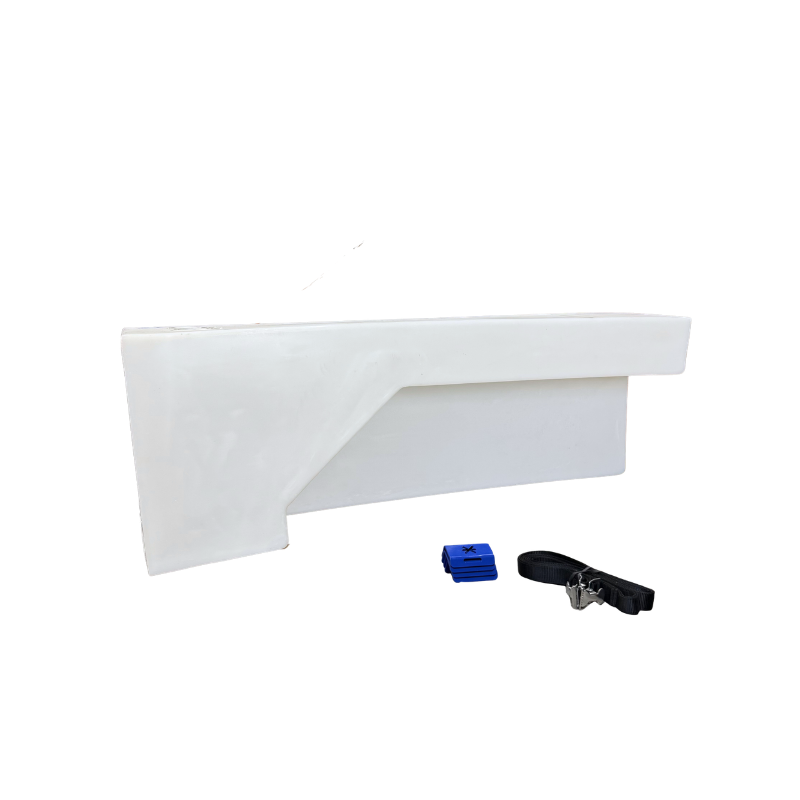

What's Included

• Water Tank

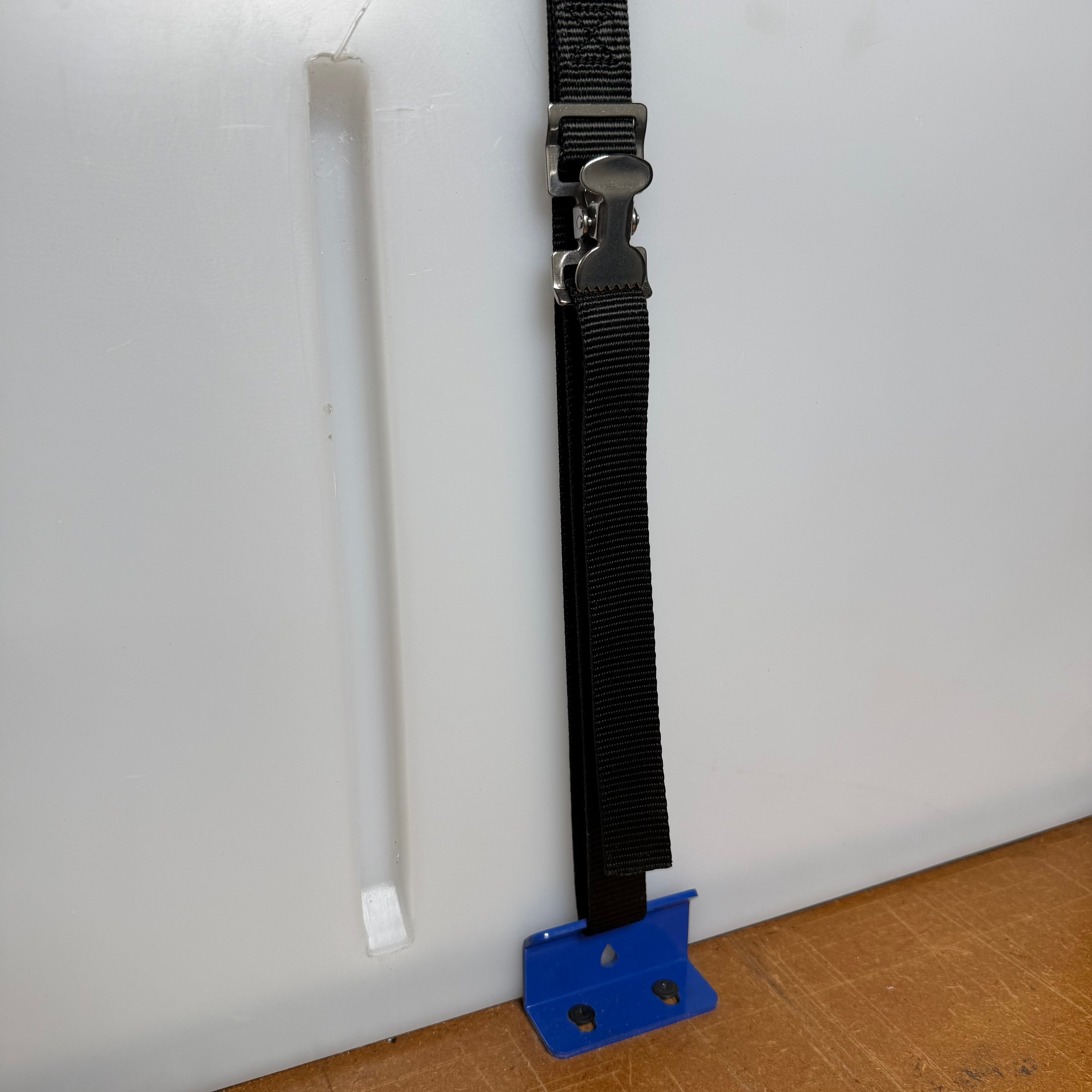

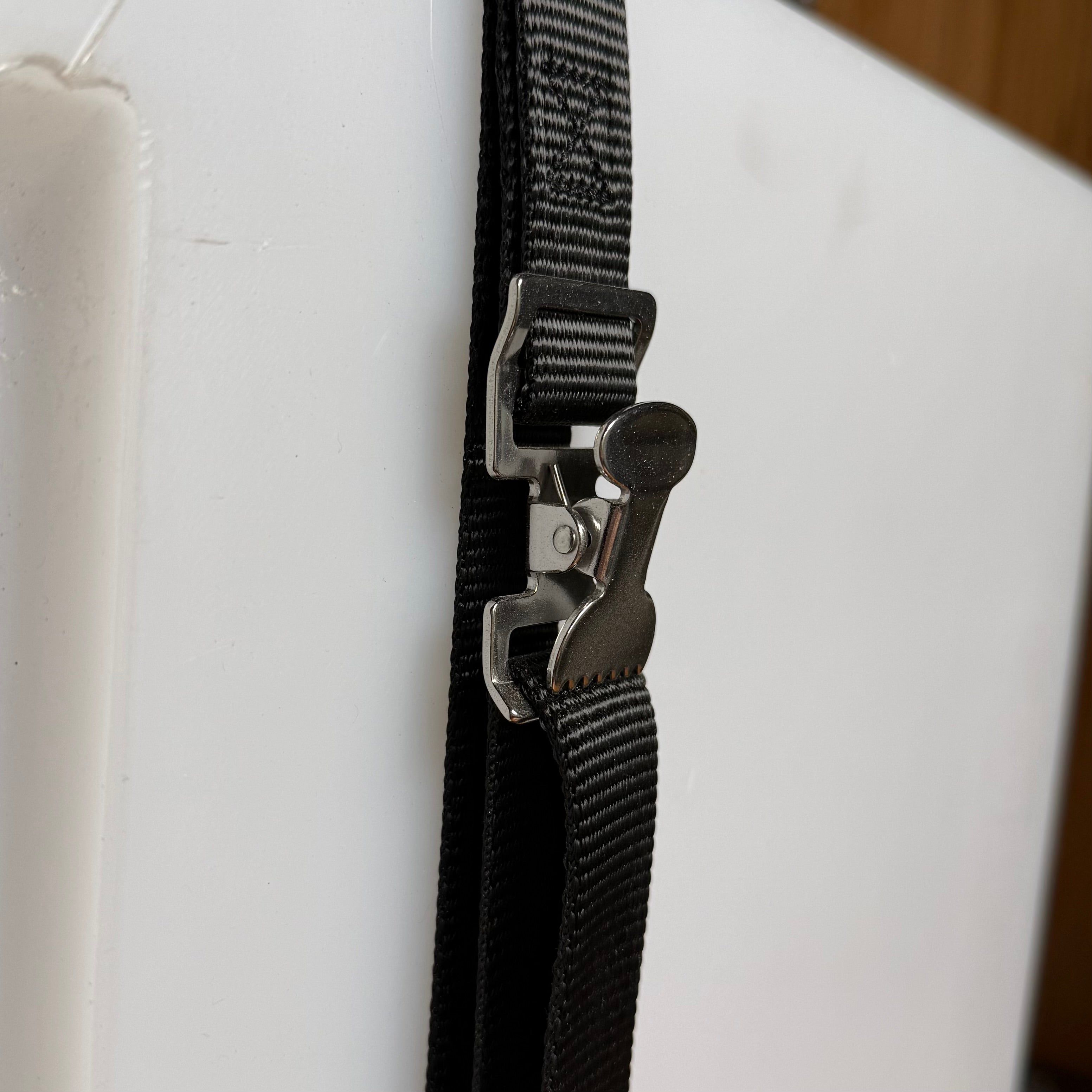

• (x2) Adjustable straps

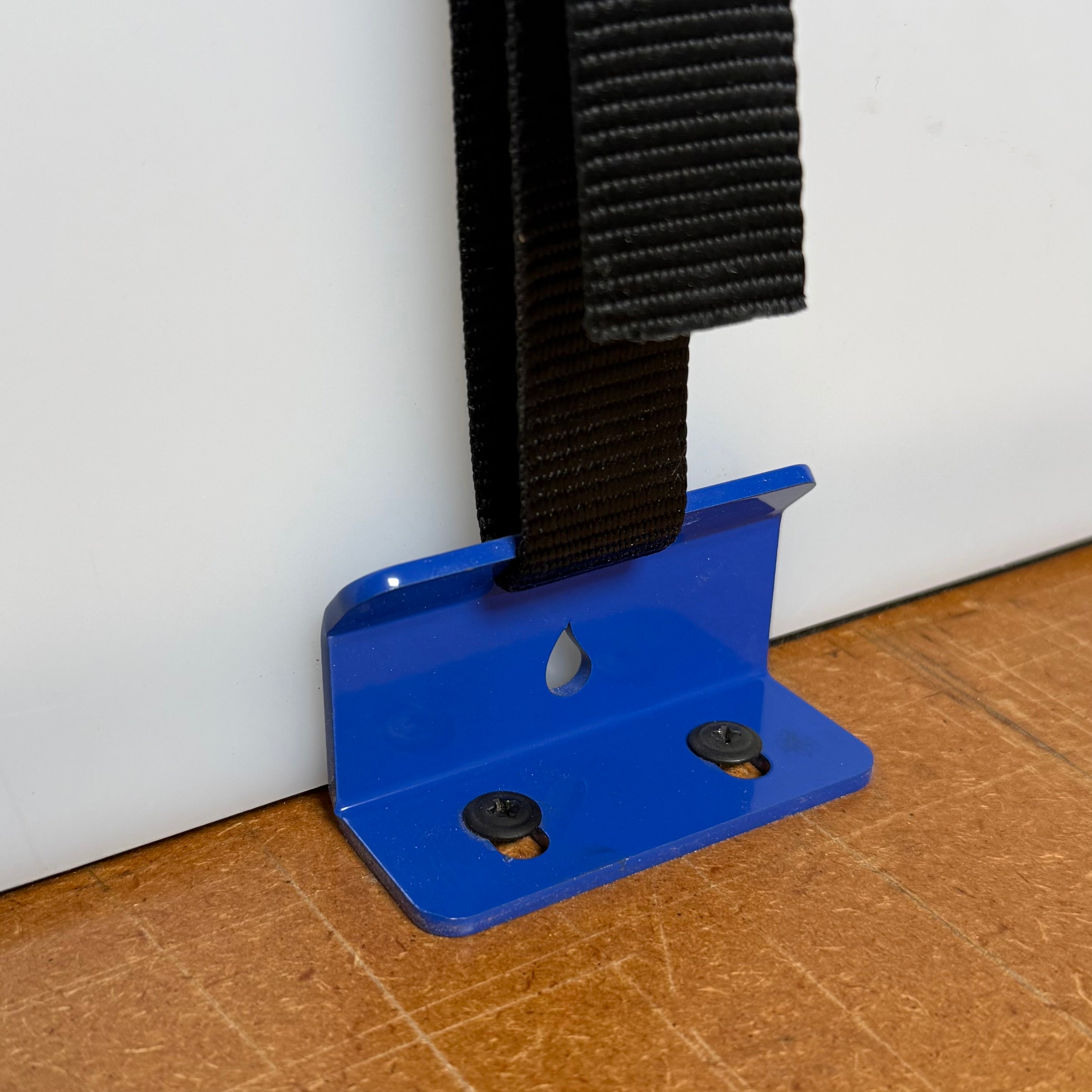

• (x4) Mounting brackets

Compatibility & Fitment

• Designed specifically for the Transit van
• May also fit other makes and models

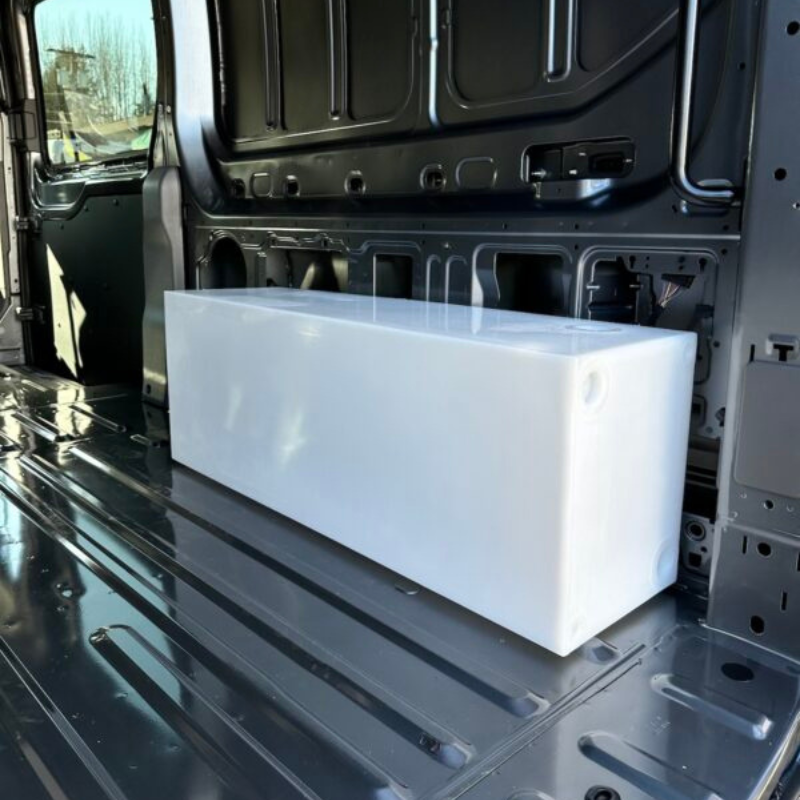

• Passenger side: tank sits with majority rear of wheel well
• Driver side: tank sits with majority front of wheel well

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
